Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

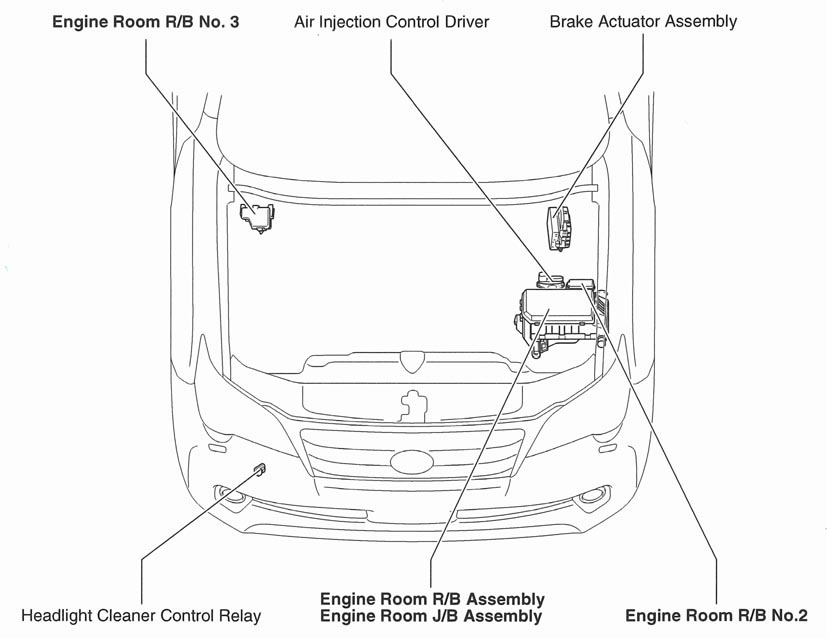

Engine Room J/B Assembly Left side of engine compartment. See Figure.
Engine Room R/B Assembly Left side of engine compartment. See Figure.
Engine Room R/B No. 2 Left side of engine compartment. See Figure.
Engine Room R/B No. 3 Right side of engine compartment. See Figure.

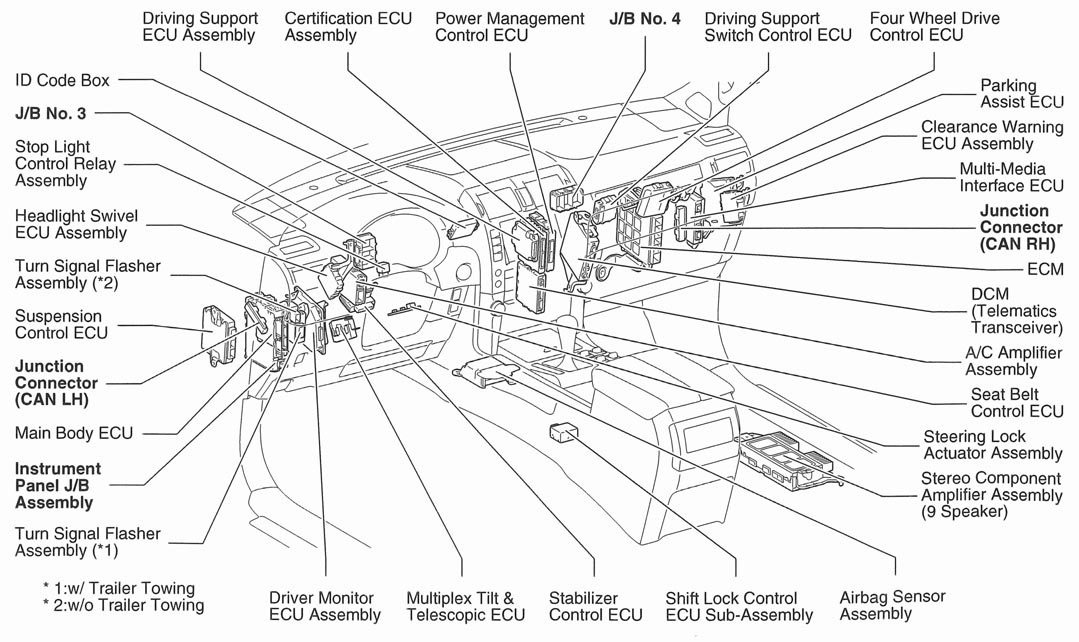

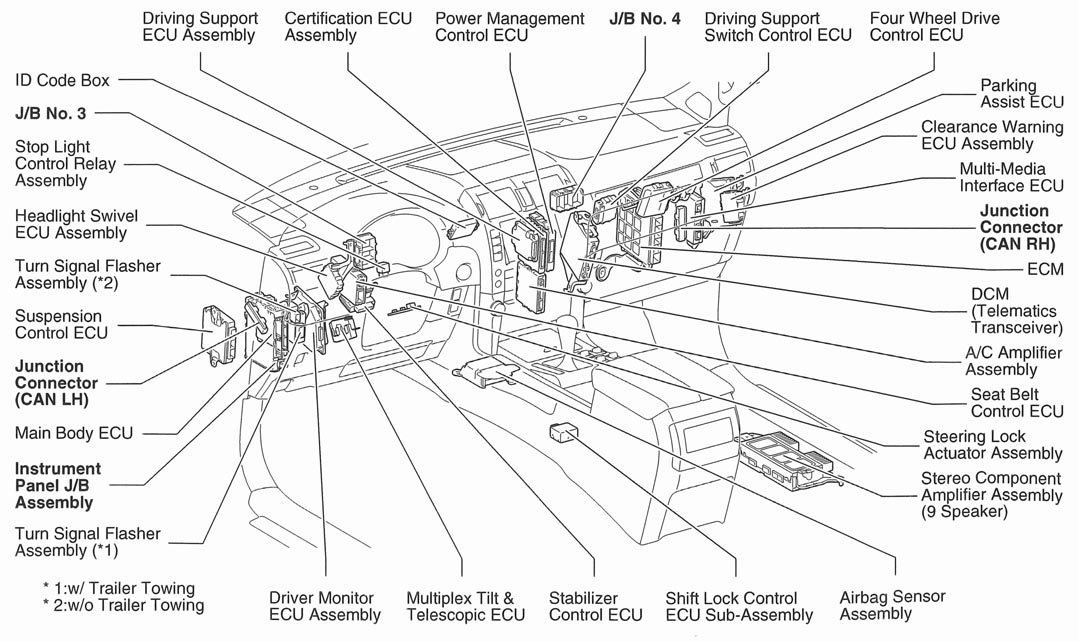

Instrument Panel J/B Assembly Left side of dash. See Figure.
J/B No. 3 Left side of dash. See Figure.
J/B No. 4 Center of dash. See Figure.
