Electrical Component Locator: Miscellaneous

MISCELLANEOUS LOCATION

Component Location

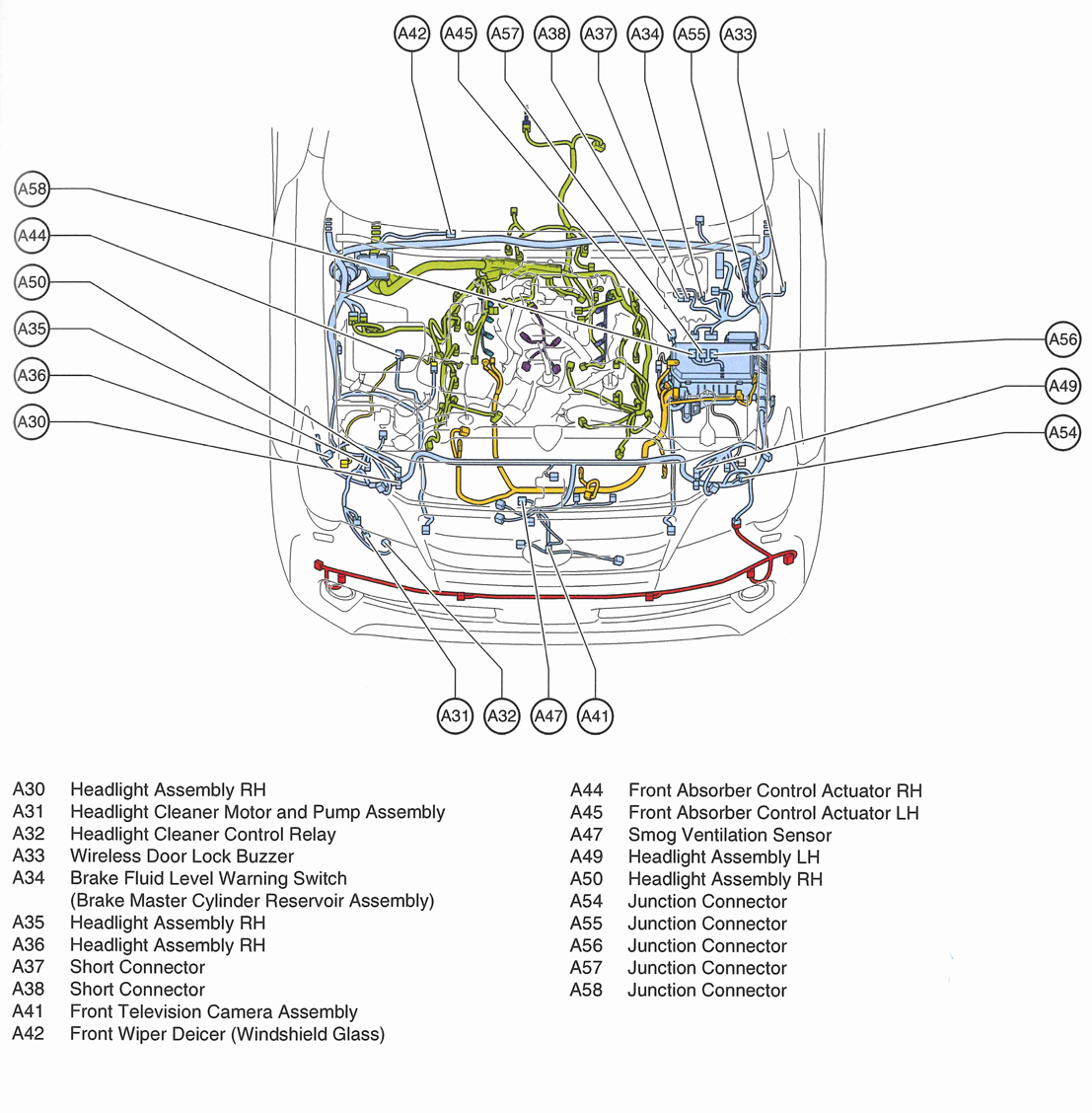

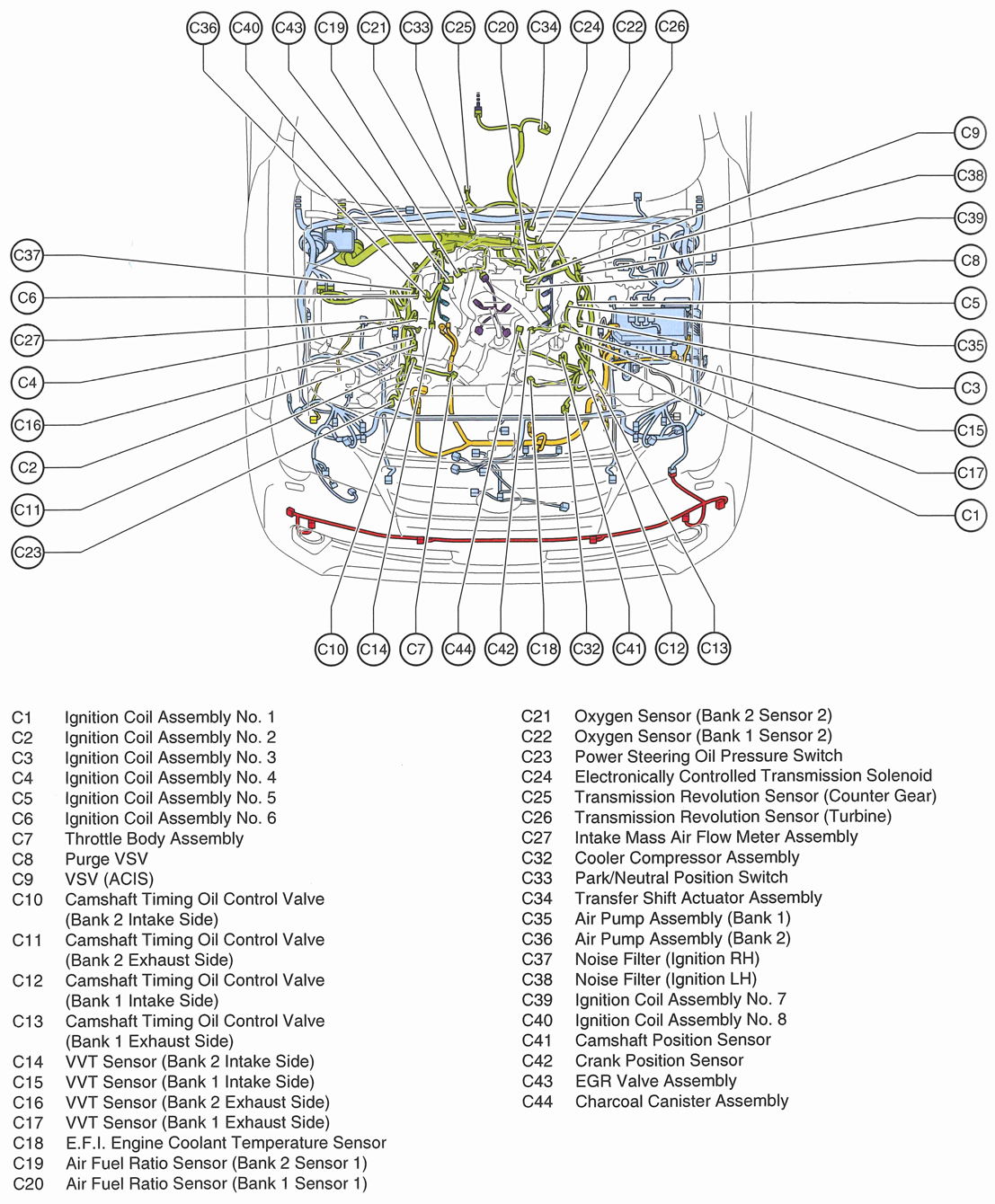

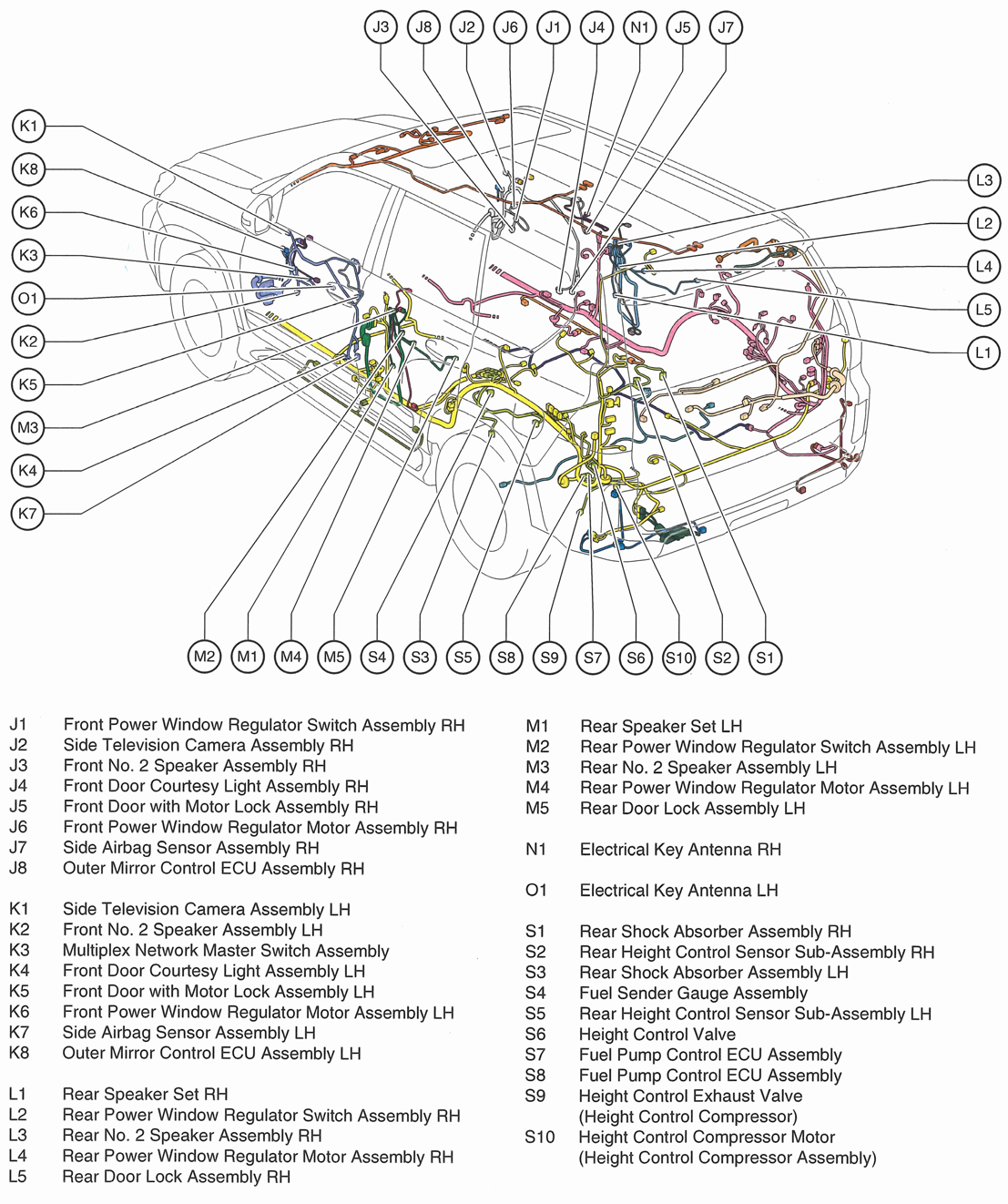

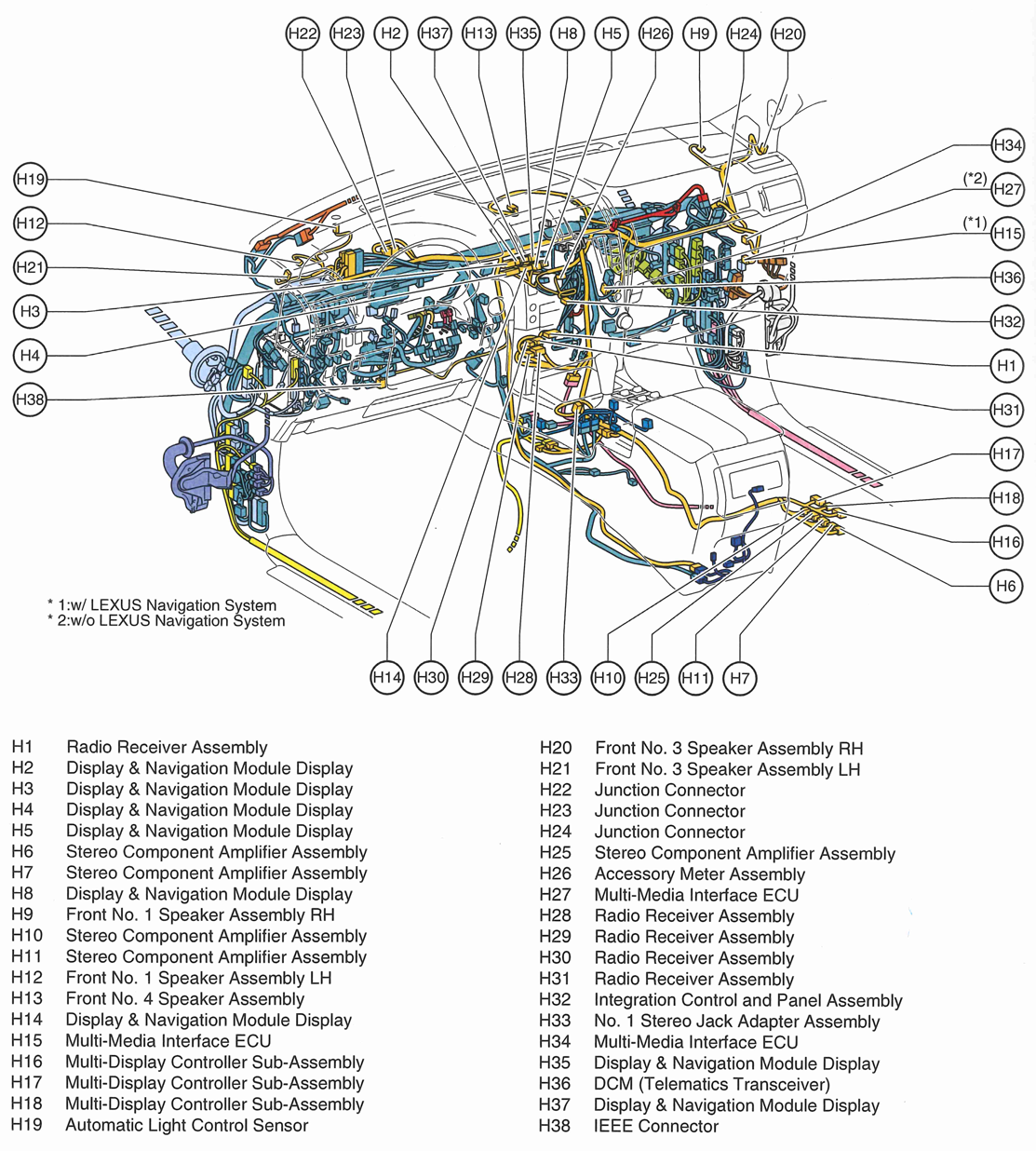

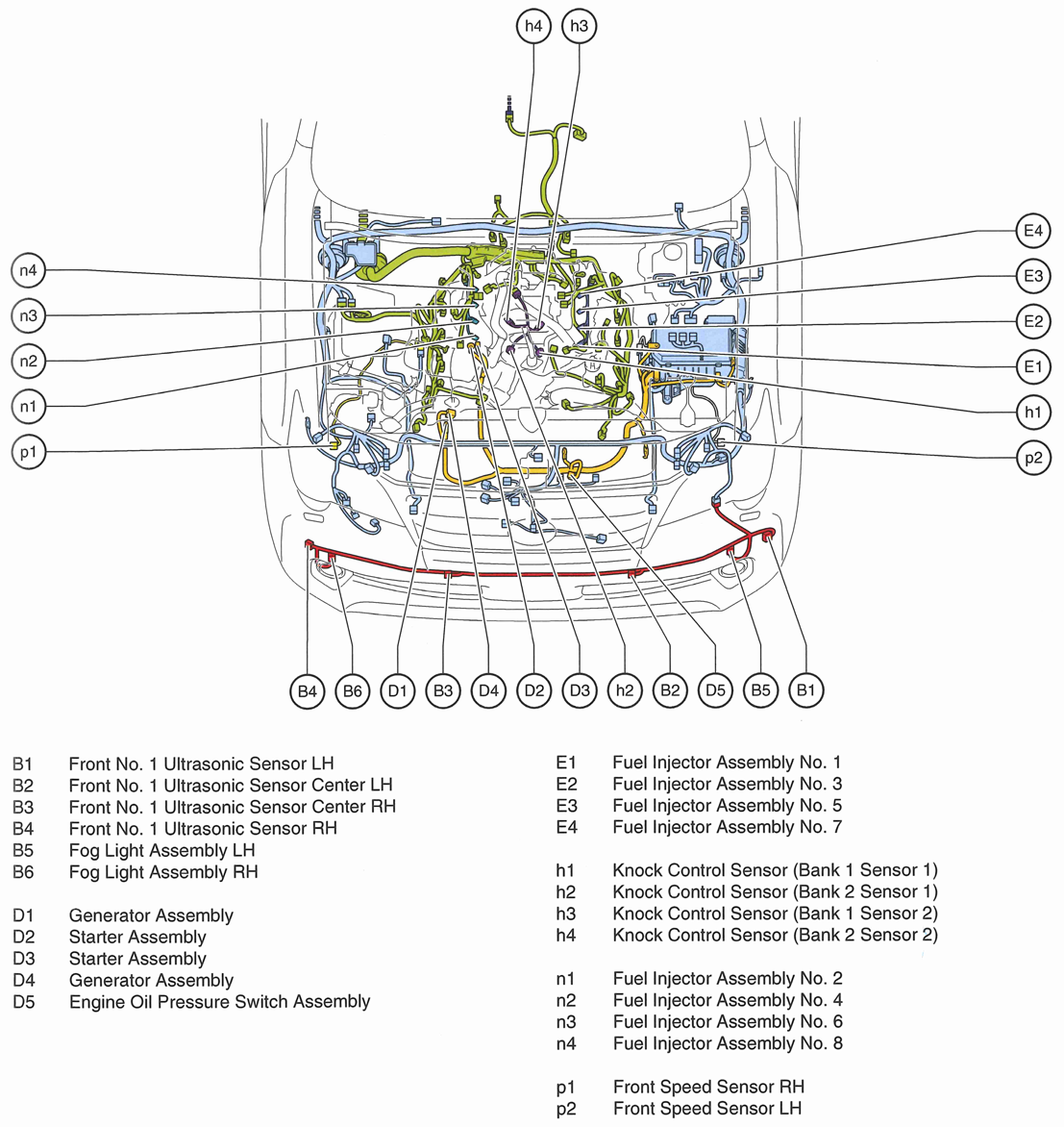

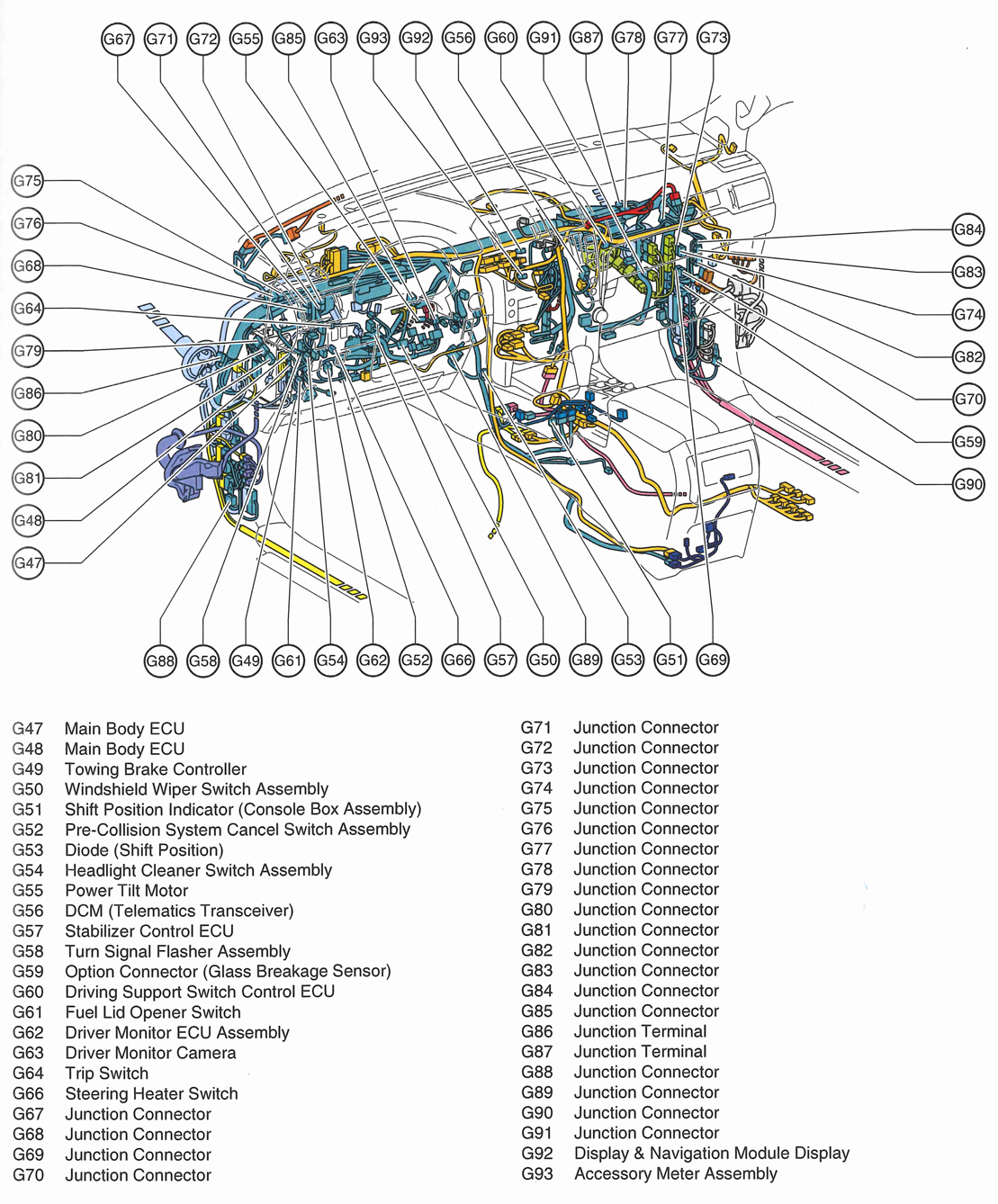

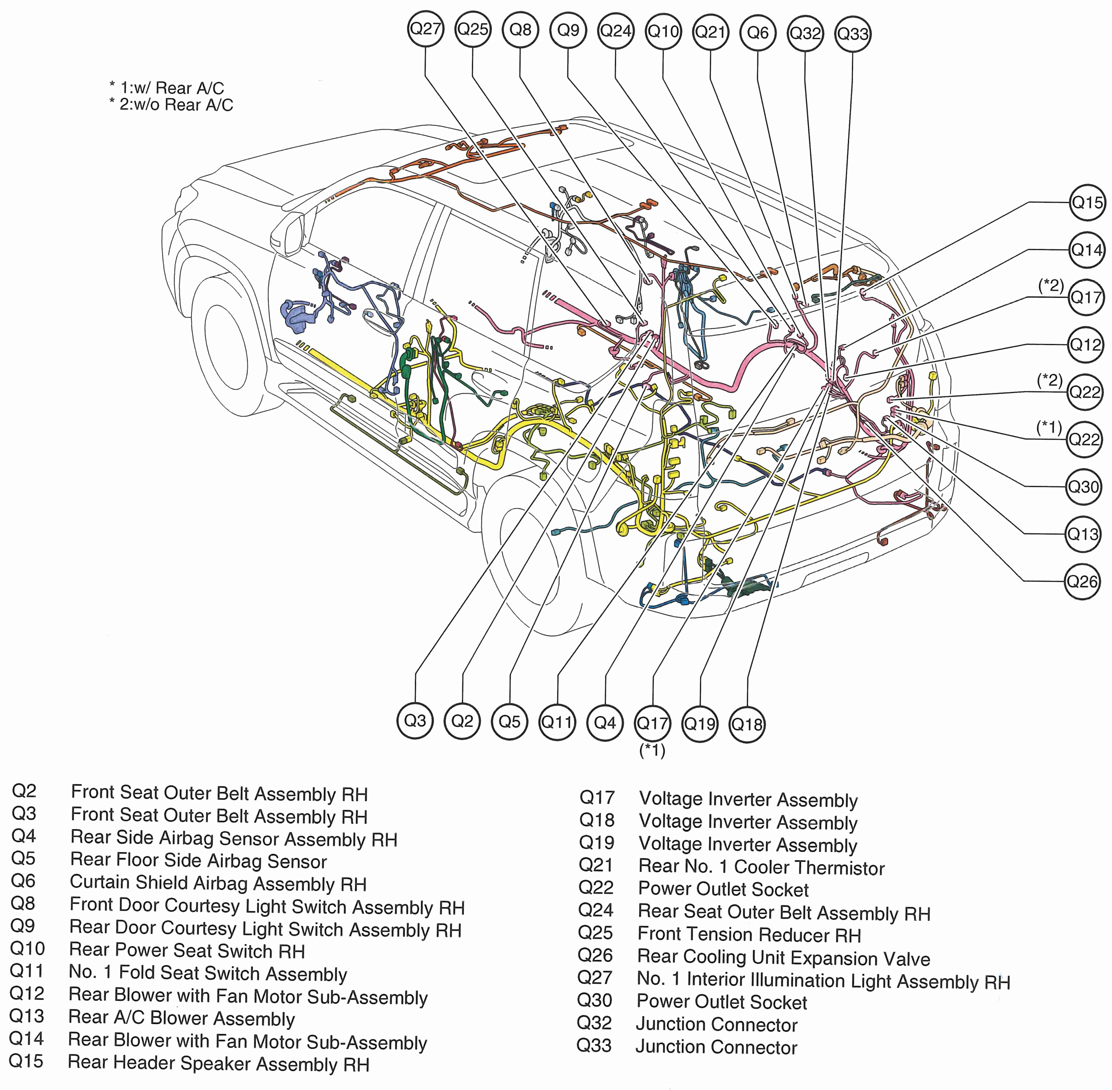

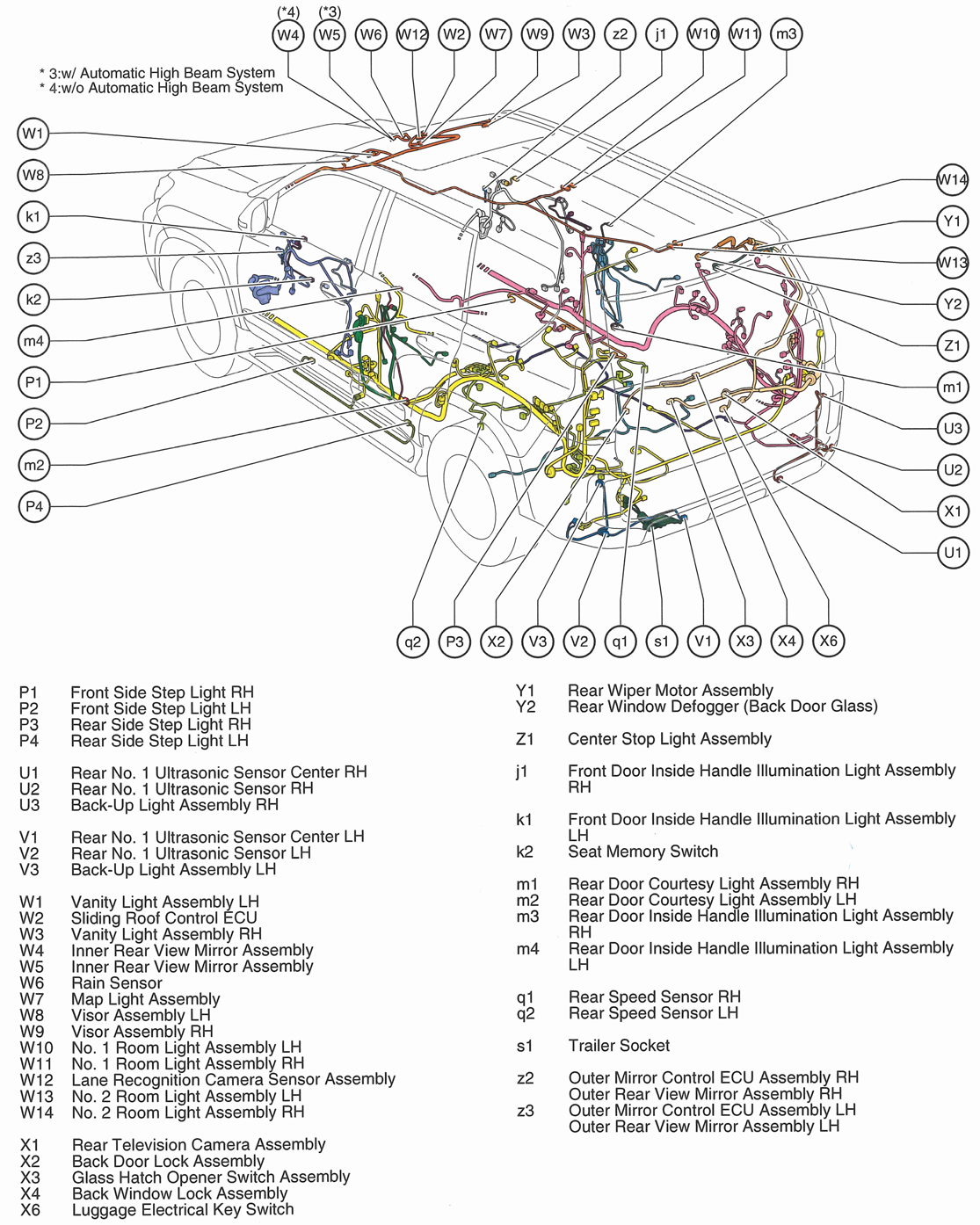

Air Injection Control Driver Left side of engine compartment. See Figure.
Charcoal Canister Assembly Front of engine. See Figure.
Cooling Block Assembly Below center console. See Figure.
Curtain Shield Airbag Assembly Left "B" pillar. See Figure.
Data Link Connector 3 Left side of dash. See Figure.
Diode (Shift Position) Center of dash. See Figure.
Diode (Stop Light) Left side of dash. See Figure.
Door Control Receiver Right "C" pillar. See Figure.
Driver Side Squib Circuit Left side of dash. See Figure.
Driver Side Squib 2nd Step Circuit Left side of dash. See Figure.
Electrical Key Antenna In respective door. See Figure.
Front Passenger Side Squib Circuit Right side of dash. See Figure.
Front Seat Heater Assembly Front passenger's seat. See Figure.
Front Seat Inner Belt Assembly Under driver's seat. See Figure.
Front Seat Inner Belt Assembly RH Under front passenger's seat. See Figure.
Front Seat Outer Belt Assembly LH Left "B" pillar. See Figure.
Front Seat Outer Belt Assembly RH Base of left "B" pillar. See Figure.
Front Side Airbag Squib Circuit LH Under driver's seat. See Figure.
Front Side Airbag Squib Circuit RH Under front passenger's seat. See Figure.
Front Television Camera Assembly Front bumper. See Figure.
Front Tension Reducer LH Base of left "B" pillar. See Figure.
Generator Assembly Right front of engine. See Figure.
ID Code Box Center of dash. See Figure.
Ignition Coil Assembly No. 1 Top left of engine. See Figure.
Ignition Coil Assembly No. 2 Top right of engine. See Figure.
Ignition Coil Assembly No. 3 Top left of engine. See Figure.
Ignition Coil Assembly No. 4 Top right of engine. See Figure.
Ignition Coil Assembly No. 5 Top left of engine. See Figure.
Ignition Coil Assembly No. 6 Top right of engine. See Figure.
Ignition Coil Assembly No. 7 Top left of engine. See Figure.
Ignition Coil Assembly No. 8 Top right of engine. See Figure.
Junction Connector A17 Under front passenger's seat. See Figure.
Junction Connector A53 Right side of dash. See Figure.
Junction Connector A54 Left front of engine compartment. See Figure.
Junction Connector A55 Left rear of engine compartment. See Figure.
Junction Connector B11 Under driver's seat. See Figure.
Junction Connector B12 Under driver's seat. See Figure.
Junction Connector (CAN LH) Left side of dash. See Figure.
Junction Connector (CAN RH) Right side of dash. See Figure.

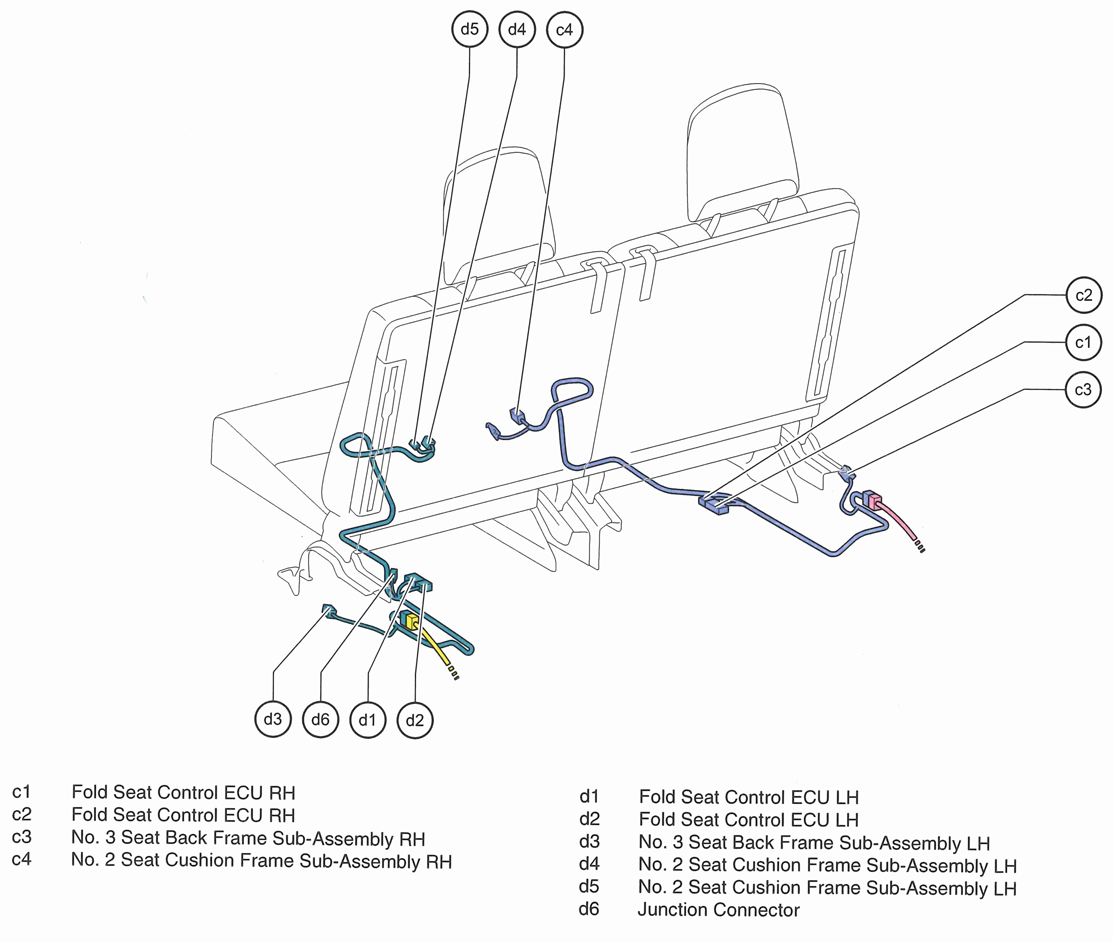

Junction Connector D6 Under rear no. 2 seat. See Figure.
Junction Connector G85 Left side of dash. See Figure.
Junction Connector G88 Left side of dash. See Figure.
Junction Connector G89 Center of dash. See Figure.
Junction Connector H24 Right side of dash. See Figure.
Junction Connectors A51, A52 & A59 Left side of dash. See Figure.
Junction Connectors A56, A57 & A58 Engine room R/B assembly. See Figure.
Junction Connectors C45, C46 & C47 Right side of dash. See Figure.
Junction Connectors G67 & G68 Left side of dash. See Figure.
Junction Connectors G69 & G70 Right side of dash. See Figure.
Junction Connectors G71 & G72 Left side of dash. See Figure.
Junction Connectors G73 & G74 Right side of dash. See Figure.
Junction Connectors G75 & G76 Left side of dash. See Figure.
Junction Connectors G77 & G78 Right side of dash. See Figure.
Junction Connectors G79, G80 & G81 Left side of dash. See Figure.
Junction Connectors G82, G83 & G84 Right side of dash. See Figure.
Junction Connectors G90 & G91 Lower left side of dash. See Figure.
Junction Connectors H22 & H23 Left side of dash. See Figure.
Junction Connectors Q32 & Q33 Right side of cargo area. See Figure.
Junction Connectors R37, R38 & R41 Left side of cargo assembly. See Figure.
Junction Connectors R39 & R40 Base of left "C" pillar. See Figure.
Junction Terminal G86 Left side of dash. See Figure.
Junction Terminal G87 Right side of dash. See Figure.
Lower No. 1 Instrument Panel Airbag Assembly Left side of dash. See Figure.
Lower No. 2 Instrument Panel Airbag Assembly Right side of dash. See Figure.
Navigation Antenna Assembly Center of dash. See Figure.
Outside Luggage Electrical Key Antenna Rear bumper. See Figure.
Radio Receiver Assembly Center of dash. See Figure.
Rear Cooling Unit Expansion Valve Right side of cargo area. See Figure.
Rear No. 1 Cooler Thermistor Base of right "C" pillar. See Figure.
Rear Seat Heater Assembly LH Left side of rear seat. See Figure.
Rear Seat Heater Assembly RH Right side of rear seat. See Figure.
Rear Seat Outer Belt Assembly LH Left "C" pillar. See Figure.
Rear Seat Outer Belt Assembly RH Right "C" pillar. See Figure.

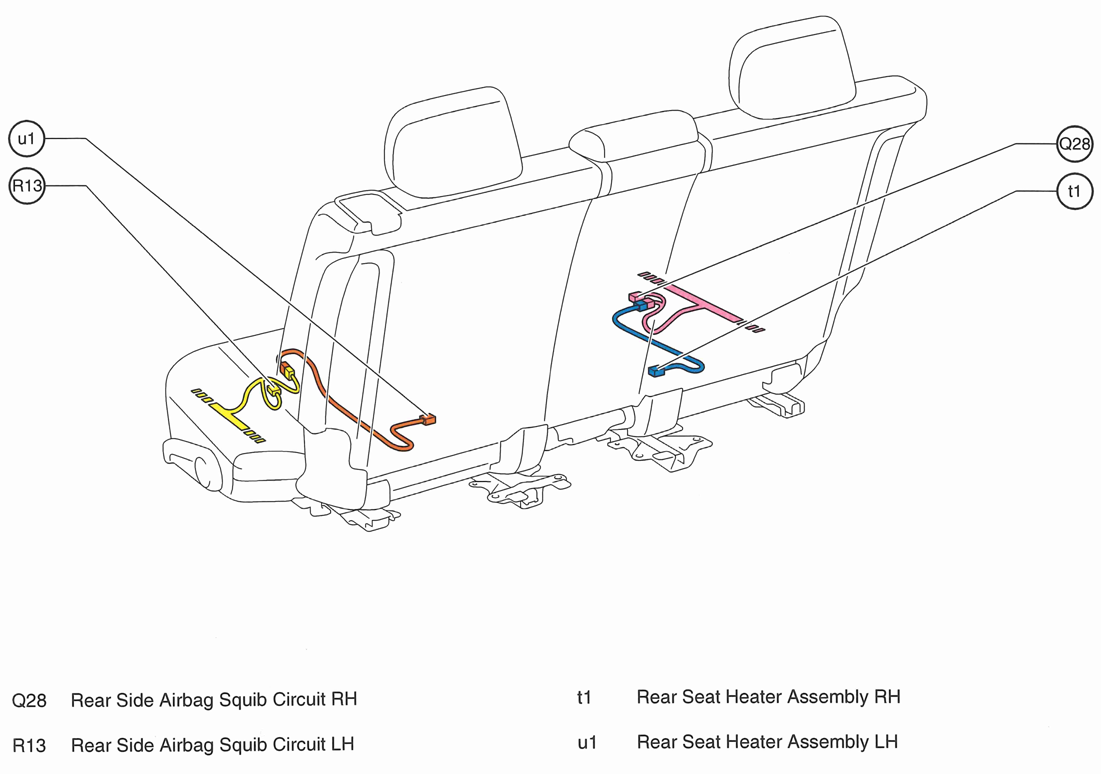

Rear Side Airbag Squib Circuit LH Left side of rear seat. See Figure.
Rear Side Airbag Squib Circuit RH Right side of rear seat. See Figure.
Rear Television Camera Assembly Luggage compartment. See Figure.
Seat Back Climate Control Blower Respective front seat back. See Figure.
Seat Cushion Climate Control Blower Assembly Under respective seat. See Figure.
Starter Assembly Top of engine. See Figure.
Stereo Component Amplifier Assembly (9 Speaker) Under front passenger's seat. See Figure.
Stereo Component Amplifier Assembly (17 Speaker) Left rear of cargo area. See Figure.

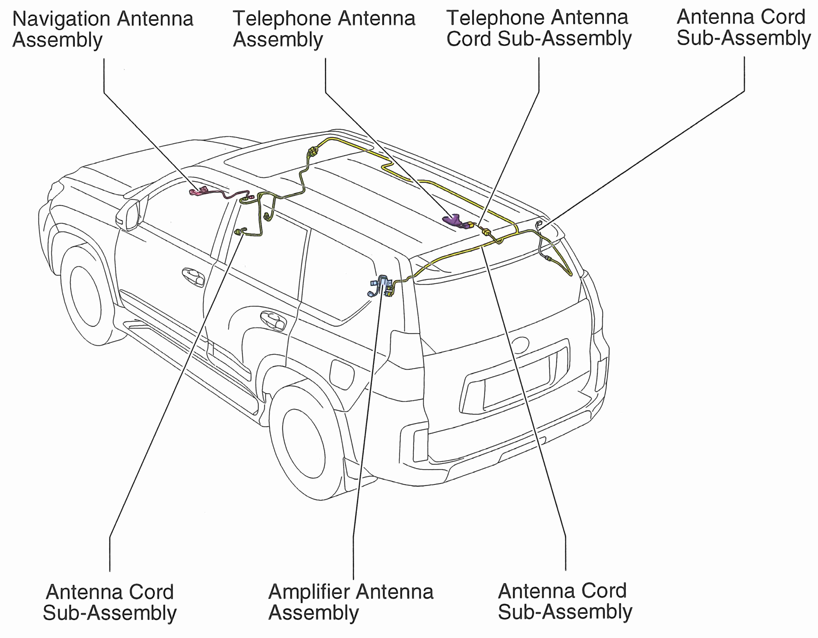

Telephone Antenna Assembly Rear of roof. See Figure.
Throttle Body Assembly Top front of engine. See Figure.
Towing Brake Controller Left side of dash. See Figure.
Voltage Inverter Assembly Right side of cargo area. See Figure.
