Skid Control Buzzer: Installation: Installation

  1. INSTALL SKID CONTROL BUZZER ASSEMBLY
    1. Connect the skid control buzzer connector.

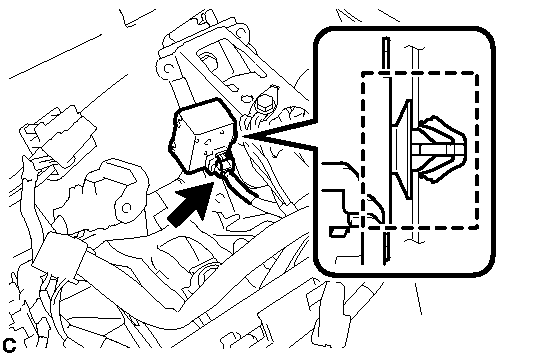

      Fig 1: Connecting The Skid Control Buzzer Connector
      GTY284294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the skid control buzzer assembly.
  2. INSTALL POWER STEERING ECU ASSEMBLY

    HINT:

    Refer to the procedure from Install Power Steering ECU Assembly. Refer to INSTALLATION .
