Audio System (w/o LEXUS Navigation System) and Safety Connect: Notes

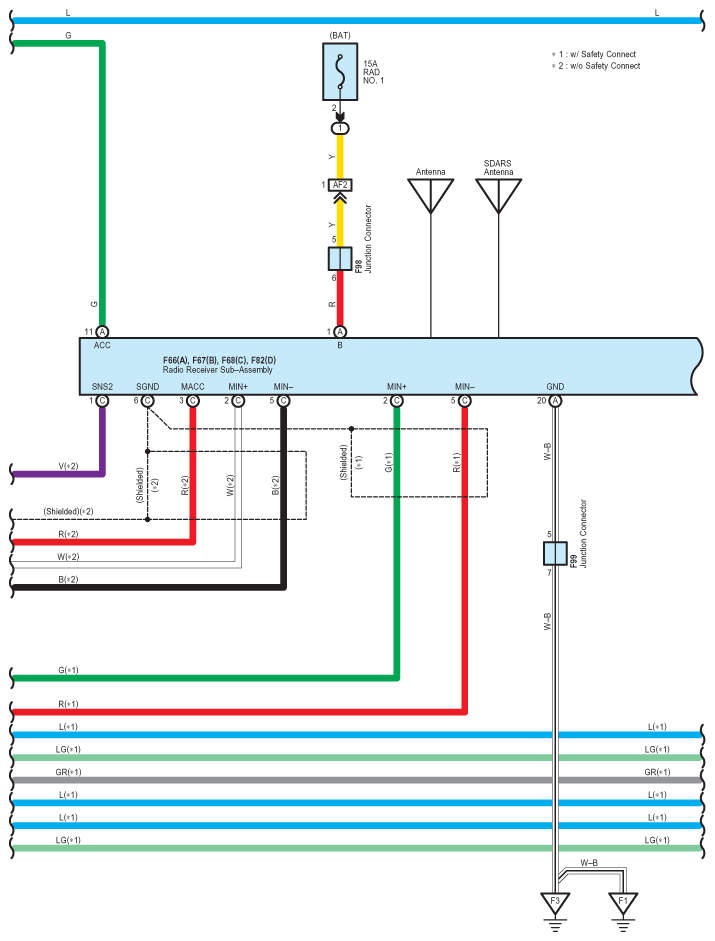

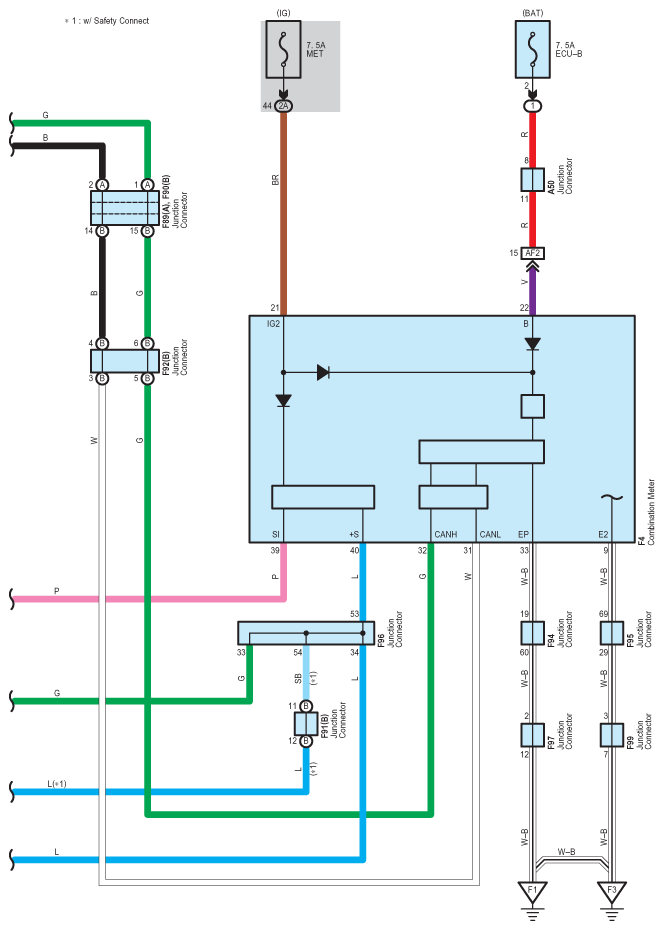

Fig 1: Audio System (W/O Lexus Navigation System) And Safety Connect - Circuit Diagram (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

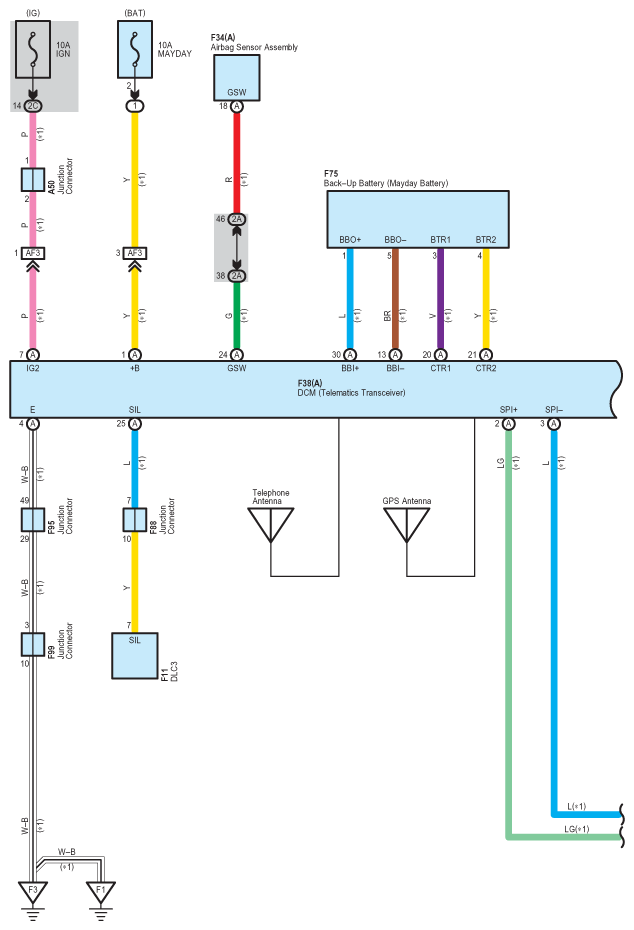

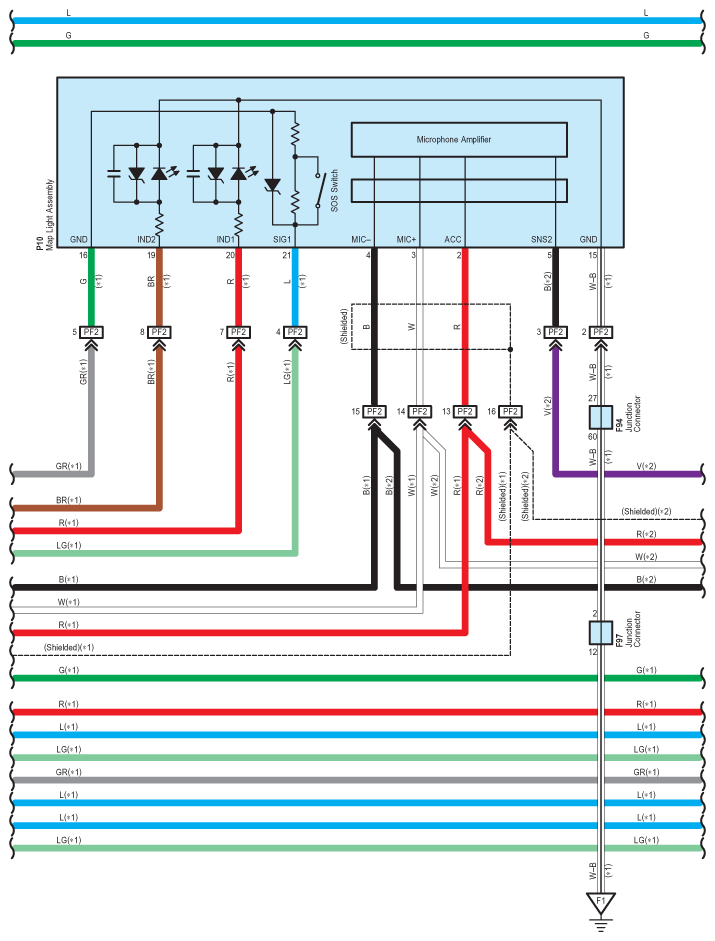

Fig 2: Audio System (W/O Lexus Navigation System) And Safety Connect - Circuit Diagram (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

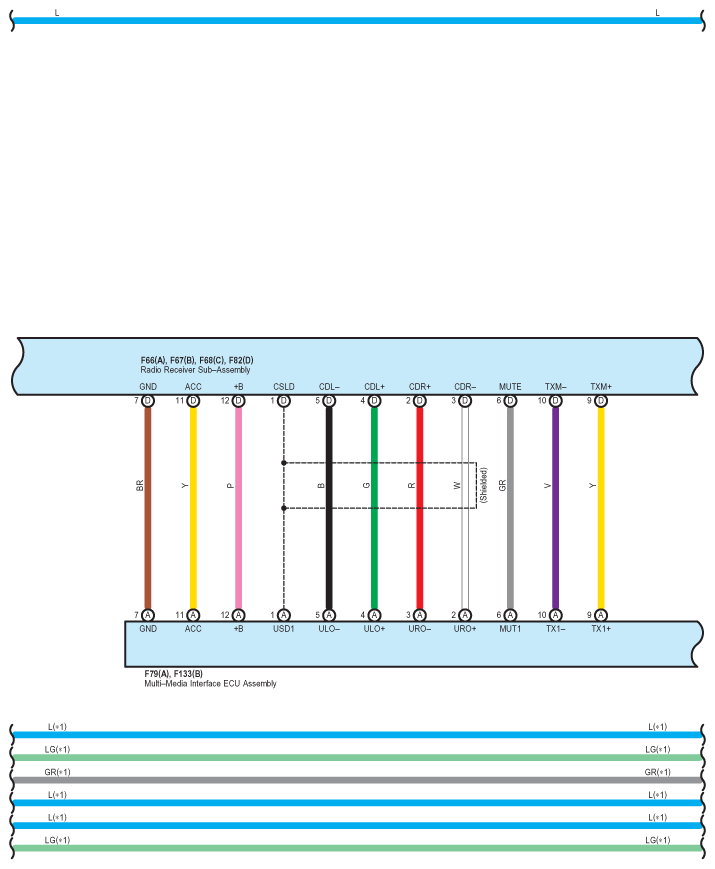

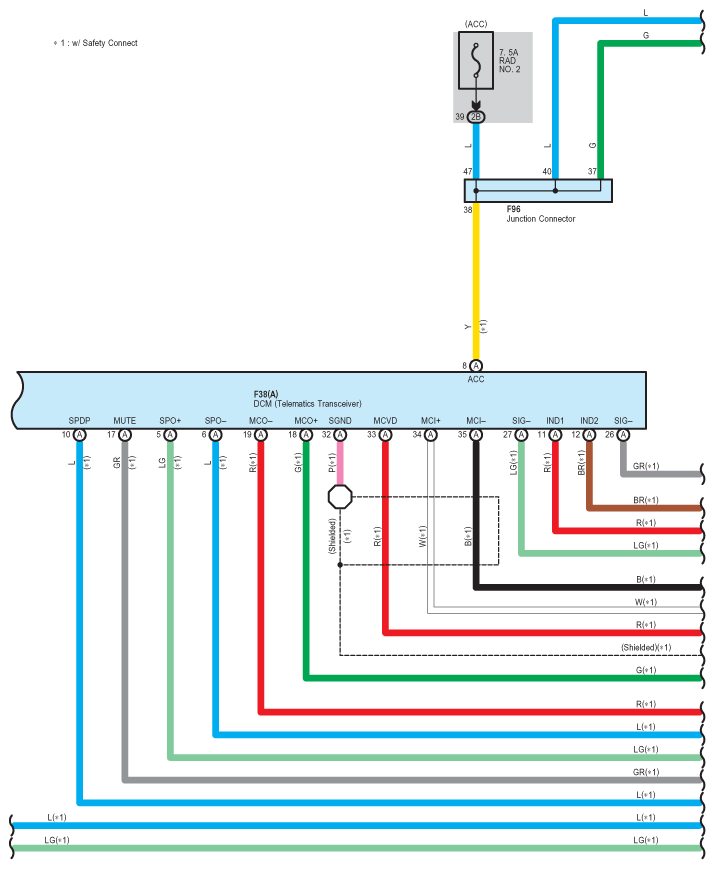

Fig 3: Audio System (W/O Lexus Navigation System) And Safety Connect - Circuit Diagram (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

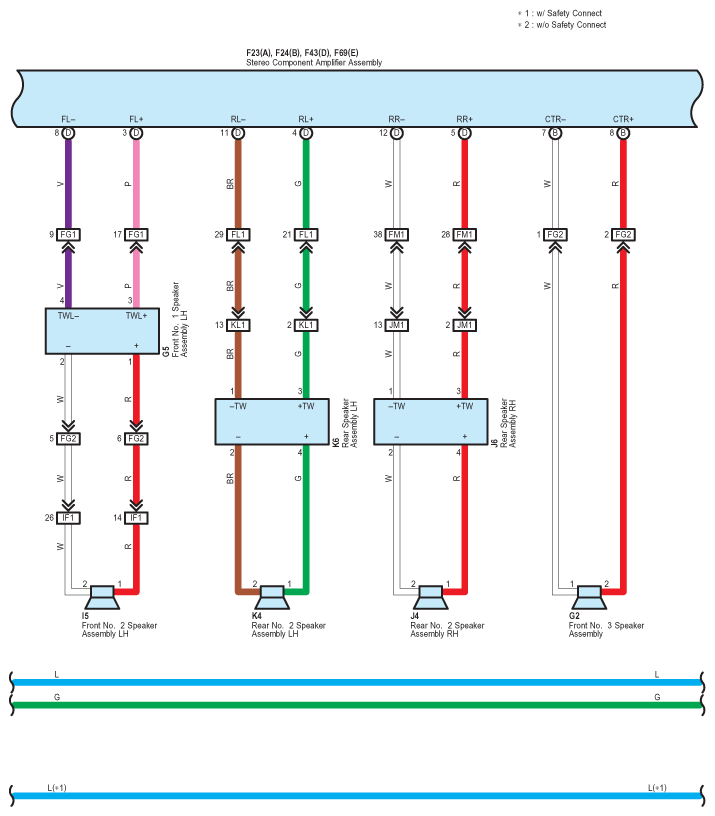

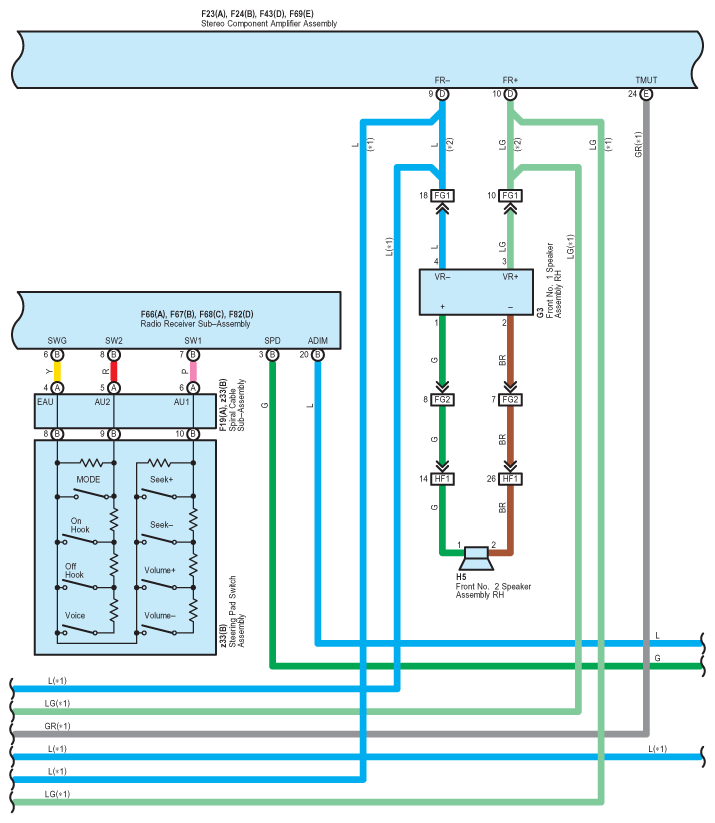

Fig 4: Audio System (W/O Lexus Navigation System) And Safety Connect - Circuit Diagram (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

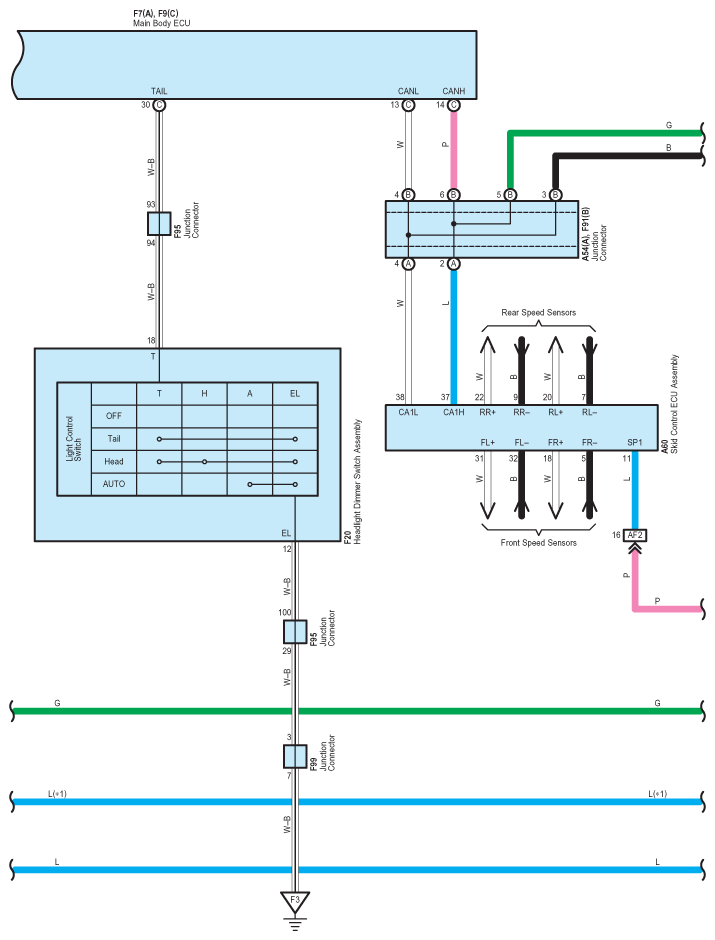

Fig 5: Audio System (W/O Lexus Navigation System) And Safety Connect - Circuit Diagram (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

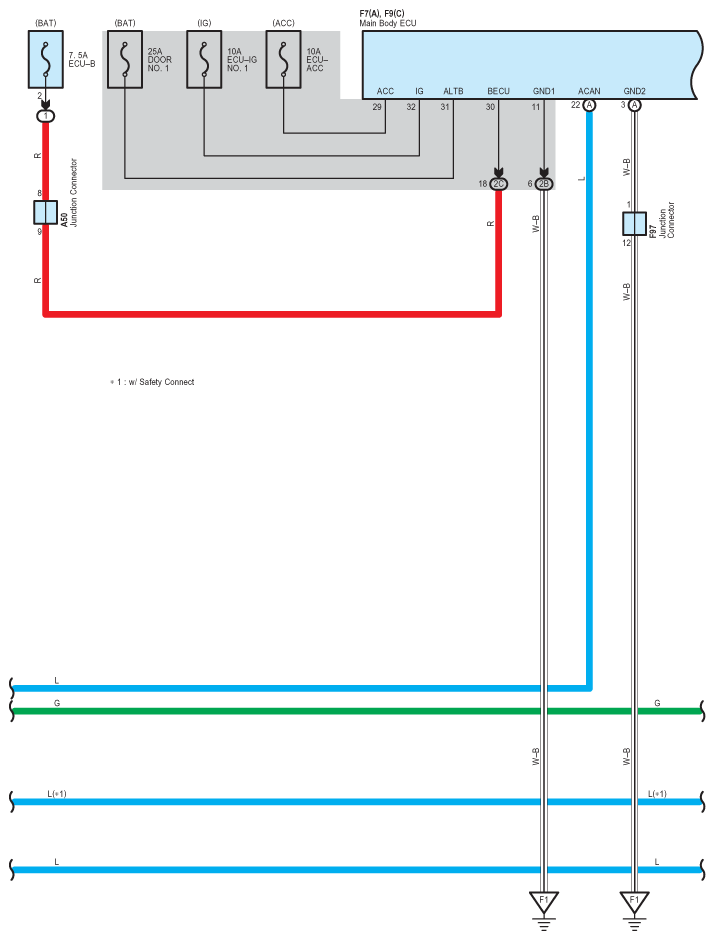

Fig 6: Audio System (W/O Lexus Navigation System) And Safety Connect - Circuit Diagram (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

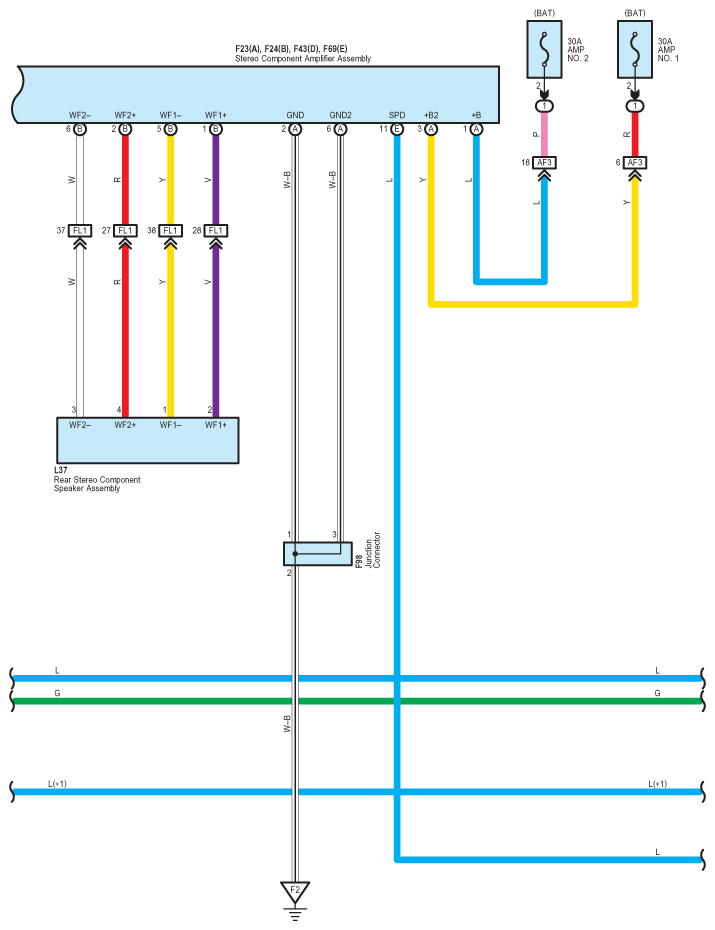

Fig 7: Audio System (W/O Lexus Navigation System) And Safety Connect - Circuit Diagram (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

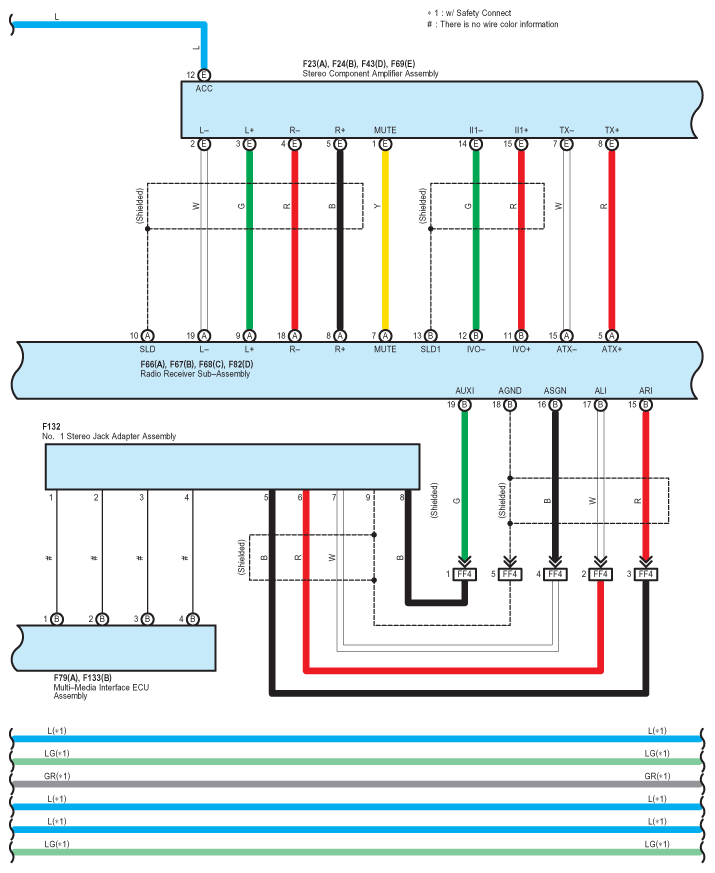

Fig 8: Audio System (W/O Lexus Navigation System) And Safety Connect - Circuit Diagram (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Audio System (W/O Lexus Navigation System) And Safety Connect - Circuit Diagram (9 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Audio System (W/O Lexus Navigation System) And Safety Connect - Circuit Diagram (10 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Audio System (W/O Lexus Navigation System) And Safety Connect - Circuit Diagram (11 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Audio System (W/O Lexus Navigation System) And Safety Connect - Circuit Diagram (12 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
