Hybrid System: Notes

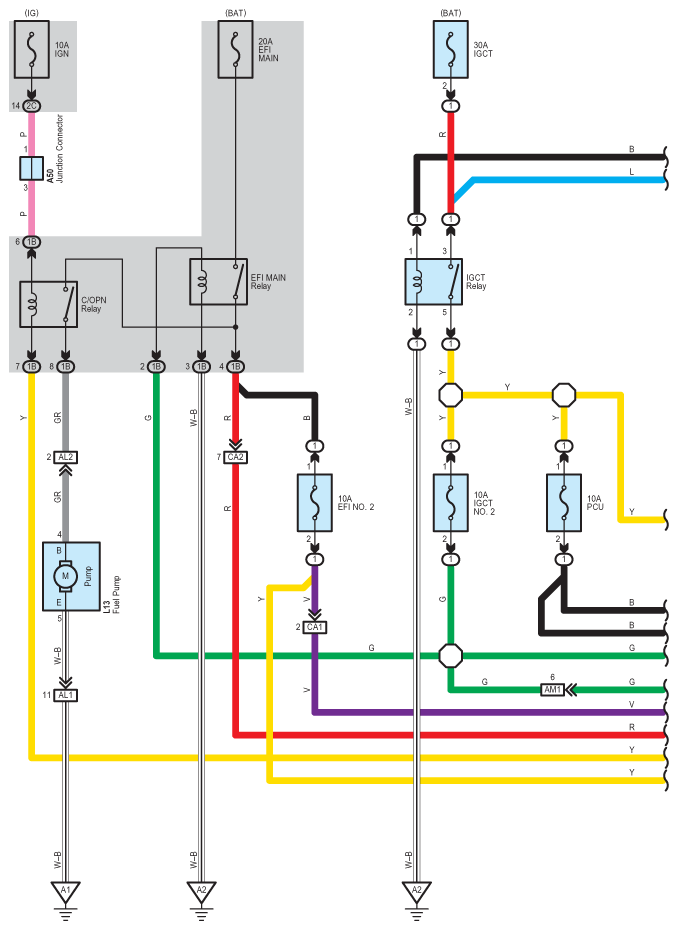

Fig 1: Hybrid System - Circuit Diagram (1 Of 30)

G07558386

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

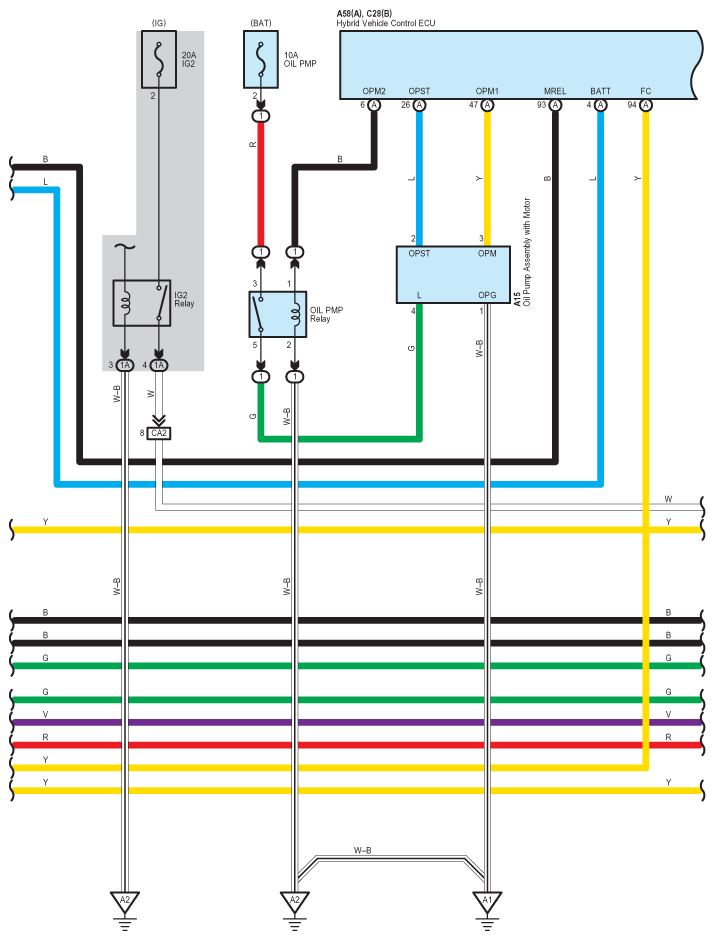

Fig 2: Hybrid System - Circuit Diagram (2 Of 30)

G07558387

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Hybrid System - Circuit Diagram (3 Of 30)

G07558388

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

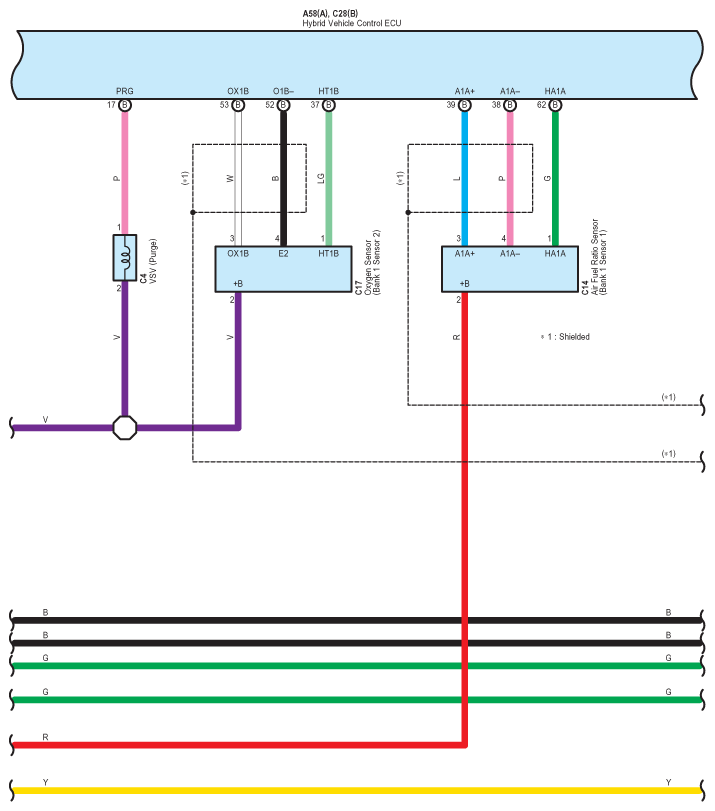

Fig 4: Hybrid System - Circuit Diagram (4 Of 30)

G07558389

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

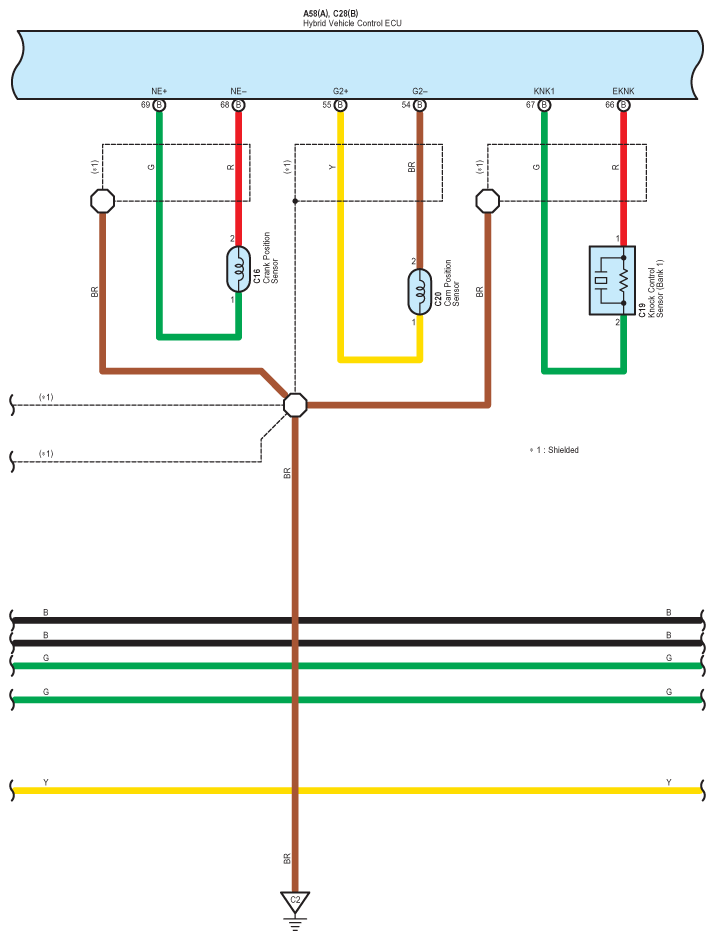

Fig 5: Hybrid System - Circuit Diagram (5 Of 30)

G07558390

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

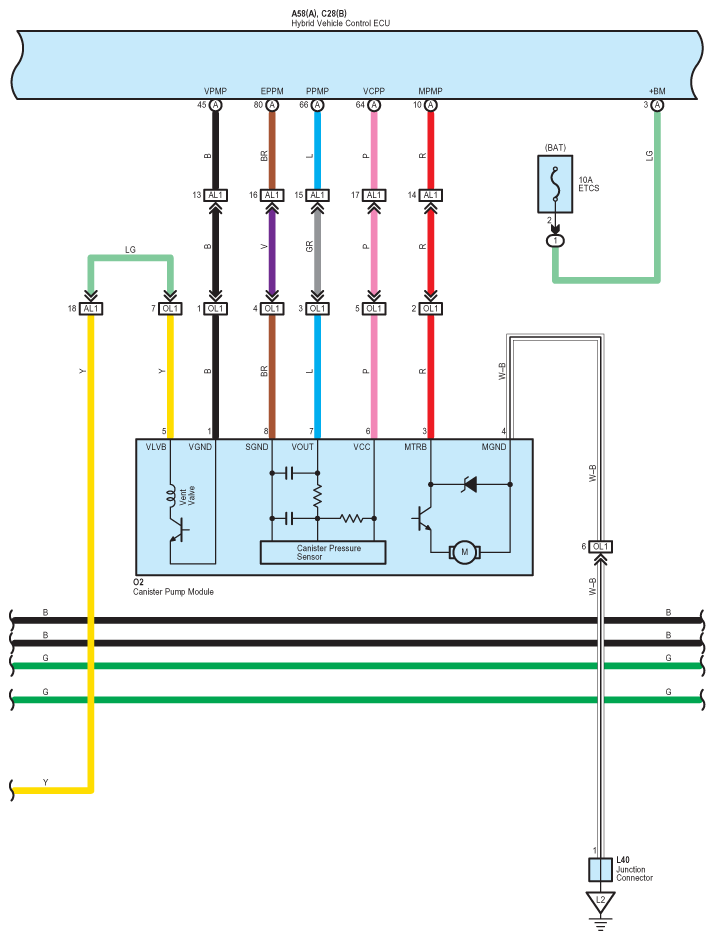

Fig 6: Hybrid System - Circuit Diagram (6 Of 30)

G07558391

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

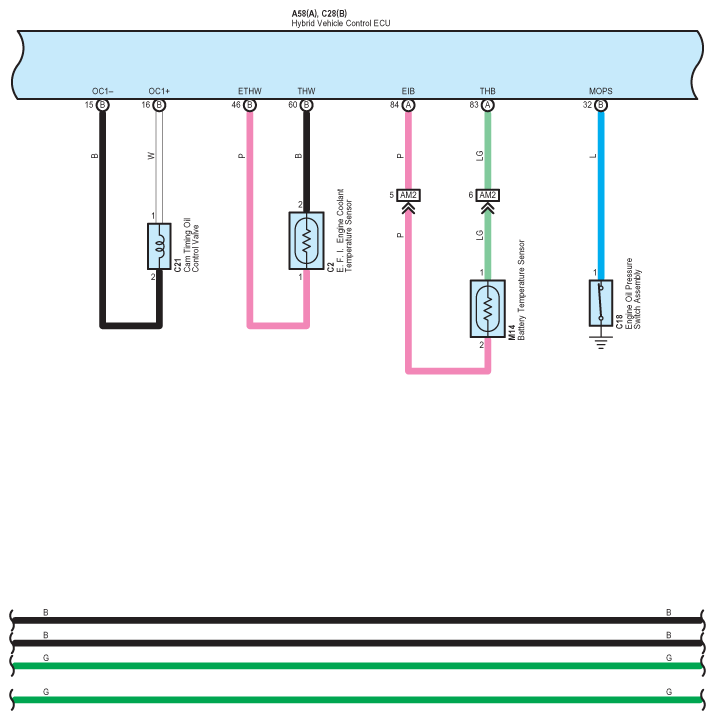

Fig 7: Hybrid System - Circuit Diagram (7 Of 30)

G07558392

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

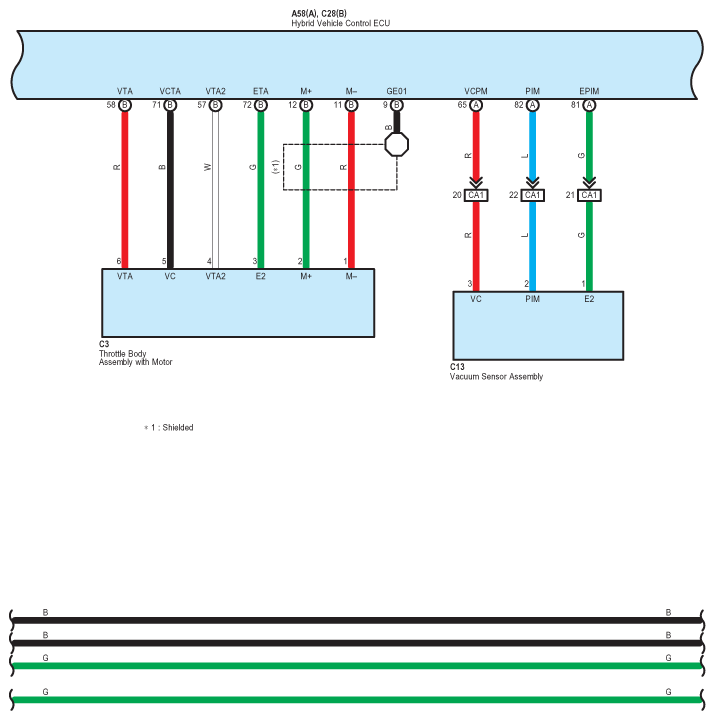

Fig 8: Hybrid System - Circuit Diagram (8 Of 30)

G07558393

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

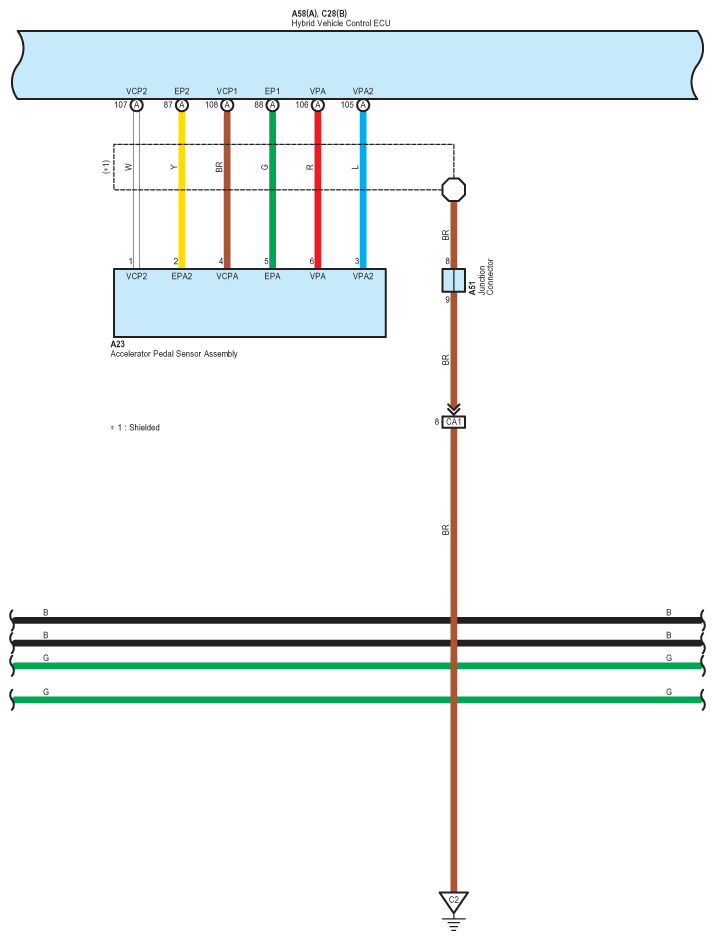

Fig 9: Hybrid System - Circuit Diagram (9 Of 30)

G07558394

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

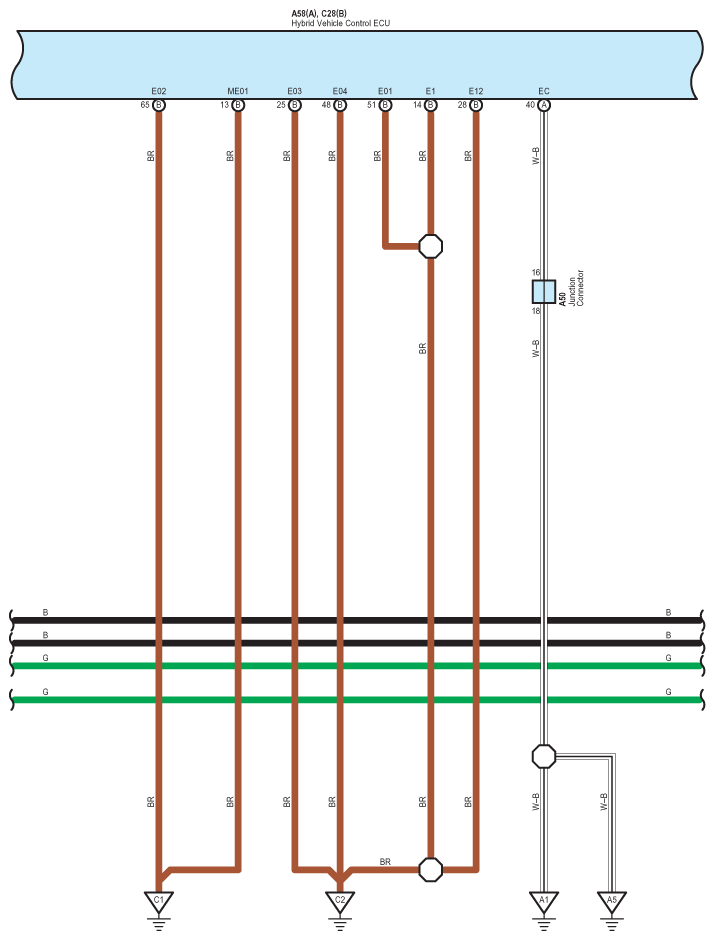

Fig 10: Hybrid System - Circuit Diagram (10 Of 30)

G07558395

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

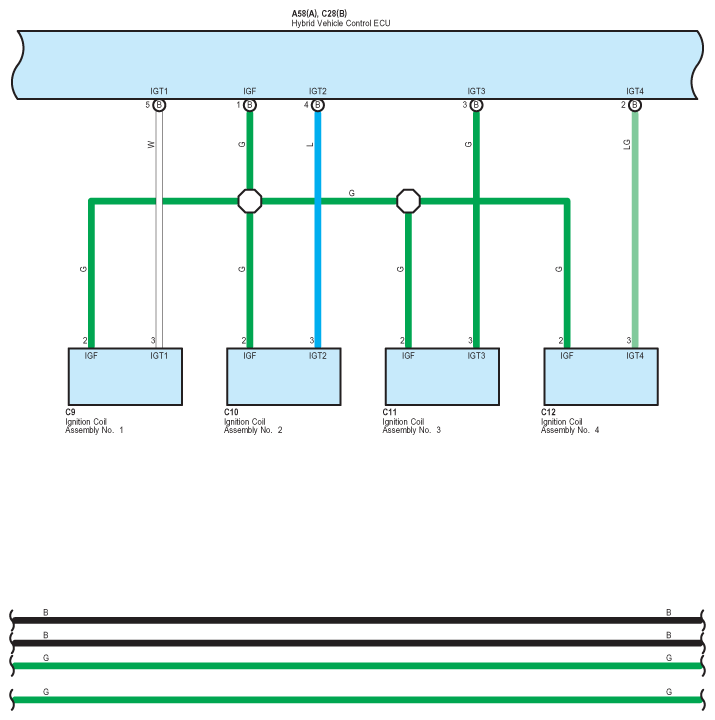

Fig 11: Hybrid System - Circuit Diagram (11 Of 30)

G07558396

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

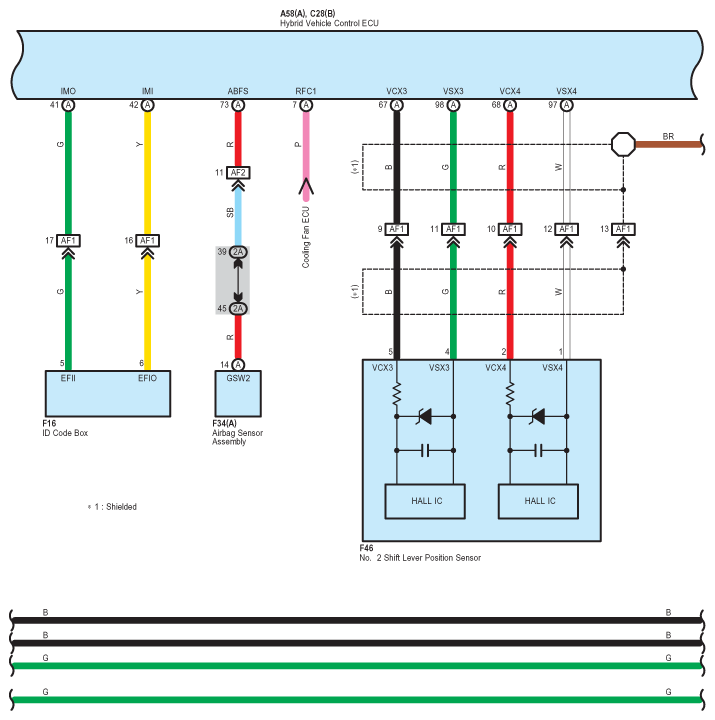

Fig 12: Hybrid System - Circuit Diagram (12 Of 30)

G07558397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

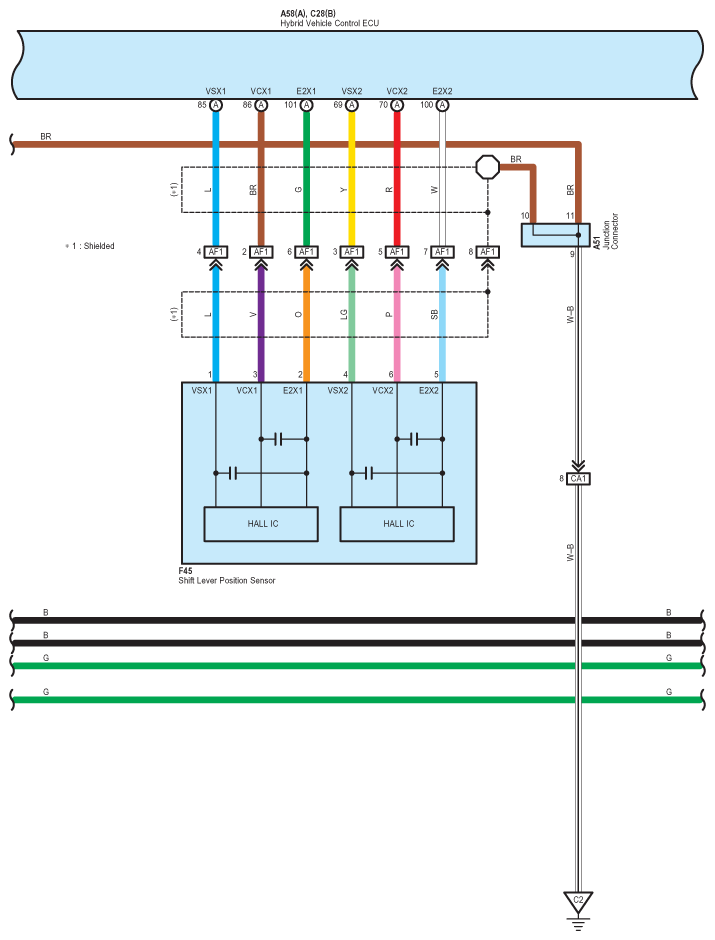

Fig 13: Hybrid System - Circuit Diagram (13 Of 30)

G07558398

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

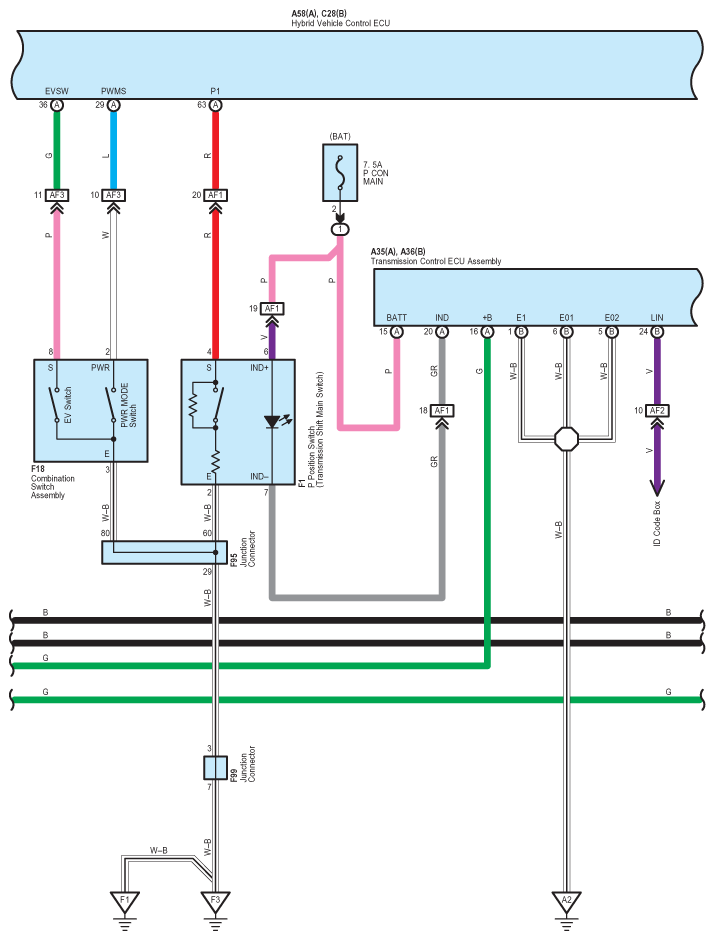

Fig 14: Hybrid System - Circuit Diagram (14 Of 30)

G07558399

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

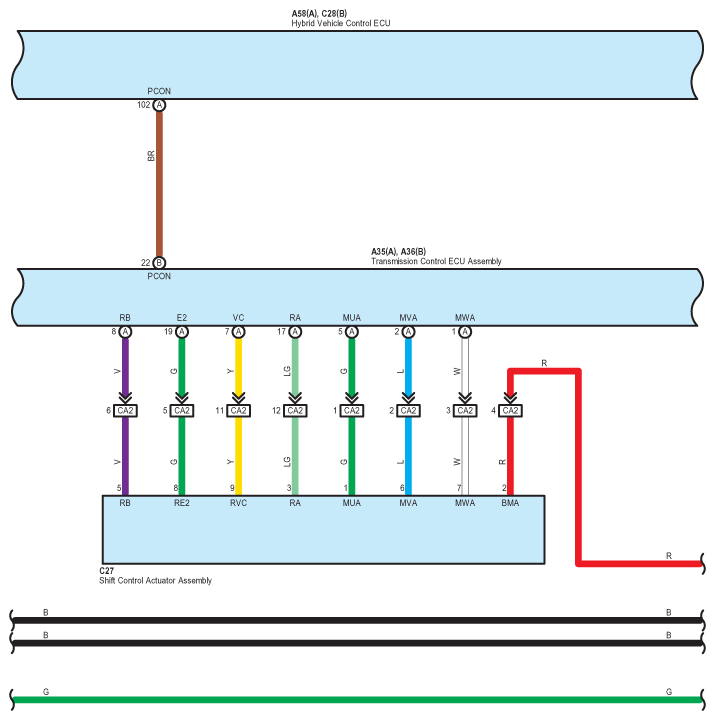

Fig 15: Hybrid System - Circuit Diagram (15 Of 30)

G07558400

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

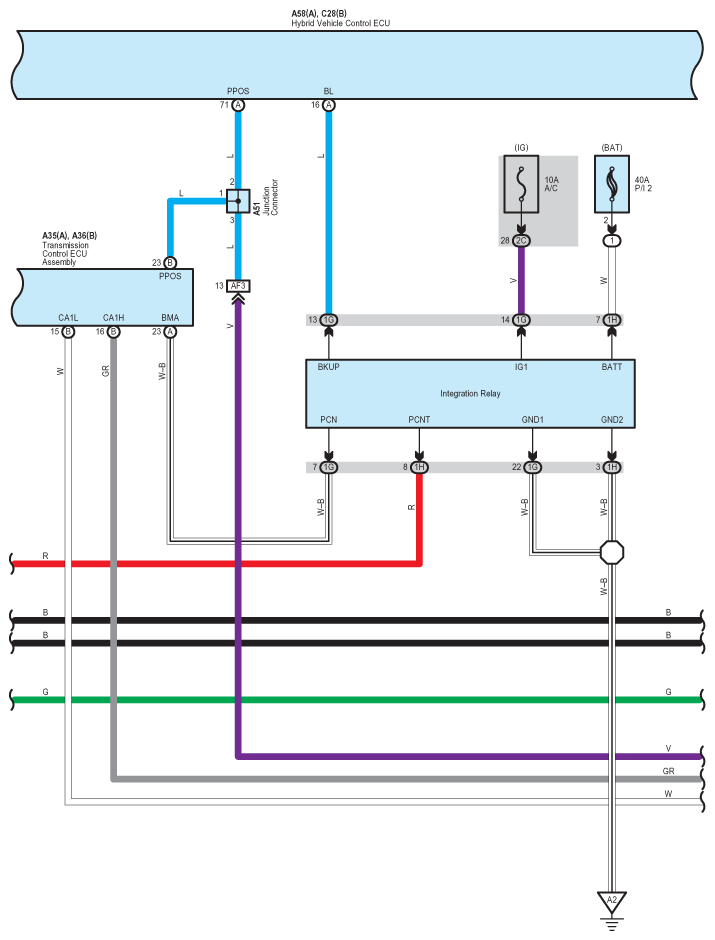

Fig 16: Hybrid System - Circuit Diagram (16 Of 30)

G07558401

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

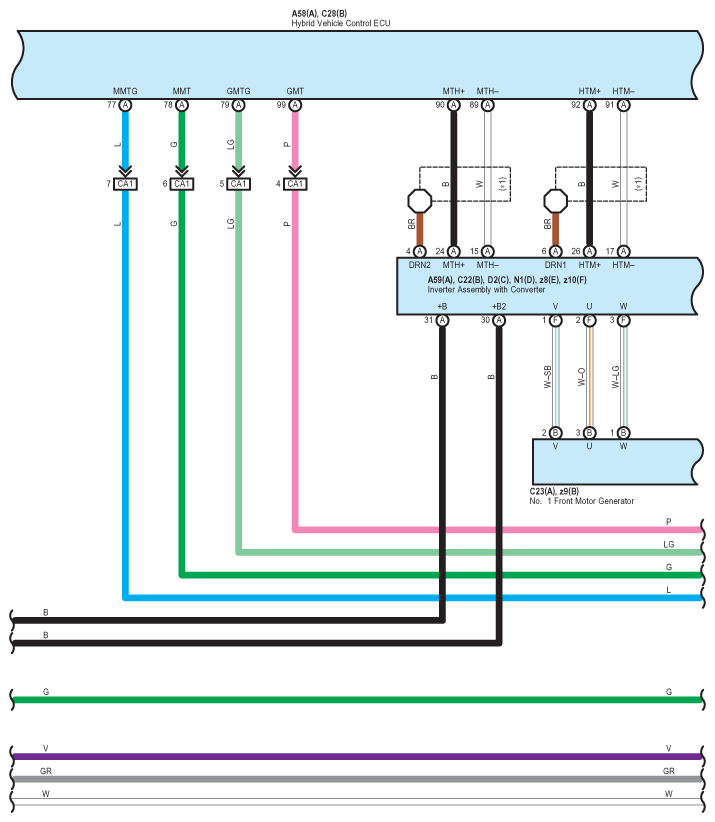

Fig 17: Hybrid System - Circuit Diagram (17 Of 30)

G07558402

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

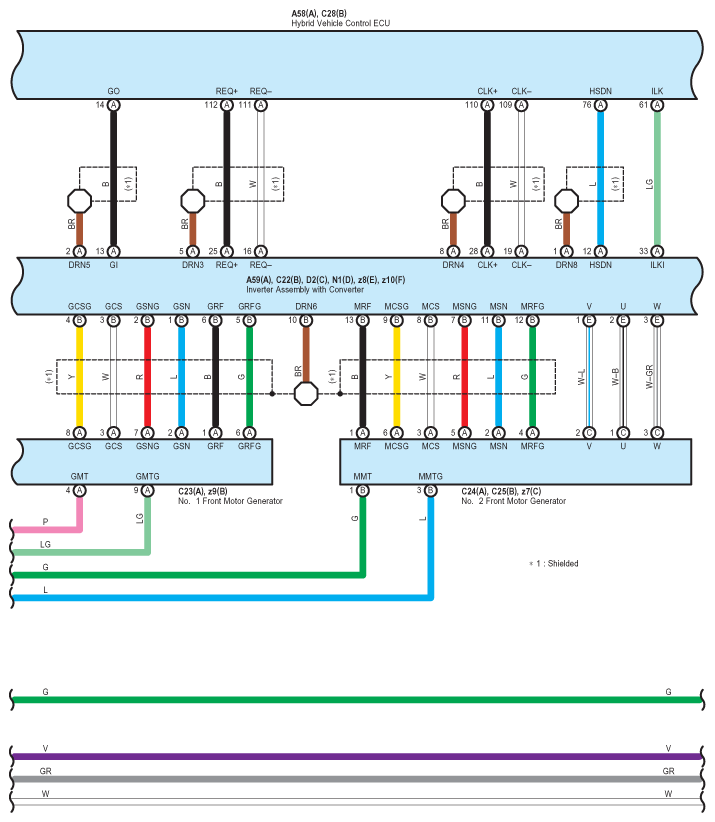

Fig 18: Hybrid System - Circuit Diagram (18 Of 30)

G07558403

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

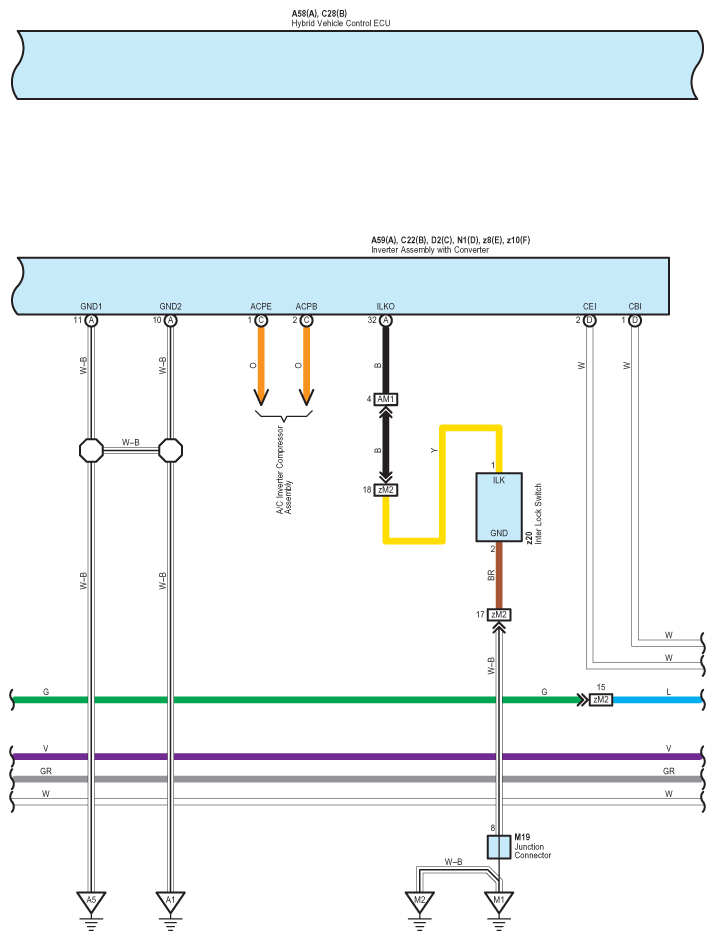

Fig 19: Hybrid System - Circuit Diagram (19 Of 30)

G07558404

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

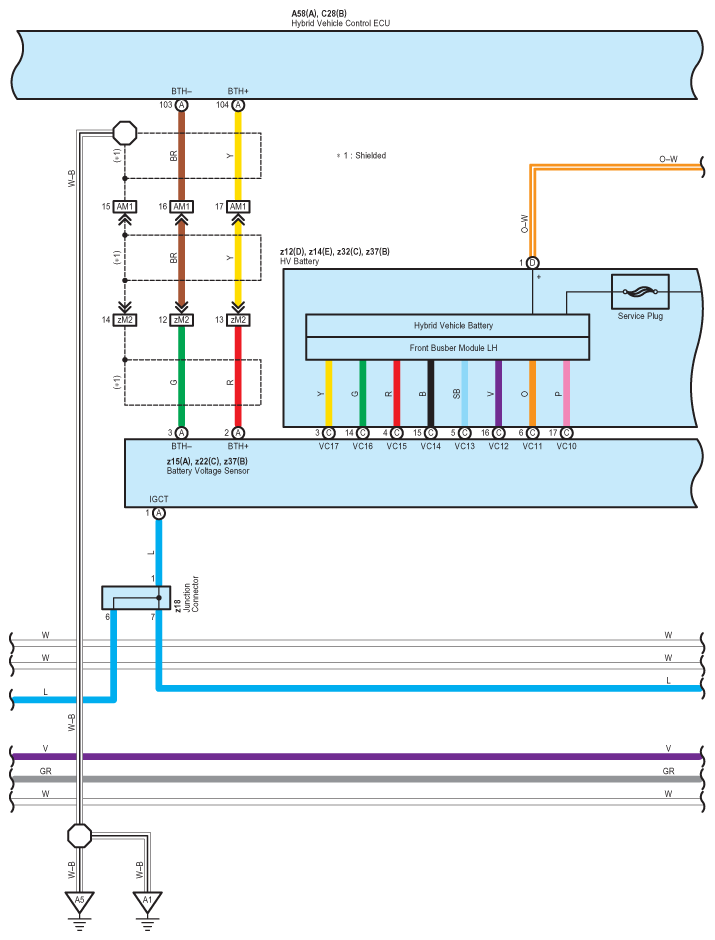

Fig 20: Hybrid System - Circuit Diagram (20 Of 30)

G07558405

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

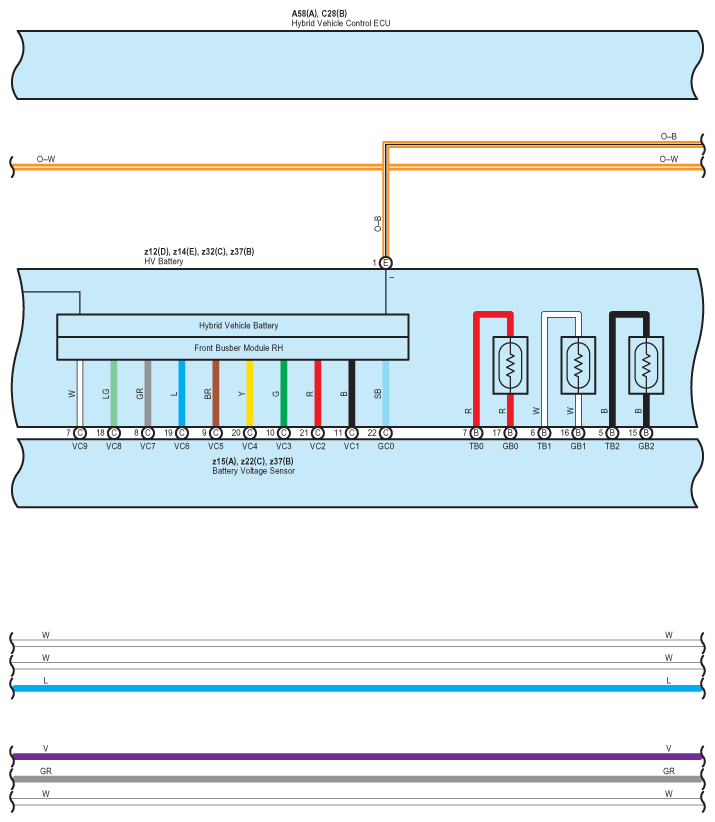

Fig 21: Hybrid System - Circuit Diagram (21 Of 30)

G07558406

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

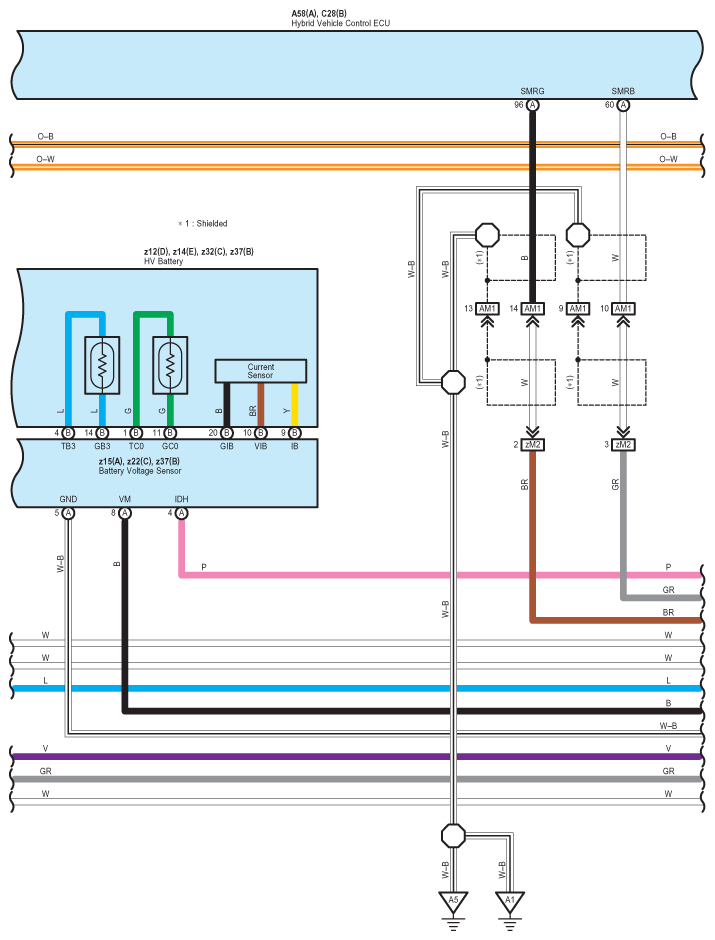

Fig 22: Hybrid System - Circuit Diagram (22 Of 30)

G07558407

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

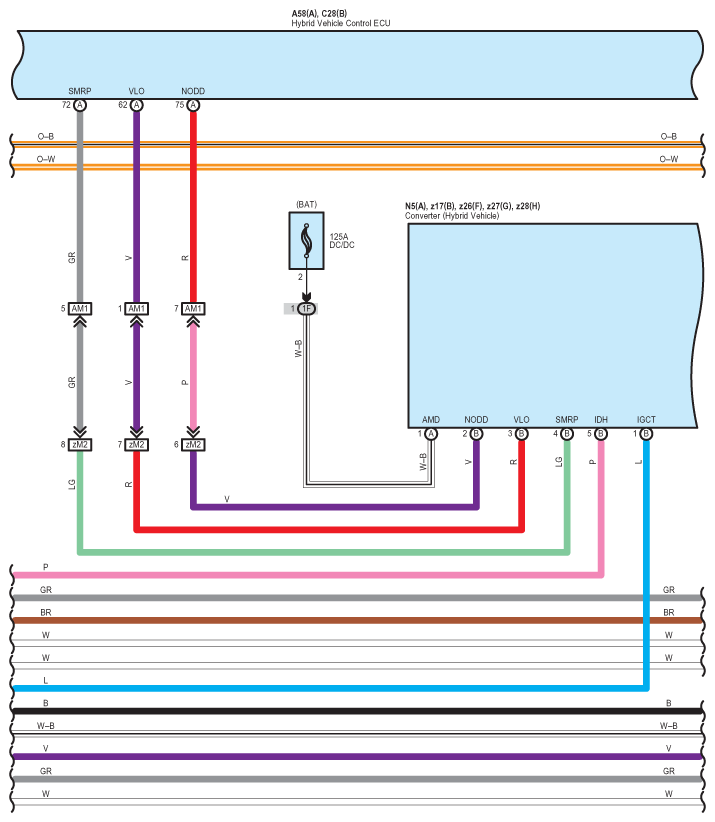

Fig 23: Hybrid System - Circuit Diagram (23 Of 30)

G07558408

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

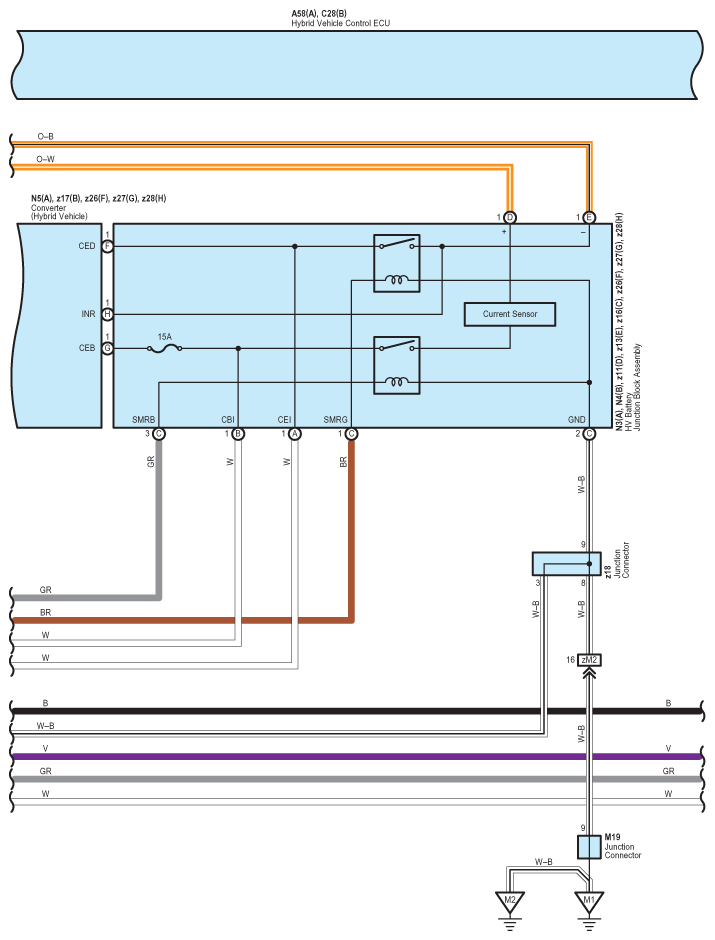

Fig 24: Hybrid System - Circuit Diagram (24 Of 30)

G07558409

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

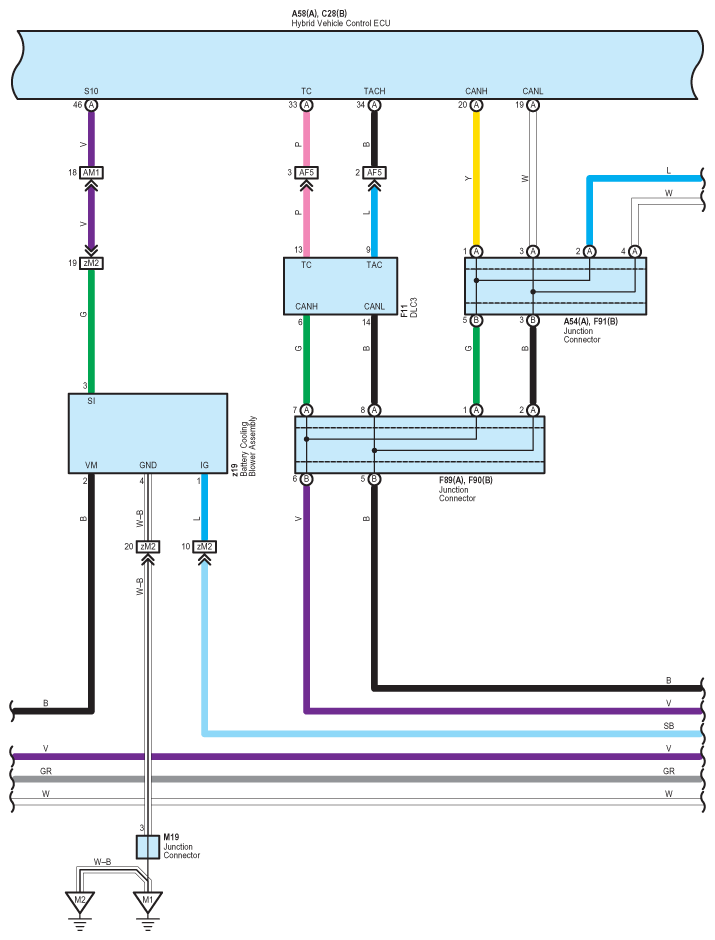

Fig 25: Hybrid System - Circuit Diagram (25 Of 30)

G07558410

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

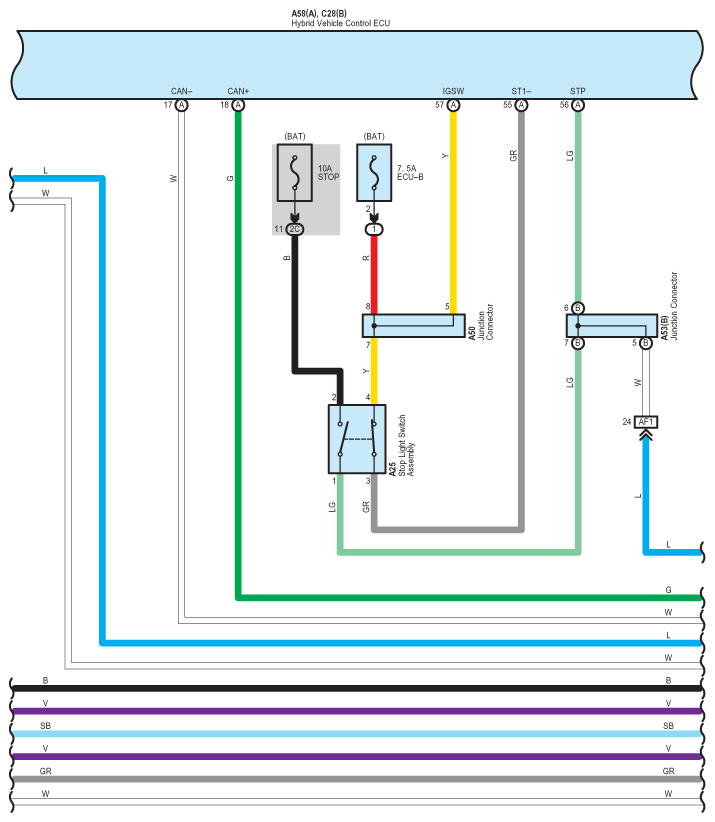

Fig 26: Hybrid System - Circuit Diagram (26 Of 30)

G07558411

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

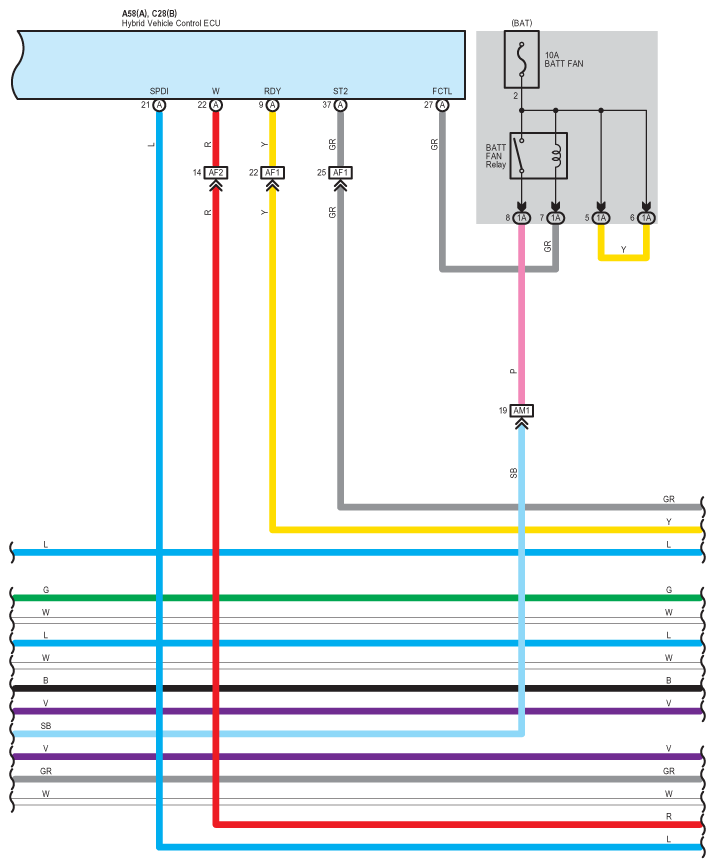

Fig 27: Hybrid System - Circuit Diagram (27 Of 30)

G07558412

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

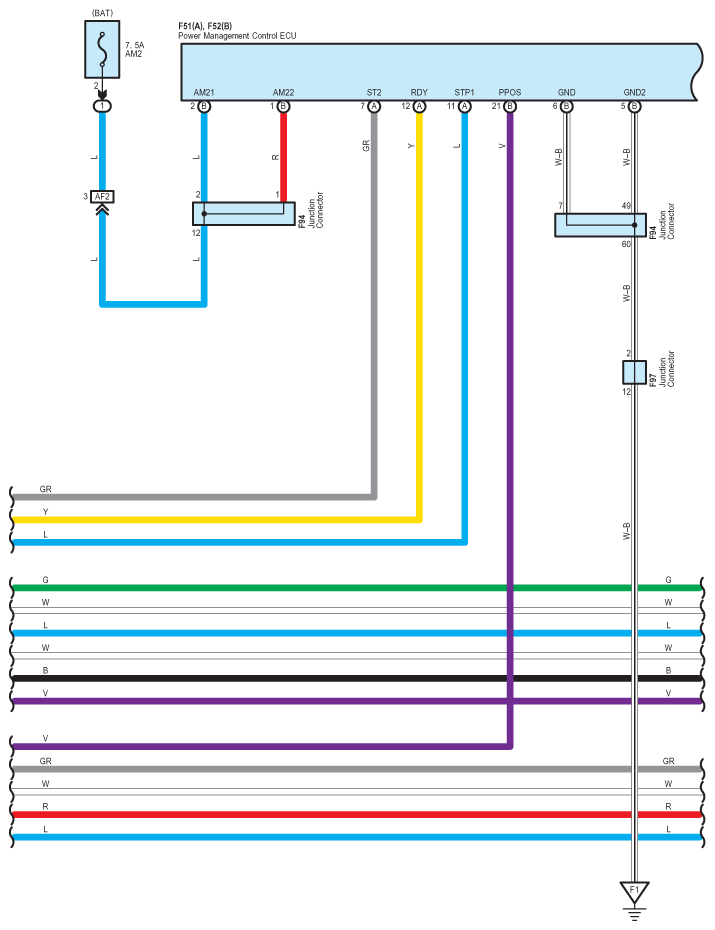

Fig 28: Hybrid System - Circuit Diagram (28 Of 30)

G07558413

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

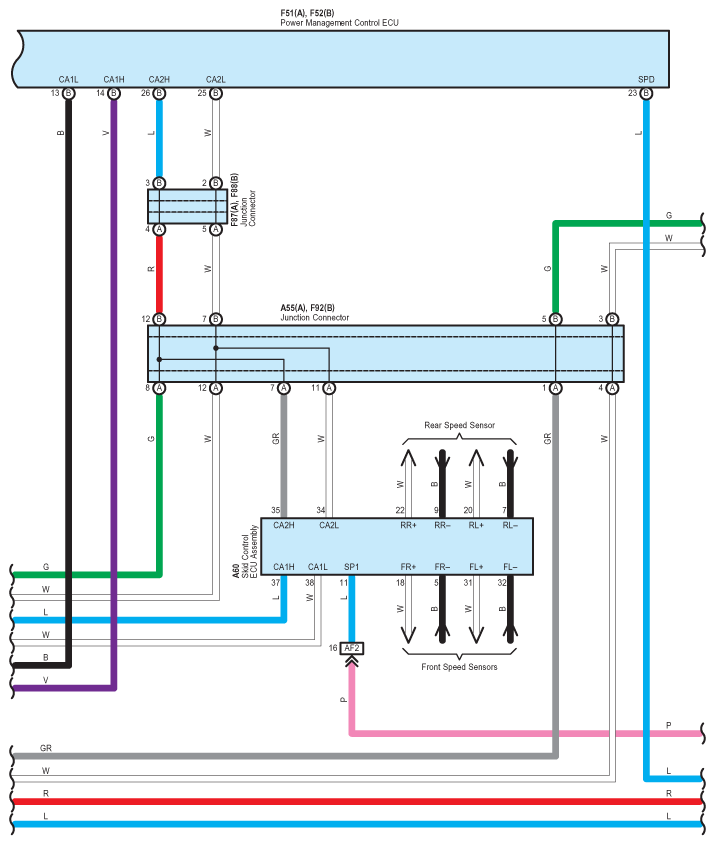

Fig 29: Hybrid System - Circuit Diagram (29 Of 30)

G07558414

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

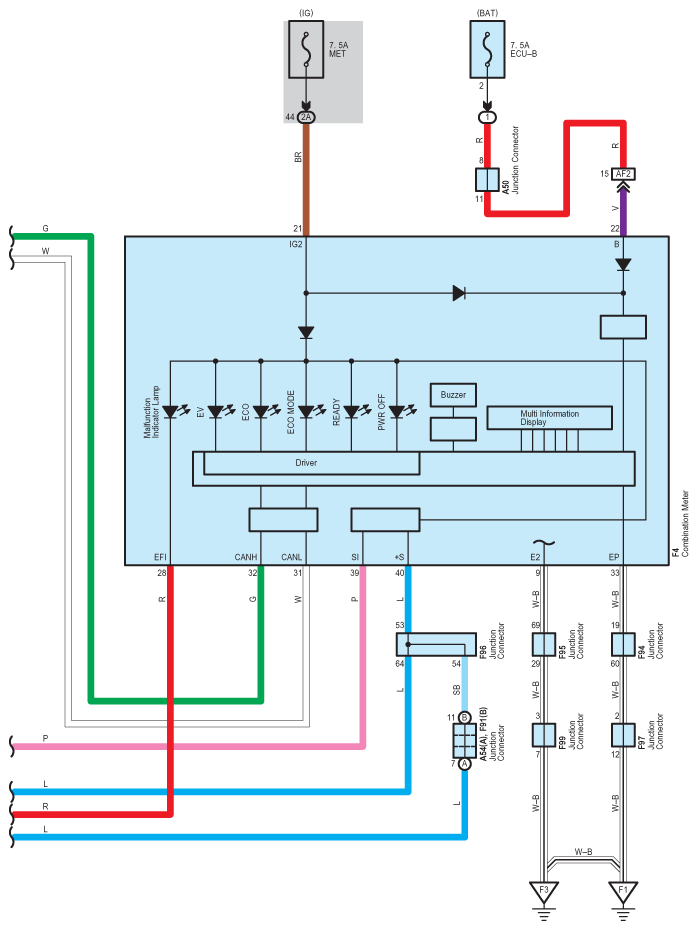

Fig 30: Hybrid System - Circuit Diagram (30 Of 30)

G07558415

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
