Rear Sunshade: Notes — 2010 Lexus HS 250h Service Manual ~ LEMON Manuals

Fig 1: Rear Sunshade - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

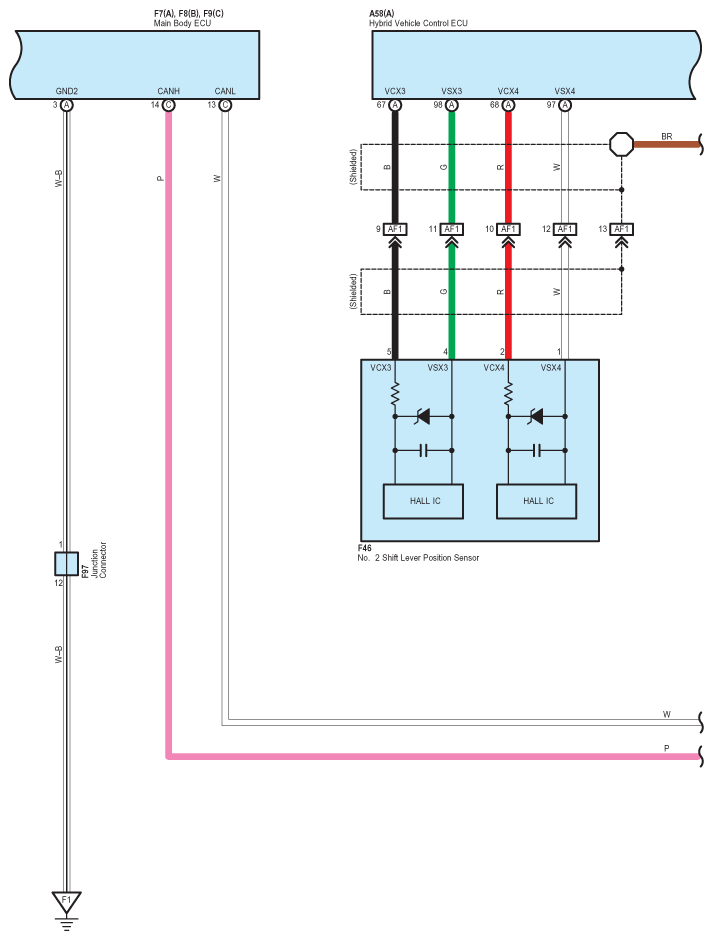

Fig 2: Rear Sunshade - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

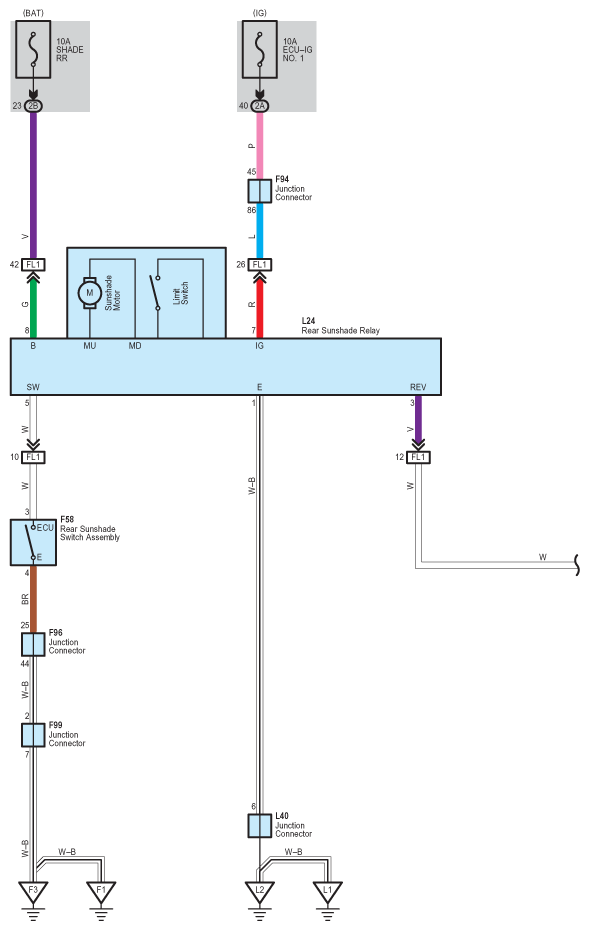

Fig 3: Rear Sunshade - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

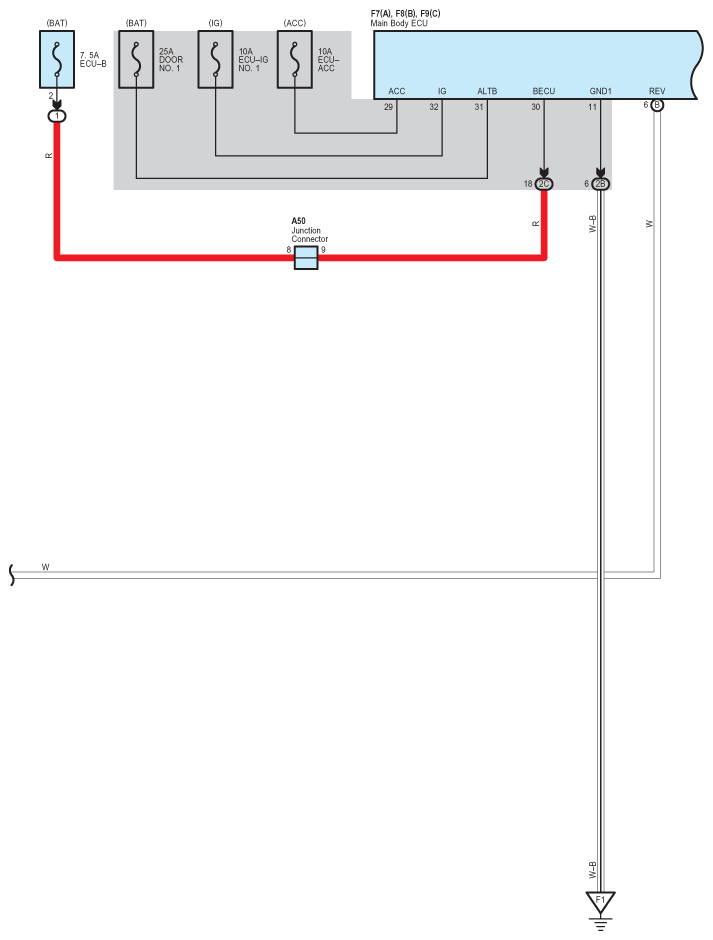

Fig 4: Rear Sunshade - Circuit Diagram (4 Of 5)

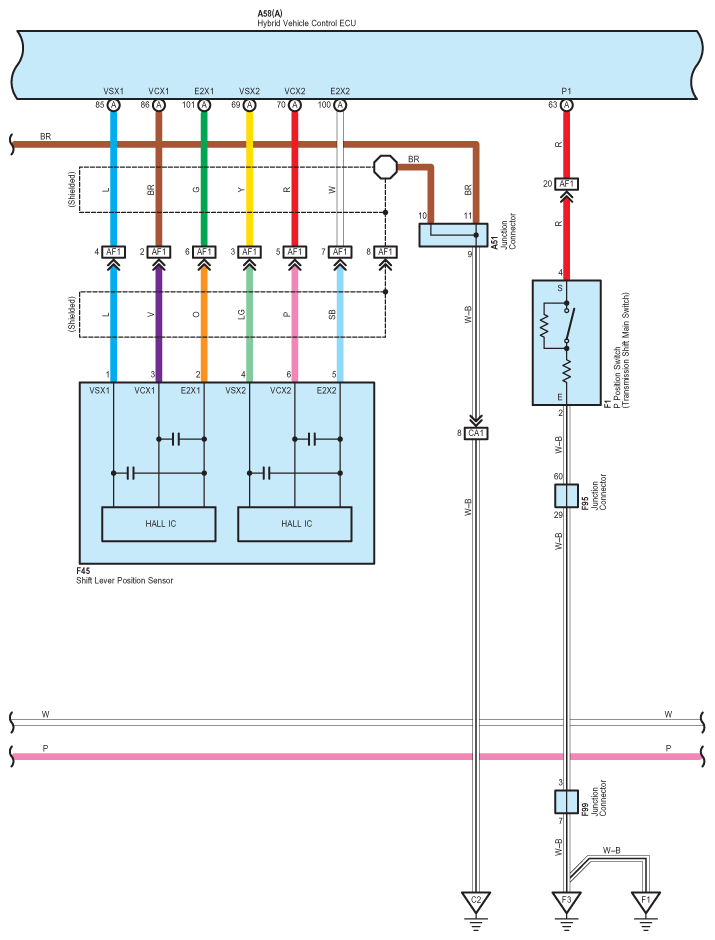

Fig 5: Rear Sunshade - Circuit Diagram (5 Of 5)
