Sliding Roof: Notes

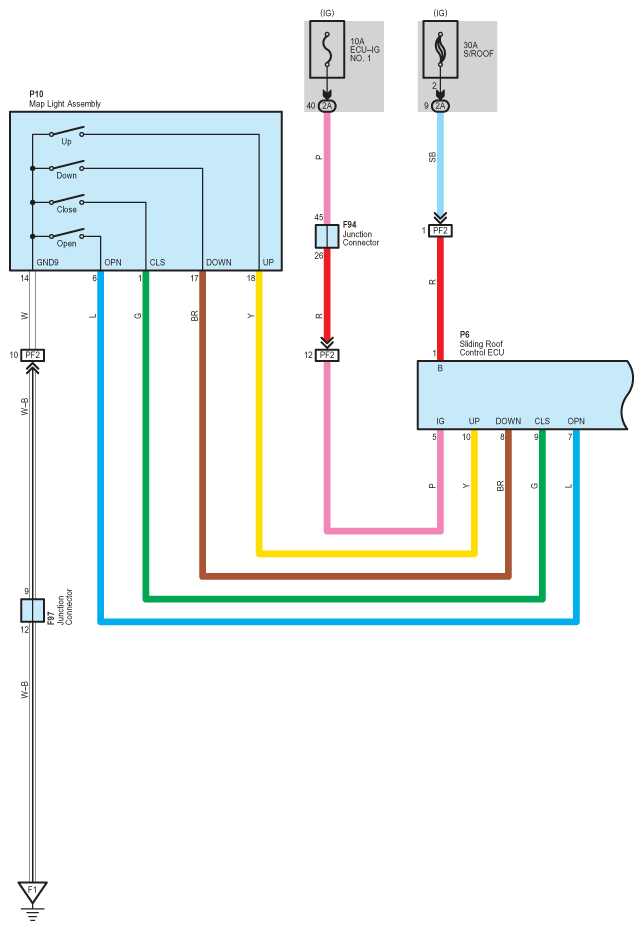

Fig 1: Sliding Roof - Circuit Diagram (1 Of 6)
G07558499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

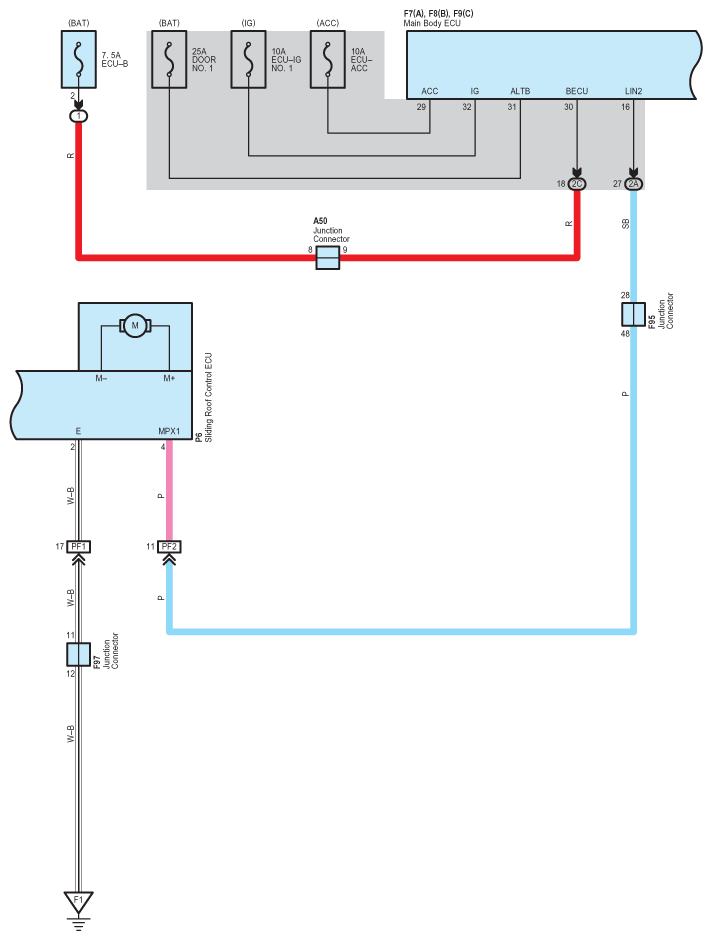

Fig 2: Sliding Roof - Circuit Diagram (2 Of 6)
G07558500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

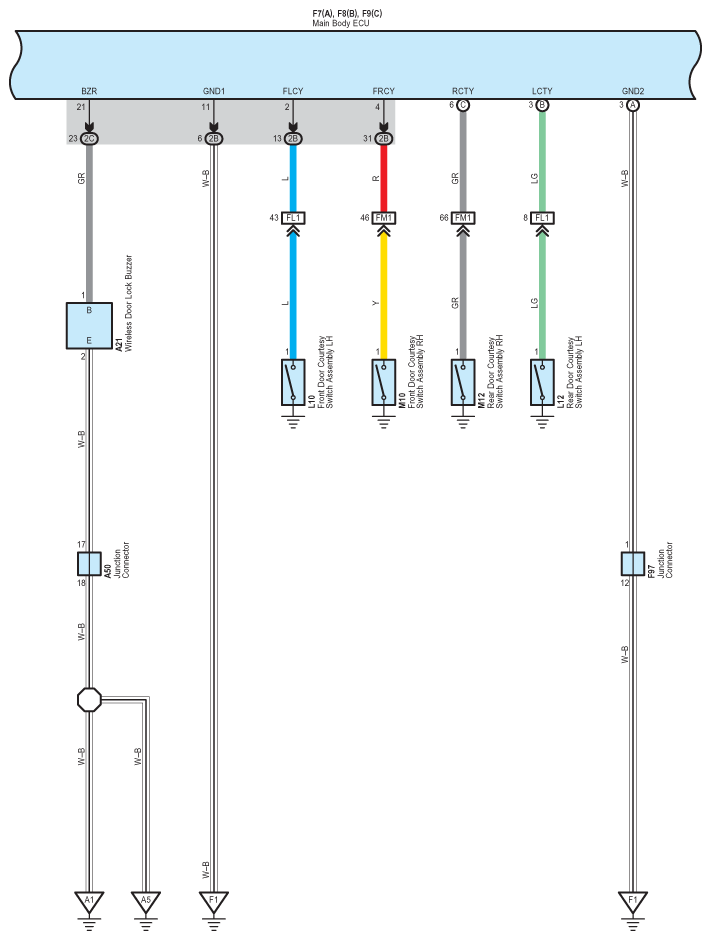

Fig 3: Sliding Roof - Circuit Diagram (3 Of 6)
G07558501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

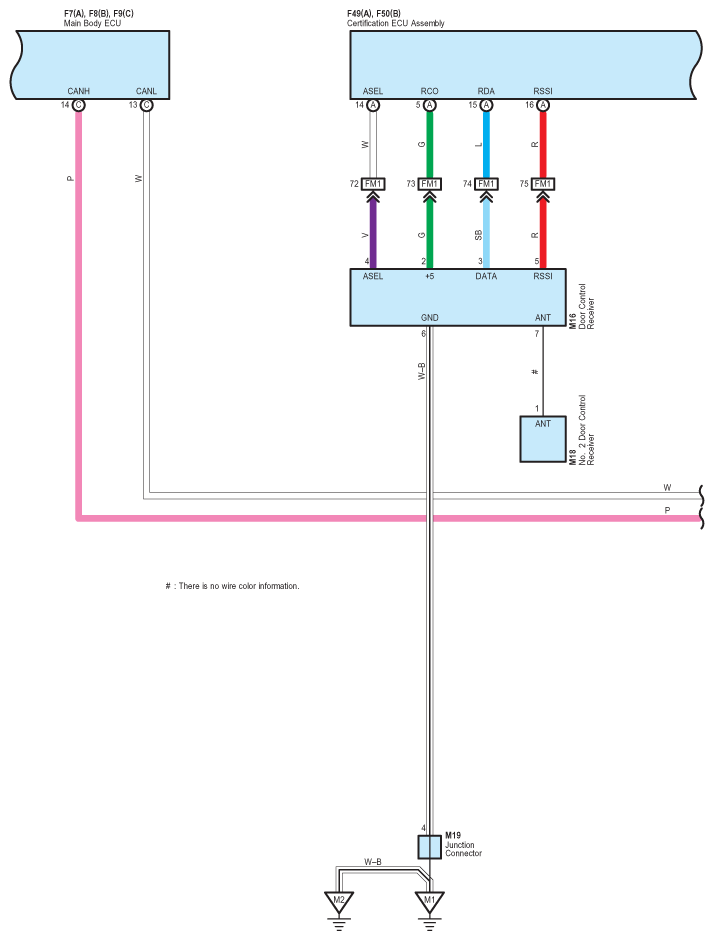

Fig 4: Sliding Roof - Circuit Diagram (4 Of 6)
G07558502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

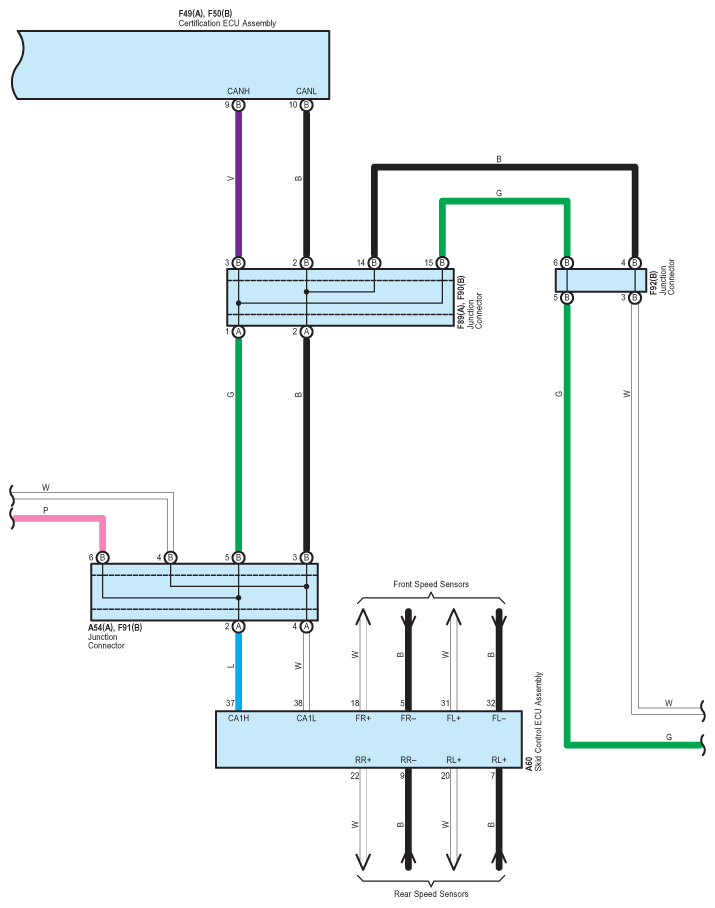

Fig 5: Sliding Roof - Circuit Diagram (5 Of 6)
G07558503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

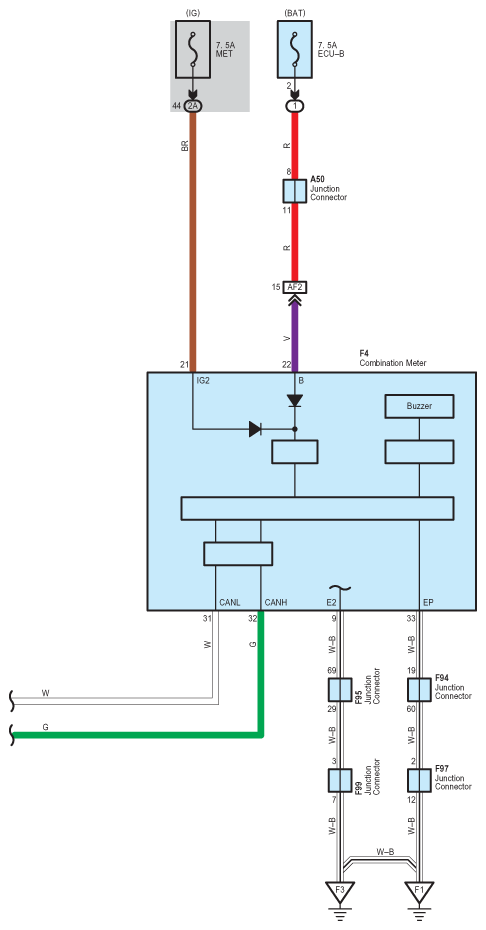

Fig 6: Sliding Roof - Circuit Diagram (6 Of 6)
G07558504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
