Electrical Component Locator: Grounds

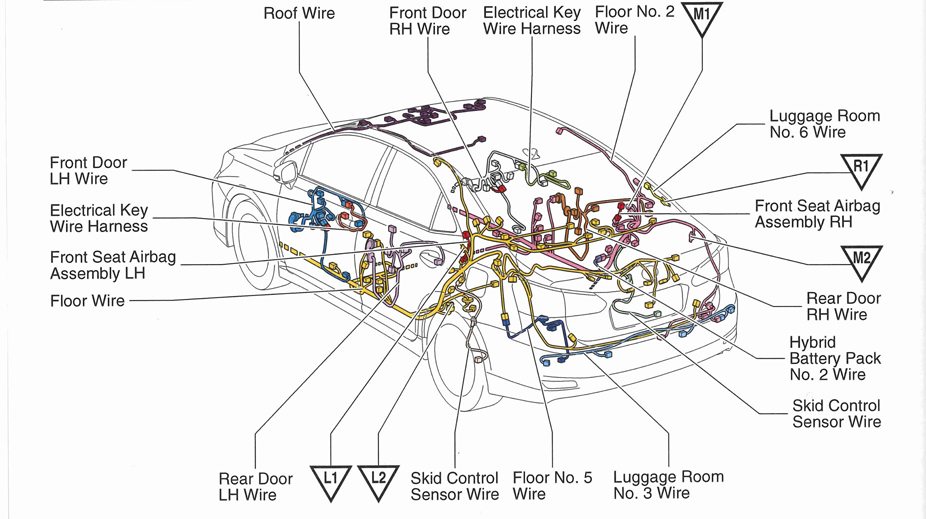

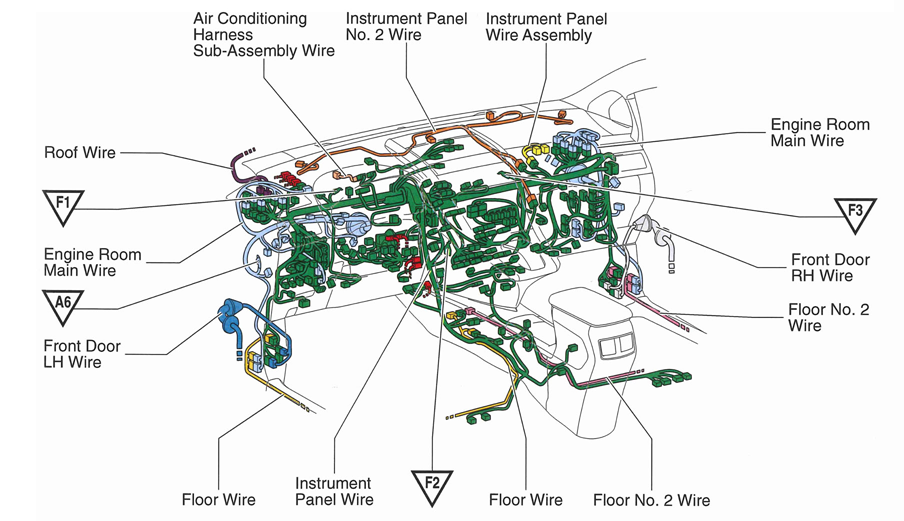

GROUNDS LOCATION
| Component | Location |
|---|---|
| A1 | Left front of engine compartment. See Figure. |
| A2 | Left front of engine compartment. See Figure. |
| A3 | Right front of engine compartment. See Figure. |
| A4 | Right front of engine compartment. See Figure. |
| A5 | Left side of engine compartment. See Figure. |
| A6 | Left side of dash. See Figure. |
| C1 | Upper rear of engine. See Figure. |
| C2 | Upper rear of engine. See Figure. |
| C3 | Left front of engine compartment. See Figure. |
| C4 | Upper rear of engine. See Figure. |
| F1 | Left side of dash. See Figure. |
| F2 | Center of dash. See Figure. |
| F3 | Center of dash. See Figure. |
| L1 | Left rear "C" pillar. See Figure. |
| L2 | Left rear luggage compartment. See Figure. |
| M1 | Right rear door. See Figure. |
| M2 | Right rear of luggage compartment. See Figure. |
| R1 | Right front of luggage compartment. See Figure. |
