Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

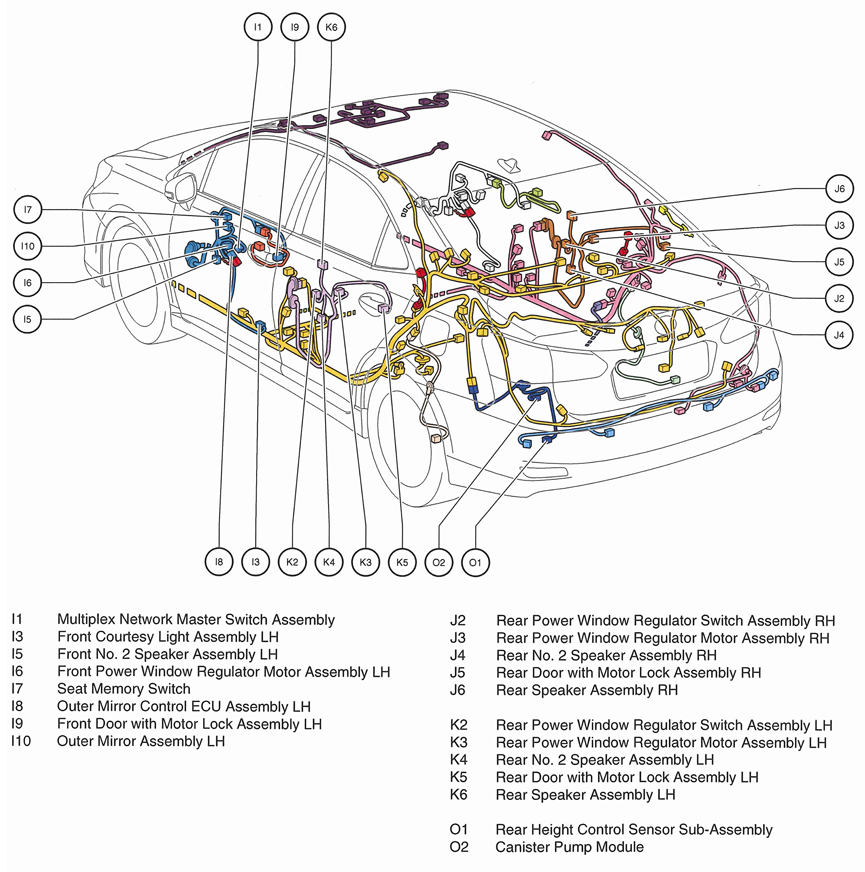

| Canister Pump Module | Left rear of vehicle. See Figure. |

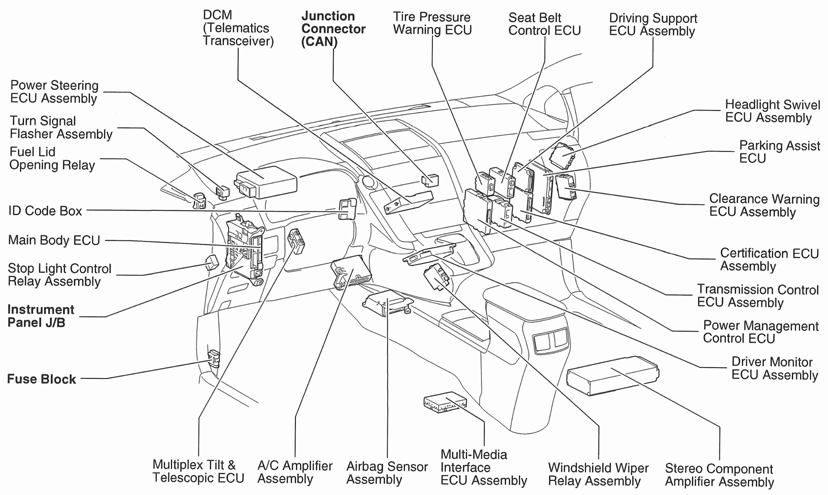

| Certification ECU Assembly | Right side of dash. See Figure. |
| Clearance Warning ECU Assembly | Right side of Dash. See Figure. |

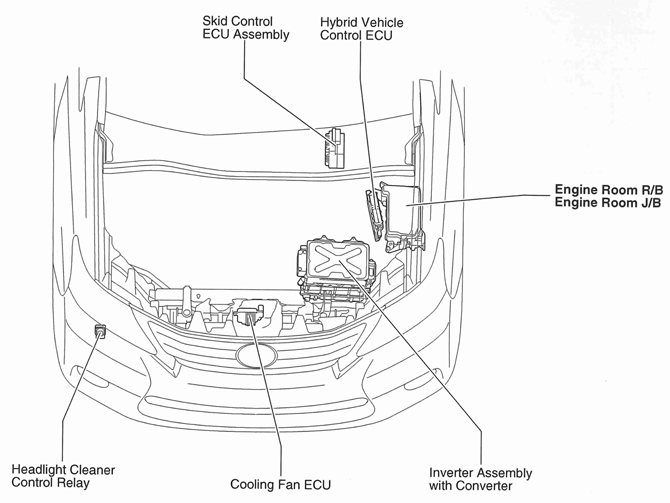

| Cooling Fan ECU | Front of engine compartment. See Figure. |

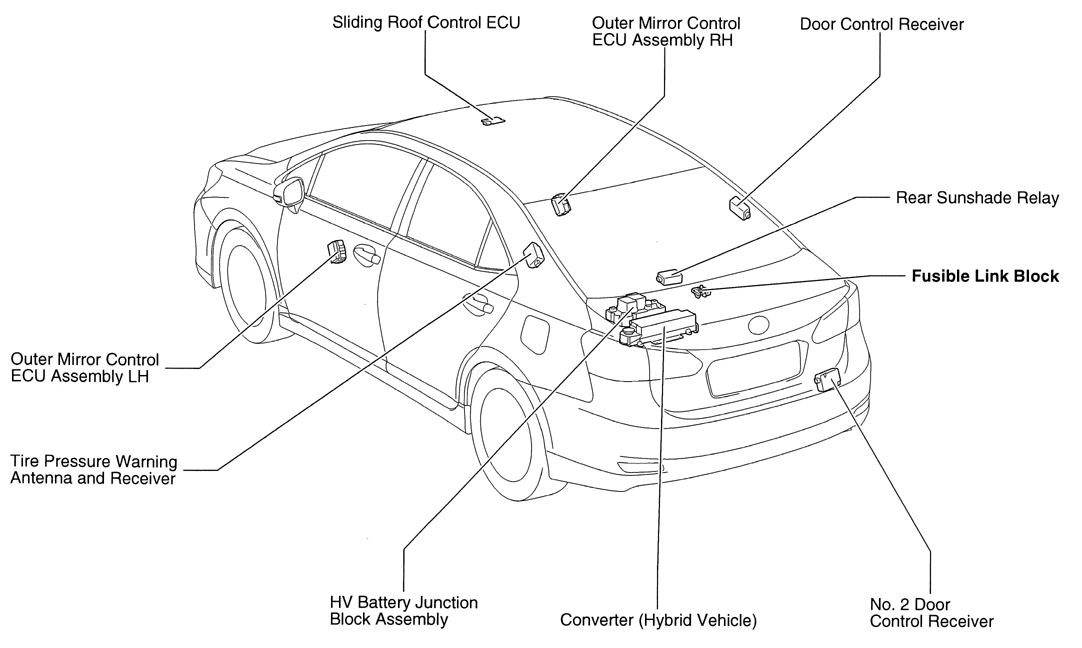

| Door Control Receiver | Left rear quarter panel. See Figure. |
| Driver Monitor ECU Assembly | Right side of dash. See Figure. |
| Driving Support ECU Assembly | Right side of dash. See Figure. |
| Headlight Swivel ECU Assembly | Right side of dash. See Figure. |
| Hybrid Vehicle Control ECU | Left side of engine compartment. See Figure. |
| Main Body ECU | Left side of dash. See Figure. |
| Multi-Media Interface ECU Assembly | Center console. See Figure. |
| Multiplex Tilt & Telescopic ECU | Center console. See Figure. |
| No. 2 Door Control Receiver | Right rear luggage compartment. See Figure. |

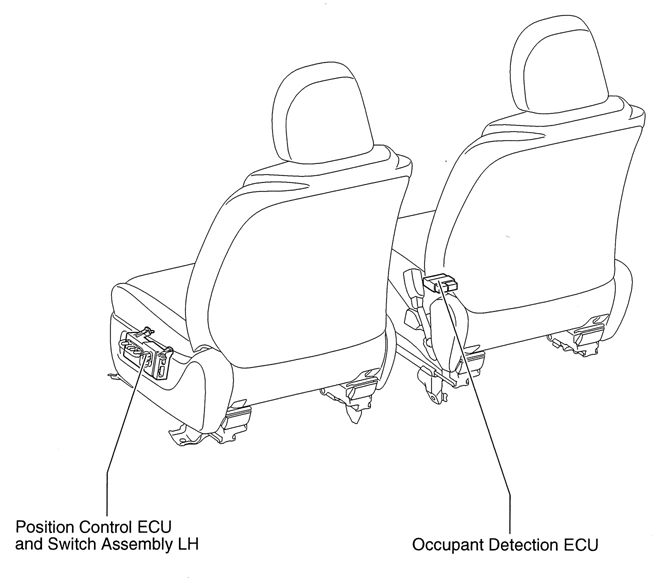

| Occupant Detection ECU | Left side of front passenger seat. See Figure. |
| Outer Mirror Control ECU Assembly LH | Left front door. See Figure. |
| Outer Mirror Control ECU Assembly RH | Right front door. See Figure. |
| Parking Assist ECU | Right side of dash. See Figure. |
| Position Control ECU & Switch Assembly LH | Left side of seat. See Figure. |
| Power Management Control ECU | Right side of dash. See Figure. |
| Power Source Control ECU | Behind left side of dash. |
| Power Steering ECU Assembly | Left side of dash. See Figure. |

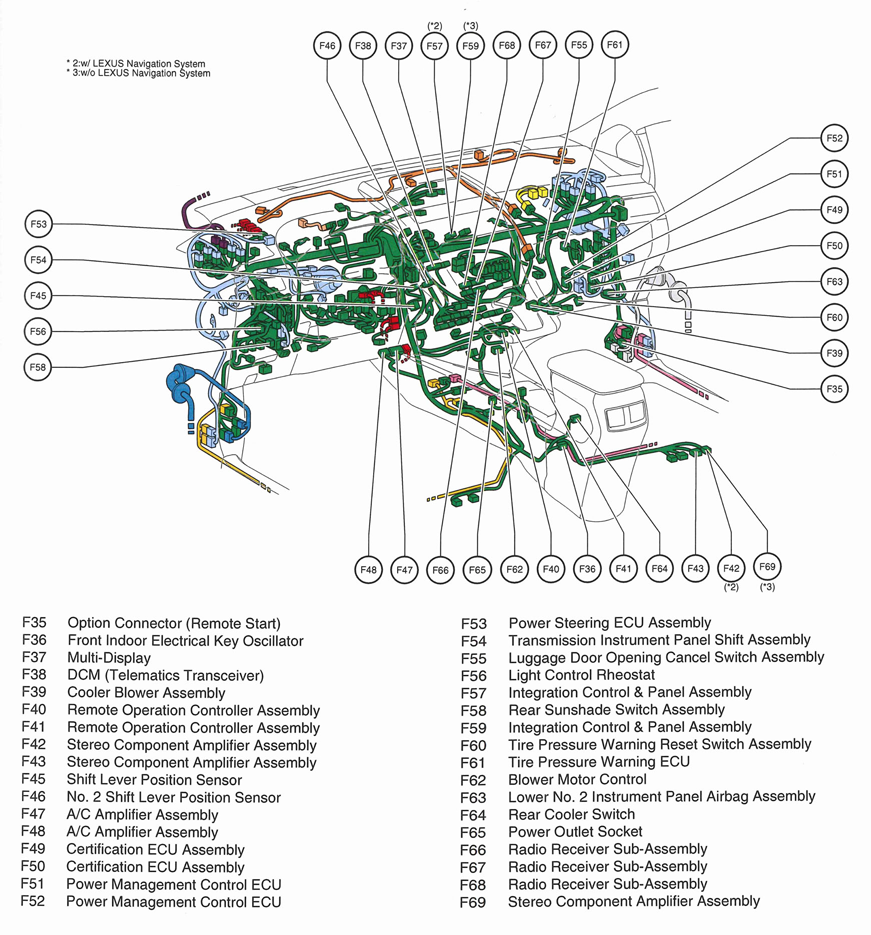

| Remote Operation Controller Assembly | Center of dash. See Figure. |
| Seat Belt Control ECU | Right side of dash. See Figure. |
| Skid Control ECU Assembly | Left side of engine compartment. See Figure. |
| Sliding Roof Control ECU | Front center of roof. See Figure. |
| Tire Pressure Warning Antenna & Receiver | Right rear quarter panel. |
| Tire Pressure Warning ECU | Right side of dash. See Figure. |
| Transmission Control ECU Assembly | Right side of dash. See Figure. |
