Installation

4GR-FSE FUEL: INJECTOR DRIVER: INSTALLATION

1. INSTALL INJECTOR DRIVER

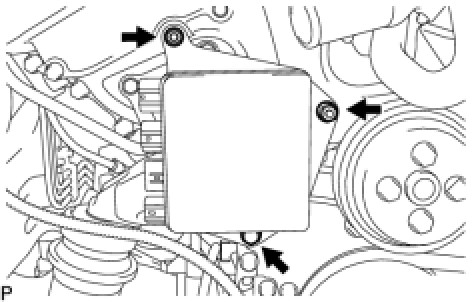

(a) Install the injector driver with the bolt and 2 nuts.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

NOTICE:
* Be careful not to drop or strike the injector driver.
* The injector driver is grounded at the bolt and nut. To ensure that it is grounded, clean all oil and foreign matter from the installation areas of the injector driver and engine before installing the injector driver.

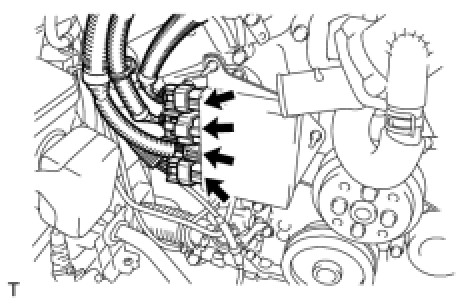

(b) Connect the 4 connectors to the injector driver.





2. INSTALL NO. 1 ENGINE COVER Installation

3. INSTALL NO. 1 INLET AIR CLEANER Installation

4. INSTALL COOL AIR INTAKE DUCT SEAL Installation
