VSC Off Switch: Installation: Installation

INSTALL VSC OFF SWITCH
1. Engage the 2 claws and install the VSC OFF switch to the switch base.

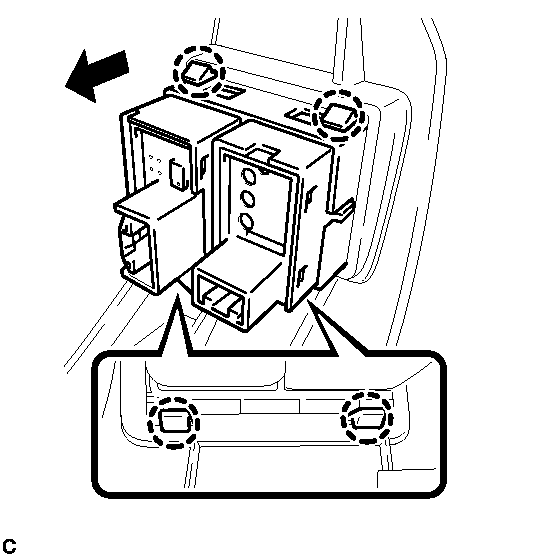

  Fig 1: Identifying Claws Of VSC Off Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 4 claws and install the VSC OFF switch with switch base to the lower instrument panel finish panel sub-assembly.

  Fig 2: Identifying 4 Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER INSTRUMENT FINISH PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 24
INSTALL SIDE INSTRUMENT PANEL LH . Refer to INSTALLATION - Step 26
INSTALL FRONT DOOR OPENING TRIM COVER LH . Refer to INSTALLATION - Step 15
INSTALL DOOR SCUFF PLATE ASSEMBLY LH . Refer to INSTALLATION - Step 16
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
