OEM System Circuits: Illumination: Notes

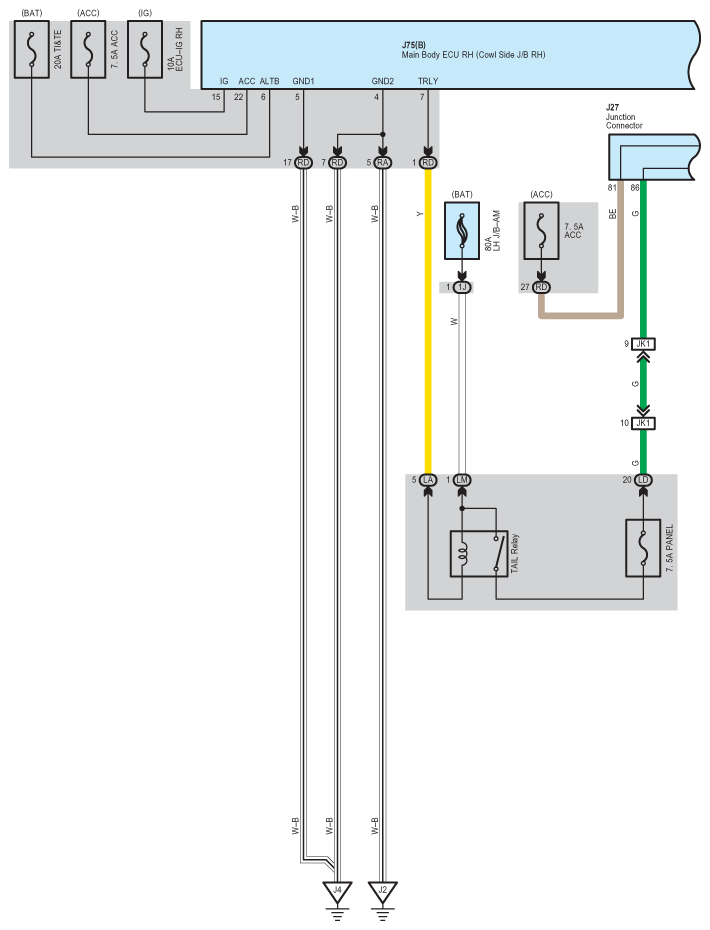

Fig 1: Turn Signal And Hazard Warning Light - Circuit Diagram (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

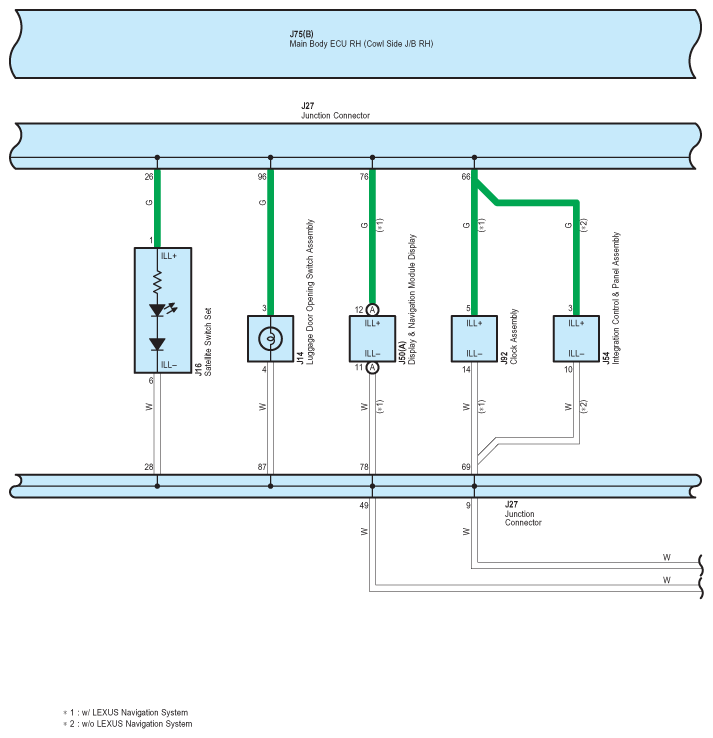

Fig 2: Turn Signal And Hazard Warning Light - Circuit Diagram (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

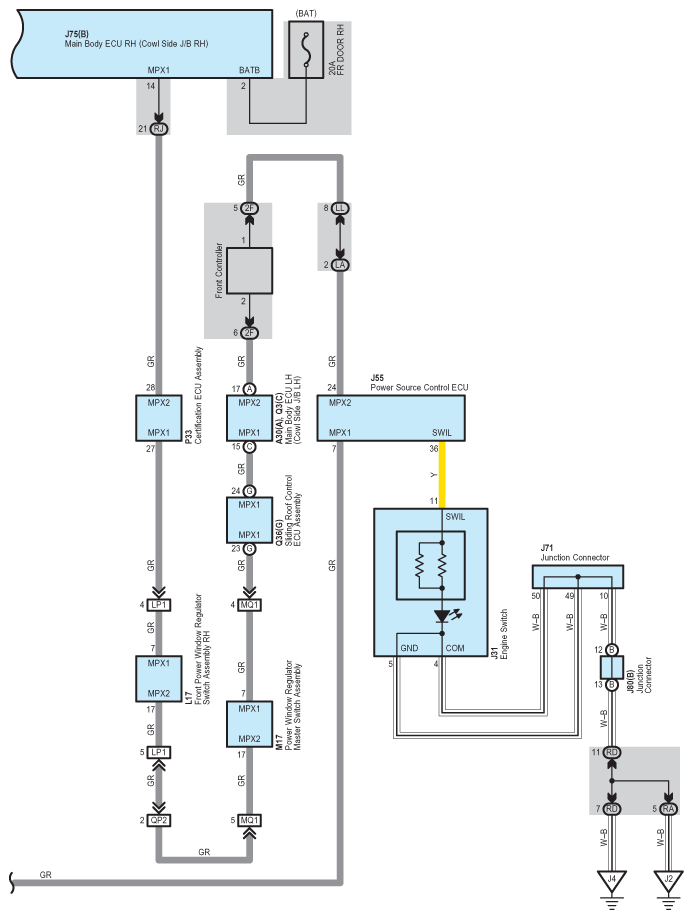

Fig 3: Turn Signal And Hazard Warning Light - Circuit Diagram (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

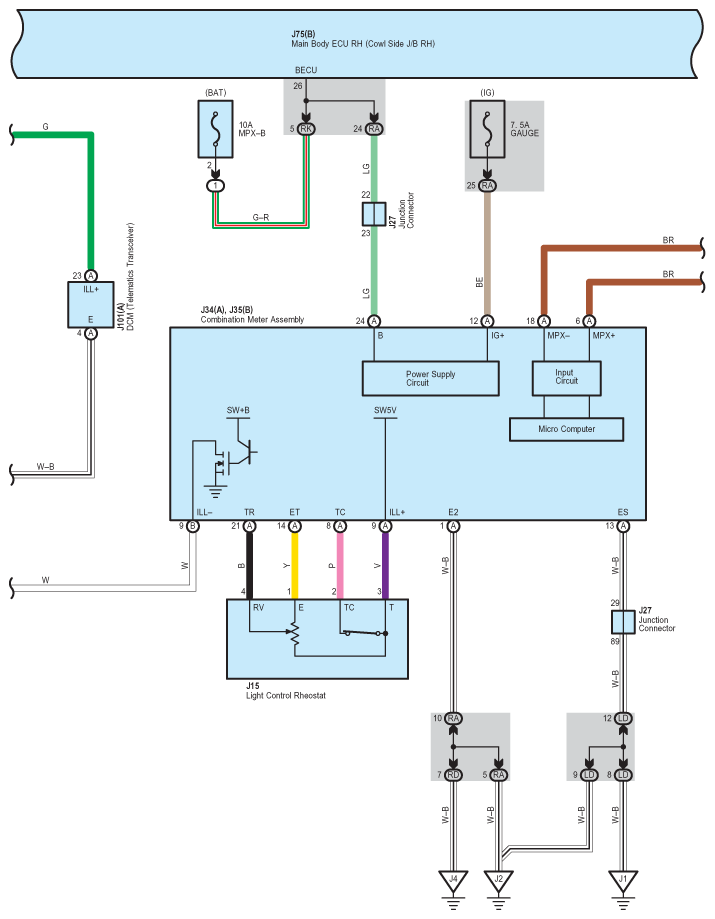

Fig 4: Turn Signal And Hazard Warning Light - Circuit Diagram (9 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

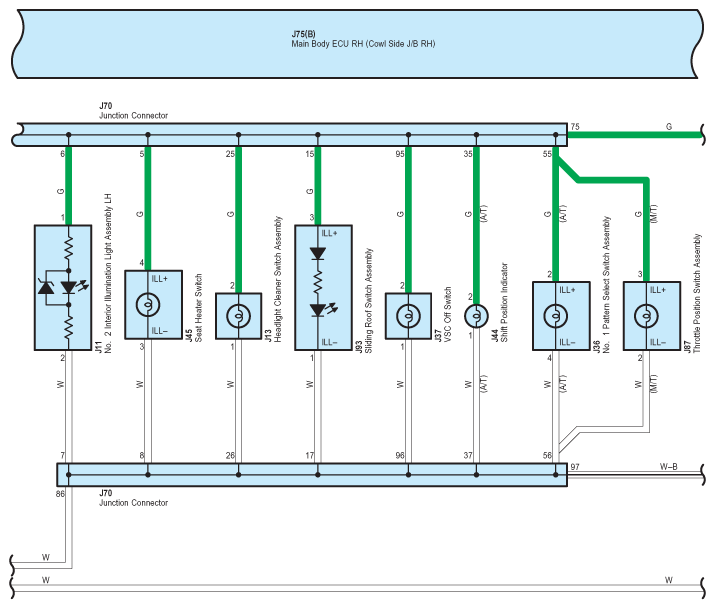

Fig 5: Turn Signal And Hazard Warning Light - Circuit Diagram (10 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

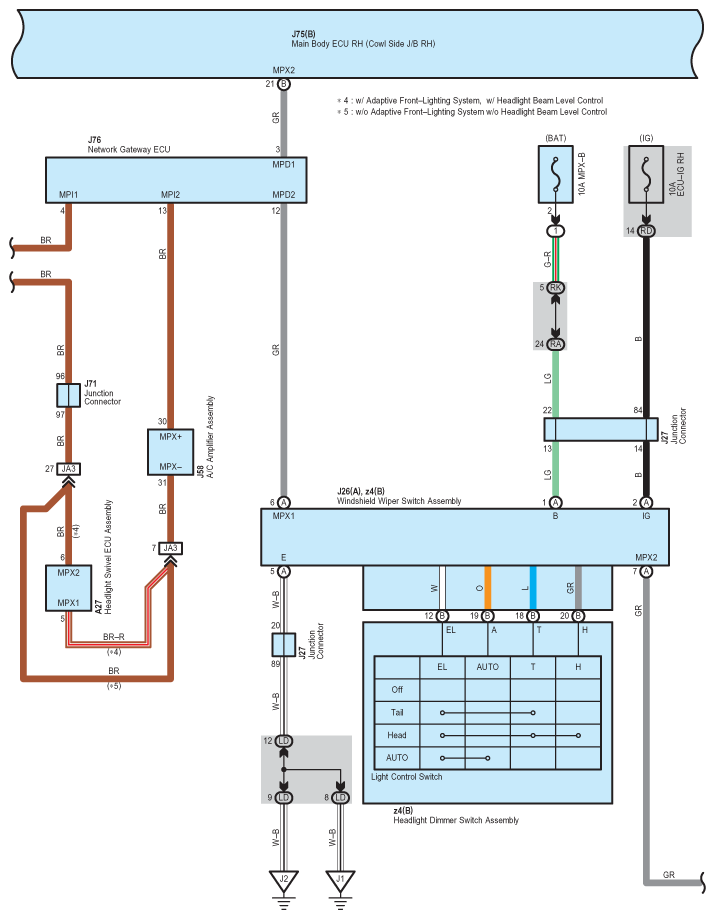

Fig 6: Turn Signal And Hazard Warning Light - Circuit Diagram (11 Of 13)

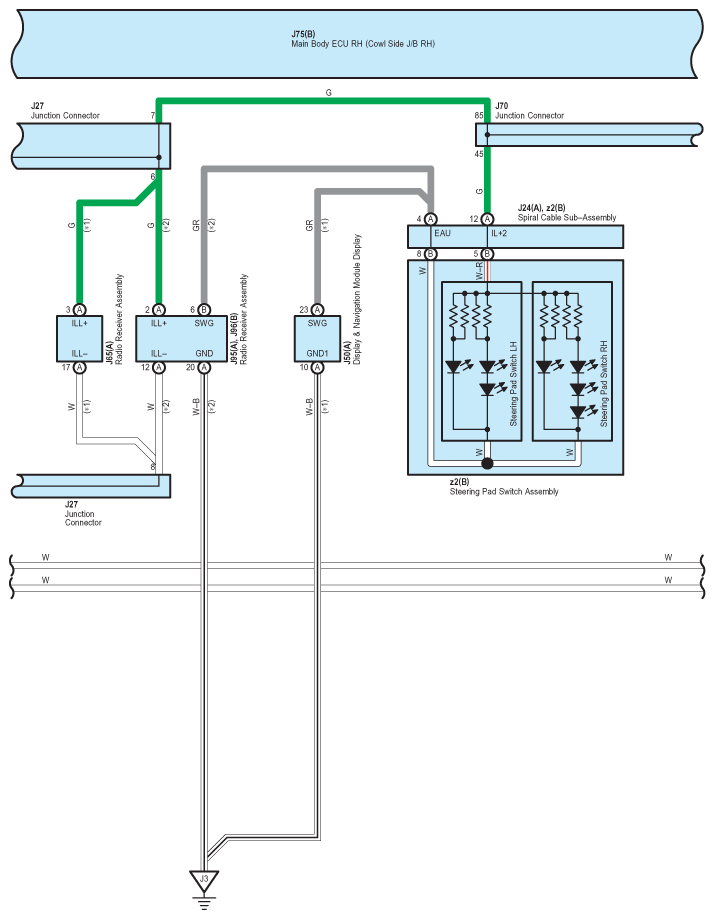

Fig 7: Turn Signal And Hazard Warning Light - Circuit Diagram (12 Of 13)

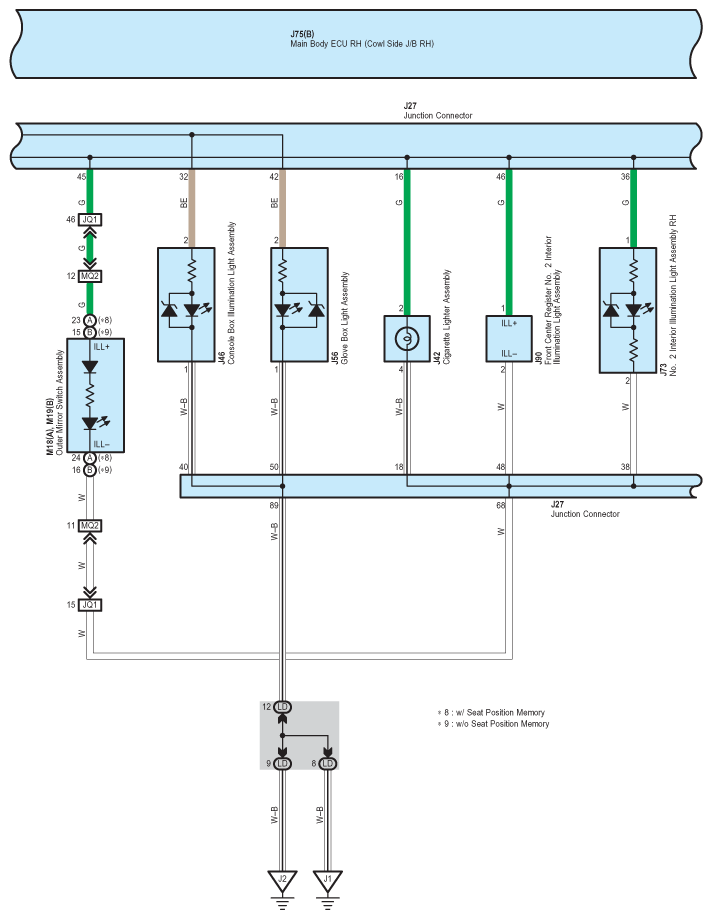

Fig 8: Turn Signal And Hazard Warning Light - Circuit Diagram (13 Of 13)
