Steering Lock System: Initialization: Initialization

HINT:

In vehicles equipped with the push-button start function, the starting function may not be operational after recharging or while jump-starting a discharged battery. This condition is most likely to occur if battery voltage drops below 9 V. The following procedure has been developed to address this condition.

1. INITIALIZATION PROCEDURE

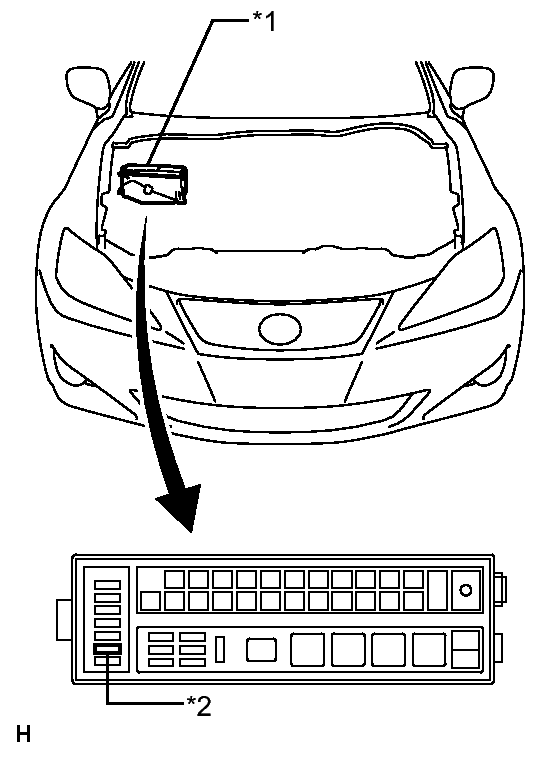

   Fig 1: Locating Engine Room No. 1 Junction Block And D/C CUT Fuse

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Engine Room No. 1 Junction Block and Relay Block
   *2	D/C CUT Fuse

   1. Confirm that the D/C CUT fuse is installed.

      HINT:

      If the D/C CUT fuse is not installed, install it at this time.

   2. Move the shift lever to P.
   3. Turn the engine switch off.
   4. Open the driver's door.

      HINT:

      Opening the driver's door will start an initialization process between the steering lock ECU and the engine room No. 1 junction block and relay block.

   5. Depress the brake pedal.
   6. Press the engine switch.
