Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch: Procedure

1. Turn the engine switch on (IG).
2. Operate the power window regulator switch assembly for 2 seconds or more.
3. Check the blinking pattern of the LED illumination. Compare the blinking pattern with the following illustration.

   HINT:

   If there is a malfunction in the pulse sensor, manually operate the power window regulator master switch assembly or power window regulator switch assembly will cause the power window regulator master switch assembly or power window regulator switch assembly LED illumination to blink. The LED illumination continues to blink for 45 seconds or until the engine switch is turned off. After 45 seconds, the power window regulator master switch assembly or power window regulator switch assembly LED illumination remains on.

   Fig 1: LED Blinking Pattern Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Result

   Result	Proceed to
   Pulse sensor circuit malfunctions	A
   Normal	B
   Fully closed position is misaligned	C
   Fully closed position is misaligned and pulse sensor circuit malfunctions

C → See step   4

B → See step   8

A: Go to next step

1. Initialize the power window regulator switch assembly. Refer to INITIALIZATION .

NEXT: Go to next step

1. Check that the auto up* and down function using the power window regulator switch assembly operates the front passenger door window. Refer to OPERATION CHECK .

   OK

   Front passenger door auto up* and down function operates normally.

   *: w/ Front Passenger Door Auto Up Function

NG → See step   4

OK → END (INITIALIZATION WAS INCORRECT)

1. Turn the engine switch on (IG).
2. Measure the voltage according to the value(s) in the table below.
   Fig 2: Identifying L17 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Component with harness connected (Power Window Regulator Switch Assembly)

   Standard Voltage

   Tester Connection	Condition	Specified Condition

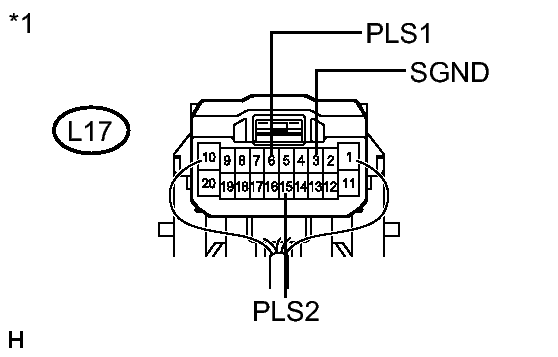

   L17-6 (PLS1) - L17-3 (SGND)	Front passenger side power window switch up or down	Pulse generation
   L17-15 (PLS2) - L17-3 (SGND)	Front passenger side power window switch up or down	Pulse generation

NG → See step   5

OK → See step   8

1. Turn the engine switch on (IG).
2. Measure the voltage according to the value(s) in the table below.
   Fig 3: Identifying L17 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Component with harness connected (Power Window Regulator Switch Assembly)

   Standard Voltage

   Tester Connection	Condition	Specified Condition

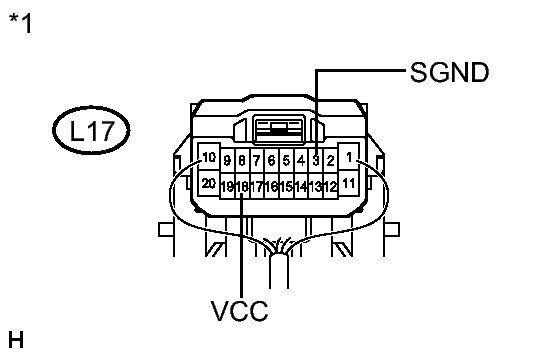

   L17-18 (VCC) - L17-3 (SGND)	Front passenger side power window switch off	Below 1 V
   L17-18 (VCC) - L17-3 (SGND)	Front passenger side power window switch up or down	11 to 14 V

NG → See step   8

OK: Go to next step

1. Disconnect the power window regulator switch assembly connector.
2. Disconnect the power window regulator motor assembly (for front passenger side) connector.
   Fig 4: Identifying L17 And L15 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION

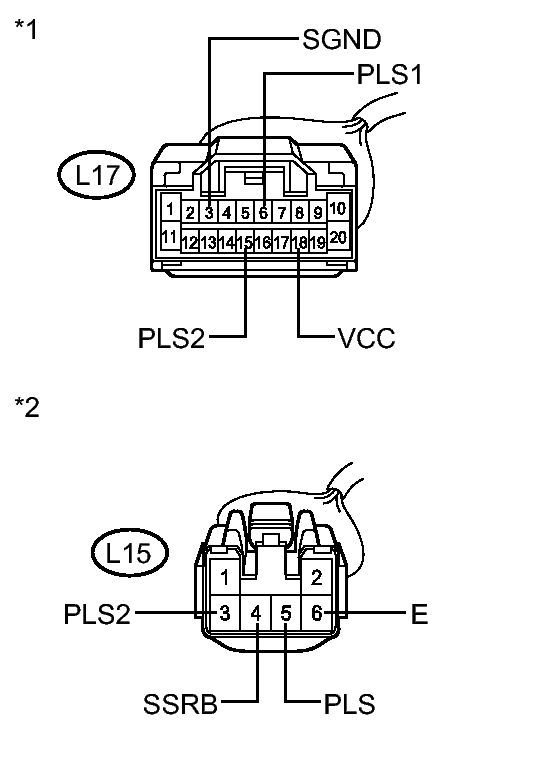

   *1	Front view of wire harness connector (to Power Window Regulator Switch Assembly)
   *2	Front view of wire harness connector (to Power Window Regulator Motor Assembly (for Front Passenger Side))

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   L17-3 (SGND) - L15-6 (E)	Always	Below 1 Ω
   L17-6 (PLS1) - L15-5 (PLS)	Always	Below 1 Ω
   L17-15 (PLS2) - L15-3 (PLS2)	Always	Below 1 Ω
   L17-18 (VCC) - L15-4 (SSRB)	Always	Below 1 Ω
   L17-3 (SGND) - Body ground	Always	10 kΩ or higher
   L17-6 (PLS1) - Body ground	Always	10 kΩ or higher
   L17-15 (PLS2) - Body ground	Always	10 kΩ or higher
   L17-18 (VCC) - Body ground	Always	10 kΩ or higher
   L15-6 (E) - Body ground	Always	10 kΩ or higher
   L15-5 (PLS) - Body ground	Always	10 kΩ or higher
   L15-3 (PLS2) - Body ground	Always	10 kΩ or higher
   L15-4 (SSRB) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   7
