Intake Manifold

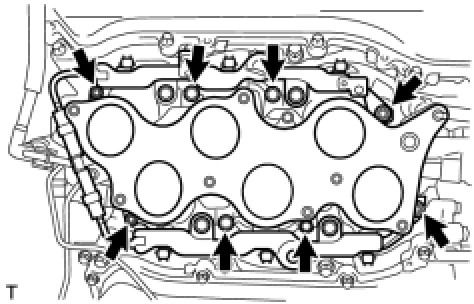

Intake manifold
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
Intake air surge tank
2 nuts Torque 16 Nm (163 kgf-cm, 12 ft-lbf)
6 bolts Torque 18 Nm (184 kgf-cm, 13 ft-lbf)
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
Intake air surge tank
2 nuts Torque 16 Nm (163 kgf-cm, 12 ft-lbf)
6 bolts Torque 18 Nm (184 kgf-cm, 13 ft-lbf)
