Timing Cover

Timing chain cover

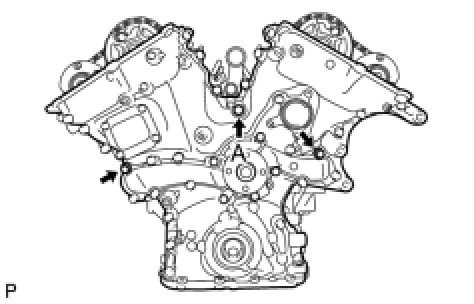

Bolt A 43 Nm (438 kgf-cm, 32 ft-lbf)

Bolts except A 21 Nm (214 kgf-cm, 15 ft-lbf)

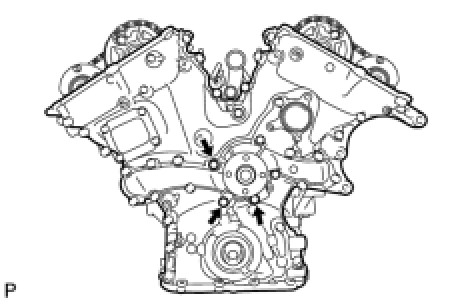

Torque 21 Nm (214 kgf-cm, 15 ft-lbf)





Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

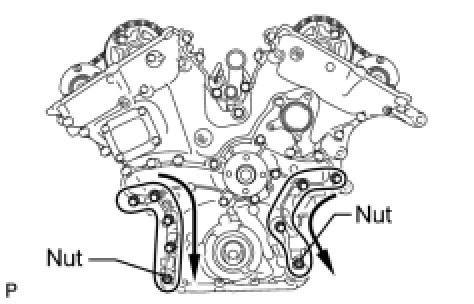

Tighten the bolts and nuts in the order from upper to lower as shown in the illustration





Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

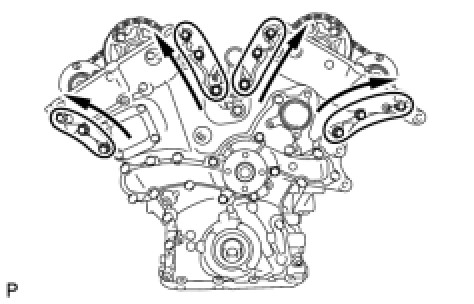

Tighten the bolts in the order from lower to upper as shown in the illustration
