Smart Access System with Push-Button Start: Notes

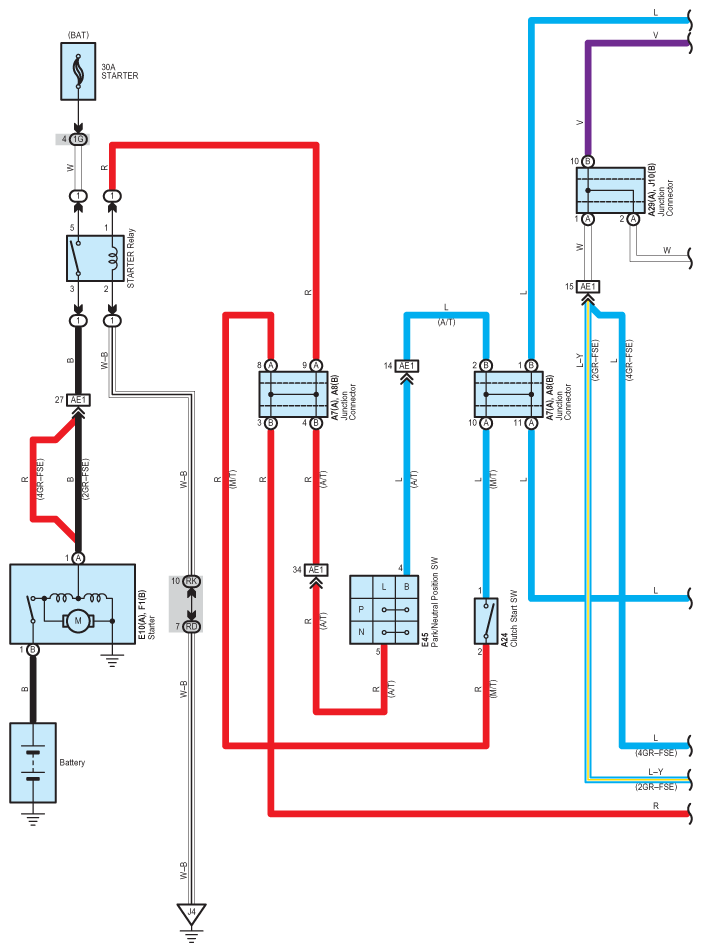

Fig 1: Smart Access System With Push-Button Start - Circuit Diagram (1 Of 20)

G07558933

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

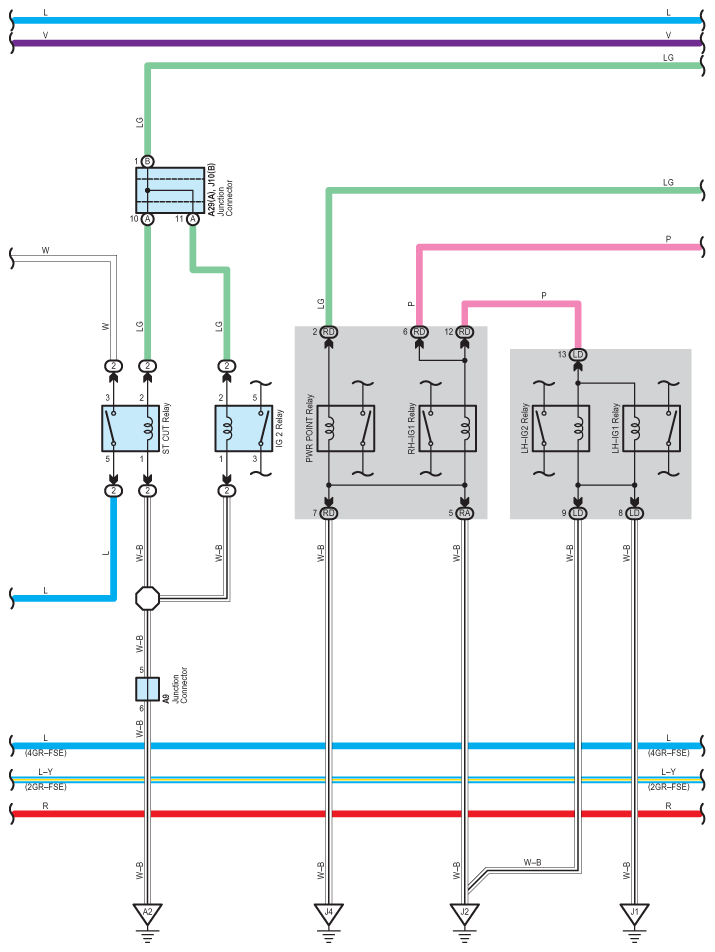

Fig 2: Smart Access System With Push-Button Start - Circuit Diagram (2 Of 20)

G07558934

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

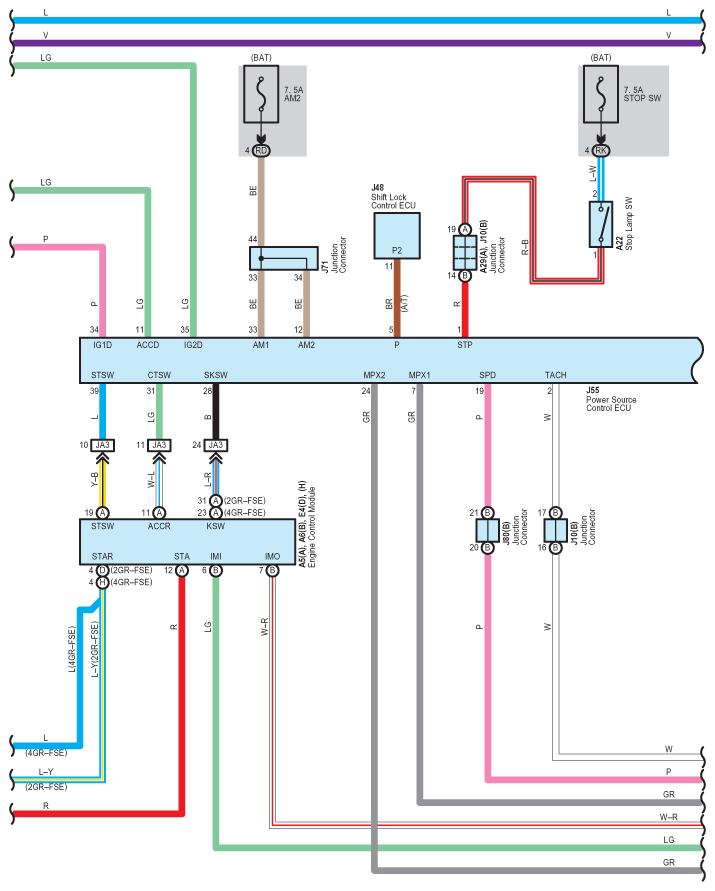

Fig 3: Smart Access System With Push-Button Start - Circuit Diagram (3 Of 20)

G07558935

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

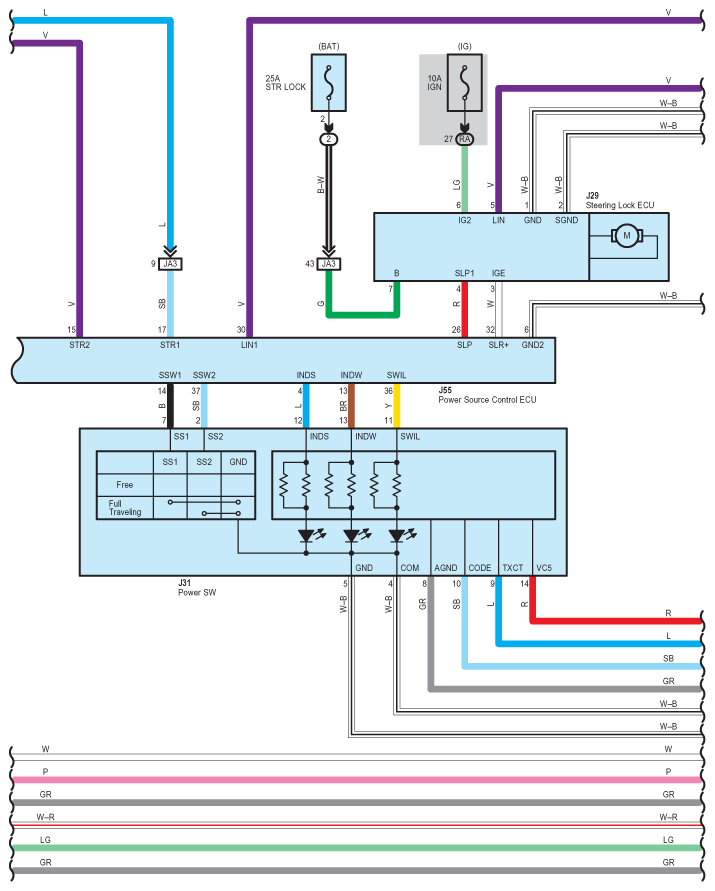

Fig 4: Smart Access System With Push-Button Start - Circuit Diagram (4 Of 20)

G07558936

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

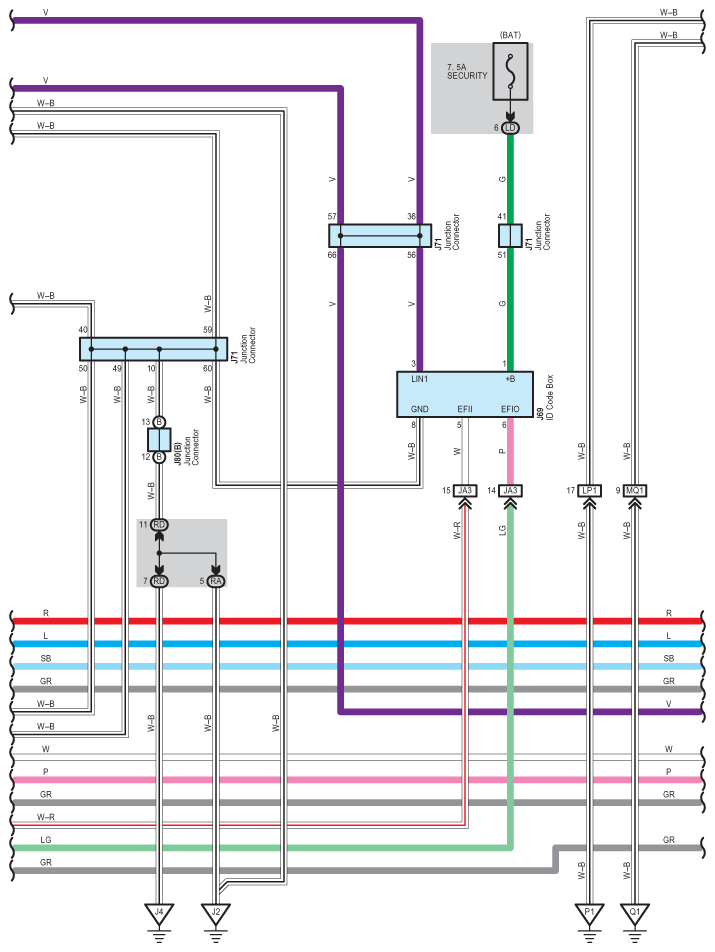

Fig 5: Smart Access System With Push-Button Start - Circuit Diagram (5 Of 20)

G07558937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

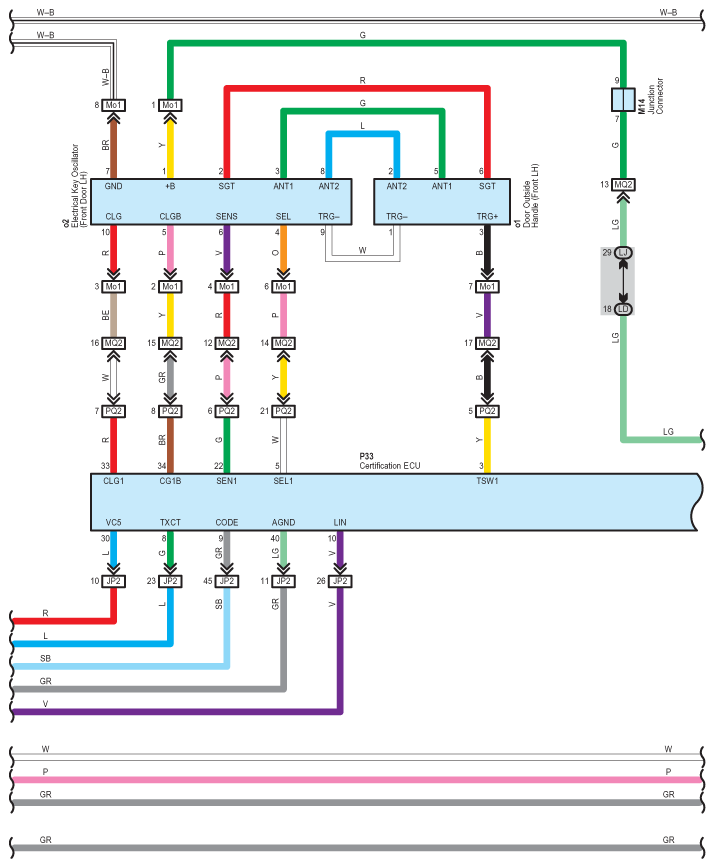

Fig 6: Smart Access System With Push-Button Start - Circuit Diagram (6 Of 20)

G07558938

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

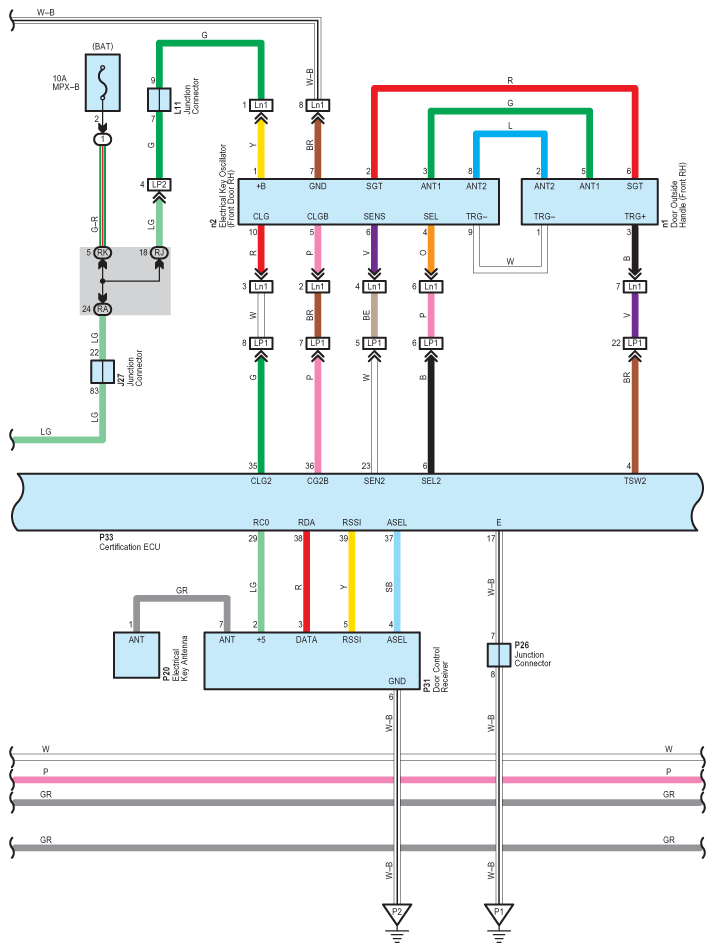

Fig 7: Smart Access System With Push-Button Start - Circuit Diagram (7 Of 20)

G07558939

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

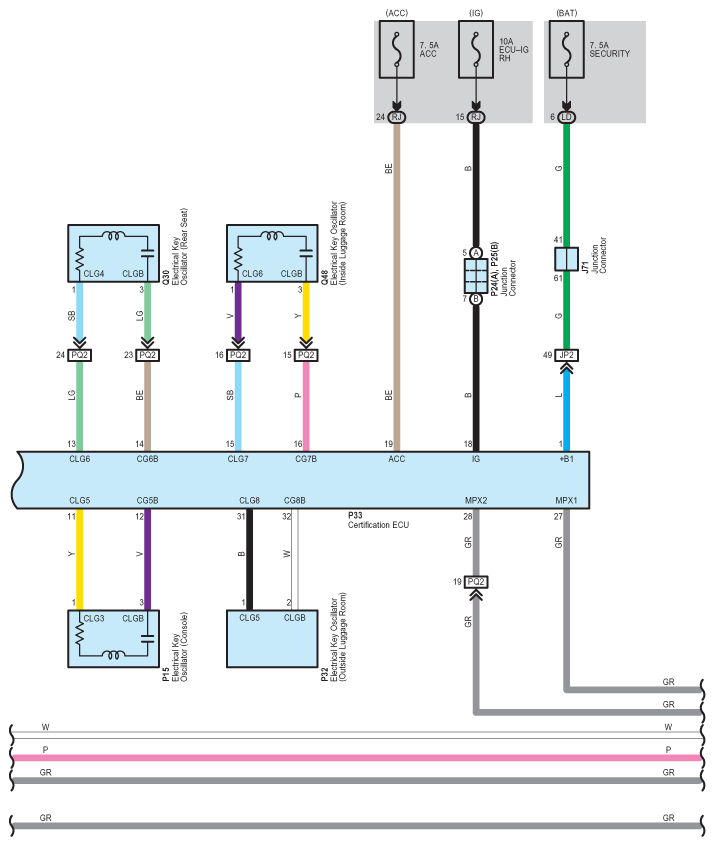

Fig 8: Smart Access System With Push-Button Start - Circuit Diagram (8 Of 20)

G07558940

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Smart Access System With Push-Button Start - Circuit Diagram (9 Of 20)

G07558941

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

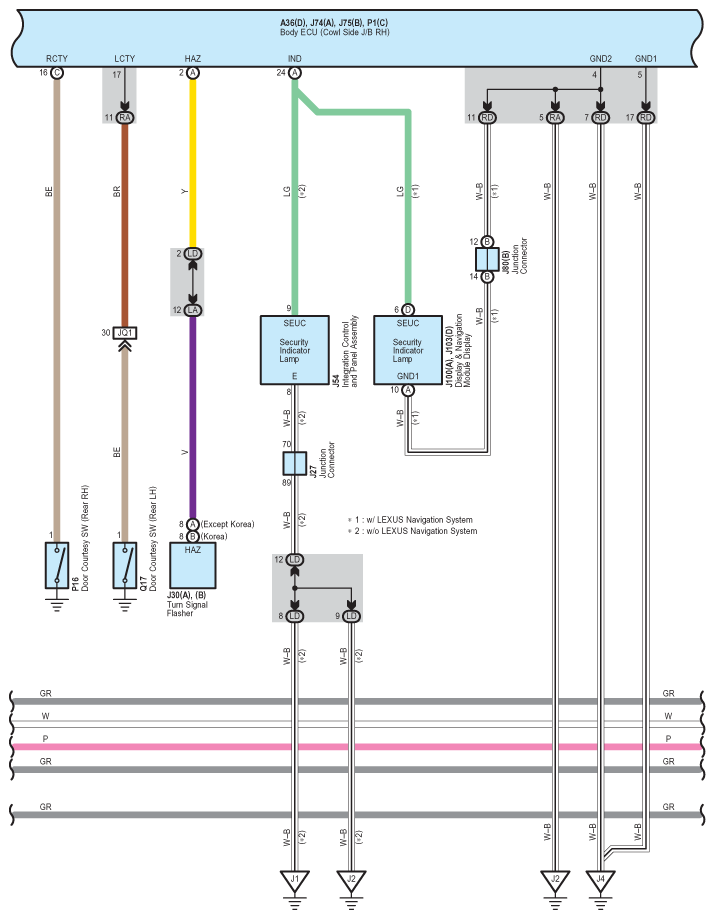

Fig 10: Smart Access System With Push-Button Start - Circuit Diagram (10 Of 20)

G07558942

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

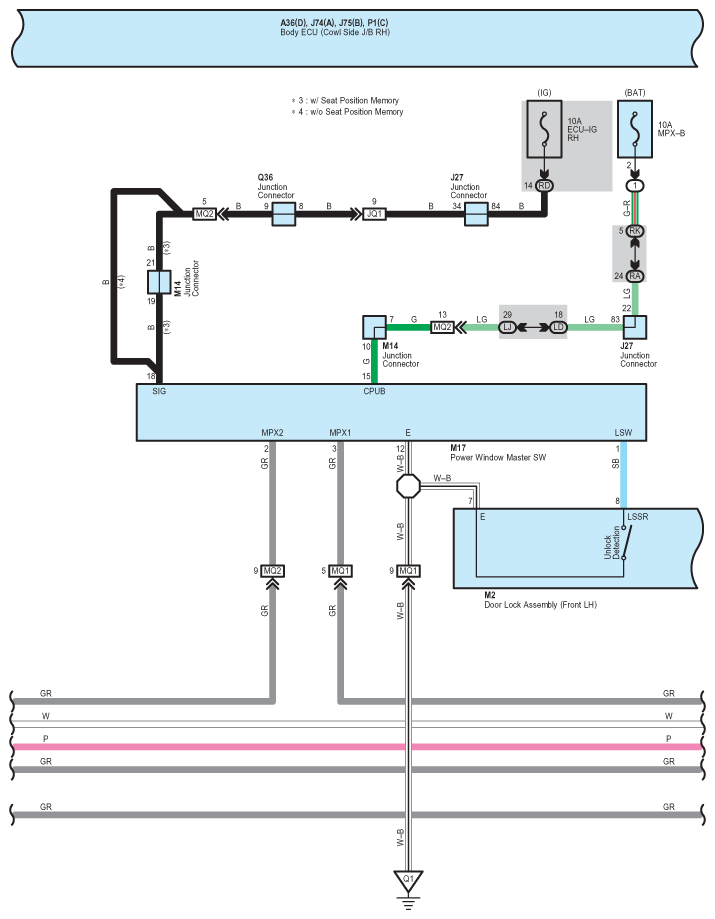

Fig 11: Smart Access System With Push-Button Start - Circuit Diagram (11 Of 20)

G07558943

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

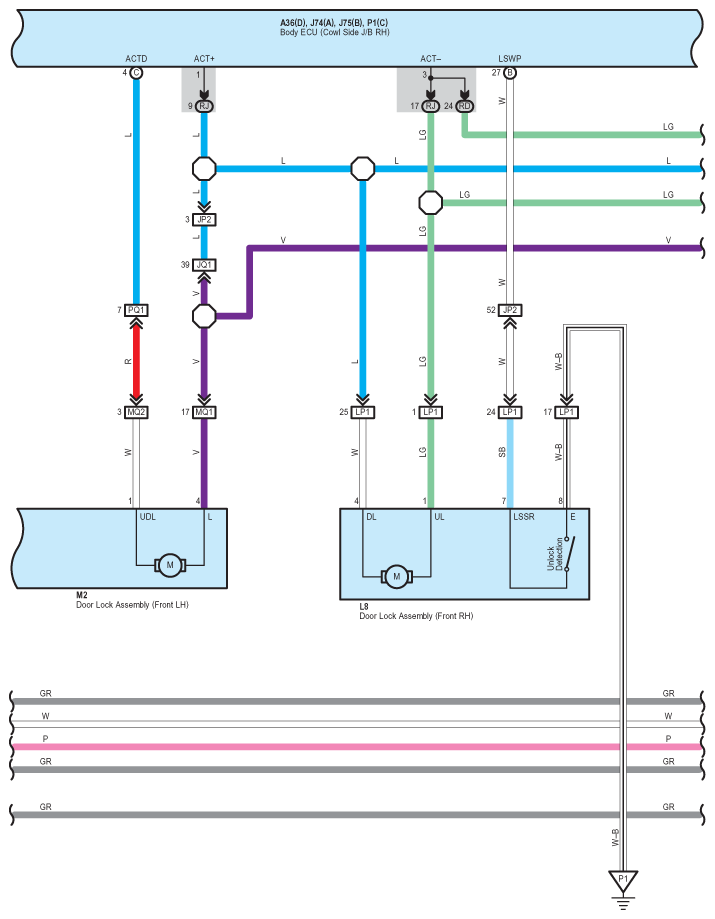

Fig 12: Smart Access System With Push-Button Start - Circuit Diagram (12 Of 20)

G07558944

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

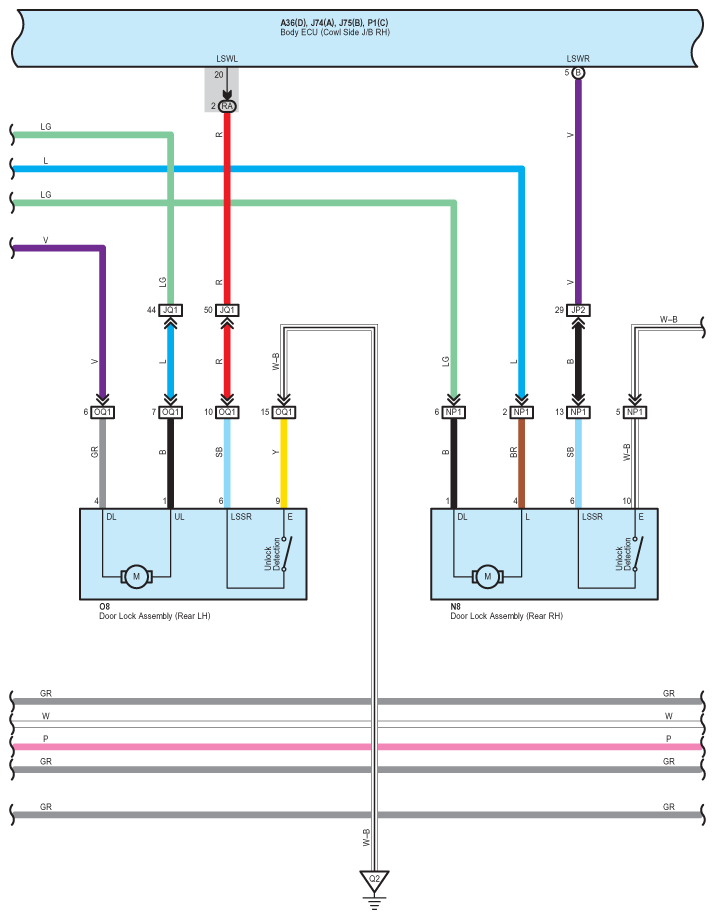

Fig 13: Smart Access System With Push-Button Start - Circuit Diagram (13 Of 20)

G07558945

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

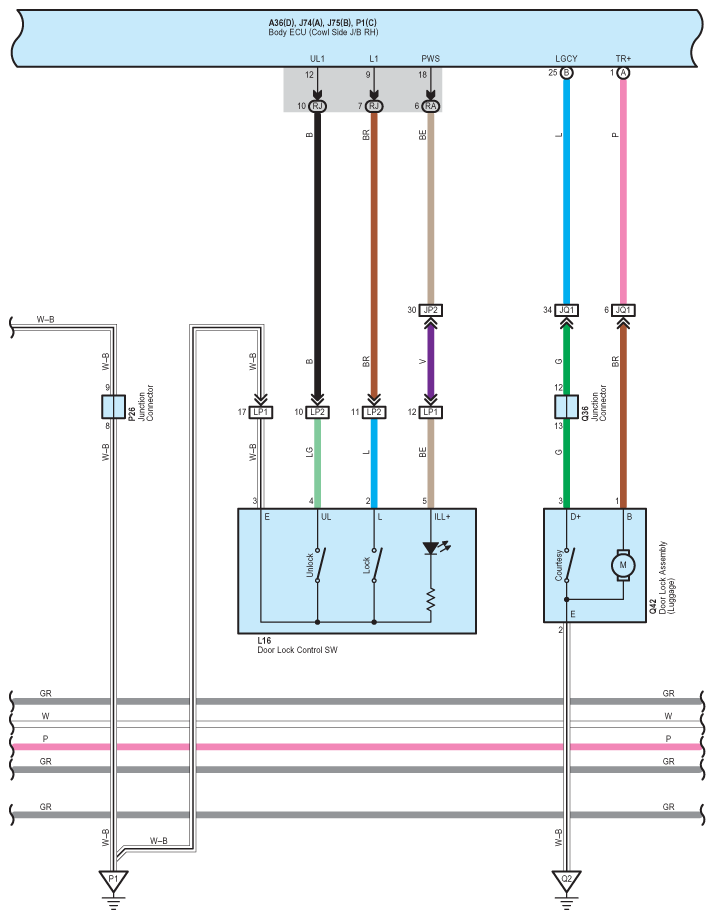

Fig 14: Smart Access System With Push-Button Start - Circuit Diagram (14 Of 20)

G07558946

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

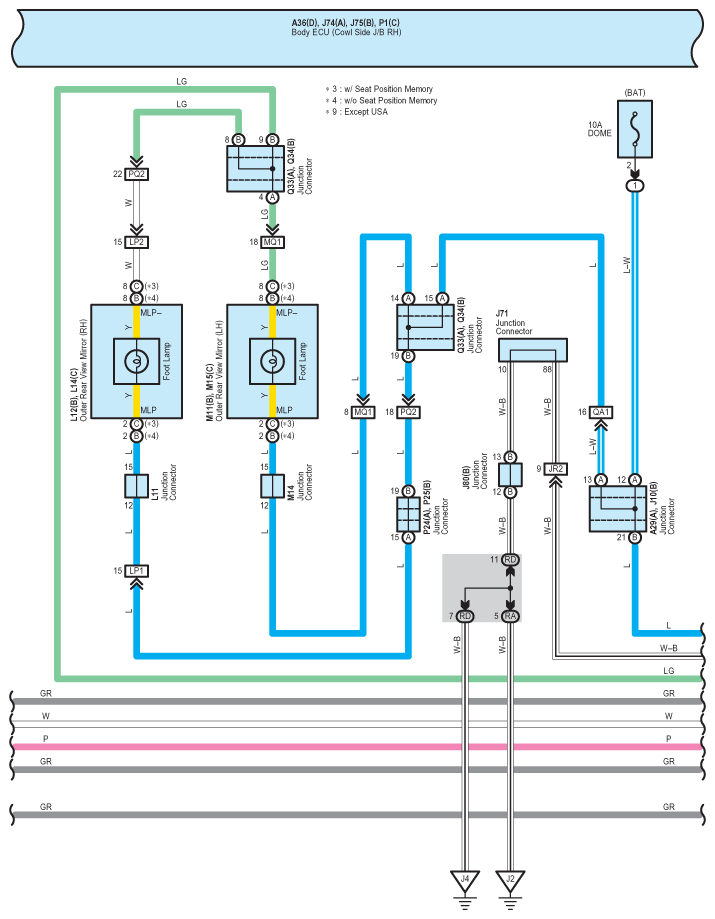

Fig 15: Smart Access System With Push-Button Start - Circuit Diagram (15 Of 20)

G07558947

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

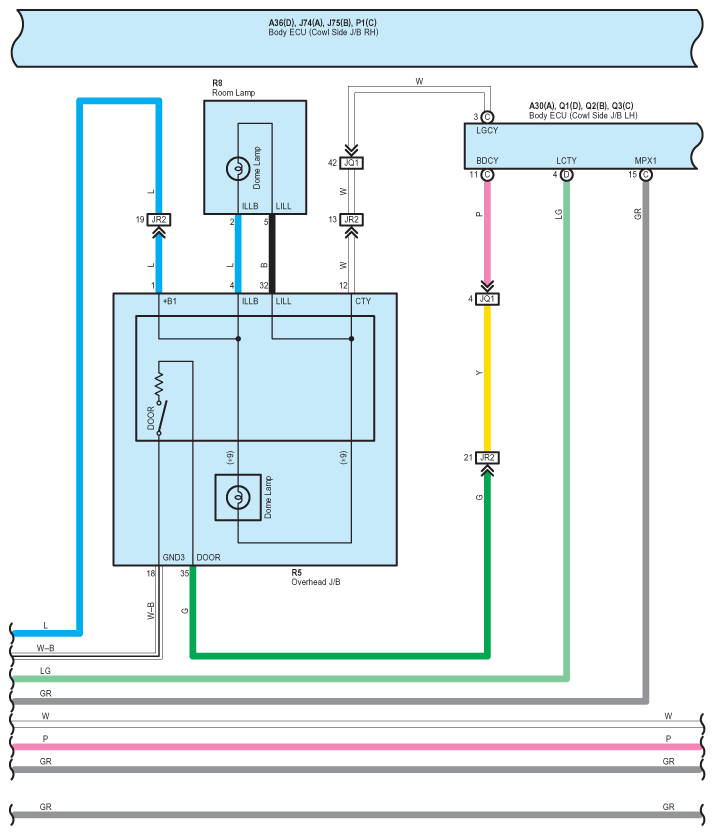

Fig 16: Smart Access System With Push-Button Start - Circuit Diagram (16 Of 20)

G07558948

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

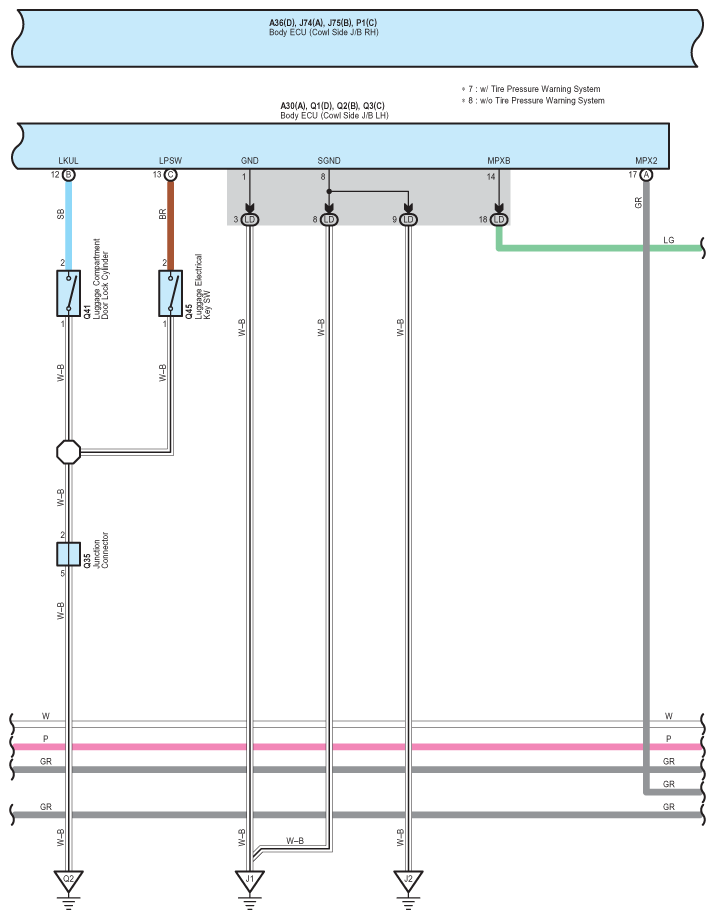

Fig 17: Smart Access System With Push-Button Start - Circuit Diagram (17 Of 20)

G07558949

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

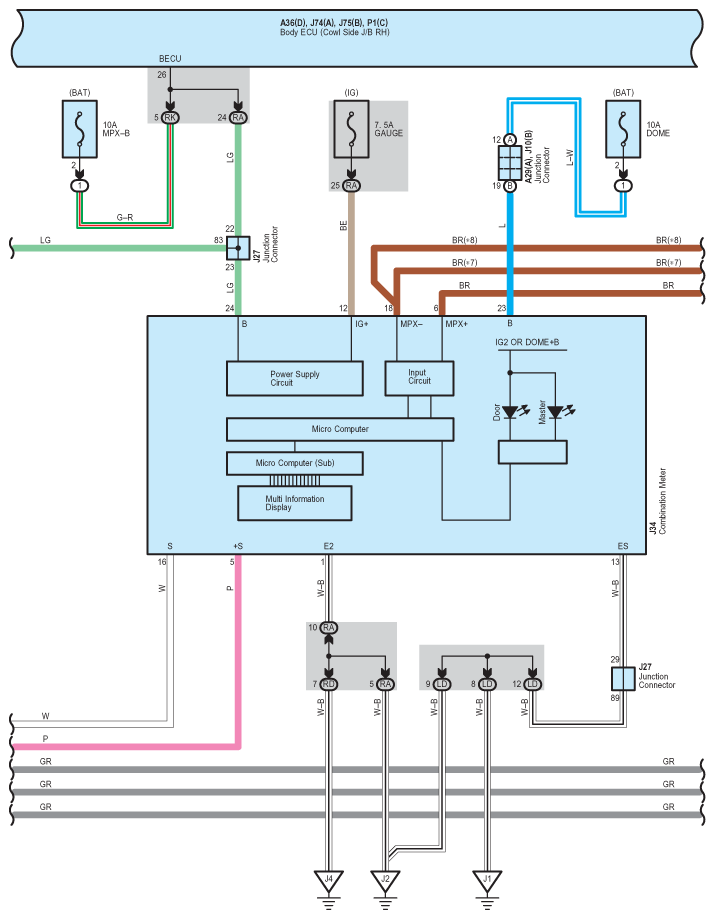

Fig 18: Smart Access System With Push-Button Start - Circuit Diagram (18 Of 20)

G07558950

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Smart Access System With Push-Button Start - Circuit Diagram (19 Of 20)

G07558951

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

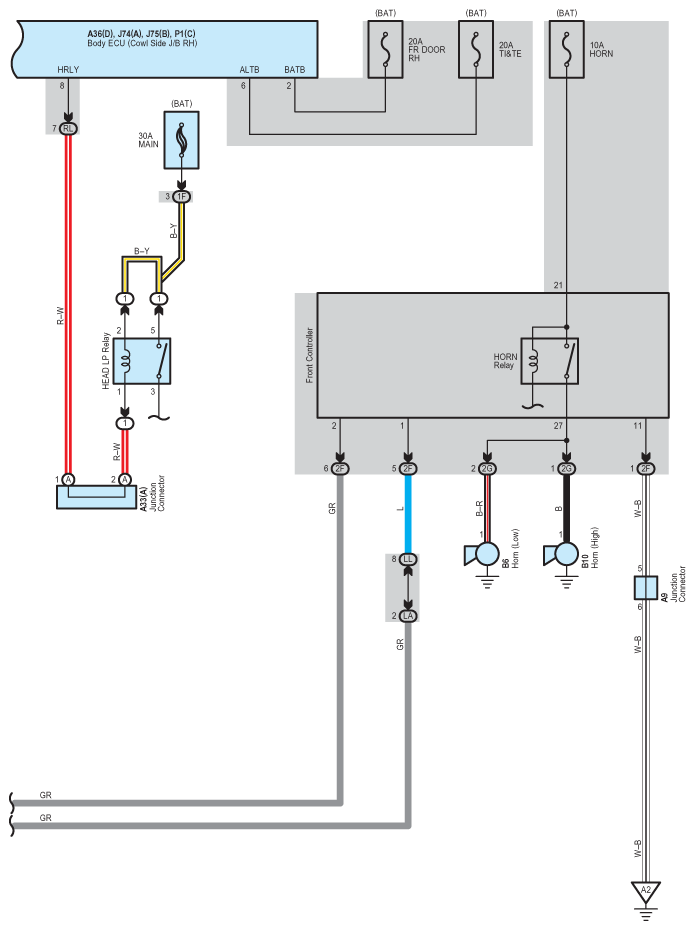

Fig 20: Smart Access System With Push-Button Start - Circuit Diagram (20 Of 20)

G07558952

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
