Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| Back-Up Lamp SW | Right side of transmission. See Figure. |
| Brake Fluid Level Warning SW (3.5L Shown, 2.5L Similar) | Brake fluid reservoir. See Figure. |
| Brake Pedal Load Sensing SW | Left side of dash. See Figure. |
| Clutch Start SW | Left side of dash. See Figure. |
| Cruise Control Clutch SW | Left side of dash. See Figure. |
| Door Courtesy SW (Left Front) | Left "B" pillar. See Figure. |
| Door Courtesy SW (Left Rear) | Left "C" pillar. See Figure. |
| Door Courtesy SW (Right Front) | Right "B" pillar. See Figure. |
| Door Courtesy SW (Right Rear) | Right "C" pillar. See Figure. |
| Engine Hood Courtesy SW | Center front of engine compartment. See Figure. |
| Engine Oil Pressure Switch (2.5L) | Front of engine. See Figure. |
| Engine Oil Pressure Switch (3.5L) | Front of engine. See Figure. |
| Luggage Electrical Key SW | Center rear of trunk. See Figure. |
| Parking Brake SW (A/T) | Left side of dash. See Figure. |
| Parking Brake SW (M/T) | Under center console. See Figure. |
| Park/Neutral Position Switch (2.5L) | On transmission. See Figure. |
| Park/Neutral Position Switch (3.5L) | On transmission. See Figure. |
| Stop Lamp SW | Left side of dash. See Figure. |

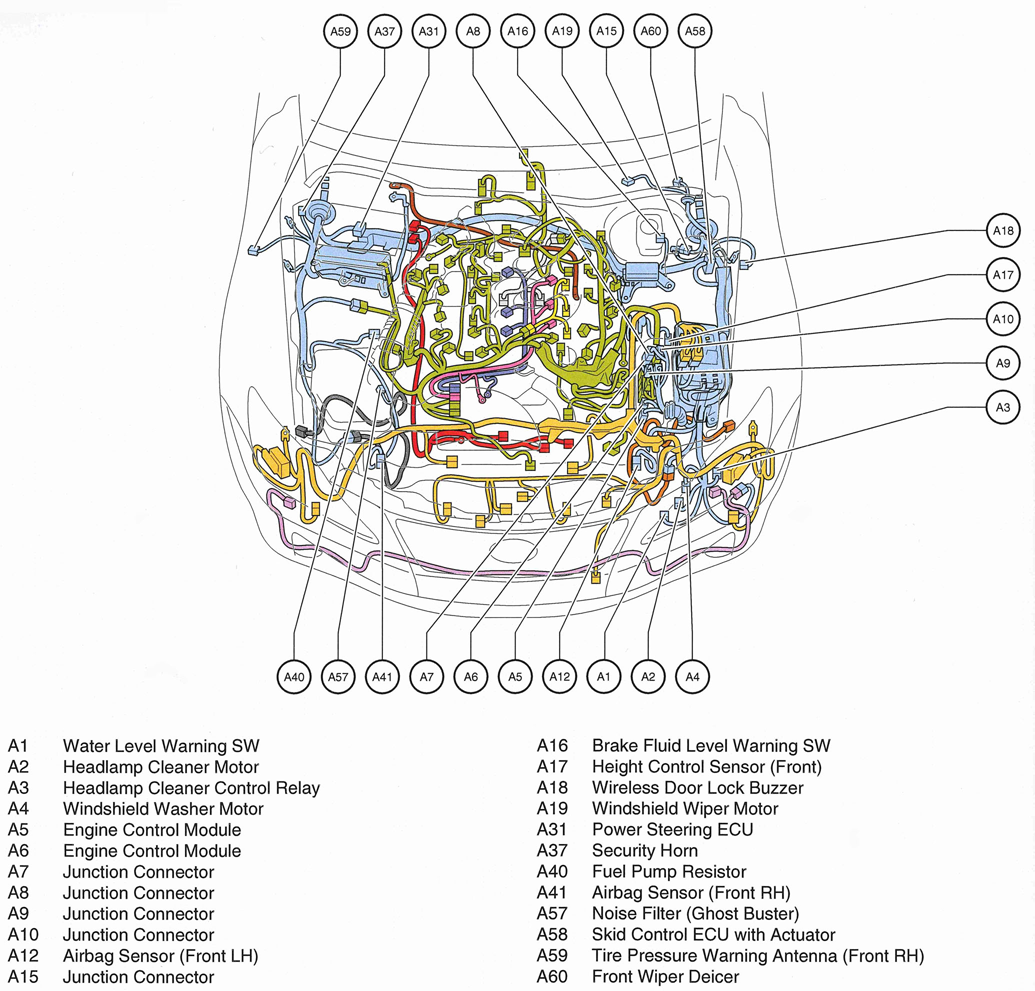

| Water Level Warning SW (3.5L Shown, 2.5L Similar) | Left front of engine compartment. See Figure. |
