Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

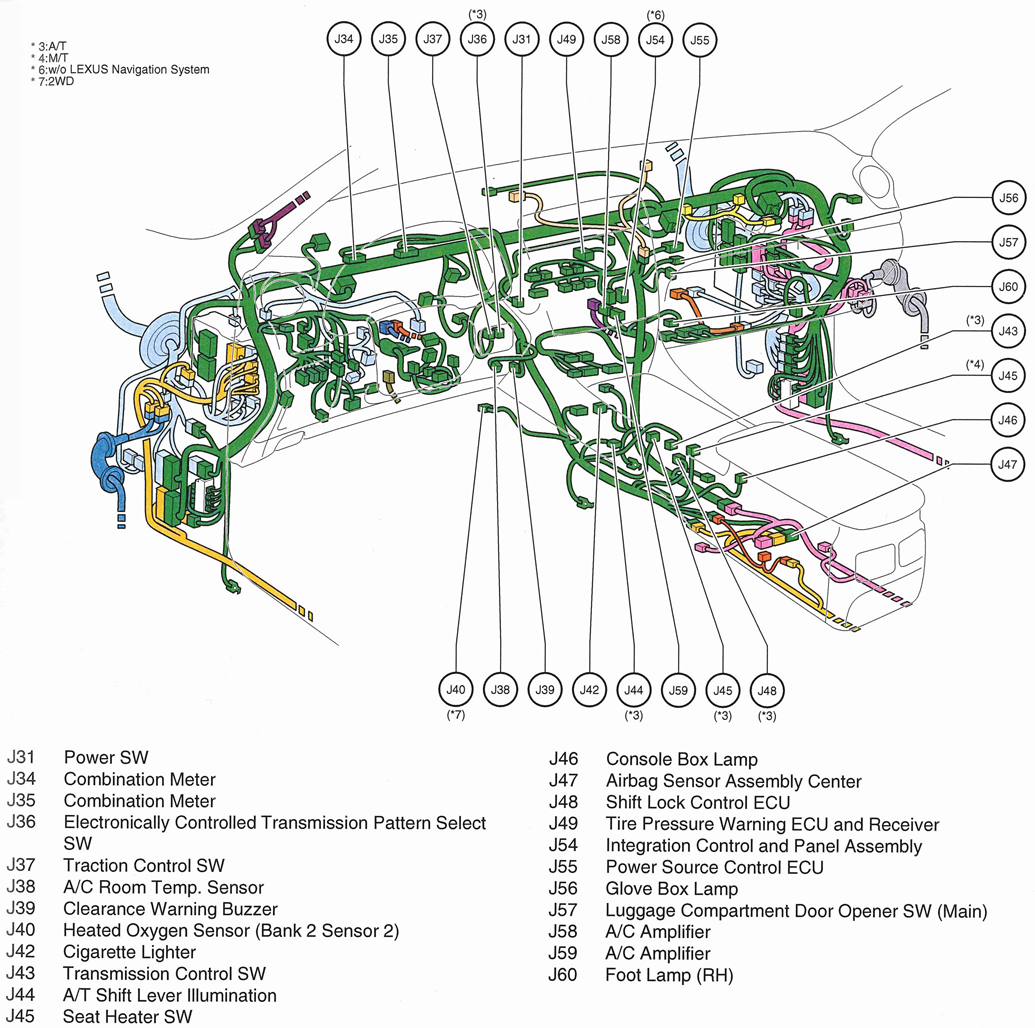

| Airbag Sensor Assembly Center | Under center console. See Figure. |
| Body ECU | Right & left ends of dash. See Figure. |
| Certification ECU | Right side of trunk. See Figure. |
| Clearance Warning ECU | Left side of trunk. See Figure. |
| DCM (Telematics Transceiver) | Right side of dash. See Figure. |
| Distance Control ECU | Left side of dash. See Figure. |
| Engine Control Module | Left front of engine compartment. See Figure. |
| Gateway ECU | Right end of dash. See Figure. |
| Headlamp Swivel ECU | Left kick panel. See Figure. |
| Injector Driver (EDU) | Front of engine compartment. See Figure. |
| Multimedia Interface ECU | Lower right side of dash. See Figure. |
| Occupant Classification ECU | Under front passenger's seat. See Figure. |
| Outer Mirror Control ECU | Left & right front doors. See Figure. |
| Position Control ECU & SW (Left) | Under driver's seat. See Figure. |
| Position Control ECU & SW (Right) | Under front passenger's seat. See Figure. |
| Power Source Control ECU | Right side of dash. See Figure. |
| Power Steering ECU | Right rear of engine compartment. See Figure. |
| Seat Belt Control ECU | Left side of trunk. See Figure. |
| Shift Lock Control ECU | Under center console. See Figure. |
| Skid Control ECU With Actuator | Left rear of engine compartment. See Figure. |
| Sliding Roof Control ECU | Center front of roof. See Figure. |
| Steering Lock ECU | Steering column. See Figure. |
| Tilt & Telescopic ECU | On steering column. See Figure. |
| Tire Pressure Warning ECU | Center of dash. See Figure. |
| 4WD Control ECU | Right kick panel. See Figure. |
