Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

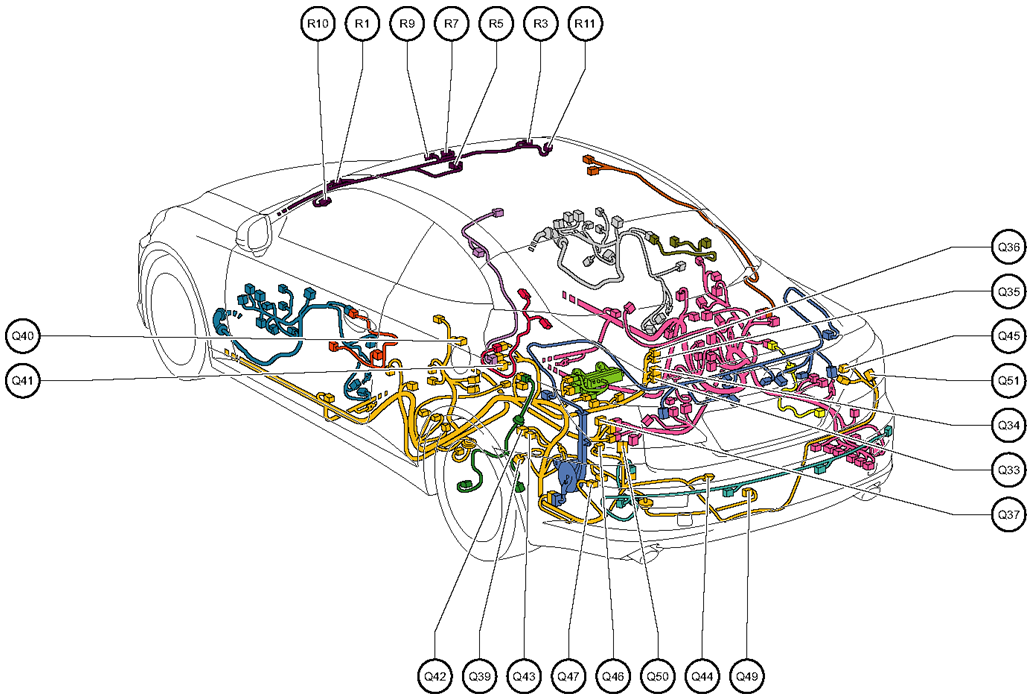

| Canister Pump Module (Q49) | Center rear of vehicle. See Figure. |
| Center Airbag Sensor Assembly | Under center console. See Figure. |

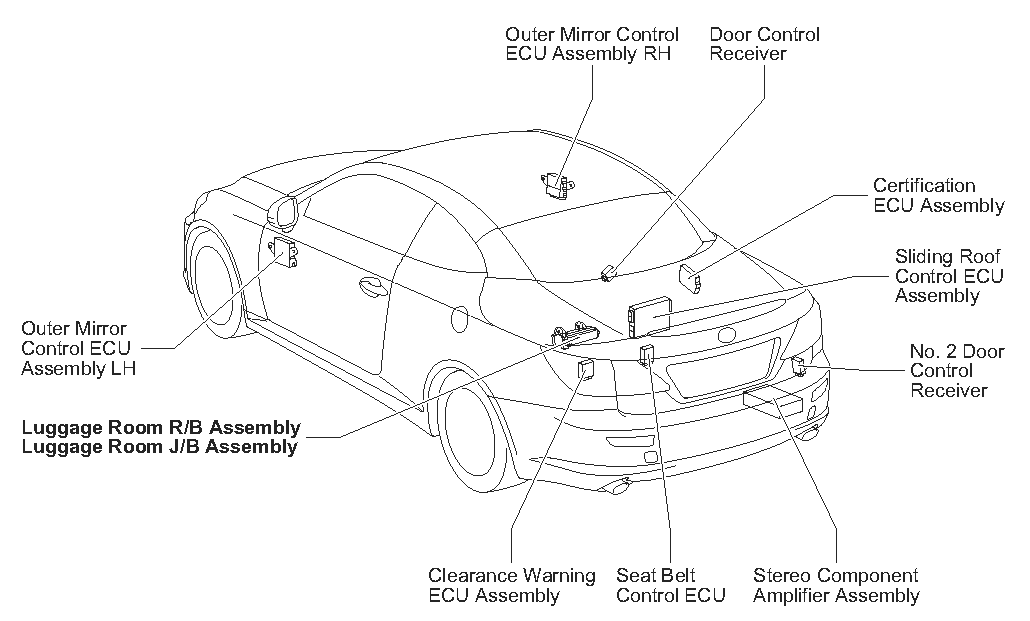

| Certification ECU | Right side of trunk. See Figure. |
| Clearance Warning ECU | Left side of trunk. See Figure. |

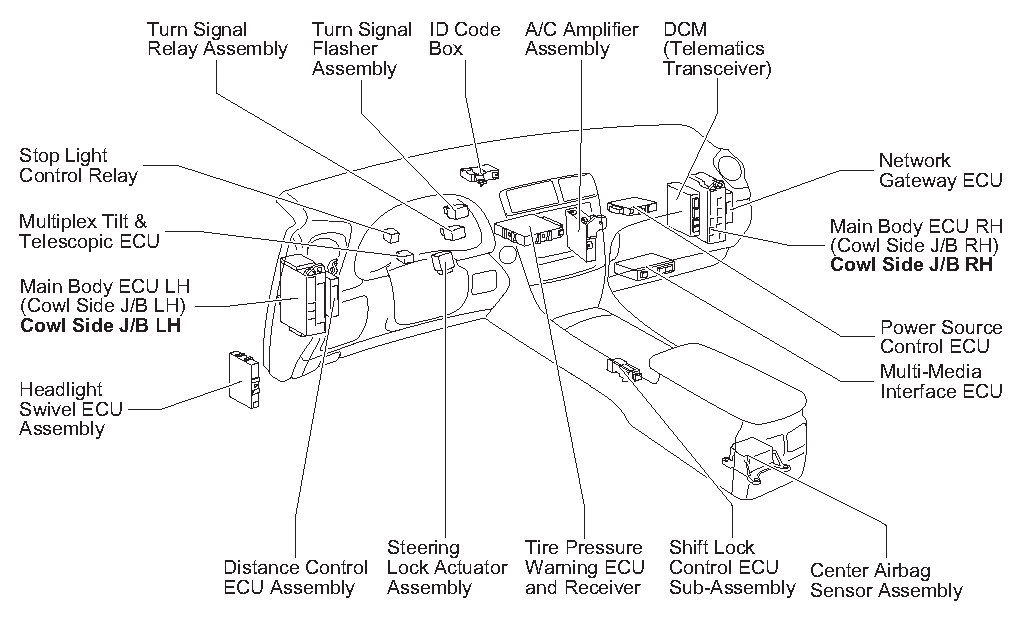

| DCM (Telematics Transceiver) | Right side of dash. See Figure. |
| Distance Control ECU | Left side of dash. See Figure. |

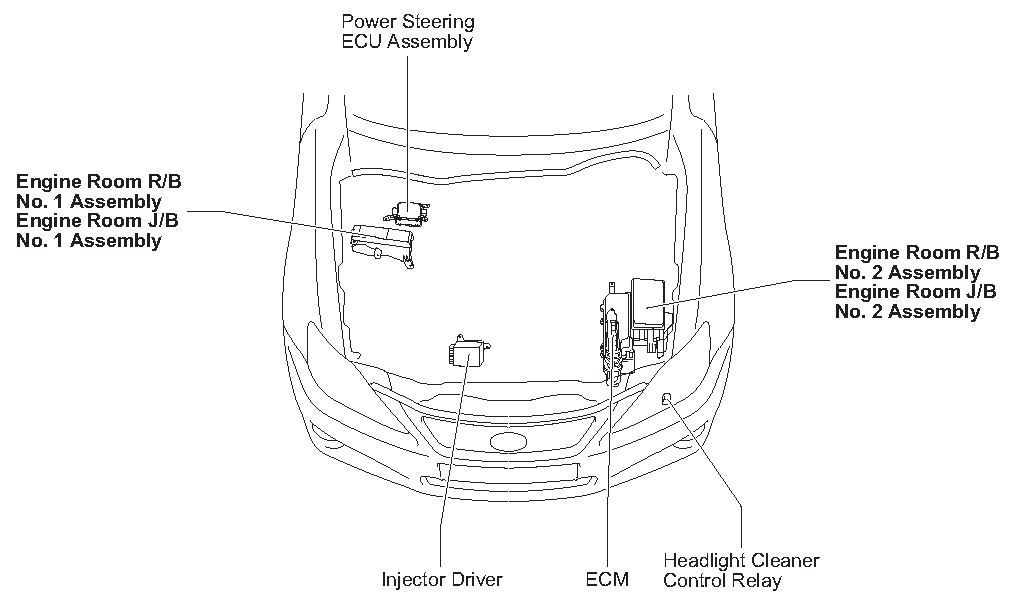

| Engine Control Module | Left front of engine compartment. See Figure. |

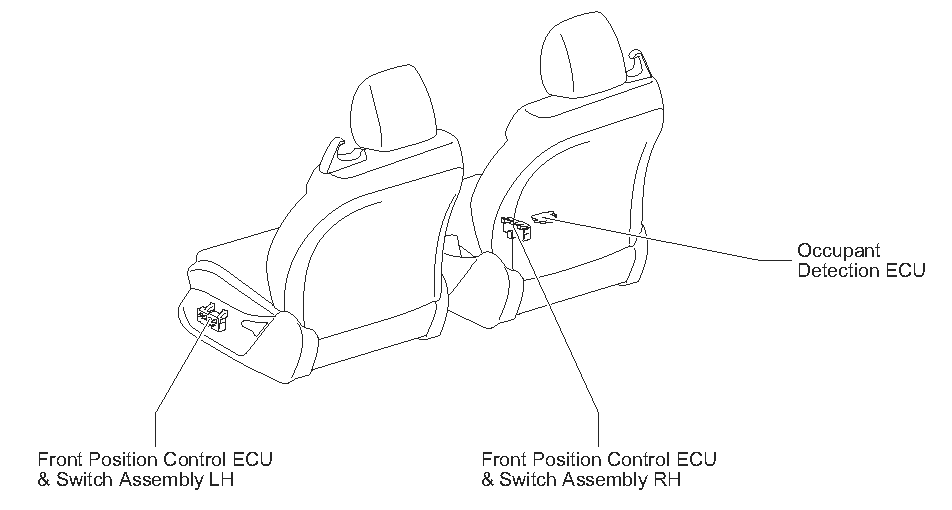

| Front Position Control ECU & Switch LH | Under driver's seat. See Figure. |
| Front Position Control ECU & Switch RH | Under front passenger's seat. See Figure. |
| Headlamp Swivel ECU | Left kick panel. See Figure. |
| Injector Driver | Front of engine compartment. See Figure. |
| Main Body ECU | Right & left ends of dash. See Figure. |
| Multimedia Interface ECU | Lower right side of dash. See Figure. |
| Multiplex Tilt & Telescopic ECU | On steering column. See Figure. |
| Network Gateway ECU | Right side of dash. See Figure. |
| Occupant Classification ECU | Under front passenger's seat. See Figure. |
| Outer Mirror Control ECU | Left & right front doors. See Figure. |
| Power Source Control ECU | Right side of dash. See Figure. |
| Power Steering ECU | Right rear of engine compartment. See Figure. |
| Seat Belt Control ECU | Left side of trunk. See Figure. |
| Shift Lock Control ECU | Under center console. See Figure. |
| Sliding Roof Control ECU | Center of trunk. See Figure. |
| Steering Lock Actuator | Steering column. See Figure. |
| Tire Pressure Warning ECU | Center of dash. See Figure. |
| 4WD Control ECU | Right kick panel. See Figure. |
