Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|

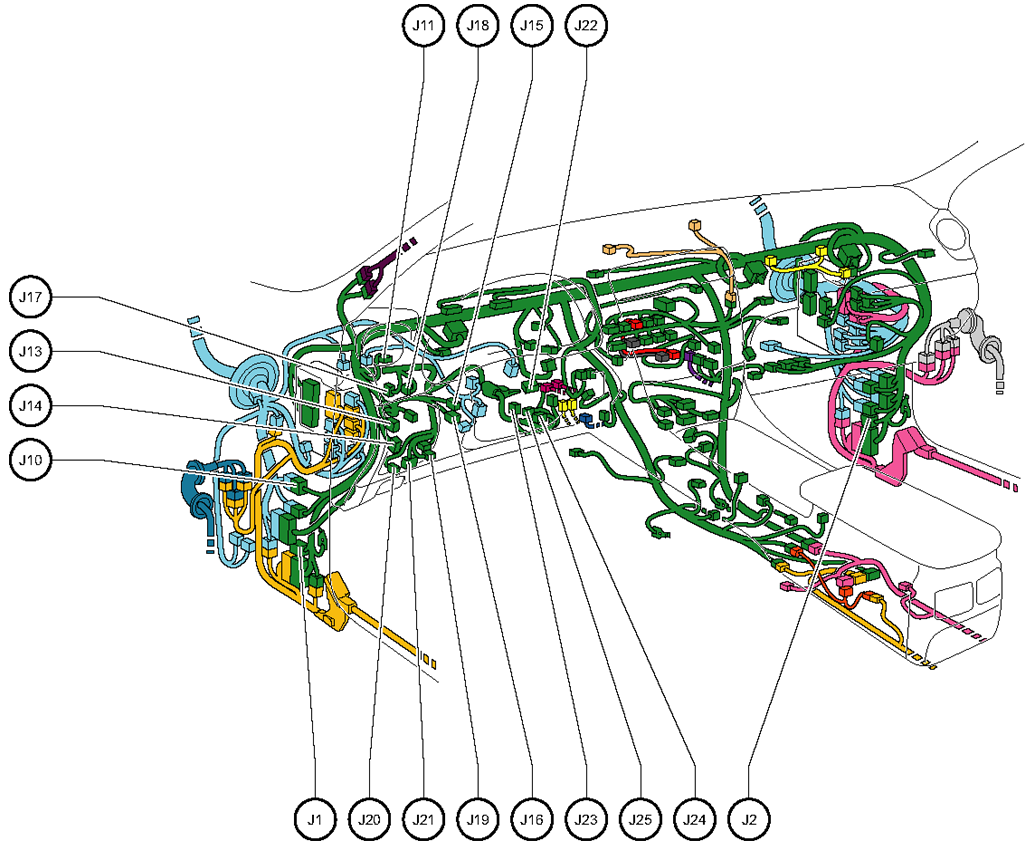

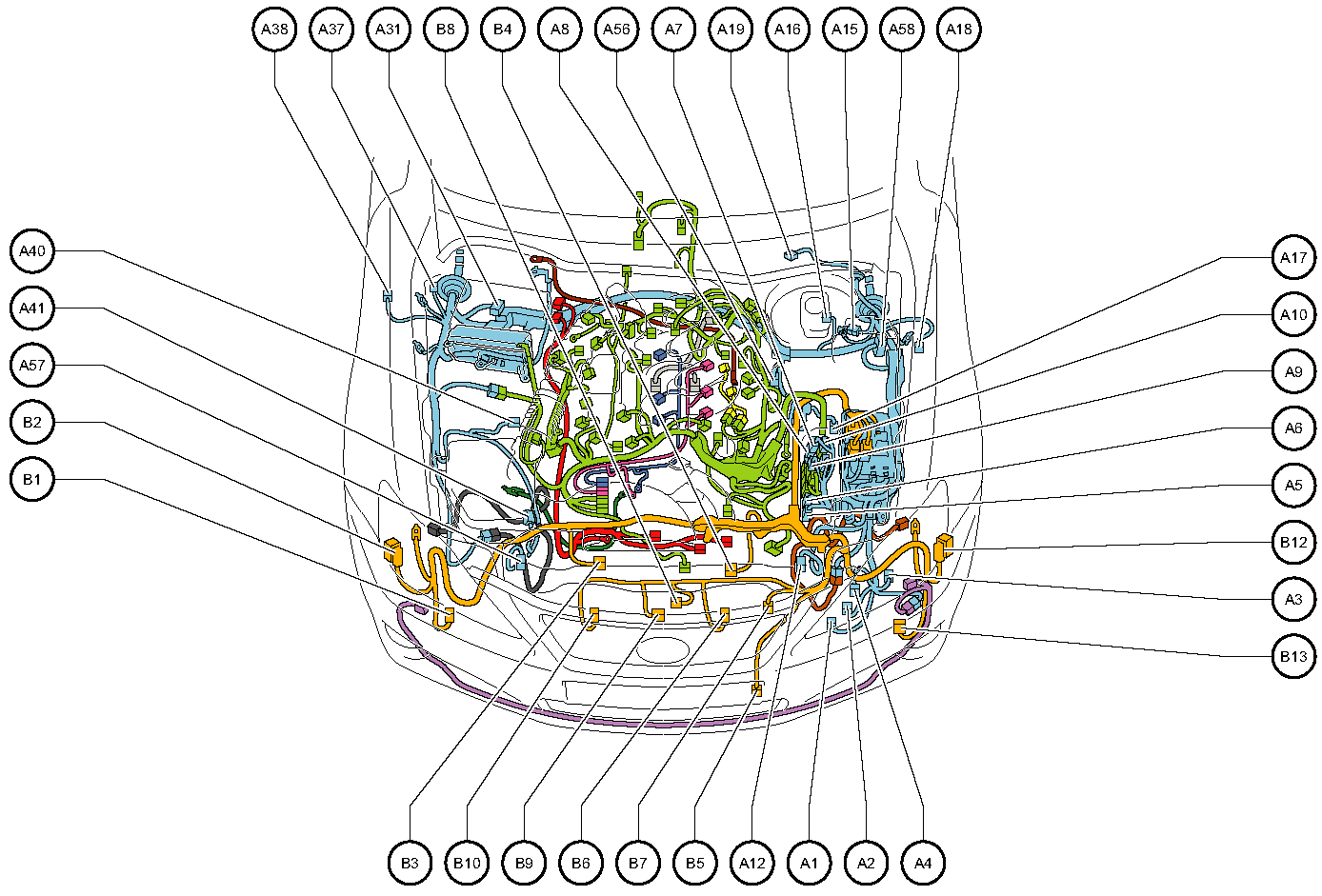

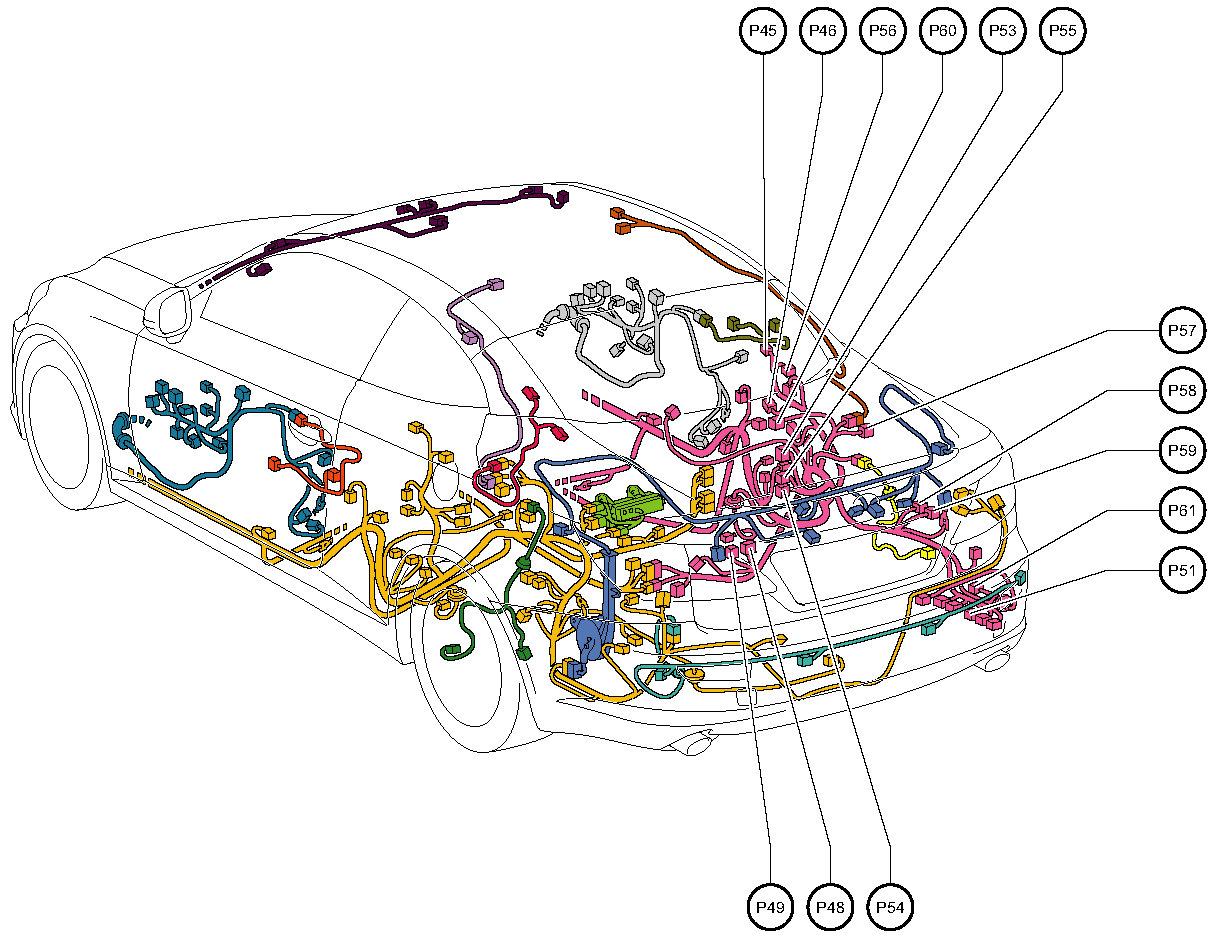

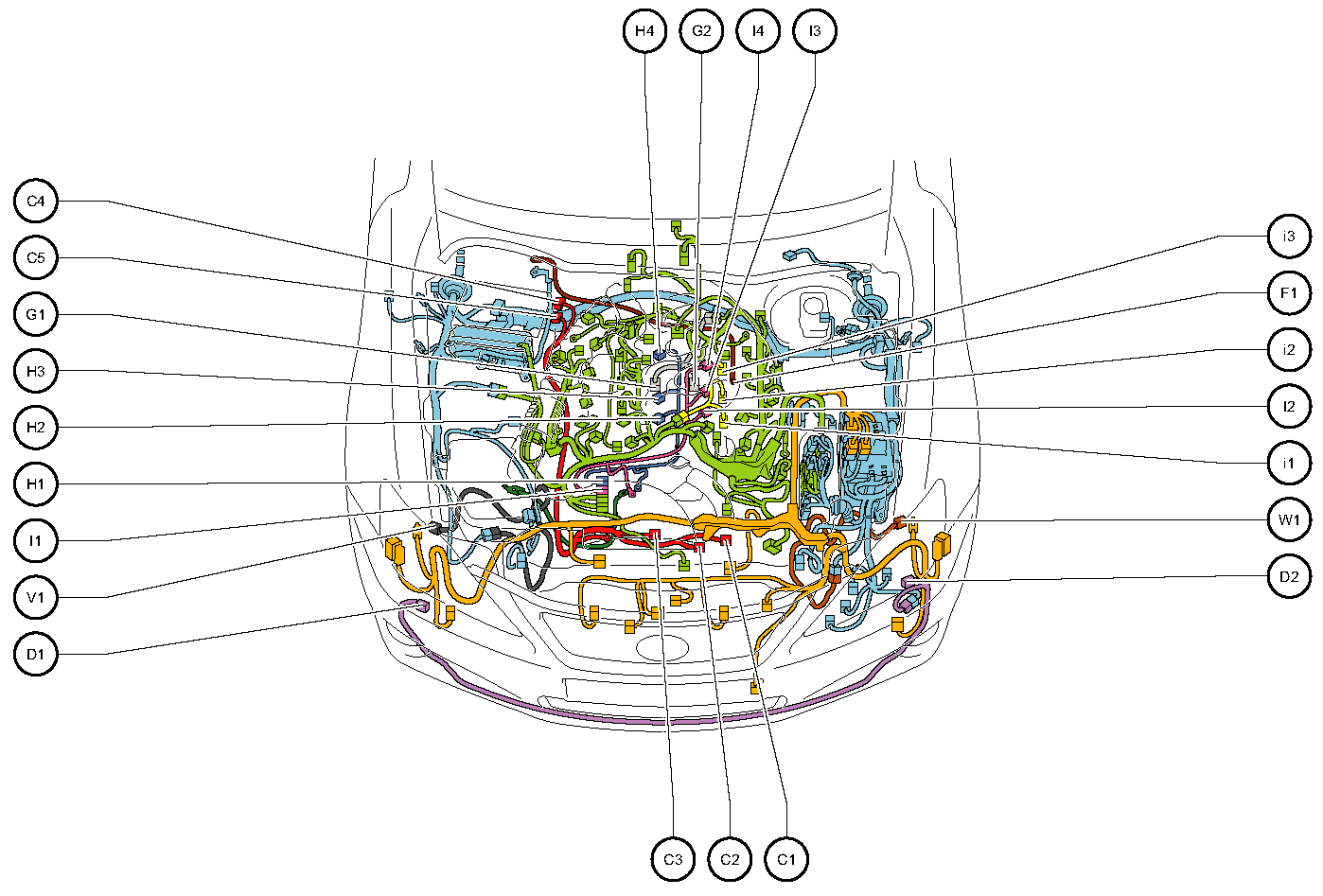

| Cooling Fan Motor No. 1 (3.5L Shown, 2.5L Similar) (B4) | Left front of engine compartment. See Figure. |
| Cooling Fan Motor No. 2 (3.5L Shown, 2.5L Similar) (B3) | Right front of engine compartment. See Figure. |
| Cooling Unit Motor Sub- Assembly (A34) | Right side of dash. See Figure. |
| Door Lock Assembly (Left Front) (M2) | Driver's door. See Figure. |
| Door Lock Assembly (Right Front) (L8) | Front passenger's door. See Figure. |
| Front Lumbar Support Motor (LH) (U10) | In driver's seat. See Figure. |
| Front Lumbar Support Motor (RH) (T10) | Front passenger's seat. See Figure. |
| Front Power Seat Lift Position Motor (LH) (U9) | In driver's seat. See Figure. |
| Front Power Seat Lift Position Motor (RH) (T5) | Under front passenger's seat. See Figure. |
| Front Power Seat Reclining Position Motor Assembly (LH) (U5) | In driver's seat. See Figure. |
| Front Power Seat Reclining Position Motor Assembly (RH) (T9) | Front passenger's seat. See Figure. |
| Front Power Seat Slide Position Motor Assembly (LH) (U2) | In driver's seat. See Figure. |
| Front Power Seat Slide Position Motor Assembly (RH) (T1) | Front passenger's seat. See Figure. |
| Front Power Seat Vertical Position Motor Assembly (LH) (U8) | Under driver's seat. See Figure. |
| Front Power Seat Vertical Position Motor (RH) (T4) | Under front passenger's seat. See Figure. |
| Fuel Pump & Gauge Assembly (Q14) | Forward of left rear wheel. See Figure. |
| Headlamp Cleaner Motor (2.5L Shown, 3.5L Similar) (A2) | Below left headlight. See Figure. |
| Power Steering Motor (3.5L Shown, 2.5L Similar) (C2) | Lower front of engine compartment. See Figure. |
| Power Tilt Motor (J22) | At steering column. See Figure. |
| Power Window Regulator Motor (Left Front) (M6) | Driver's door. See Figure. |
| Power Window Regulator Motor (Right Front) (L15) | Front passenger's door. See Figure. |
| Pre-Collision Seat Belt Motor (Left) (Q13) | Left "C" pillar. See Figure. |
| Quarter Power Window Regulator Motor (LH) (Q19) | Left "C" pillar. See Figure. |
| Quarter Power Window Regulator Motor (RH) (P44) | Right "B" Pillar. See Figure. |
| Roof Front Lock Motor (E1) | Right side of roof. See Figure. |
| Roof Rear Lock Motor (F1) | Left side of roof. See Figure. |
| Seat Back Climate Control Blower (LH) (U13) | Driver's seat back. See Figure. |
| Seat Back Climate Control Blower (RH) (T13) | Front passenger's seat back. See Figure. |
| Seat Cushion Climate Control Blower (LH) (U12) | Driver's seat cushion. See Figure. |
| Seat Cushion Climate Control Blower (RH) (T12) | Front passenger's seat cushion. See Figure. |
| Slide Roof Motor RH (P57) | Right side of trunk. See Figure. |
| Starter (2.5L) (E10) | Left side of engine. See Figure. |
| Starter (3.5L) (E10) | Left side of engine. See Figure. |
| Windshield Washer Motor (3.5L Shown, 2.5L Similar) (A4) | Below left headlight. See Figure. |
| Windshield Wiper Motor (3.5L Shown, 2.5L Similar) (A19) | Lower left side of windshield. See Figure. |
