Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| Back-Up Lamp SW (E55) | Right side of transmission. See Figure. |
| Brake Fluid Level Warning Switch (3.5L Shown, 2.5L Similar) (A16) | Brake fluid reservoir. See Figure. |
| Brake Pedal Load Sensing Switch (A23) | Left side of dash. See Figure. |
| Clutch Start Switch Assembly (A24) | Top of clutch pedal assembly. See Figure. |
| Clutch Switch Assembly (A21) | Top of clutch pedal assembly. See Figure. |
| Engine Hood Courtesy Switch (B8) | Center front of engine compartment. See Figure. |

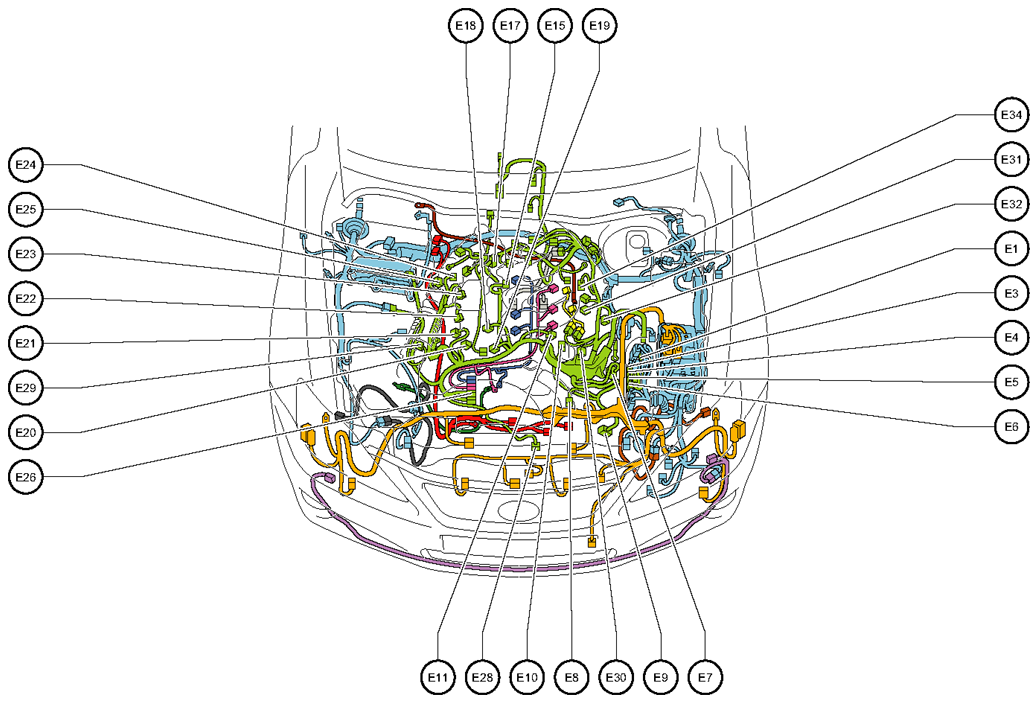

| Engine Oil Pressure Switch (2.5L) (E28) | Front of engine. See Figure. |
| Engine Oil Pressure Switch (3.5L) (E28) | Front of engine. See Figure. |
| Engine Switch (J31) | Center of dash. See Figure. |
| Luggage Electrical Key SW (H5) | Center rear of trunk. See Figure. |
| Parking Brake Switch (A/T) (J88) | Below center console. See Figure. |
| Parking Brake Switch (M/T) (J25) | Left end of dash. See Figure. |
| Park/Neutral Position Switch (2.5L) (E45) | On transmission. See Figure. |
| Park/Neutral Position Switch (3.5L) (E45) | On transmission. See Figure. |
| Roof Front Lock Switch (E2) | Right side of roof. See Figure. |
| Sliding Roof Switch Assembly (J93) | Left side of dash. See Figure. |
| Stop Lamp SW | Left side of dash. |
| Throttle Position Switch Assembly (J87) | On throttle pedal assembly. See Figure. |
| Transmission Control Switch (J43) | Below center console. See Figure. |
| VSC Off Switch (J37) | Center of dash. See Figure. |
