Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|

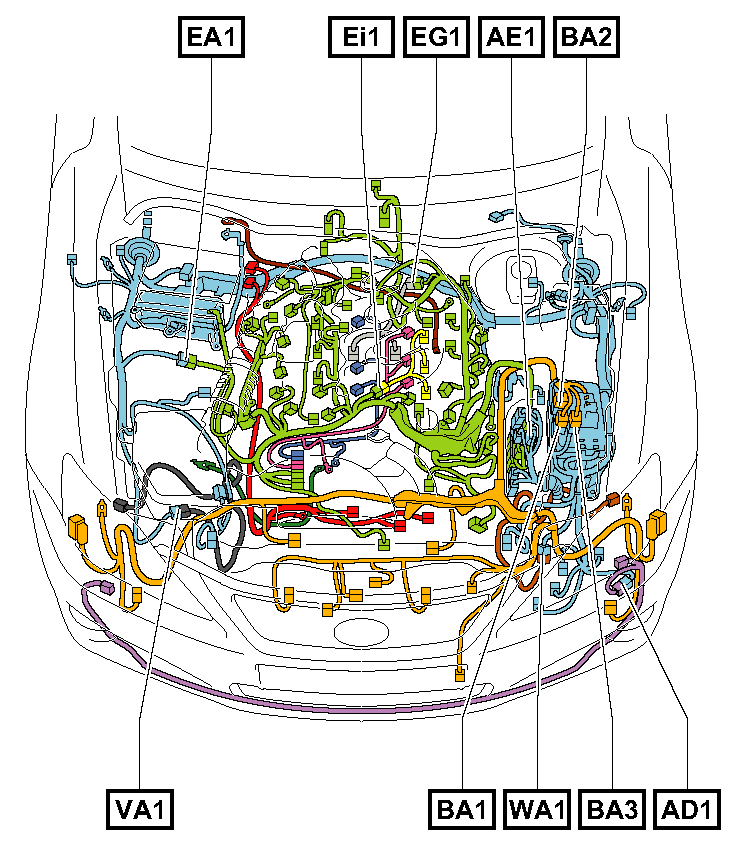

| AD1 (2.5L) (Black, 10 Pin) | Left front of engine compartment. See Figure. |

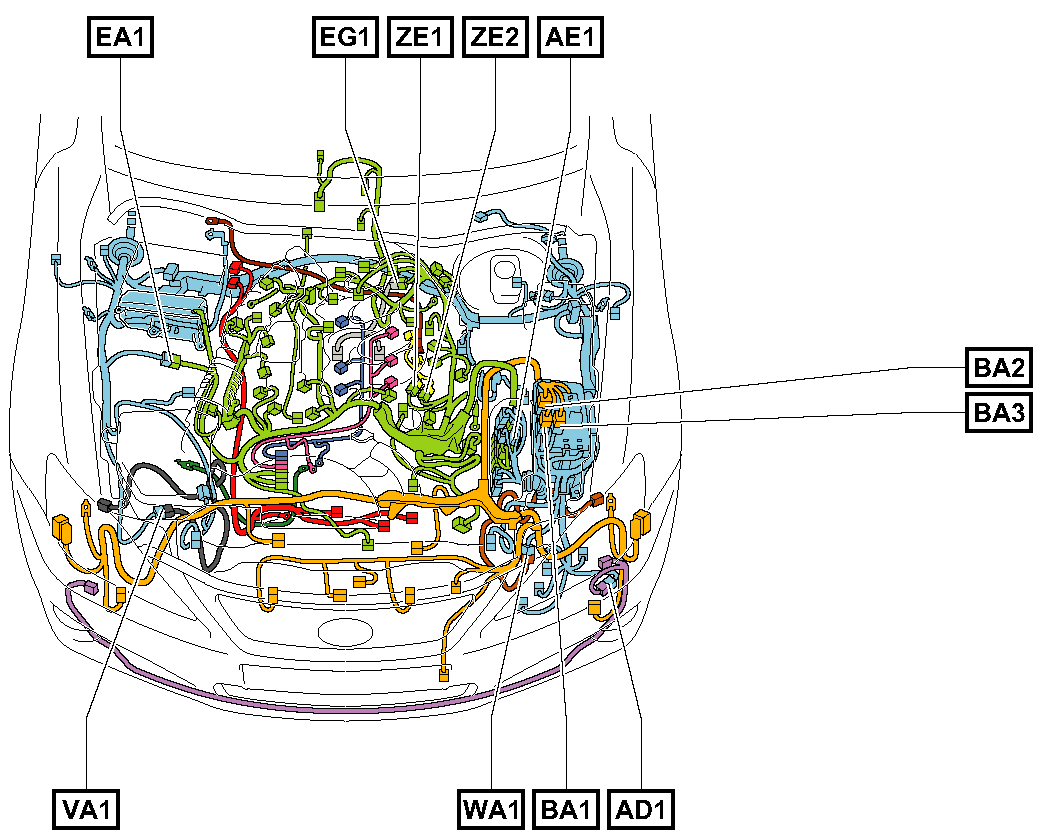

| AD1 (3.5L) (Black, 10 Pin) | Left front of engine compartment. See Figure. |
| AE1 (2.5L) (White, 39 Pin) | Left side of engine compartment. See Figure. |
| AE1 (3.5L) (White, 39 Pin) | Left side of engine compartment. See Figure. |
| AP1 (White, 25 Pin) | Right side of dash. See Figure. |
| AP2 (White, 3 Pin) | Right side of dash. See Figure. |
| AQ1 (White, 25 Pin) | Left kick panel. See Figure. |
| AQ2 (White, 1 Pin) | Left side of dash. See Figure. |
| BA1 (2.5L) (Gray, 3 Pin) | Left side of engine compartment. See Figure. |
| BA1 (3.5L) (Gray, 3 Pin) | Left side of engine compartment. See Figure. |
| BA2 (2.5L) (White, 25 Pin) | Left side of engine compartment. See Figure. |
| BA2 (3.5L) (White, 25 Pin) | Left side of engine compartment. See Figure. |
| BA3 (2.5L) (Gray, 22 Pin) | Left side of engine compartment. See Figure. |
| BA3 (3.5L) (Gray, 22 Pin) | Left side of engine compartment. See Figure. |
| EA1 (2.5L) (Black, 2 Pin) | Right side of engine compartment. See Figure. |
| EA1 (3.5L) (Black, 2 Pin) | Right side of engine compartment. See Figure. |
| EG1 (2.5L) (Gray, 6 Pin) | Rear of engine compartment. See Figure. |
| EG1 (3.5L) (Gray, 6 Pin) | Rear of engine compartment. See Figure. |
| Ei1 (Gray, 6 Pin) | Top of engine. See Figure. |
| JA1 (Yellow, 2 Pin) | Left kick panel. See Figure. |
| Ja1 (Yellow, 4 Pin) | Right side of dash. See Figure. |
| JA3 (White, 60 Pin) | Left kick panel. See Figure. |
| JA4 (White, 20 Pin) | Right kick panel. See Figure. |
| JA5 (Yellow, 2 Pin) | Right kick panel. See Figure. |
| JA6 (Gray, 1 Pin) | Right kick panel. See Figure. |
| JK1 (White, 13 Pin) | Center of dash. See Figure. |
| JP1 (White, 22 Pin) | Under center console. See Figure. |
| JP2 (White, 60 Pin) | Right kick panel. See Figure. |
| JQ1 (White, 60 Pin) | Left kick panel. See Figure. |
| JQ2 (Blue, 1 Pin) | Left kick panel. See Figure. |
| JQ3 (White, 18 Pin) | Under center console. See Figure. |
| JR1 (White, 22 Pin) | Left "A" pillar. See Figure. |
| JR2 (White, 25 Pin) | Left "A" pillar. See Figure. |
| LP1 (White, 25 Pin) | Right side of dash. See Figure. |
| LP2 (White, 17 Pin) | Right side of dash. See Figure. |
| MJ1 (Brown, 4 Pin) | Under center console. See Figure. |
| MQ1 (White, 25 Pin) | Left kick panel. See Figure. |
| MQ2 (White, 17 Pin) | Left kick panel. See Figure. |
| Nl1 (Blue, 10 Pin) | Passenger's door. See Figure. |
| OM1 (Blue, 10 Pin) | Driver's door. See Figure. |
| Pe1 (Gray, 5 Pin) | Right side of trunk. See Figure. |
| PL1 (Yellow, 2 Pin) | Right end of dash. See Figure. |

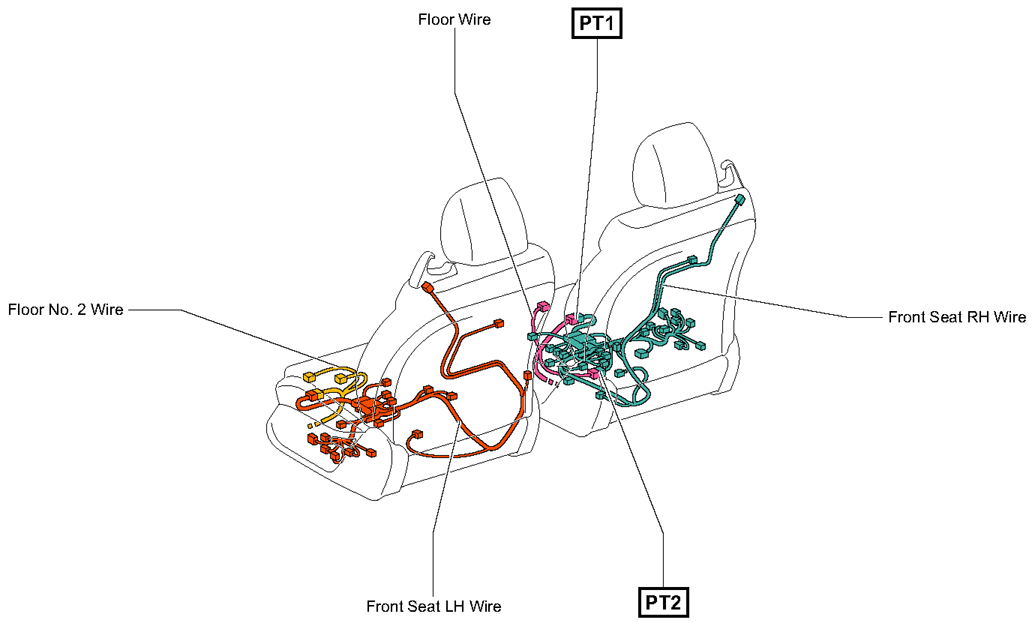

| PT1 (White, 17 Pin) | Passenger's seat. See Figure. |
| PT2 (Gray, 8 Pin) | Passenger's seat. See Figure. |
| Qf1 (Gray, 5 Pin) | Left "C" pillar. See Figure. |
| Qg1 (Black, 2 Pin) | Left "C" pillar. See Figure. |
| Qh1 (Black, 24 Pin) | Left side of trunk. See Figure. |
| Qk1 (White, 1 Pin) | Left rear side of vehicle. See Figure. |
| Qk2 (Black, 11 Pin) | Left rear side of vehicle. See Figure. |
| Qk3 (Gray, 13 Pin) | Left rear side of vehicle. See Figure. |
| Qm1 (White, 5 Pin) | Under center console. See Figure. |
| QM1 (Yellow, 2 Pin) | Left end of dash. See Figure. |
| QP1 (Black, 24 Pin) | Left side of trunk. See Figure. |
| QP2 (White, 8 Pin) | Left side of trunk. See Figure. |
| SQ1 (White, 10 Pin) | Left side of trunk. See Figure. |
| VA1 (2.5L) (Gray, 2 Pin) | Right front of engine compartment. See Figure. |
| VA1 (3.5L) (Gray, 2 Pin) | Right front of engine compartment. See Figure. |
| WA1 (2.5L) (Gray, 2 Pin) | Left front of engine compartment. See Figure. |
| WA1 (3.5L) (Gray, 2 Pin) | Left front of engine compartment. See Figure. |
| XP1 (White, 5 Pin) | Right side of trunk. See Figure. |
| YQ1 (White, 5 Pin) | Left "C" pillar. See Figure. |
| ZE1 (Black, 4 Pin) | Center of engine compartment. See Figure. |
| ZE2 (Dark Gray, 4 Pin) | Center of engine compartment. See Figure. |
