Power Window Master Switch: Installation: Installation

  1. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
    1. Install the power window regulator master switch assembly with the 4 screws.

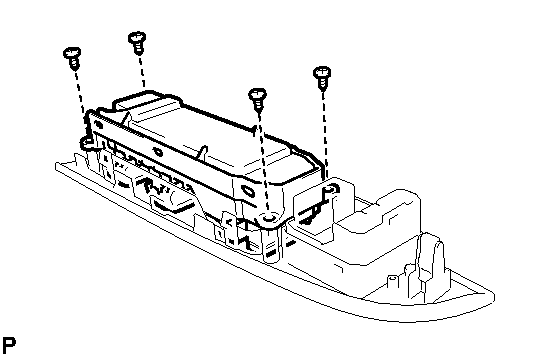

      Fig 1: Identifying 4 Screws And Power Window Regulator Master Switch Assembly
      GTY121949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL  . Refer to REASSEMBLY - Step 41
