Reverse Shift-linked Function of Power Mirrors does not Operate: Procedure
- CHECK MULTIPLEX COMMUNICATION SYSTEM
- Use the Techstream to check if the multiplex communication system is functioning normally. Refer to HOW TO PROCEED WITH TROUBLESHOOTING
.
OK
Multiplex communication DTC is not output.
NG → See step 7
OK: Go to next step
- Use the Techstream to check if the multiplex communication system is functioning normally. Refer to HOW TO PROCEED WITH TROUBLESHOOTING
.
- CHECK REVERSE SHIFT-LINKED FUNCTION
- Turn the engine switch on (IG).
- Set the mirror select switch to L or R.

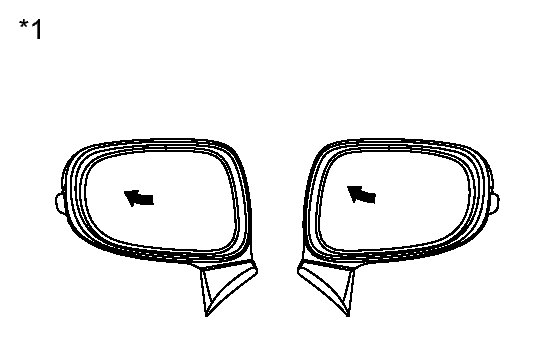

- Check that the mirror surface turns downward when the shift lever is moved to R.
Result
Result Proceed to Reverse shift-linked function on both mirrors is not normal A Reverse shift-linked function on either mirror is not normal B
B → See step 6
A: Go to next step
- CHECK CAN COMMUNICATION SYSTEM
- Use the Techstream to check if the CAN communication system is functioning normally. Refer to HOW TO PROCEED WITH TROUBLESHOOTING
.
OK
CAN communication DTC is not output.
NG → See step 8
OK: Go to next step
- Use the Techstream to check if the CAN communication system is functioning normally. Refer to HOW TO PROCEED WITH TROUBLESHOOTING
.
- CHECK FOR DTC (P0705)
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Powertrain / Engine / DTC.
- Check if DTC P0705 is output.
Result
Result Proceed to DTC P0705 is not output A DTC P0705 is output B
B → See step 9
A: Go to next step
- READ VALUE USING TECHSTREAM
- Enter the following menus: Chassis / ABS/VSC / Data List.
- Read the Data List according to the display on the TechstreamABS/VSC/TRAC
Tester Display Measurement Item/Range Normal Condition Diagnostic Note Shift Lever Position Shift lever position information / P/N, R, D/M, 1st-8th/B, FAIL Actual shift lever position - Result
Result Proceed to R is displayed on the Techstream when the shift lever is in R A R is not displayed on the Techstream when the shift lever is in R B
B → See step 10
A → REPLACE NETWORK GATEWAY ECU
- CHECK MEMORY AND REACTIVATION FUNCTION
- Turn the engine switch on (IG).
- Using the outer mirror switch assembly, turn the mirror surface to the full left position.
- Press the M1 switch while the SET switch is being pressed.
- Check that the buzzer sounds for 0.5 seconds and the mirror surface position is memorized.
- Using the outer mirror switch assembly, turn the mirror surface to the full right position.
- Press the M1 switch.
- Check that the buzzer sounds for 0.1 seconds and the outer mirror automatically moves to the recorded full left position.
OK
Memory and reactivation function is normal.
NG → See step 11
OK → See step 12
- GO TO MULTIPLEX COMMUNICATION SYSTEM. Refer to DIAGNOSTIC TROUBLE CODE CHART
- GO TO CAN COMMUNICATION SYSTEM. Refer to DIAGNOSIS SYSTEM
- GO TO AUTOMATIC TRANSMISSION SYSTEM (for A760E). Refer to DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input)
- REPLACE ECM (for 2UR-GSE). Refer to REMOVAL
- GO TO OTHER FLOW CHART (Power Mirrors do not Return to Memorized Position). Refer to Power Mirrors do not Return to Memorized Position
- REPLACE OUTER MIRROR CONTROL ECU ASSEMBLY. Refer to REMOVAL
