System Diagram

  1. FUEL FLOW DIAGRAM

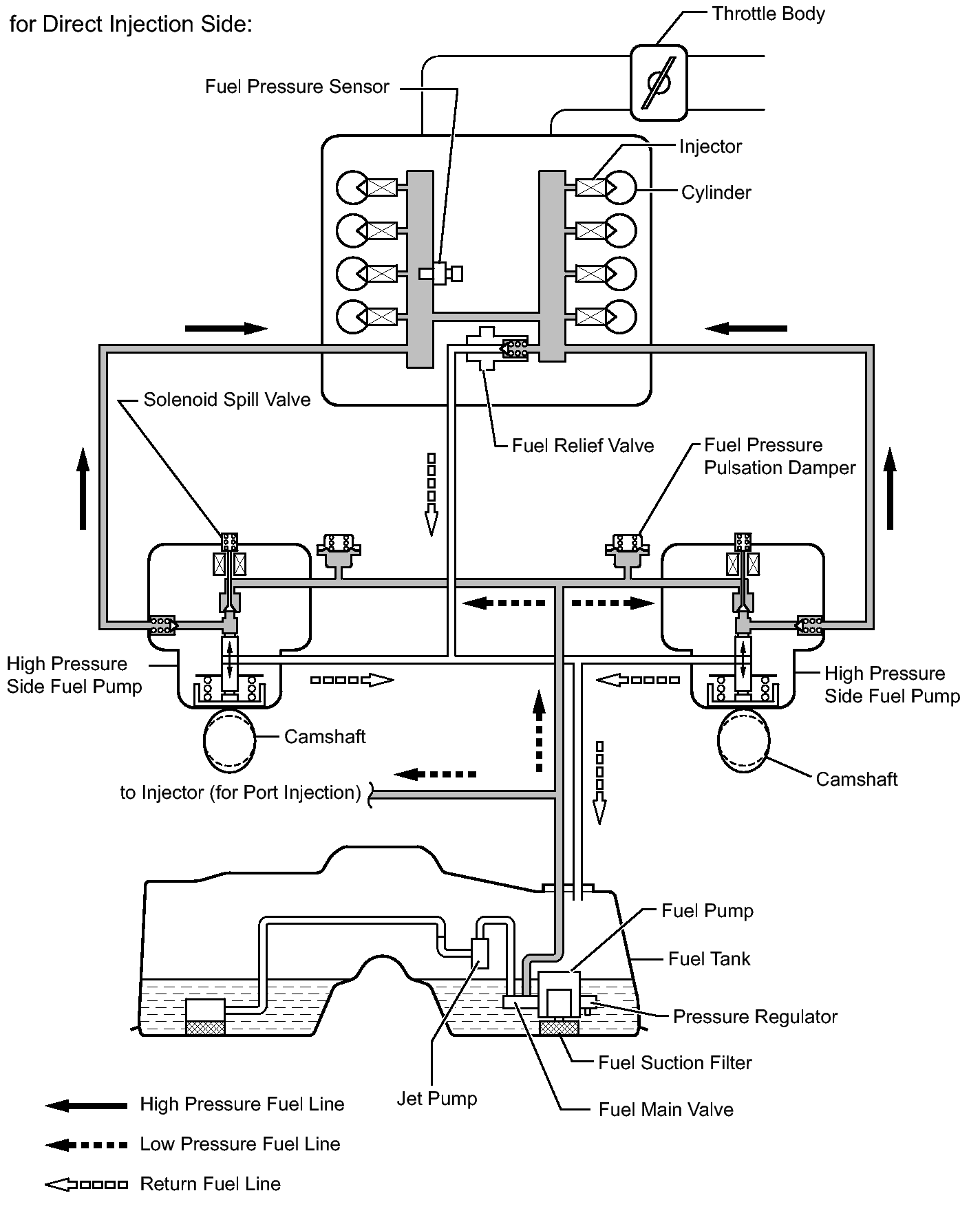

    Fig 1: Fuel Flow Diagram (For Direct Injection Side)
    GTY125752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

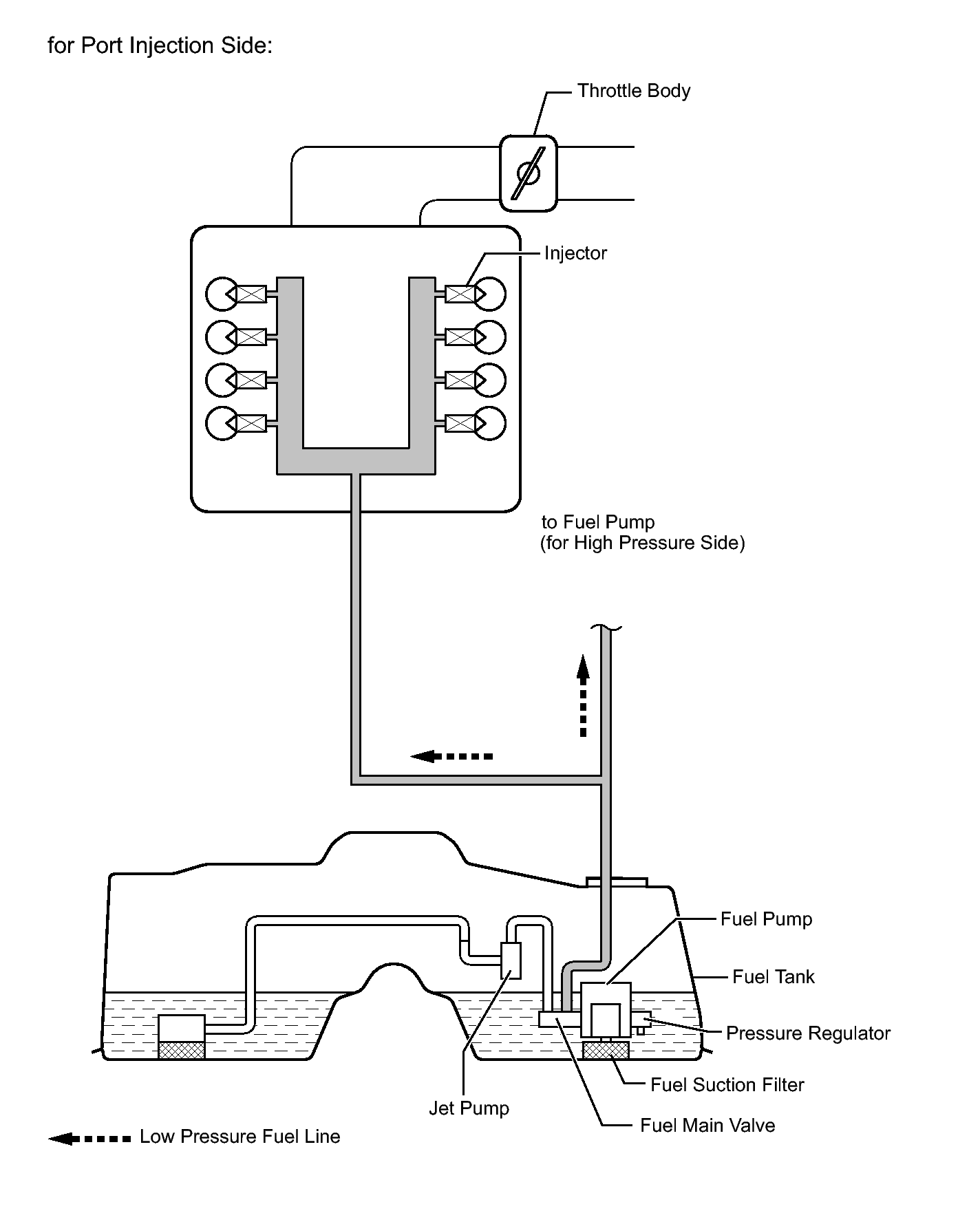

    Fig 2: Fuel Flow Diagram (For Port Injection Side)
    GTY140111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ELECTRICAL CONTROL DIAGRAM

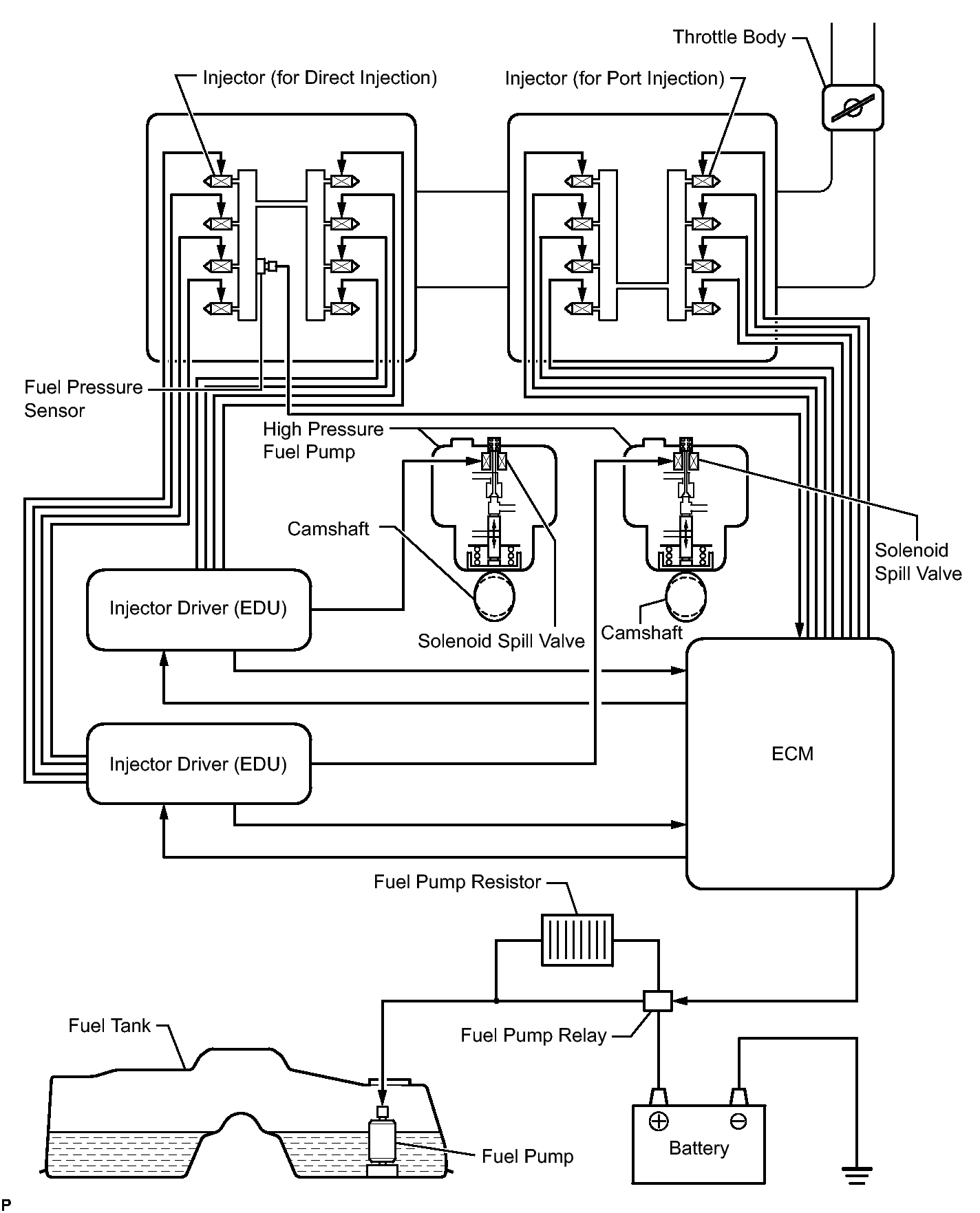

    Fig 3: Electrical Control Diagram
    GTY105449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. HIGH PRESSURE SIDE (DIRECT INJECTION SIDE) FUEL SYSTEM WIRING DIAGRAM

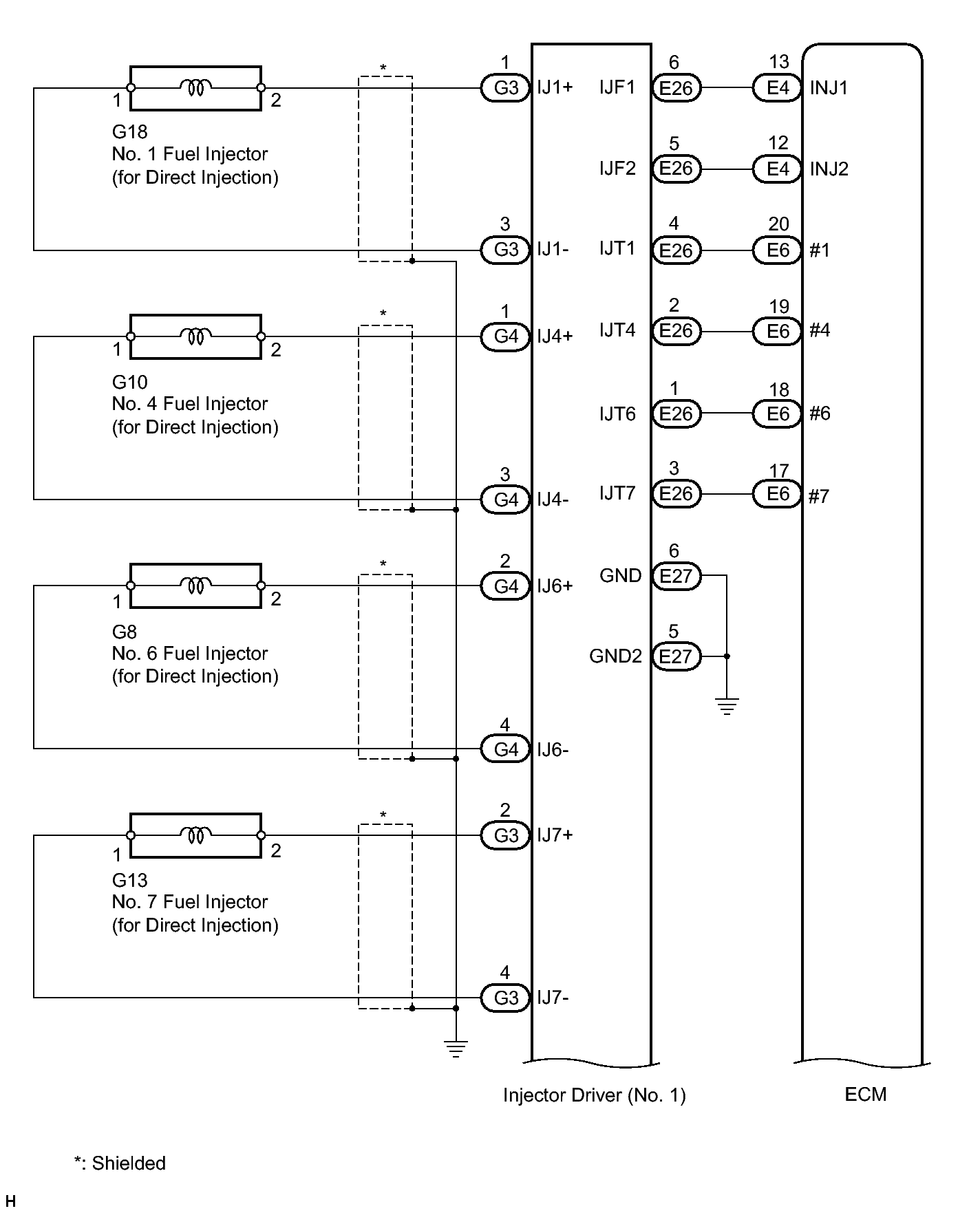

    Fig 4: High Pressure Side (Direct Injection Side) Fuel System - Wiring Diagram (1 Of 3)
    GTY278355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

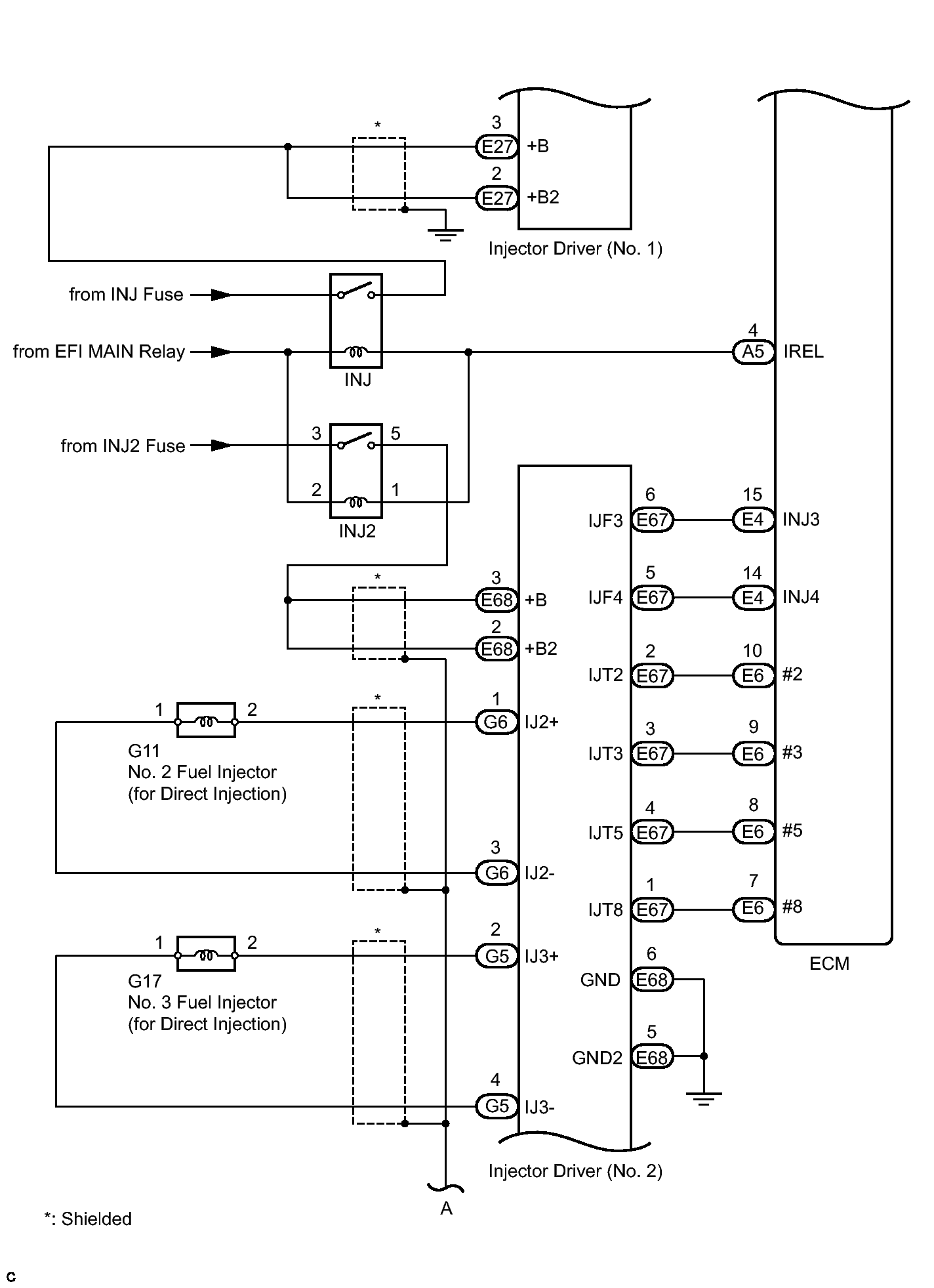

    Fig 5: High Pressure Side (Direct Injection Side) Fuel System - Wiring Diagram (2 Of 3)
    GTY280793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

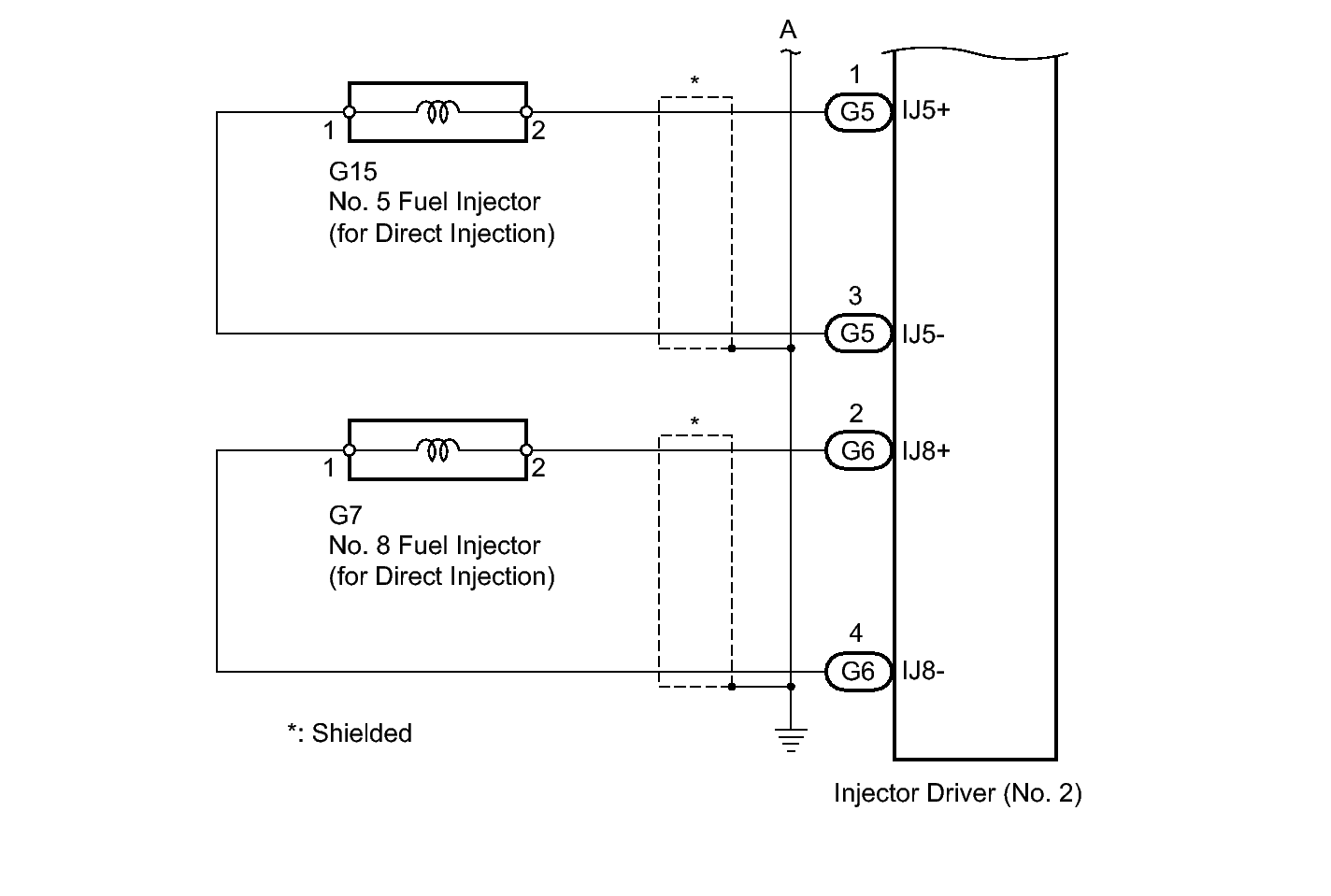

    Fig 6: High Pressure Side (Direct Injection Side) Fuel System - Wiring Diagram (3 Of 3)
    GTY148771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. FUEL PRESSURE SENSOR AND PORT INJECTION SIDE FUEL SYSTEM WIRING DIAGRAM

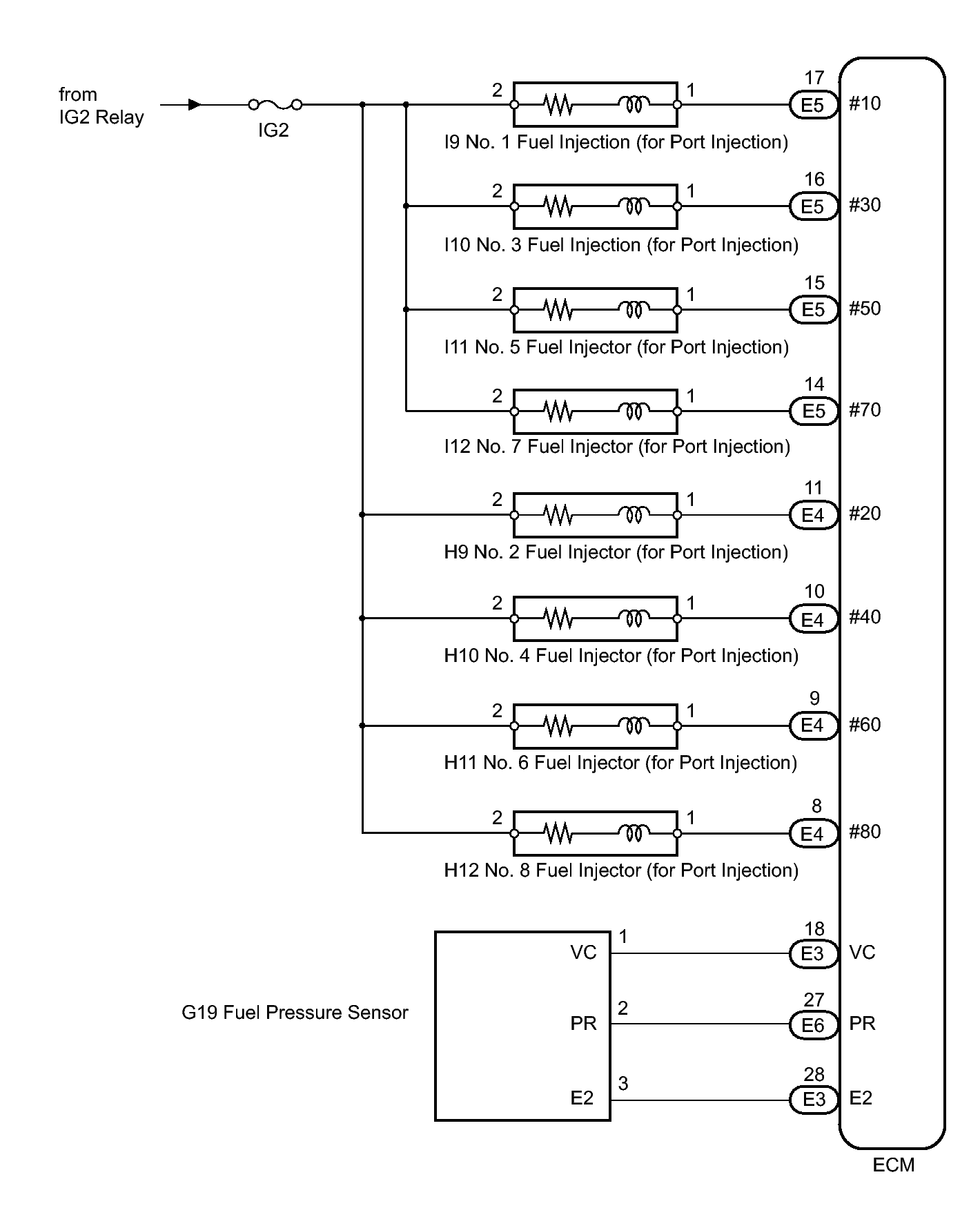

    Fig 7: Fuel Pressure Sensor And Port Injection Side Fuel System - Wiring Diagram
    GTY269088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

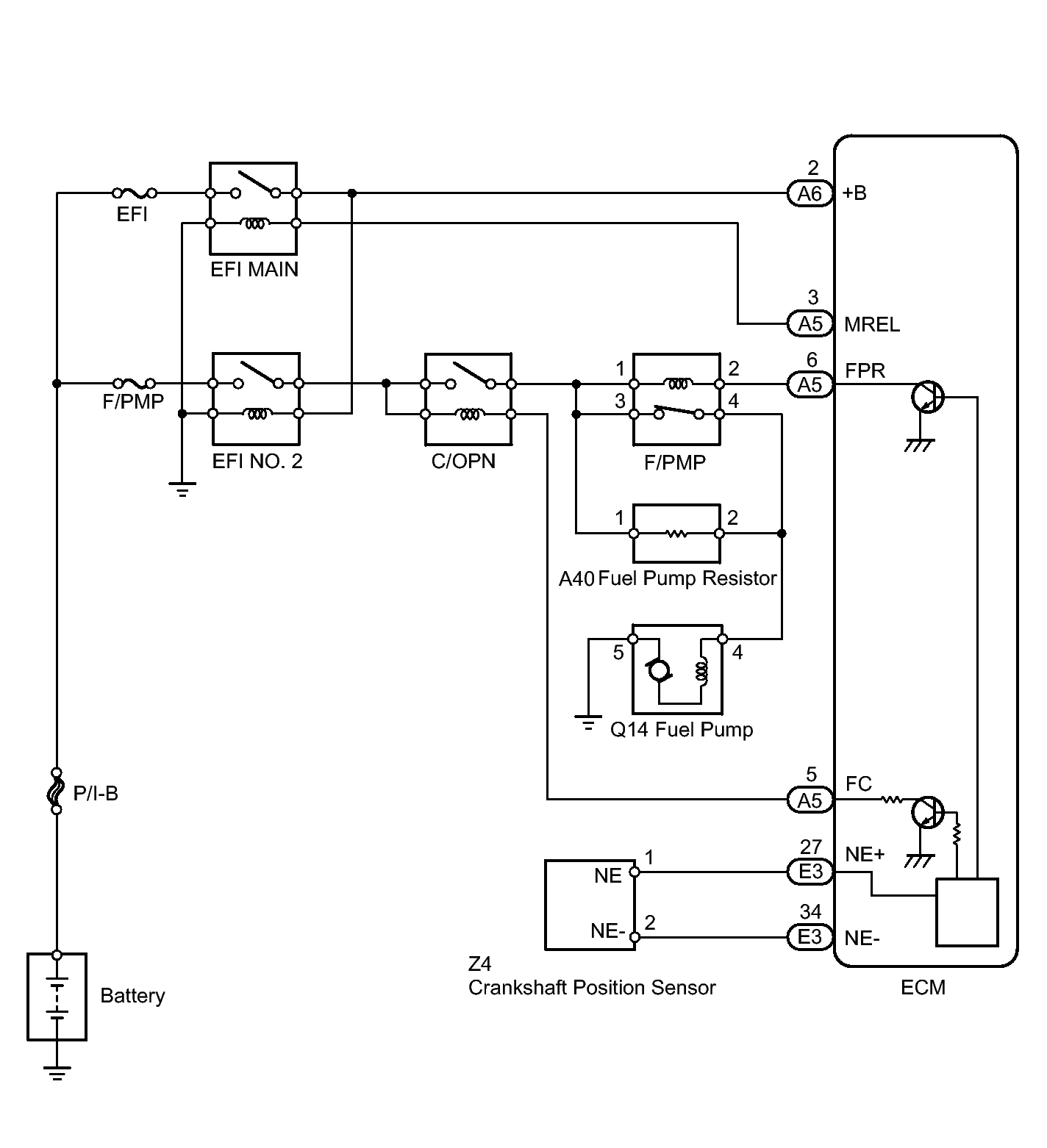

    Fig 8: Low Pressure Side Fuel System - Wiring Diagram
    GTY148760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INJECTOR DRIVER WIRING DIAGRAM

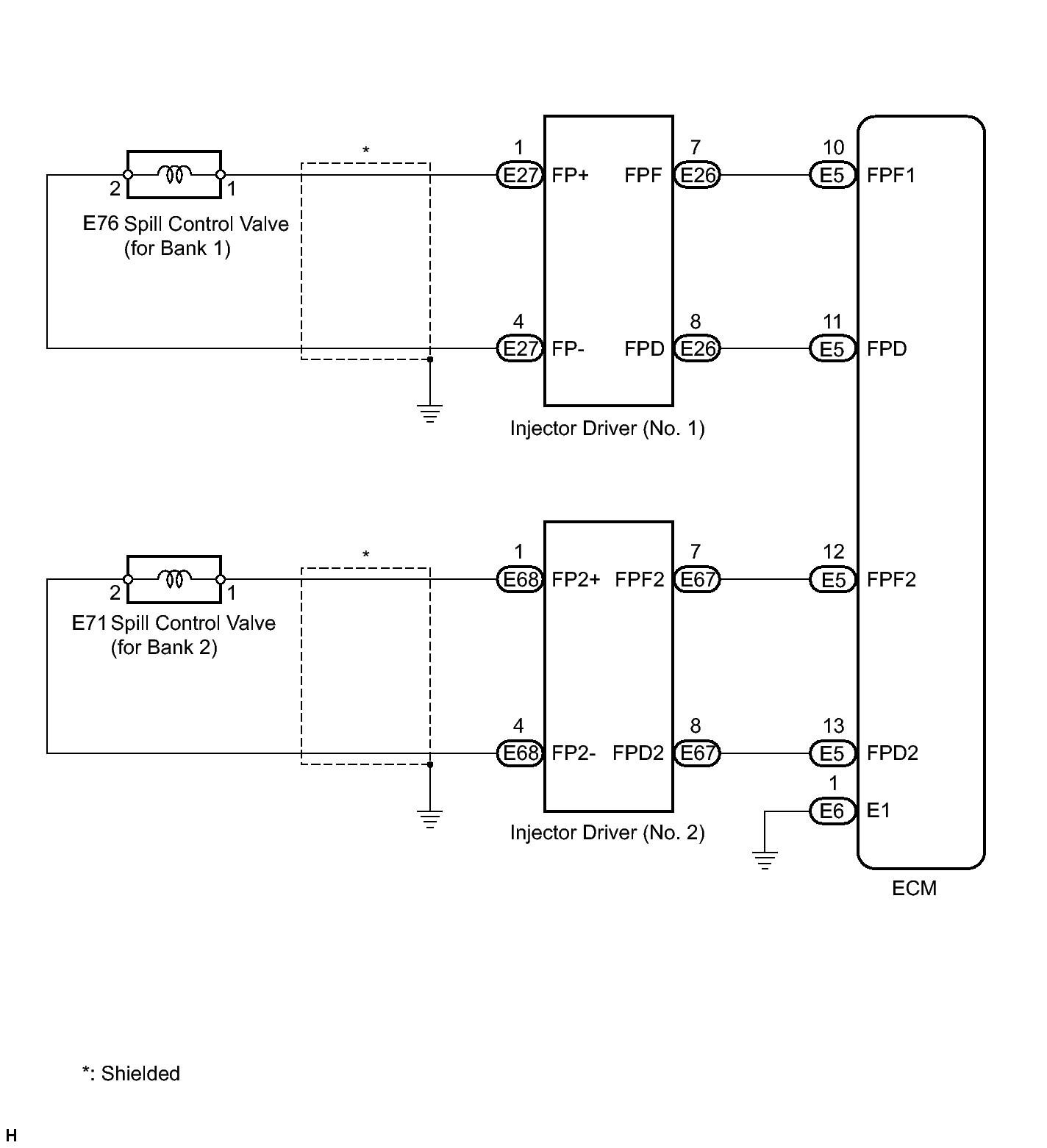

    Fig 9: Injector Driver - Wiring Diagram
    GTY136992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
