Camshaft Oil Control Valve: Installation: Installation

INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY LH
1. Apply a light coat of engine oil to a new O-ring, and install it to the camshaft timing oil control valve.

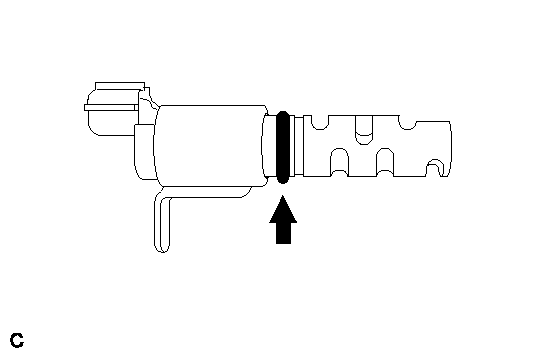

  Fig 1: Locating O-Ring From Camshaft Timing Oil Control Valve Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the camshaft timing oil control valve assembly with the bolt.

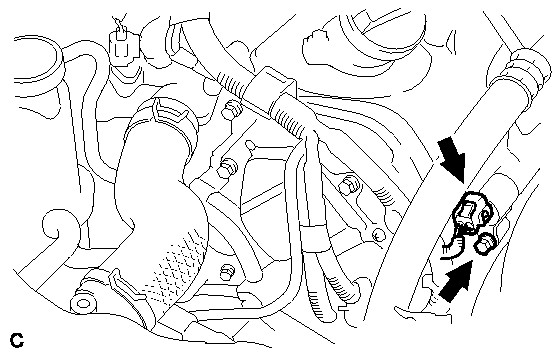

  Fig 2: Locating Camshaft Timing Oil Control Valve Connector And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
  NOTE:
  - Do not allow foreign matter to contact the oil seal face of the oil control valve (the surface that contacts the cylinder head cover sub-assembly).
  - Be careful that the O-ring is not cracked or does not jump out of position when installing the oil control valve.
3. Connect the camshaft timing oil control valve connector.
INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY RH
1. Apply a light coat of engine oil to a new O-ring, and install it to the camshaft timing oil control valve.

  Fig 3: Locating O-Ring From Camshaft Timing Oil Control Valve Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the camshaft timing oil control valve assembly with the bolt.

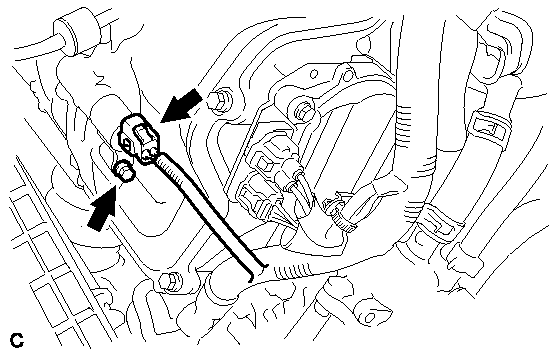

  Fig 4: Locating Camshaft Timing Oil Control Valve Connector With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
  NOTE:
  - Do not allow foreign matter to contact the oil seal face of the oil control valve (the surface that contacts the cylinder head cover sub-assembly).
  - Be careful that the O-ring is not cracked or does not jump out of position when installing the oil control valve.
3. Connect the camshaft timing oil control valve connector.
INSTALL AIR CLEANER CAP SUB-ASSEMBLY See step 2
INSPECT FOR OIL LEAK
INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 95
