Parts Location: Illustration

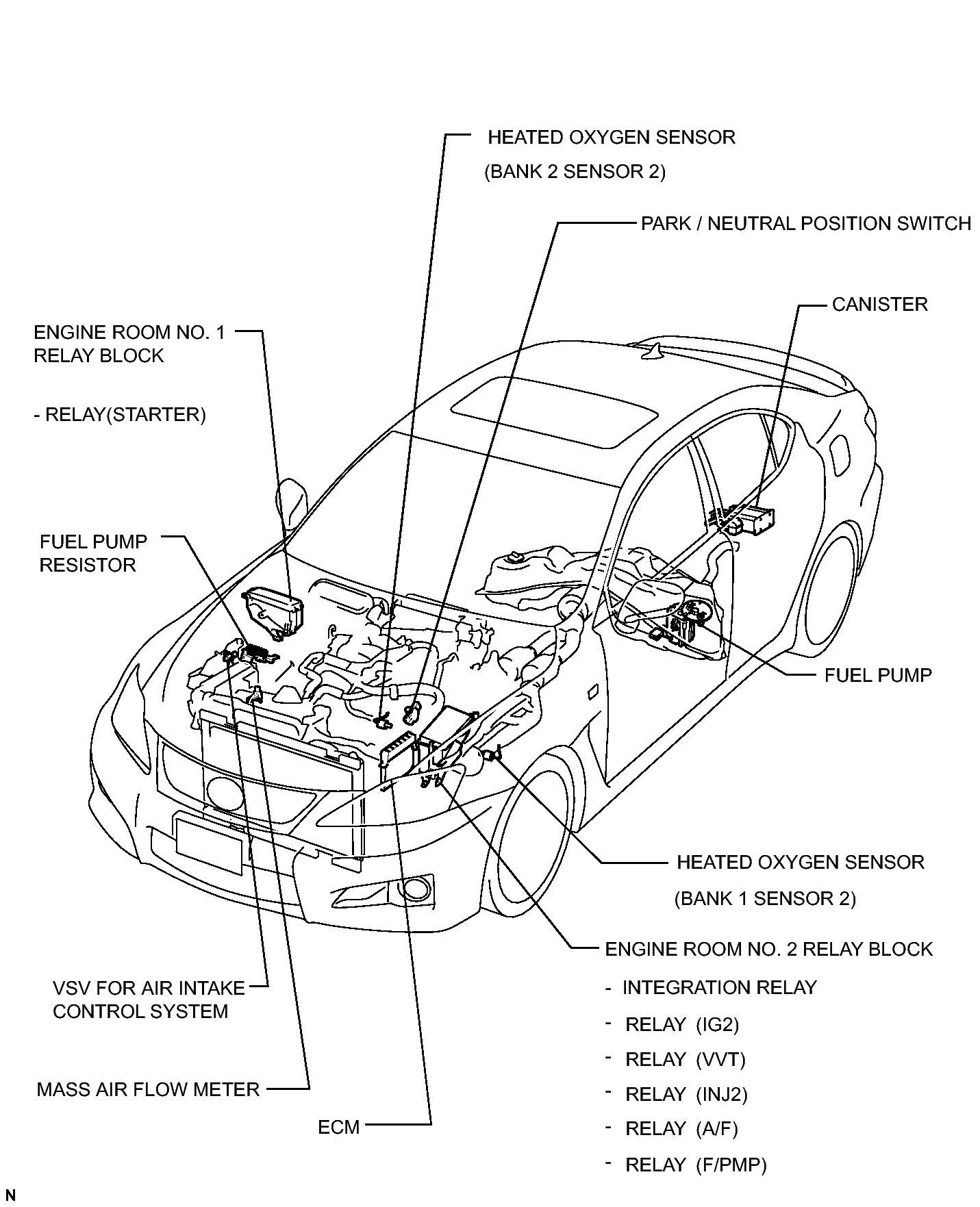

Fig 1: Identifying SFI System Components (1 Of 6)
GTY265758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

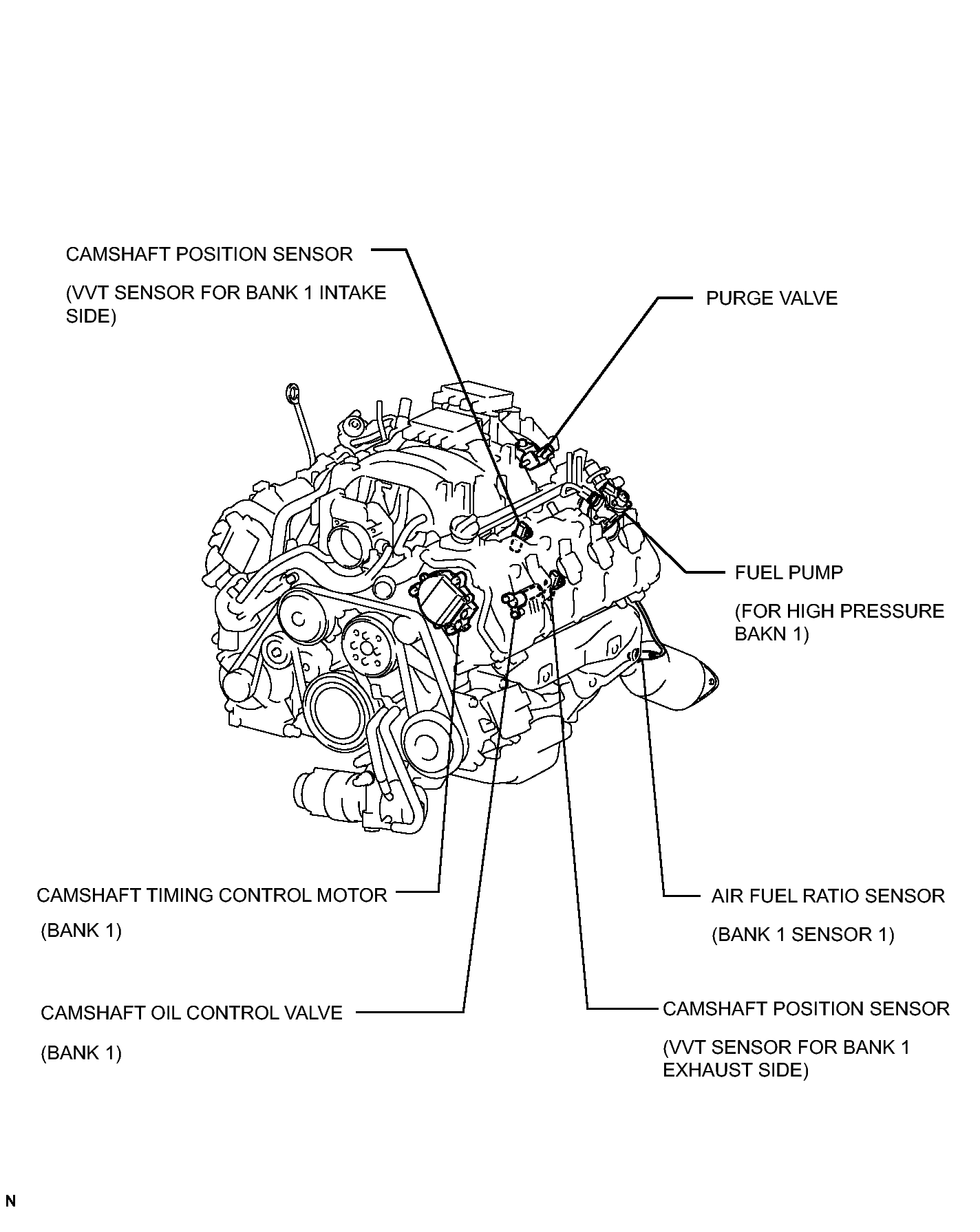

Fig 1: Identifying SFI System Components (2 Of 6)
GTY148717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Locating SFI System Components (3 Of 6)
GTY122066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Locating SFI System Components (4 Of 6)
GTY126428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

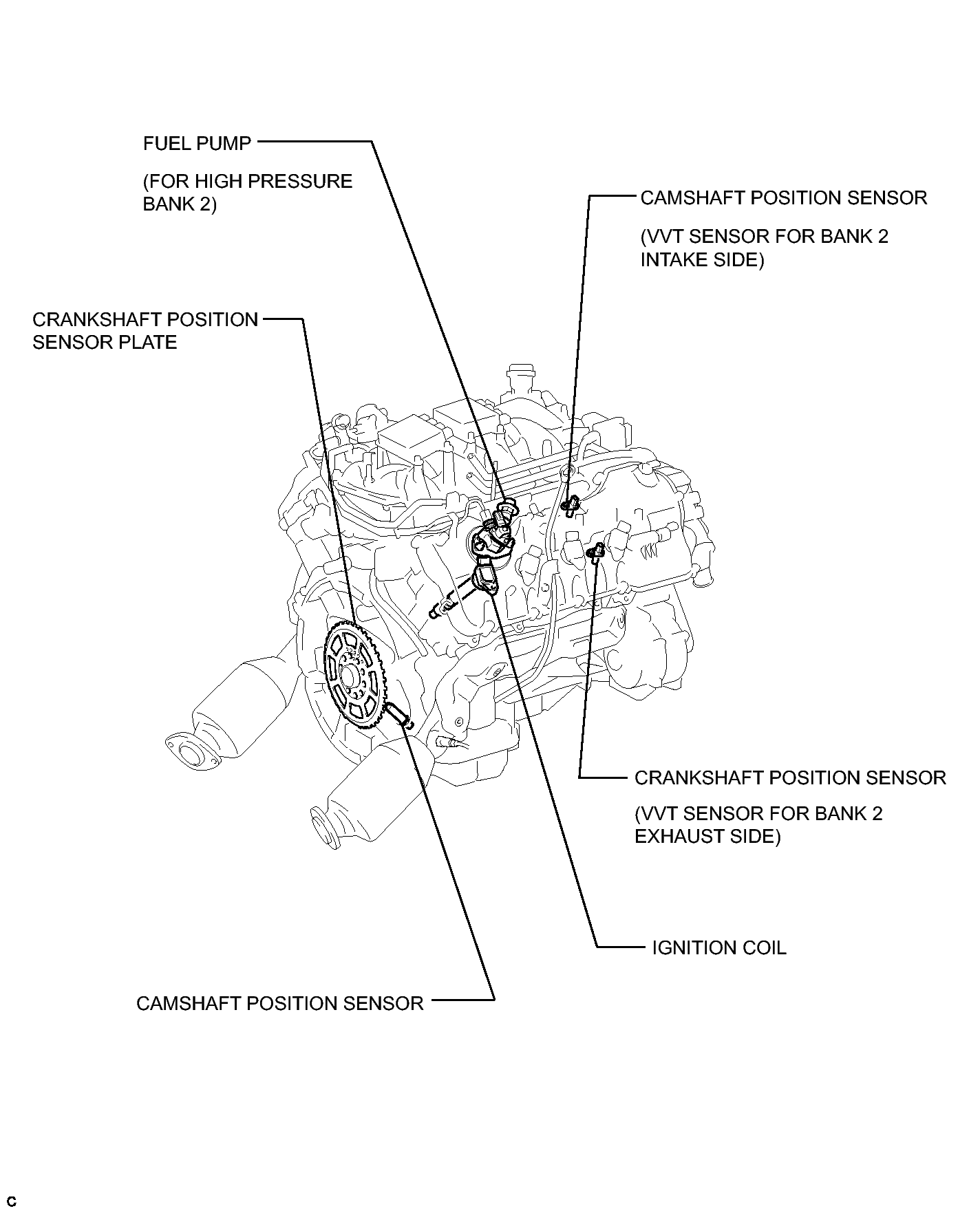

Fig 1: Identifying SFI System Components (5 Of 6)
GTY266998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying SFI System Components (6 Of 6)
GTY287201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
