Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|
| Brake Actuator Assembly (A13) | Left rear of engine compartment. See Figure. |
| Cam Timing Control W/EDU Motor Assembly (Bank 1) (E61) | Front of left cylinder bank. See Figure. |
| Cam Timing Control W/EDU Motor Assembly (Bank 2) (E64) | Front of right cylinder bank. See Figure. |
| Canister Pump Module (Q49) | Under rear of vehicle. See Figure. |
| Cooling Fan Motor No. 1 (Z2) | Left front of engine compartment. See Figure. |
| Cooling Fan Motor No. 2 (Z3) | Right front of engine compartment. See Figure. |
| Door Lock Assembly (Left Front) (M2) | Rear of left front door. See Figure. |
| Door Lock Assembly (Left Rear) (O8) | Rear of left rear door. See Figure. |
| Door Lock Assembly (Right Front) (L8) | Rear of right front door. See Figure. |
| Door Lock Assembly (Right Rear) (N8) | Rear of right rear door. See Figure. |
| Front Blower Fan Motor (A63) | Under lower right side of dash. See Figure. |
| Fuel Lid W/Motor Lock Assembly (Q39) | Left rear of vehicle. See Figure. |
| Fuel Pump Assembly (No. 1) (E76) | Left rear of engine. See Figure. |
| Fuel Pump Assembly (No. 2) (E71) | Right rear of engine. See Figure. |
| Headlight Cleaner Motor & Pump Assembly (A2) | Washer reservoir. See Figure. |
| Luggage Compartment Door Lock Assembly (Q42) | Center rear of luggage compartment lid. See Figure. |
| Power Seat Lift Position Motor (Left) (U9) | Under driver's seat. See Figure. |

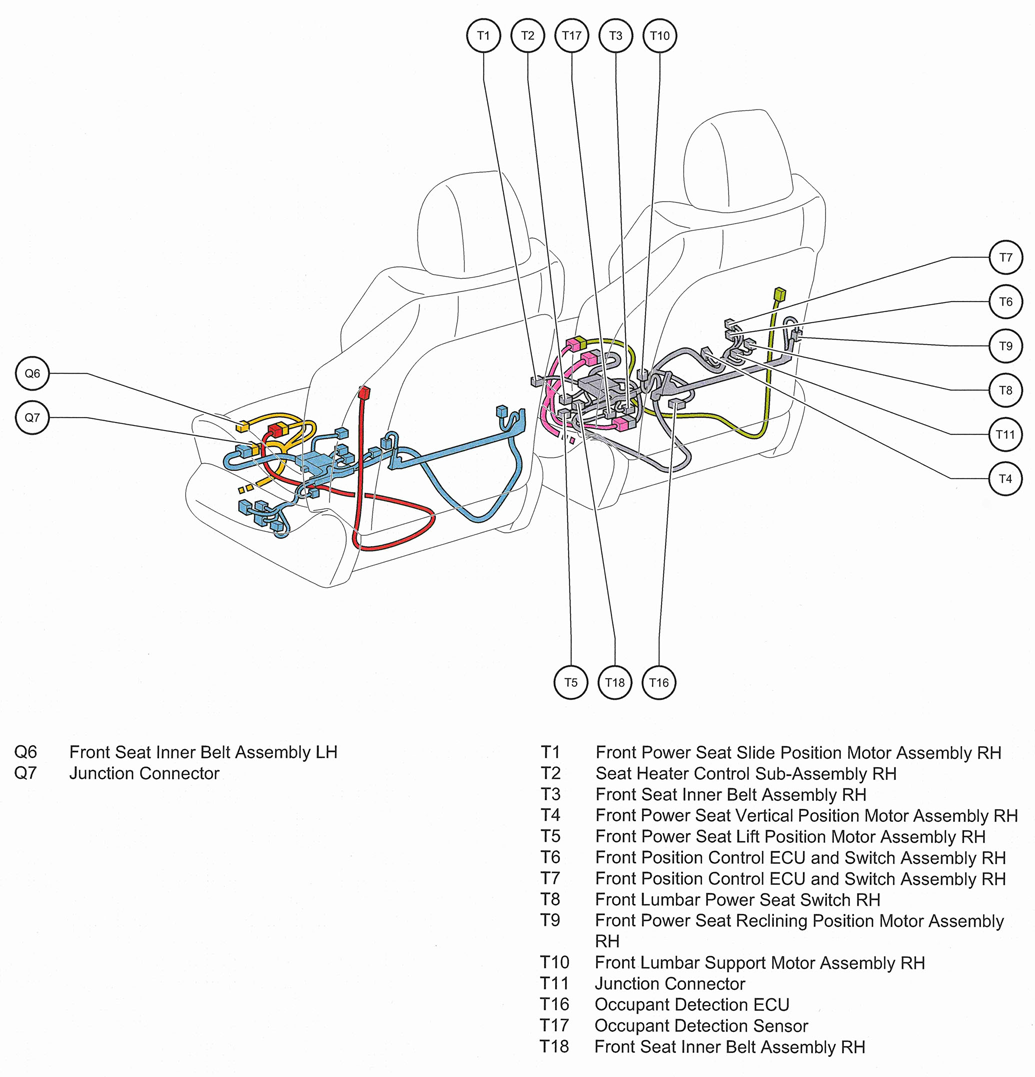

| Power Seat Lift Position Motor (Right) (T5) | Under right front seat. See Figure. |
| Power Seat Lumbar Support Motor (Left) (U10) | Driver's seat back. See Figure. |
| Power Seat Lumbar Support Motor (Right) (T10) | Right front seat back. See Figure. |
| Power Seat Reclining Position Motor (Left) (U5) | Driver's seat back. See Figure. |
| Power Seat Reclining Position Motor (Right) (T9) | Right front seat back. See Figure. |
| Power Seat Slide Position Motor (Left) (U2) | Under driver's seat. See Figure. |
| Power Seat Slide Position Motor (Right) (T1) | Under right front seat. See Figure. |
| Power Seat Vertical Position Motor (Left) (U8) | Under driver's seat. See Figure. |
| Power Seat Vertical Position Motor (Right) (T4) | Under right front seat. See Figure. |
| Power Steering Motor (C2) | Lower front of engine compartment. See Figure. |

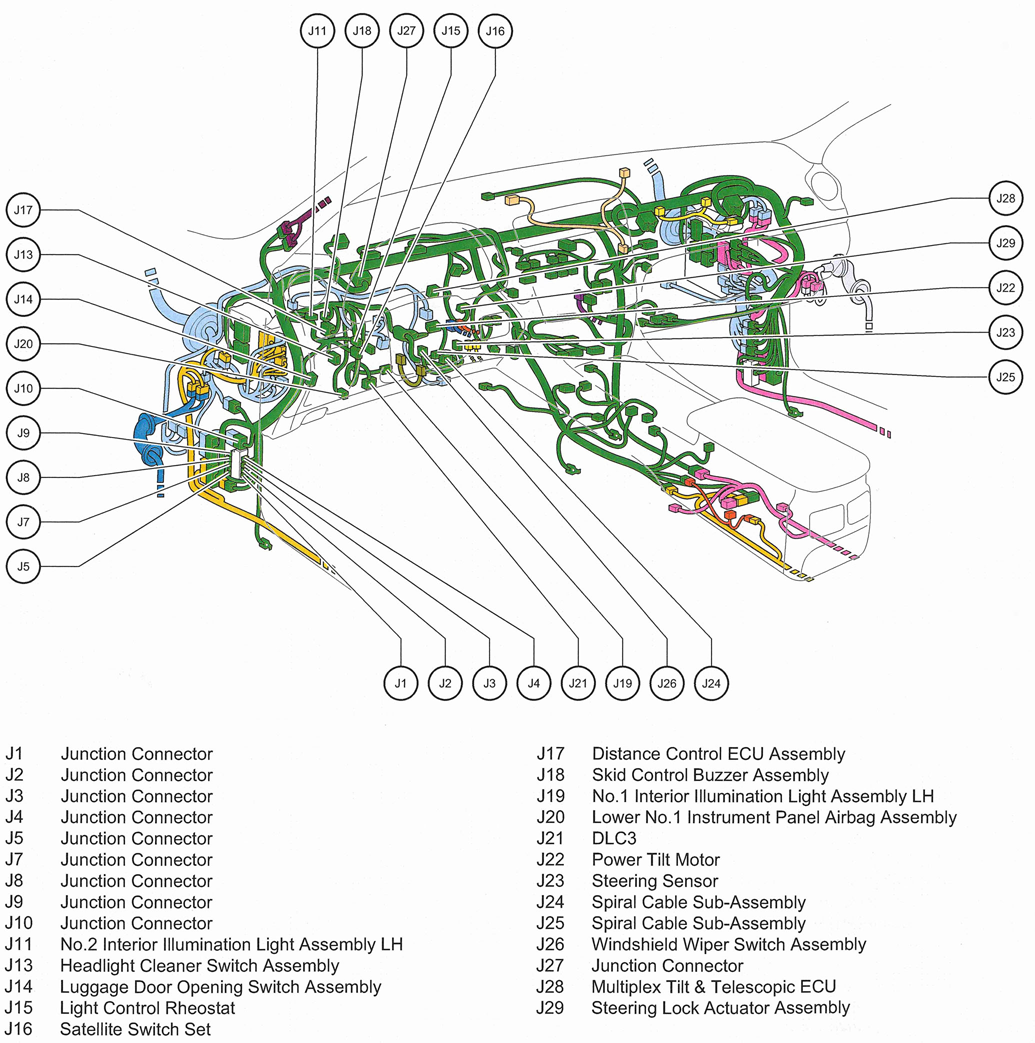

| Power Tilt Motor (J22) | Steering column. See Figure. |
| Power Window Regulator Motor (Left Front) (M3) | Left front door. See Figure. |
| Power Window Regulator Motor (Left Rear) (O7) | Left rear door. See Figure. |
| Power Window Regulator Motor (Right Front) (L4) | Right front door. See Figure. |
| Power Window Regulator Motor (Right Rear) (N7) | Right rear door. See Figure. |
| Pre-Collision Seat Belt Motor (Left Front) (Q13) | Base of left "B" pillar. See Figure. |

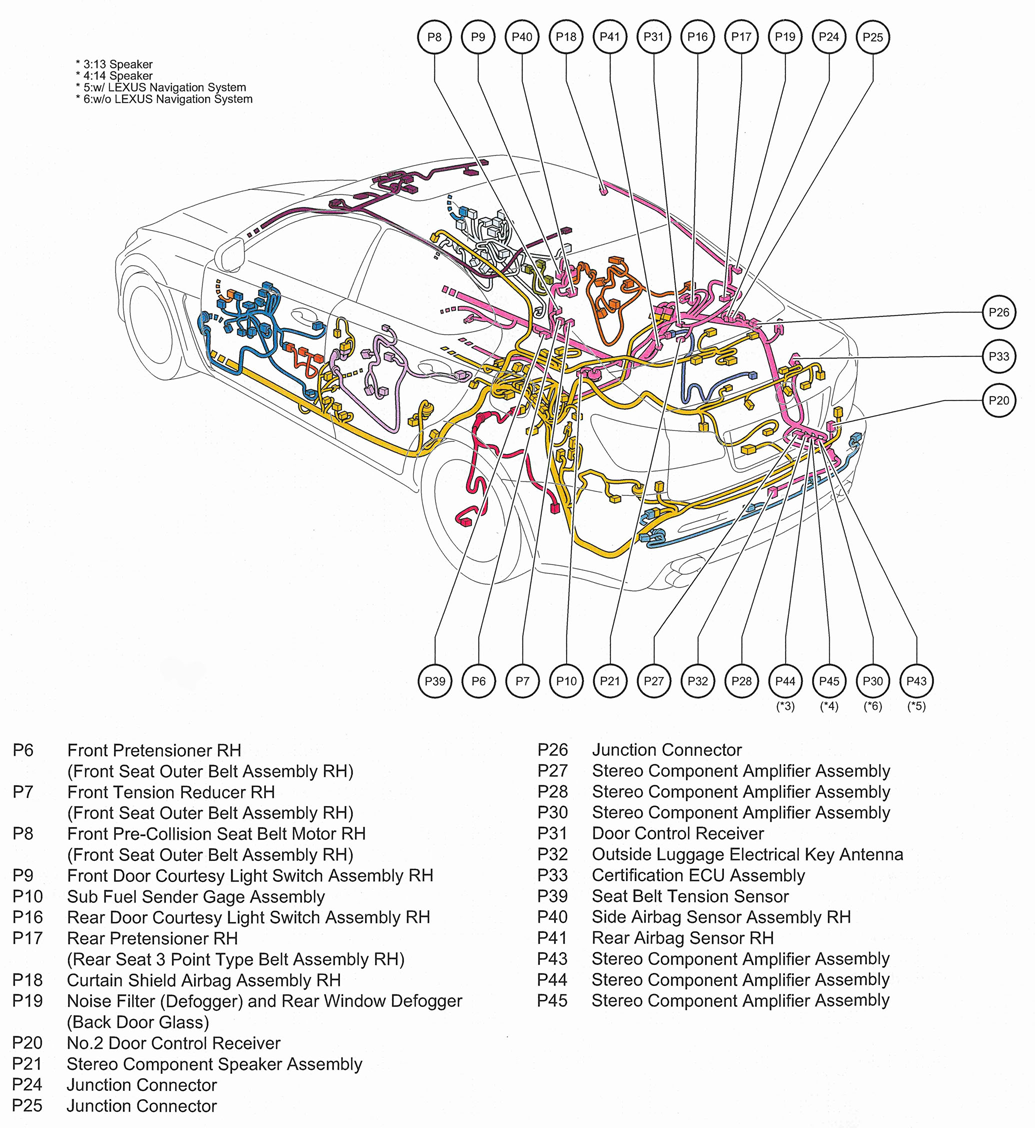

| Pre-Collision Seat Belt Motor (Right Front) (P8) | Base of right "B" pillar. See Figure. |
| Starter Assembly (E10) | Right side of engine. See Figure. |
| Throttle Body Assembly (E17) | Top of engine. See Figure. |
| Windshield Washer Motor & Pump Assembly (A4) | Washer reservoir. See Figure. |
| Windshield Wiper Motor Assembly (A19) | Below lower left side of windshield. See Figure. |
