System Diagram

The configuration of the electronic control system in the AA80E automatic transmission is as shown in the following chart.

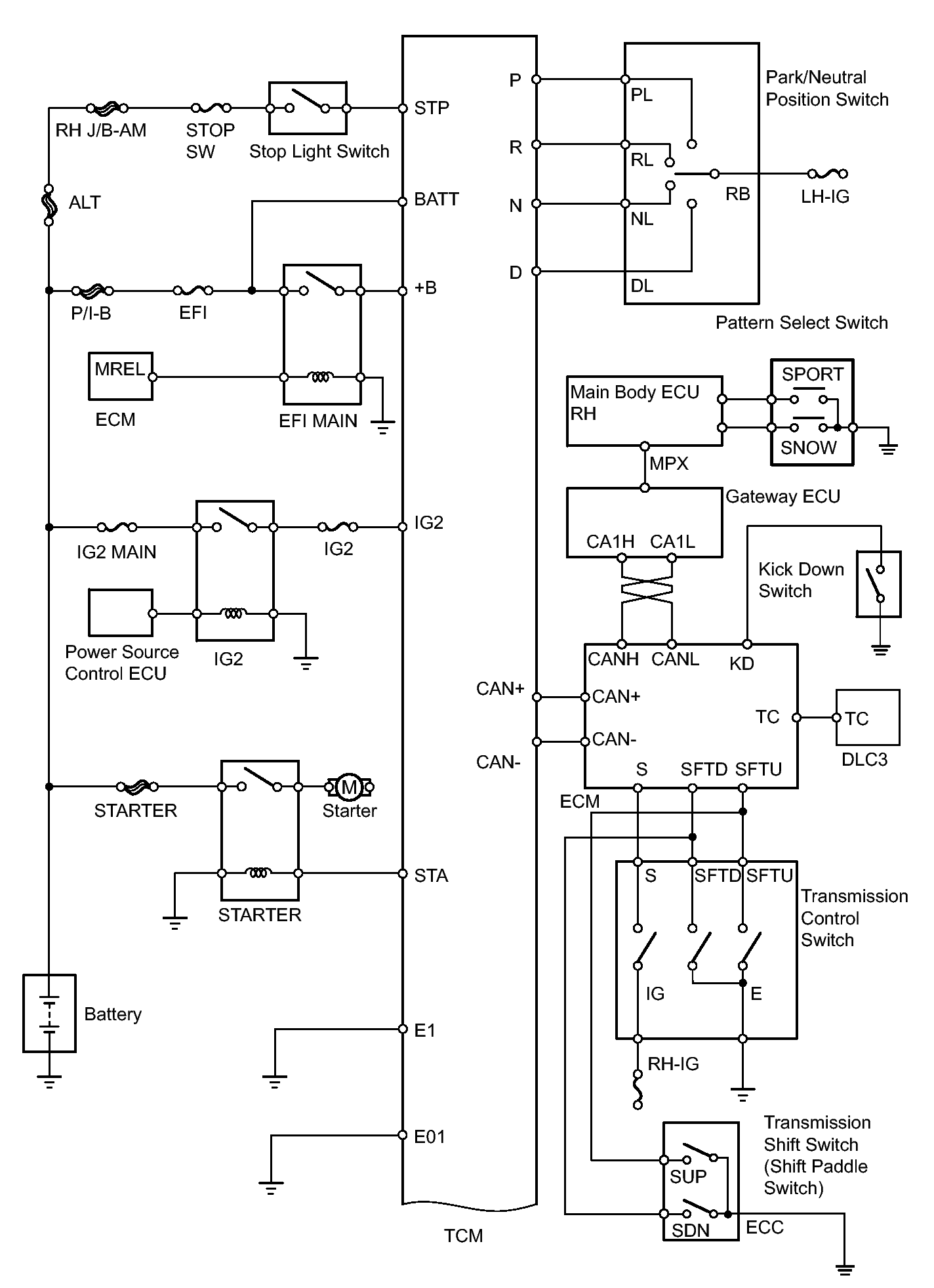

Fig 1: Automatic Transmission System Diagram (1 Of 2)
GTY278684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

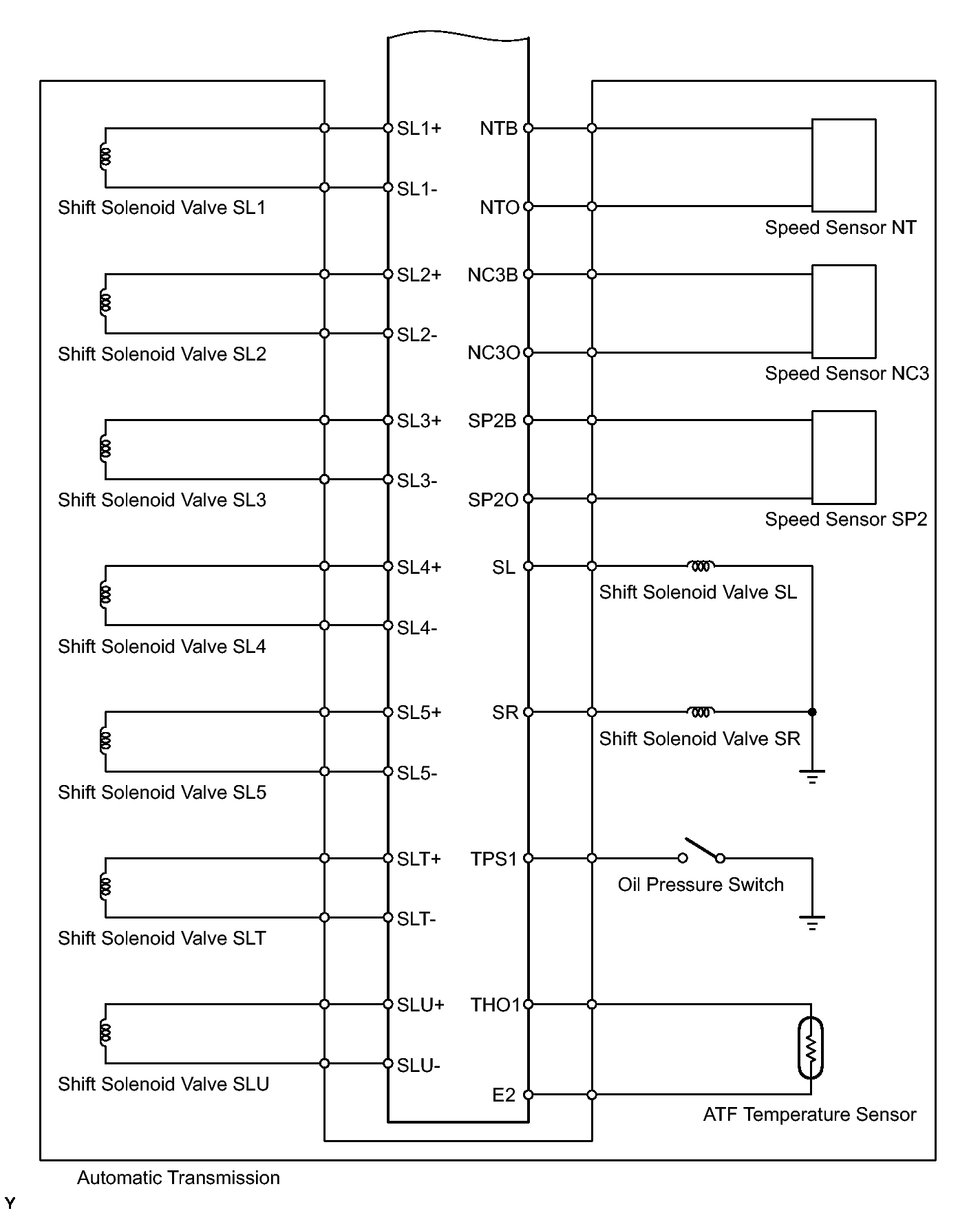

Fig 2: Automatic Transmission System Diagram (2 Of 2)
GTY101742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
