Speed Sensor: Installation: Installation

INSTALL SPEED SENSOR SP2
1. Install the speed sensor to the transmission case with the bolt.

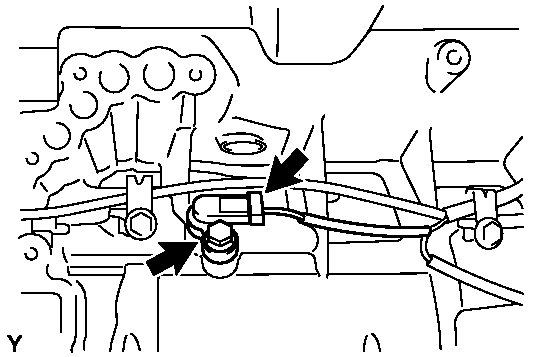

  Fig 1: Locating Speed Sensor SP2 With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
2. Connect the sensor connector.
INSTALL SPEED SENSOR NC3
1. Install the speed sensor to the transmission case with the bolt.

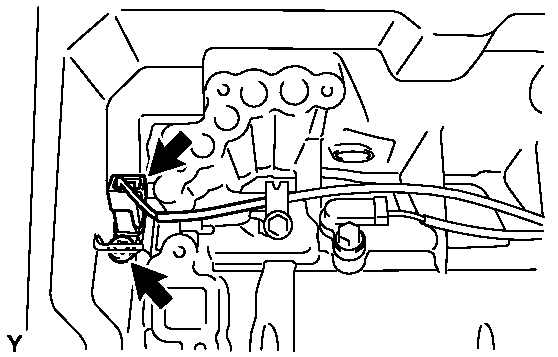

  Fig 2: Locating Speed Sensor NC3 And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
2. Connect the sensor connector.
INSTALL SPEED SENSOR NT
1. Coat a new O-ring with ATF and install it to the speed sensor.

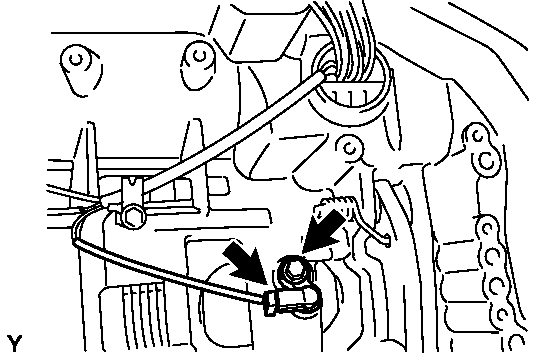

  Fig 3: Locating Speed Sensor NT
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a T30 "TORX" wench, install the speed sensor with the bolt.
  Torque: 6.8 N*m (69 kgf*cm, 60 in.*lbf)
3. Connect the sensor connector.
INSTALL TRANSMISSION VALVE BODY ASSEMBLY See step 1
INSTALL VALVE BODY OIL STRAINER ASSEMBLY See step 2
INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY See step 3
INSTALL NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY See step 4
ADD AUTOMATIC TRANSMISSION FLUID
1. Add automatic transmission fluid. Refer to ADJUSTMENT .
INSTALL NO. 2 ENGINE UNDER COVER
