Alignment

Front Wheel Alignment

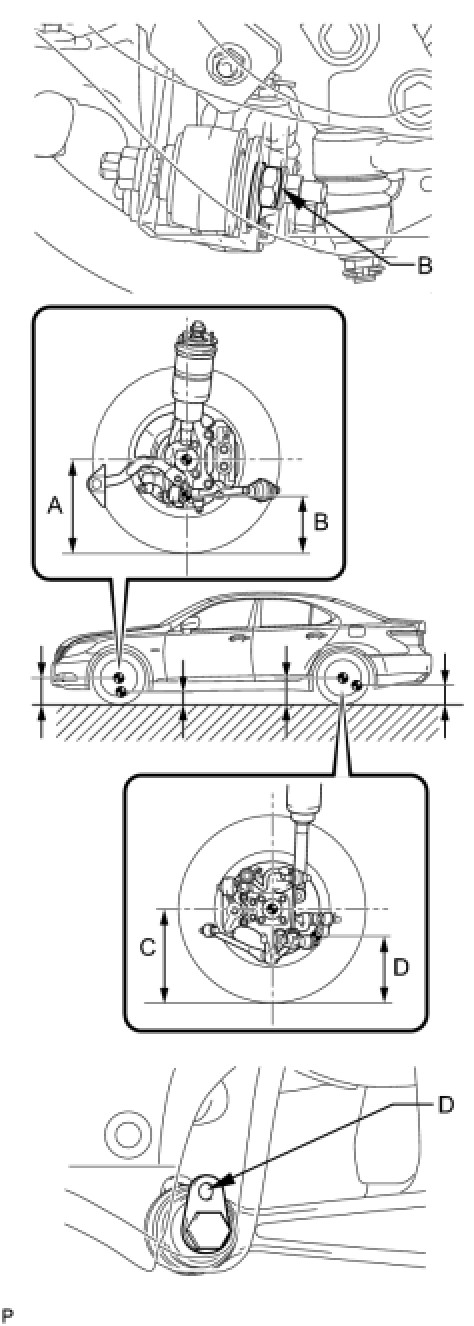

Standard vehicle height:

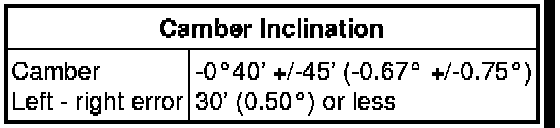

Standard camber inclination (unloaded):

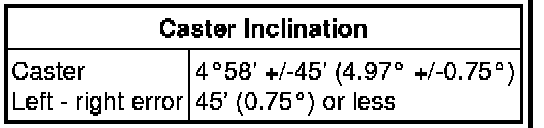

Standard caster inclination (unloaded):

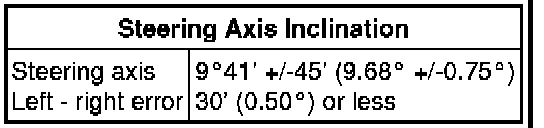

Standard steering axis inclination (unloaded):

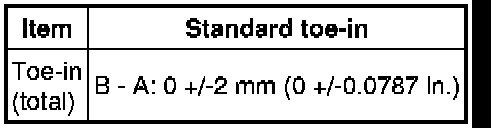

Toe-in:





Rear toe-in:
Approximately 4.8 mm (0.188 in.)

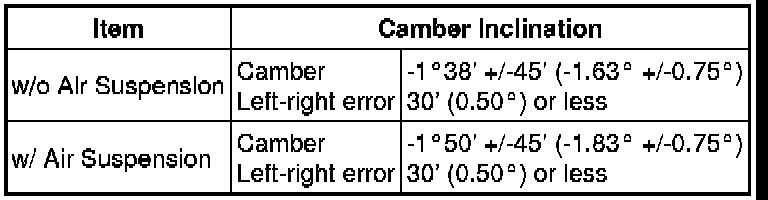

Rear camber:
