Power Window: Notes

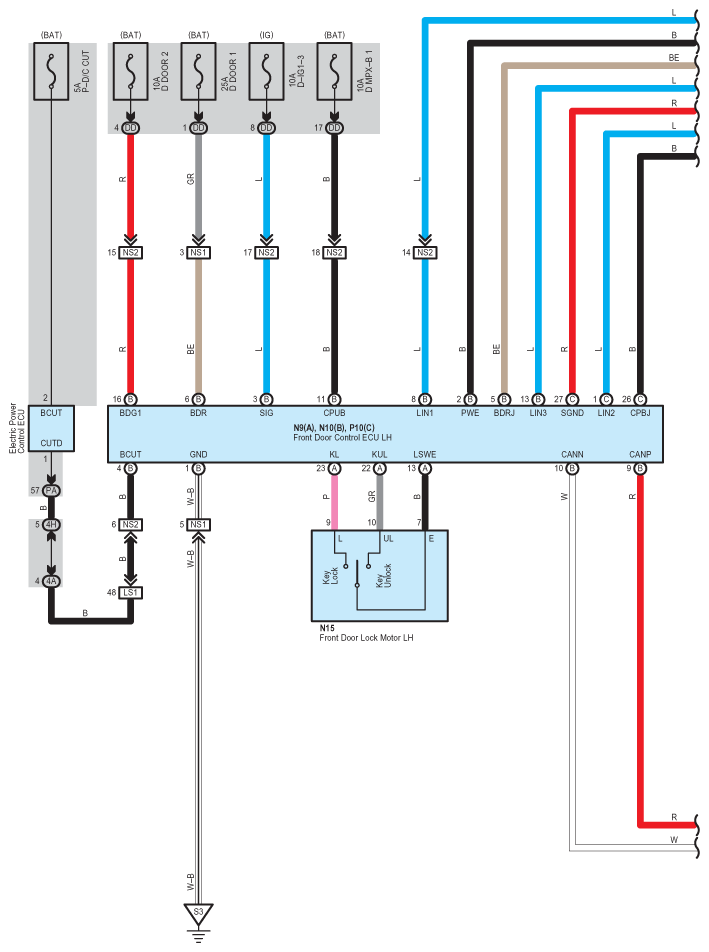

Fig 1: Power Window - Circuit Diagram (1 Of 8)

G07567815

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

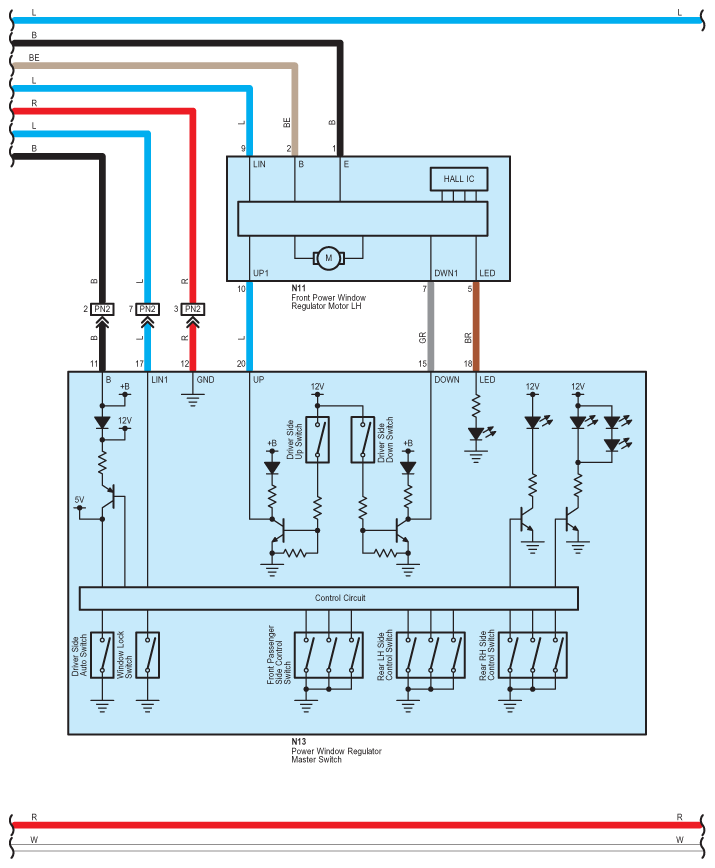

Fig 2: Power Window - Circuit Diagram (2 Of 8)

G07567816

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

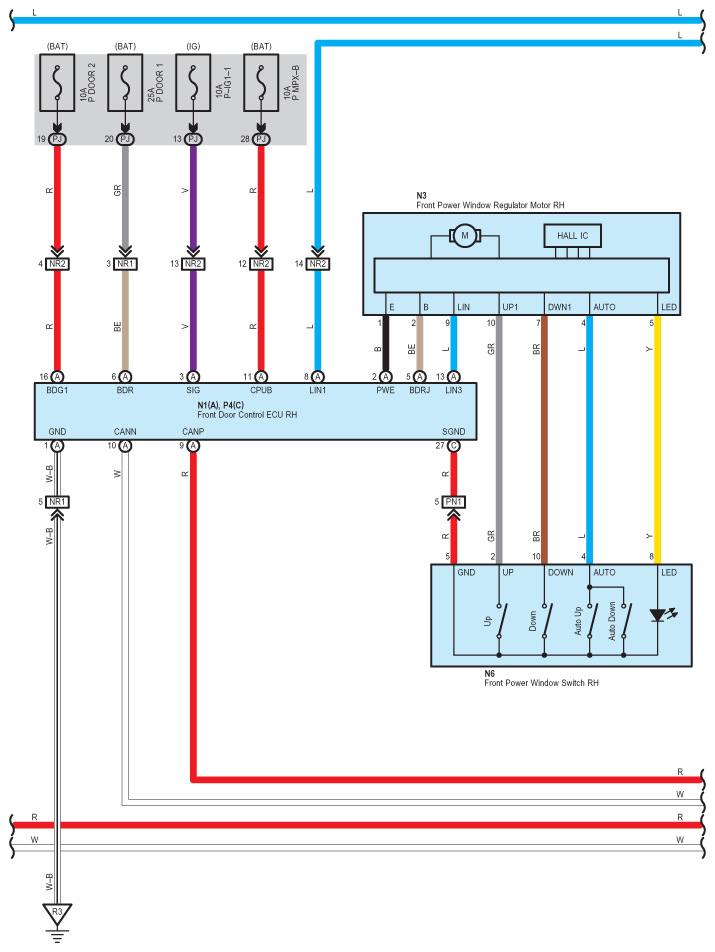

Fig 3: Power Window - Circuit Diagram (3 Of 8)

G07567817

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

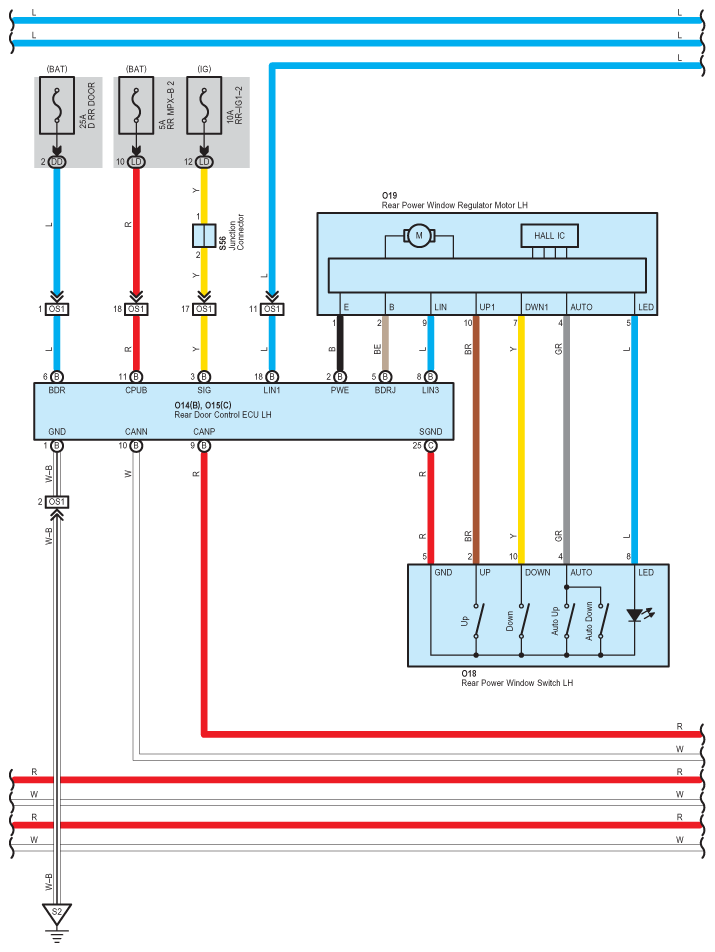

Fig 4: Power Window - Circuit Diagram (4 Of 8)

G07567818

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

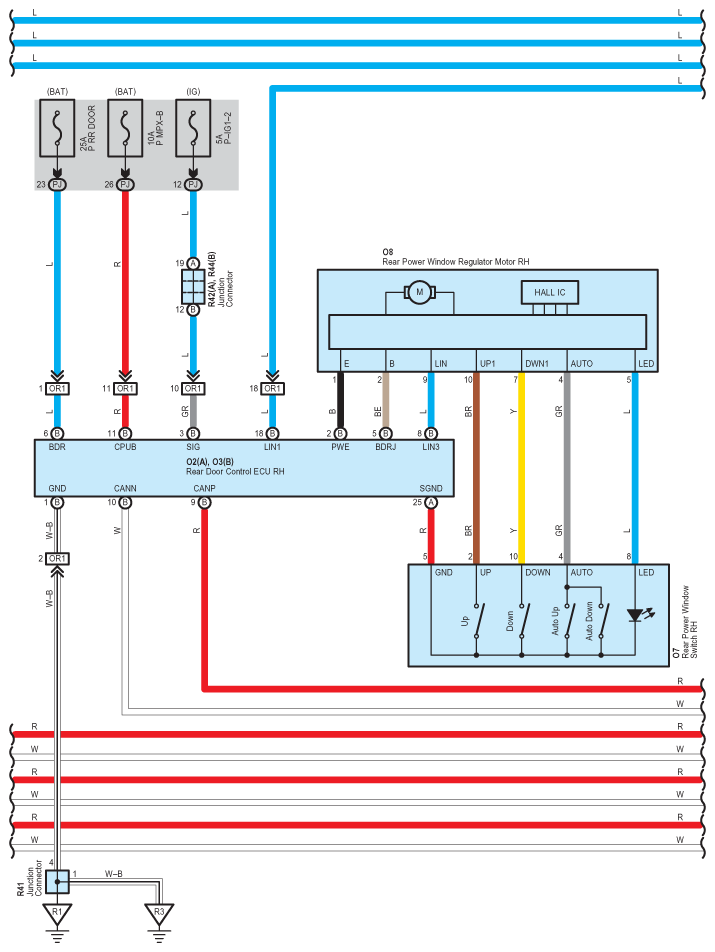

Fig 5: Power Window - Circuit Diagram (5 Of 8)

G07567819

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

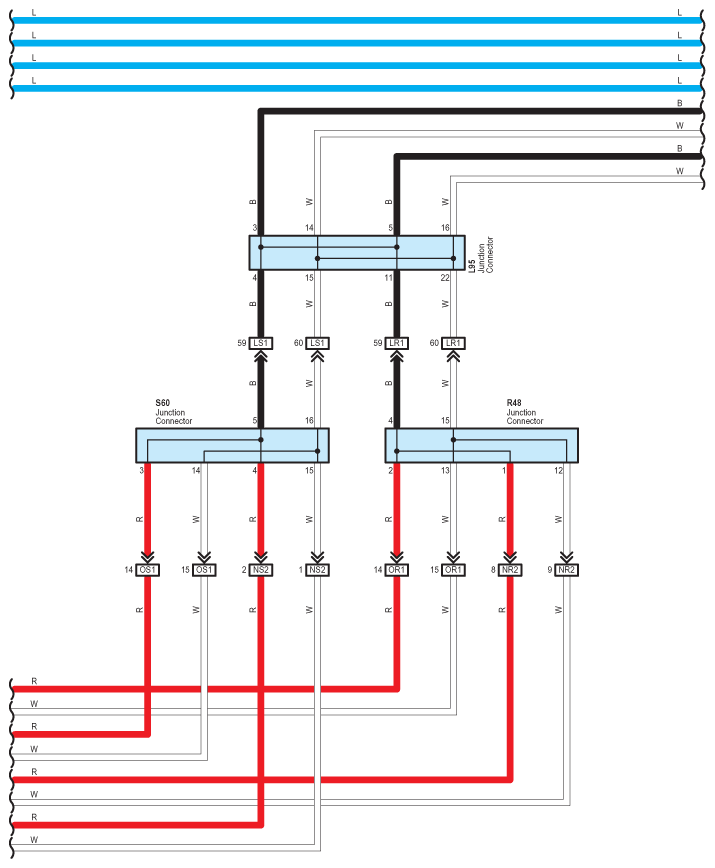

Fig 6: Power Window - Circuit Diagram (6 Of 8)

G07567820

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

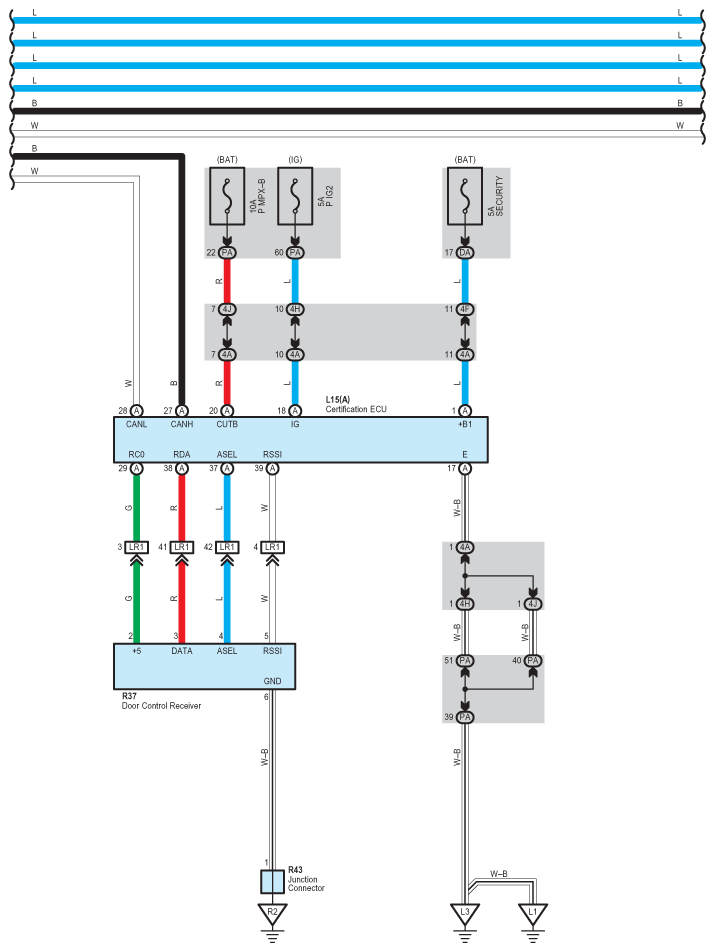

Fig 7: Power Window - Circuit Diagram (7 Of 8)

G07567821

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

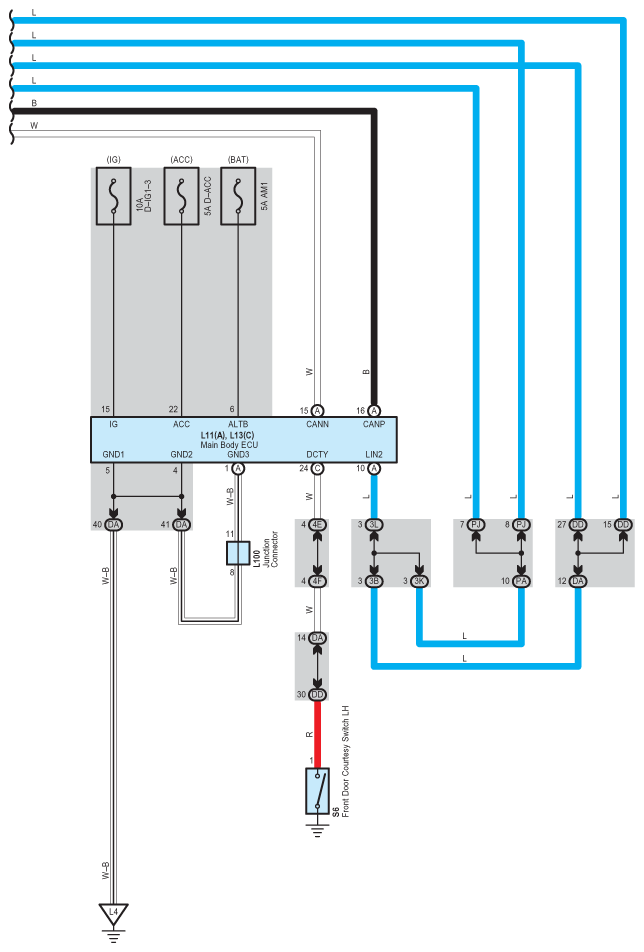

Fig 8: Power Window - Circuit Diagram (8 Of 8)

G07567822

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
