Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

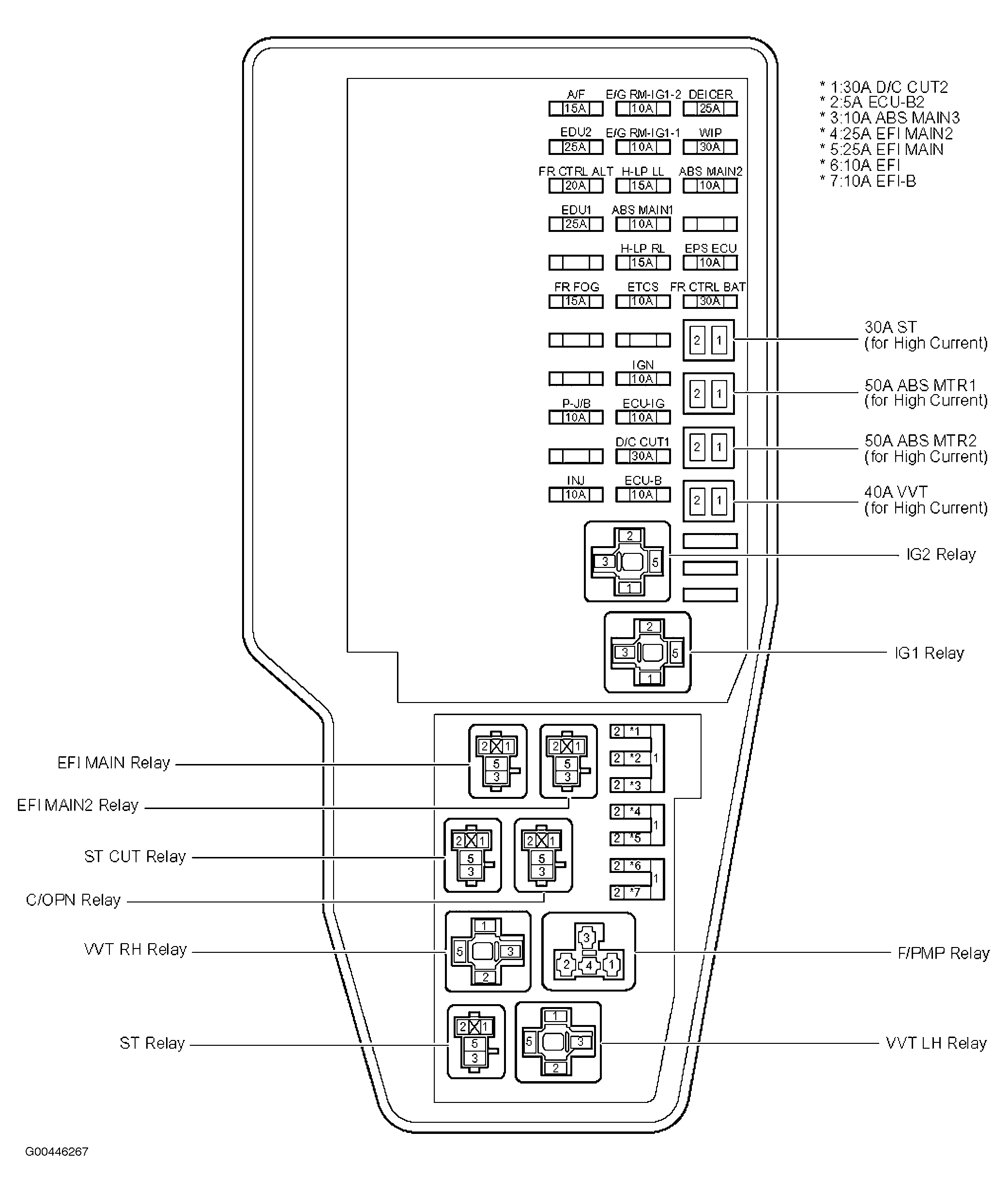

Fig 1: Engine Room R/B No. 2

G00446267

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

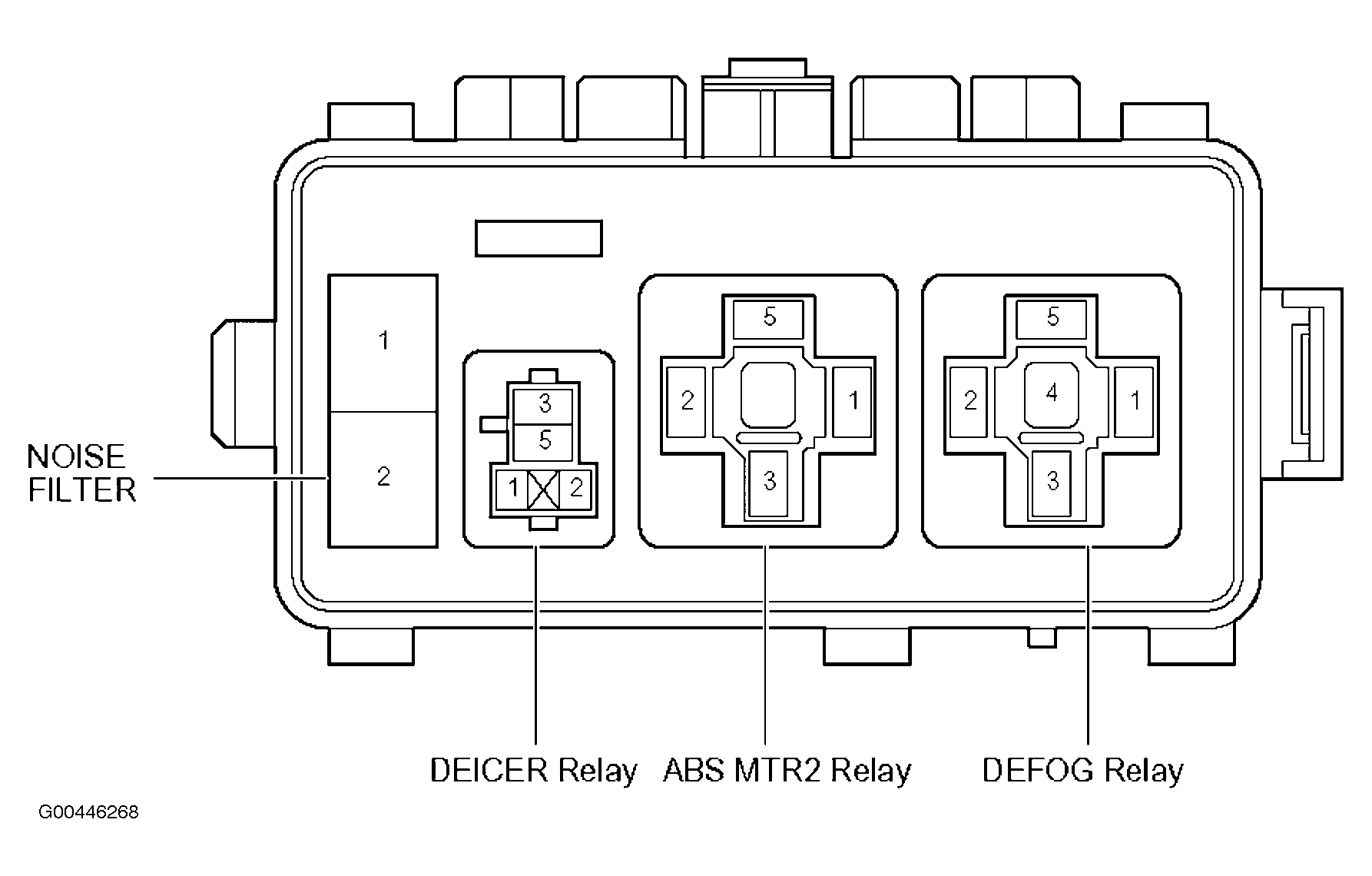

Fig 2: R/B No. 3

G00446268

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

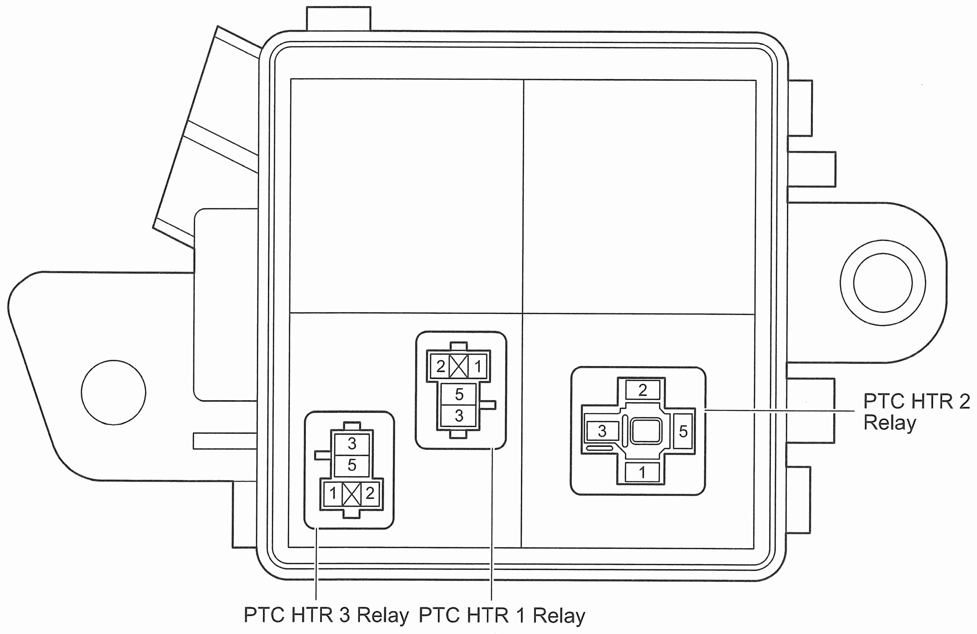

Fig 3: R/B No. 5

G00476726

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

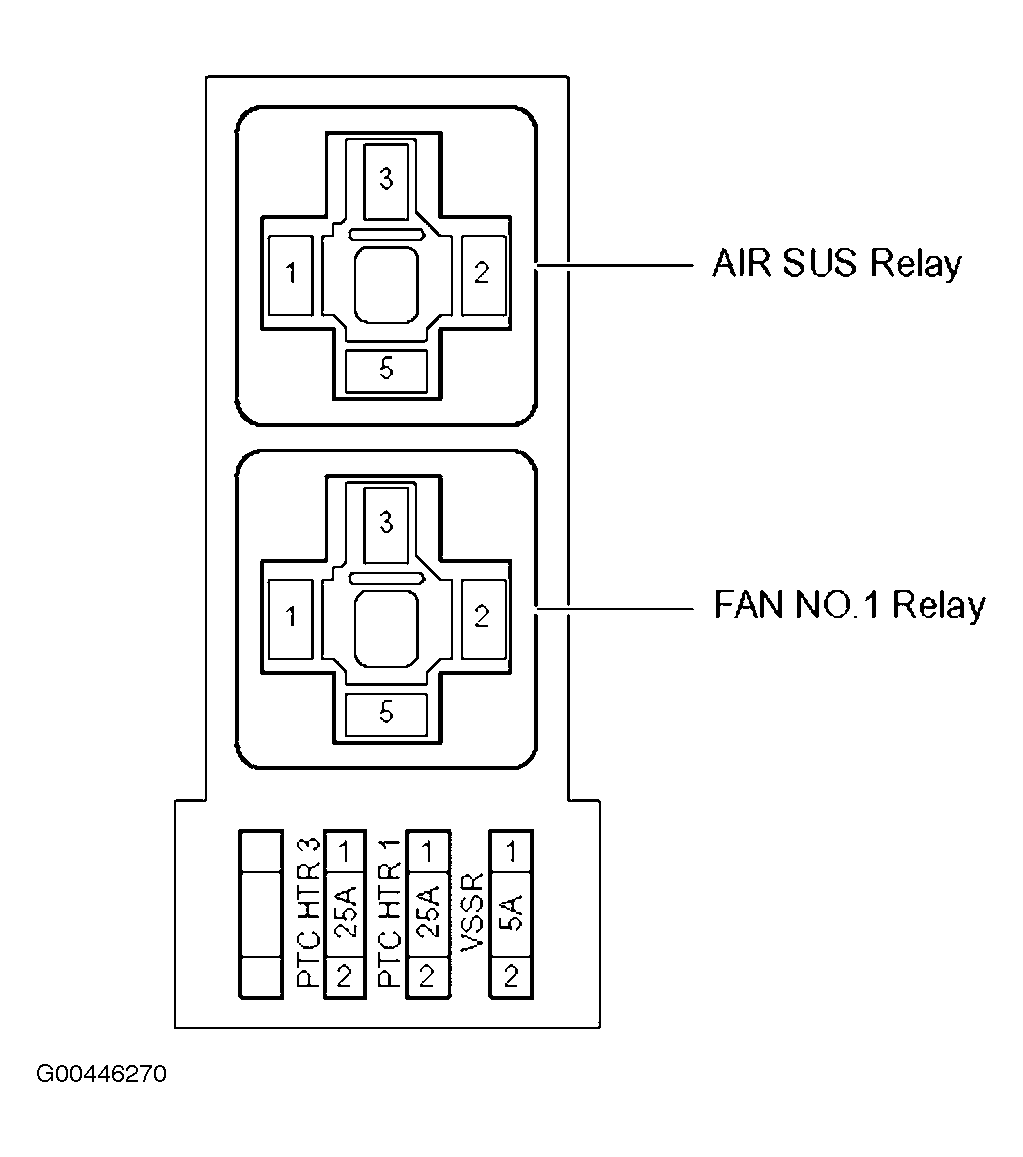

Fig 4: Unit "B" (Inside Engine Room R/B No. 1)

G00446270

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Engine Compartment

G00446271

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Dash & Center Floor Console

G00476724

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Vehicle Overview

G00476725

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Front Seats

G00446274

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Rear Seats

G00446275

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

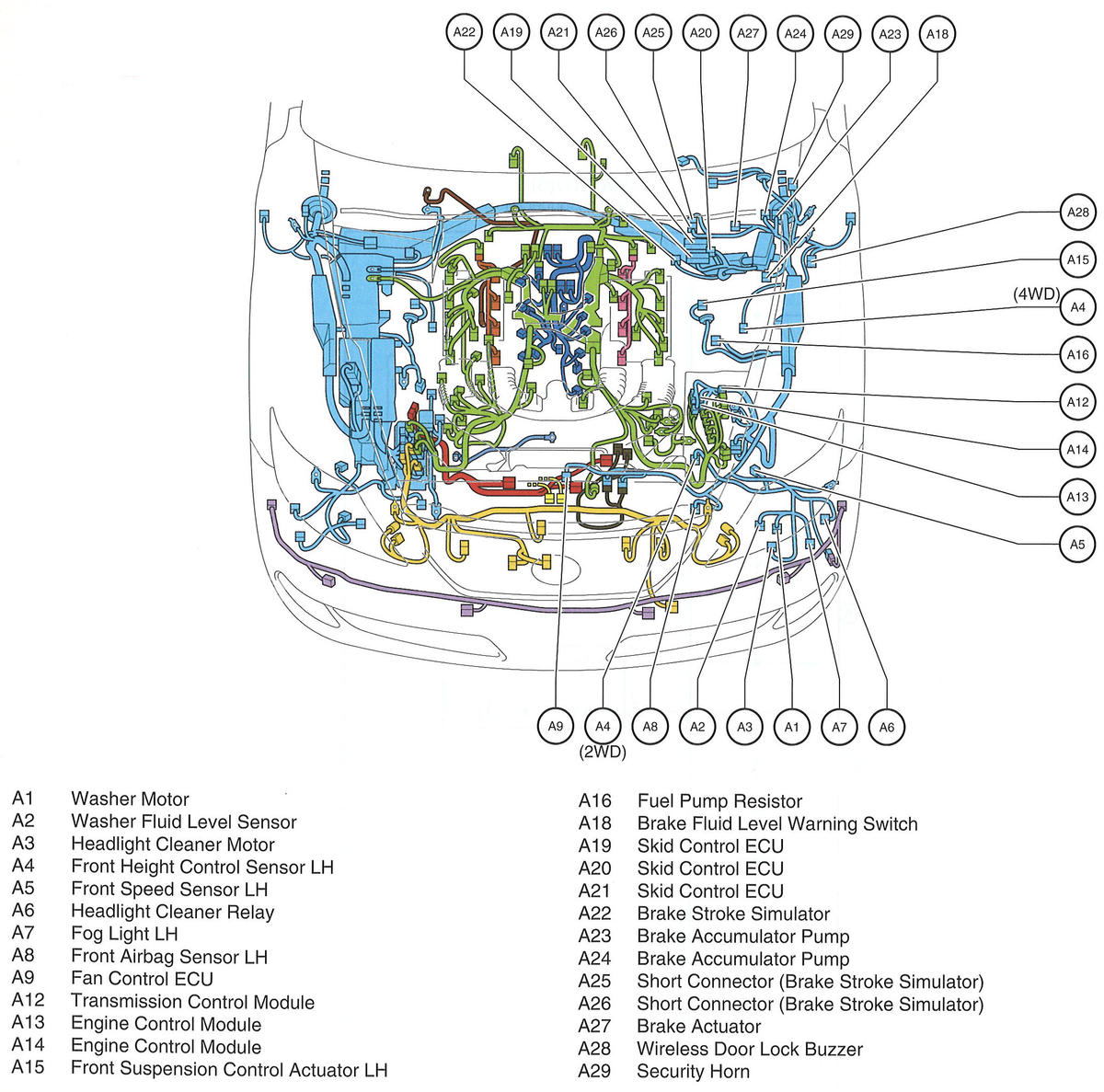

Fig 10: Engine Compartment

G00467369

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

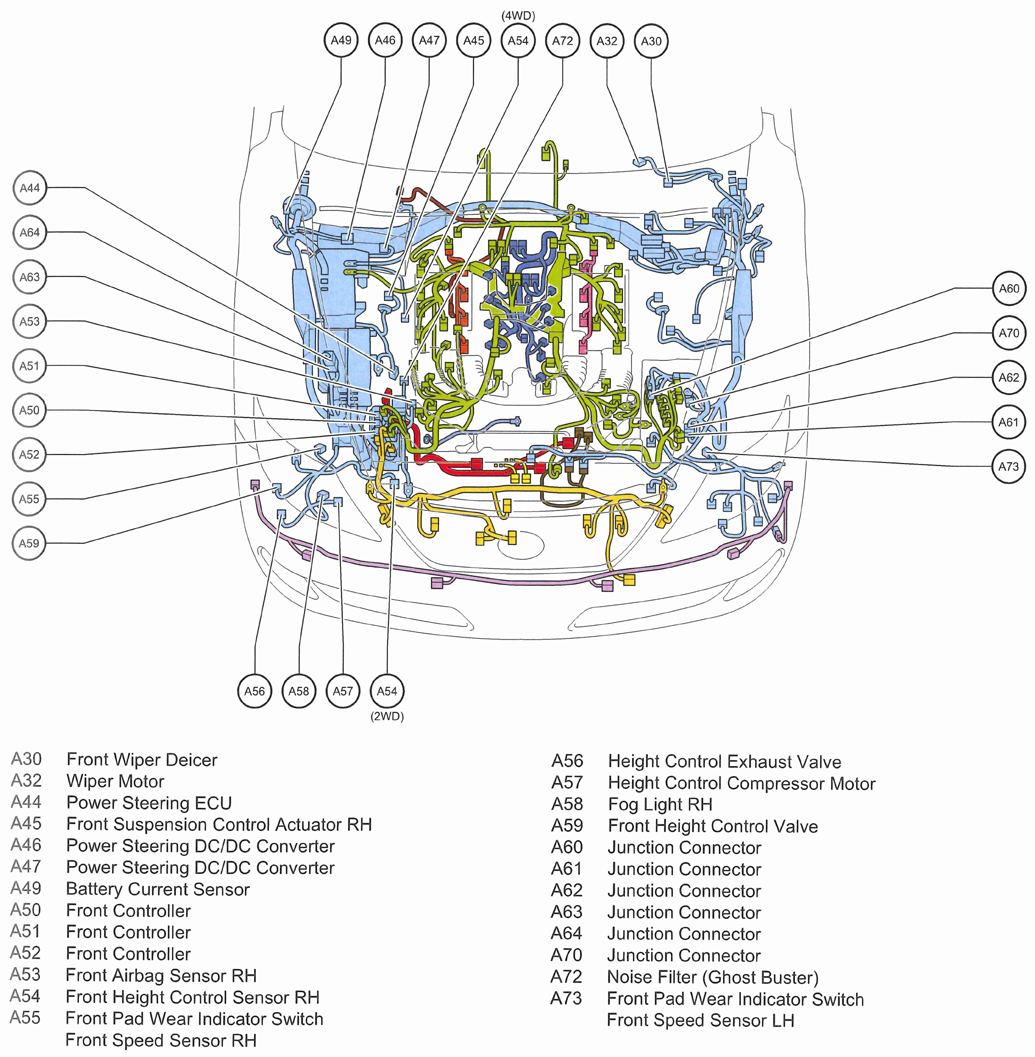

Fig 11: Engine Compartment

G00476727

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

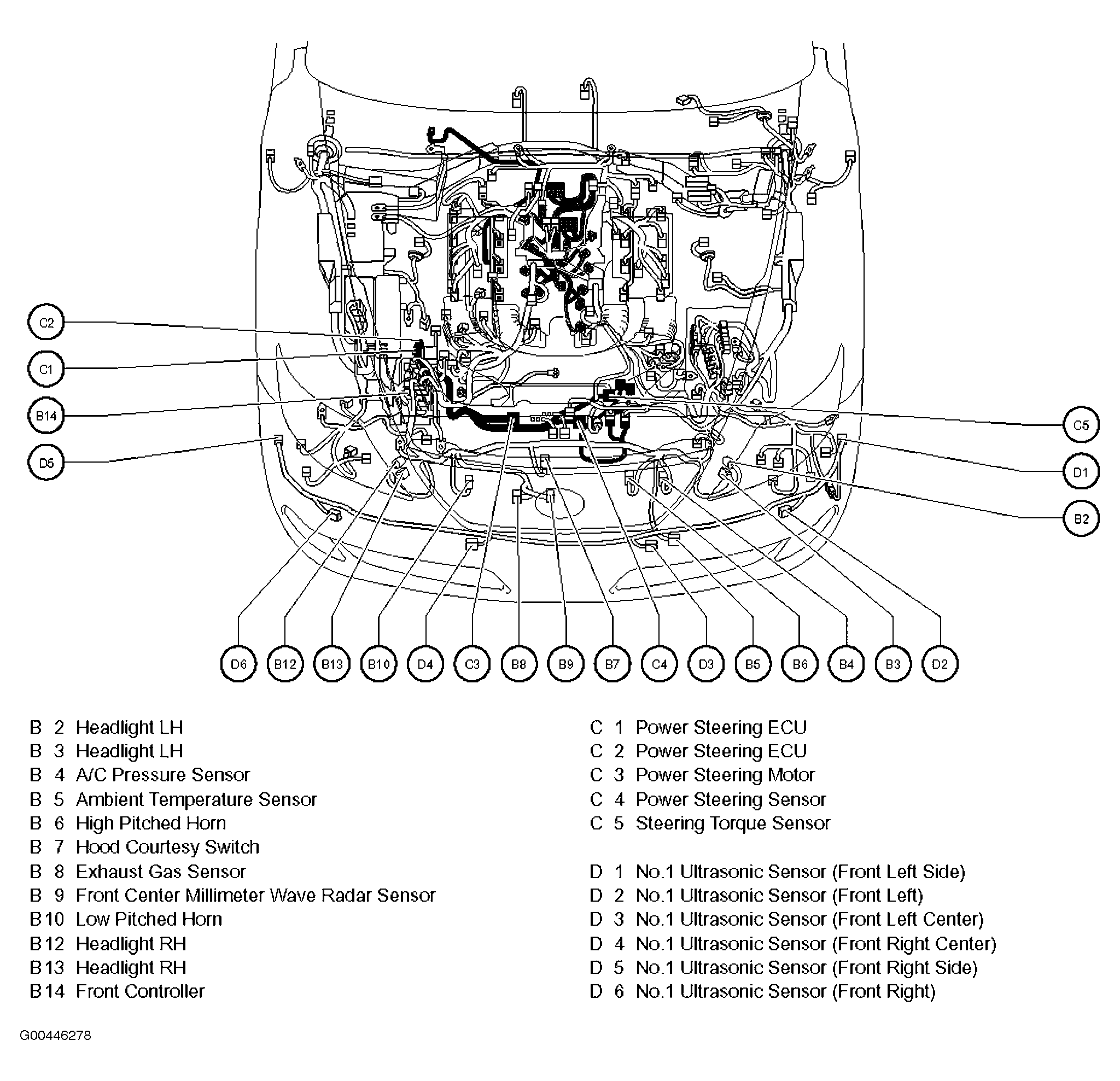

Fig 12: Engine Compartment

G00446278

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

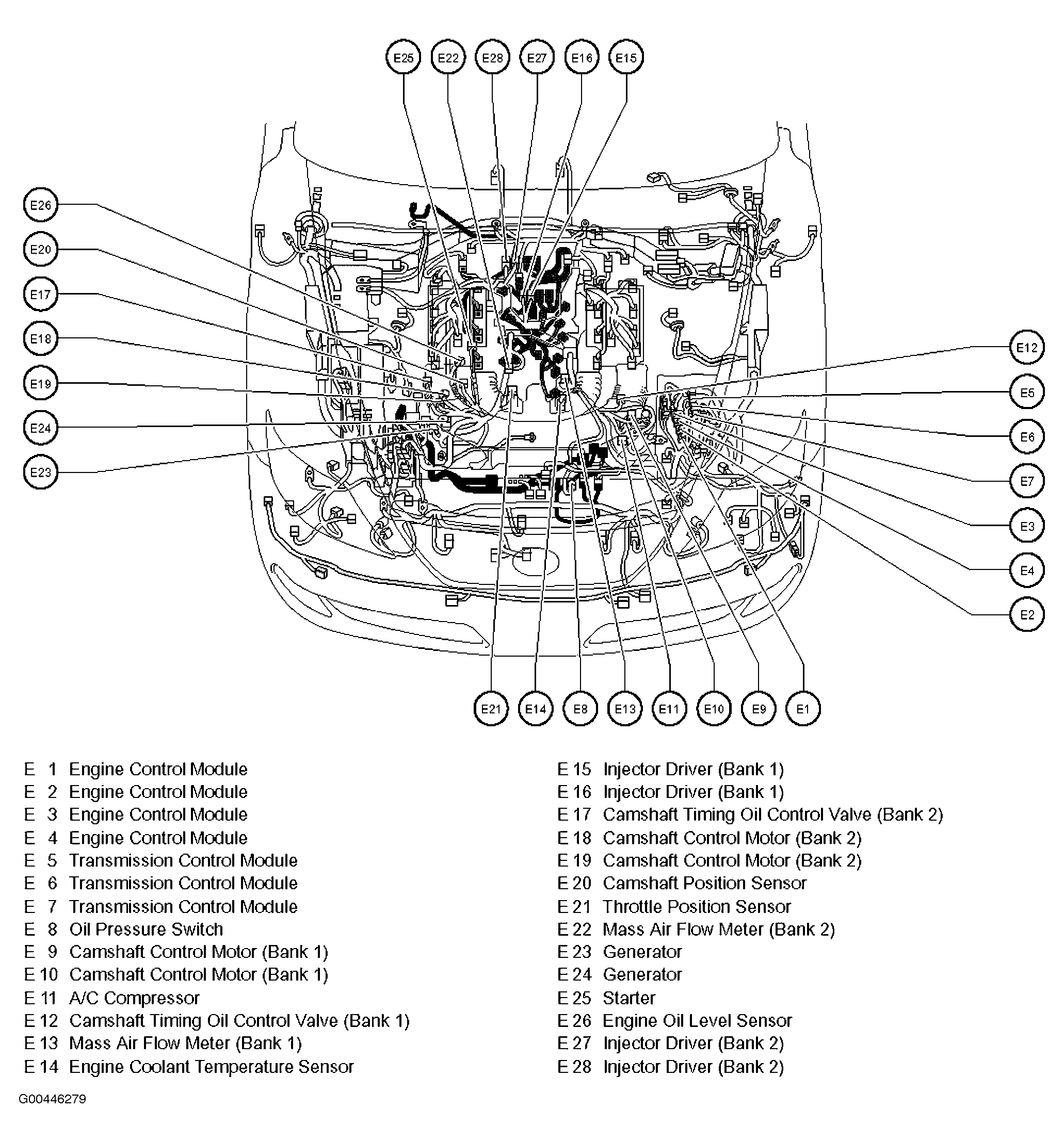

Fig 13: Engine

G00446279

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

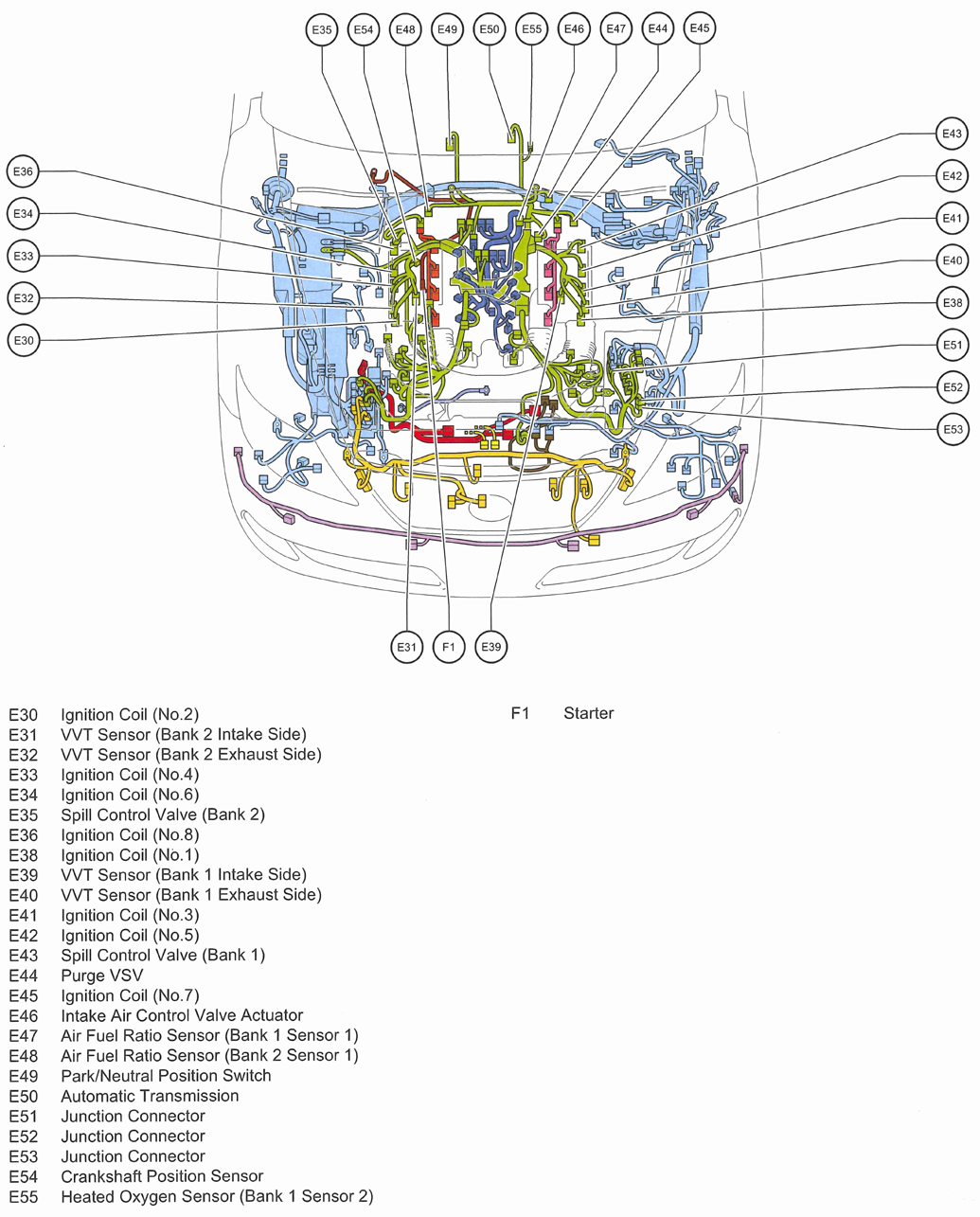

Fig 14: Engine

G00476728

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

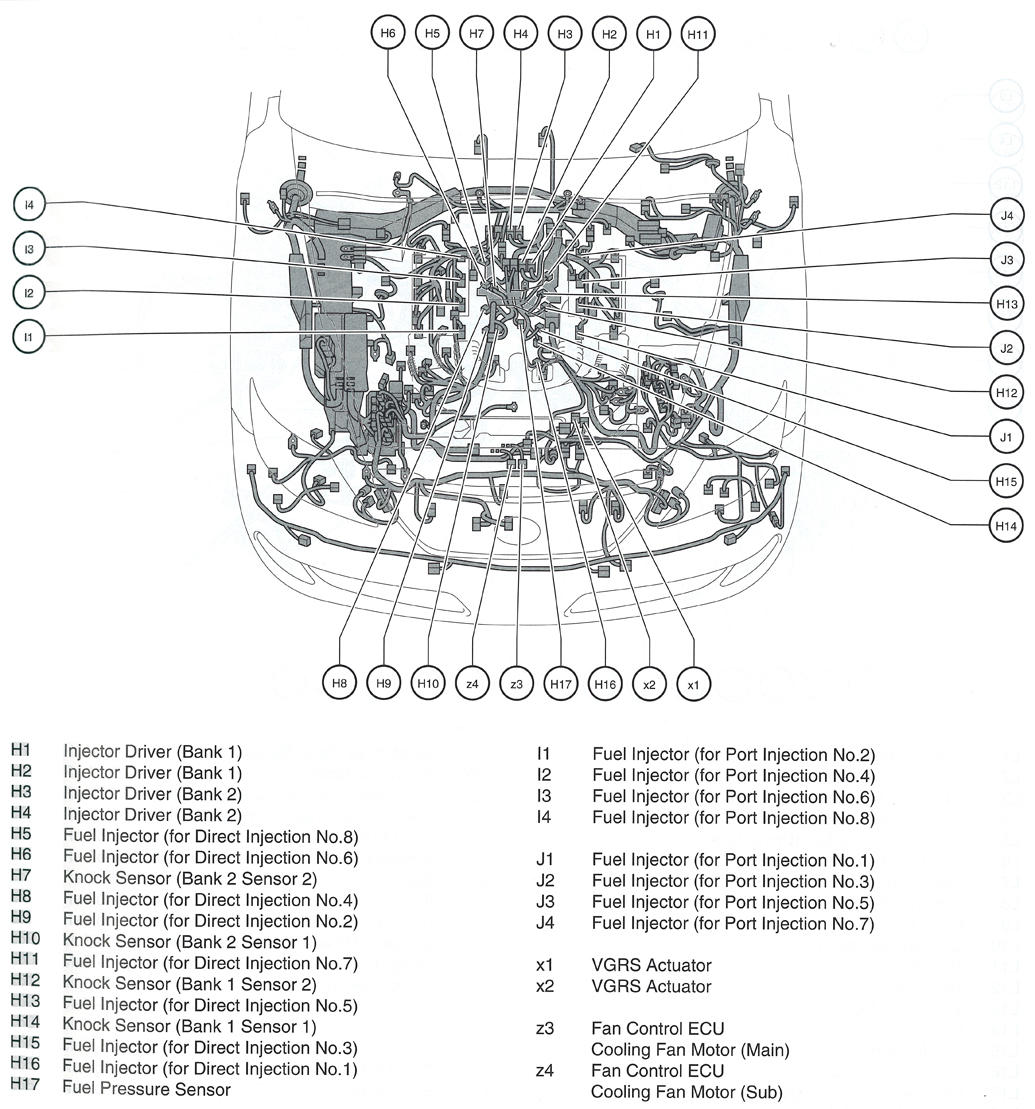

Fig 15: Engine

G00459053

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Dash & Center Floor Console

G00459054

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

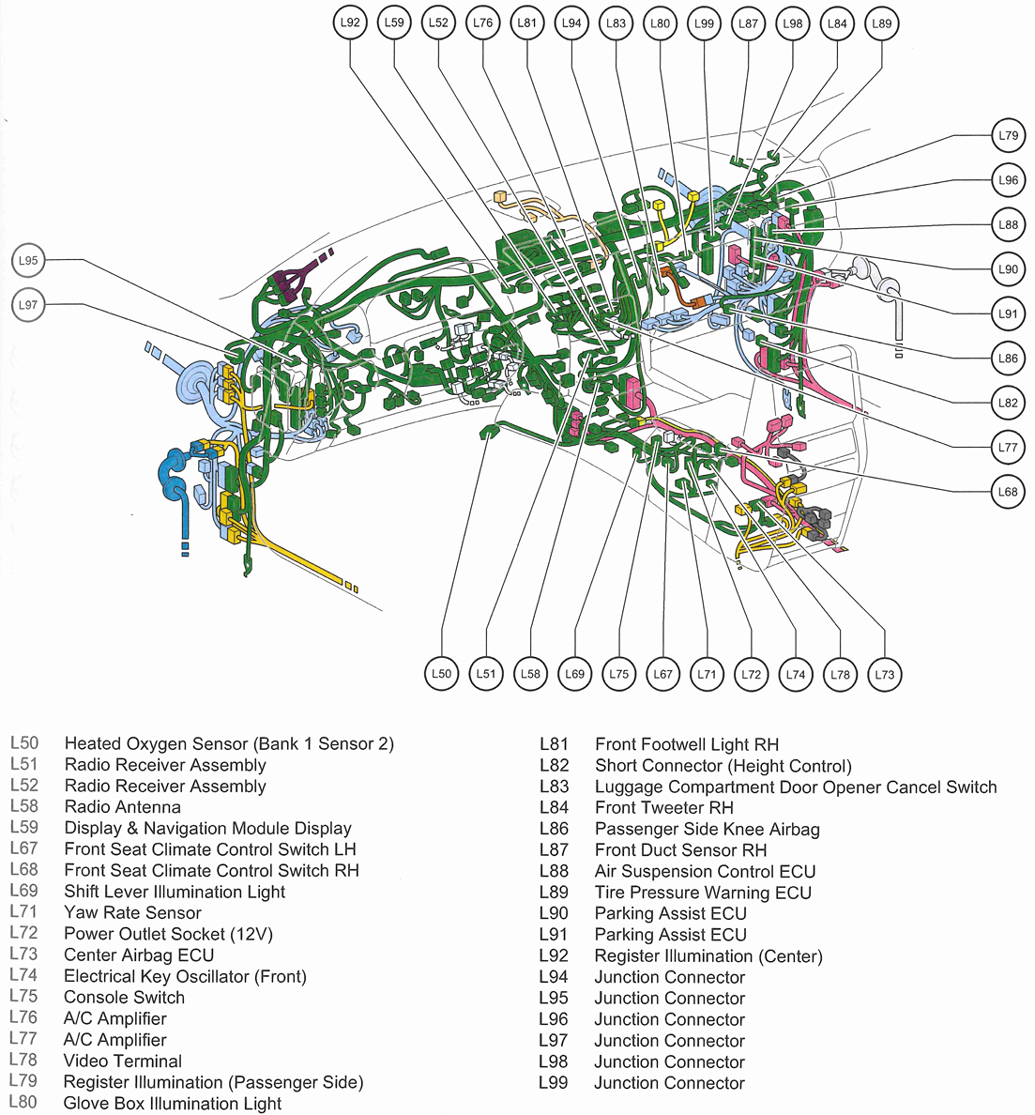

Fig 17: Dash & Center Floor Console

G00476729

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

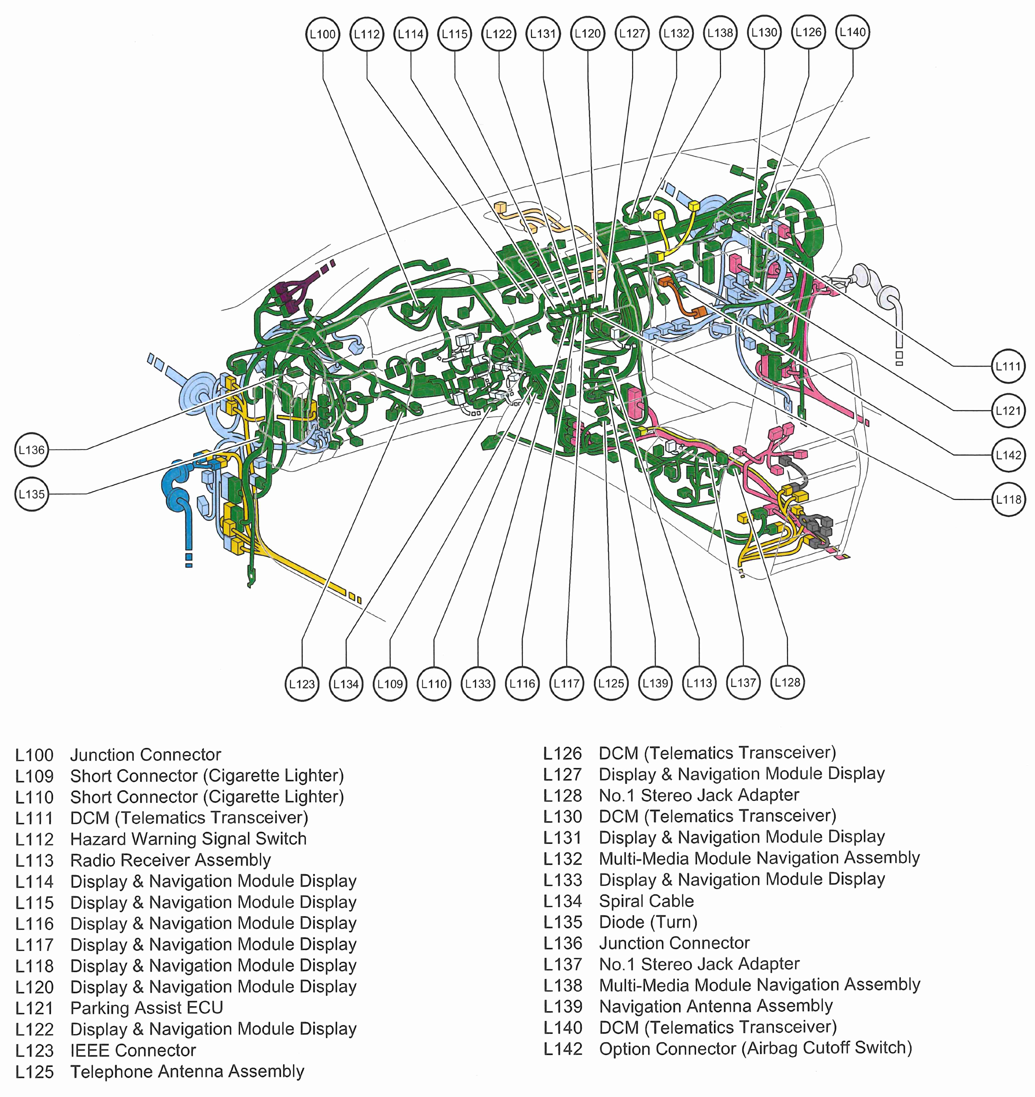

Fig 18: Dash & Center Floor Console

G00476730

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

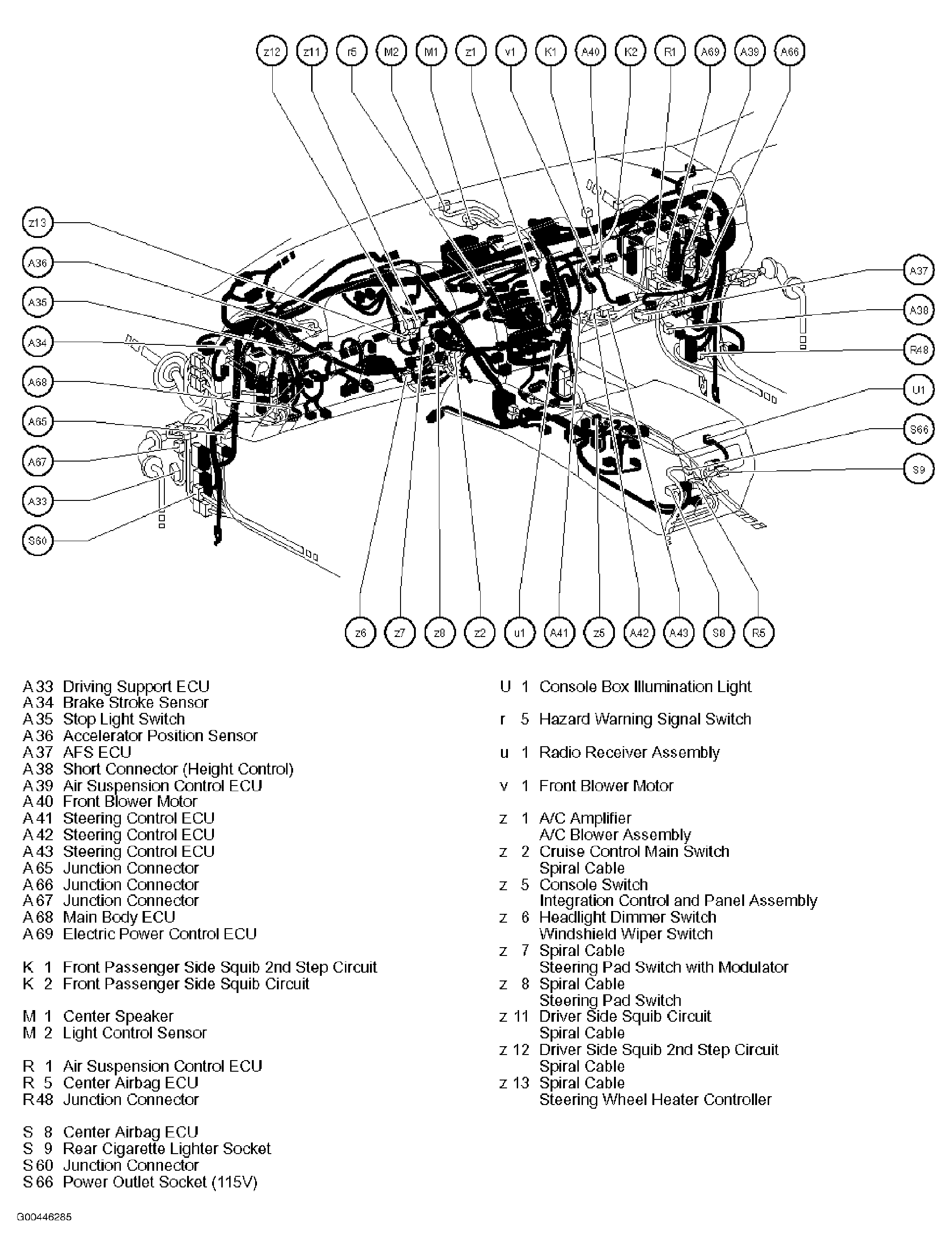

Fig 19: Dash & Center Floor Console

G00446285

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

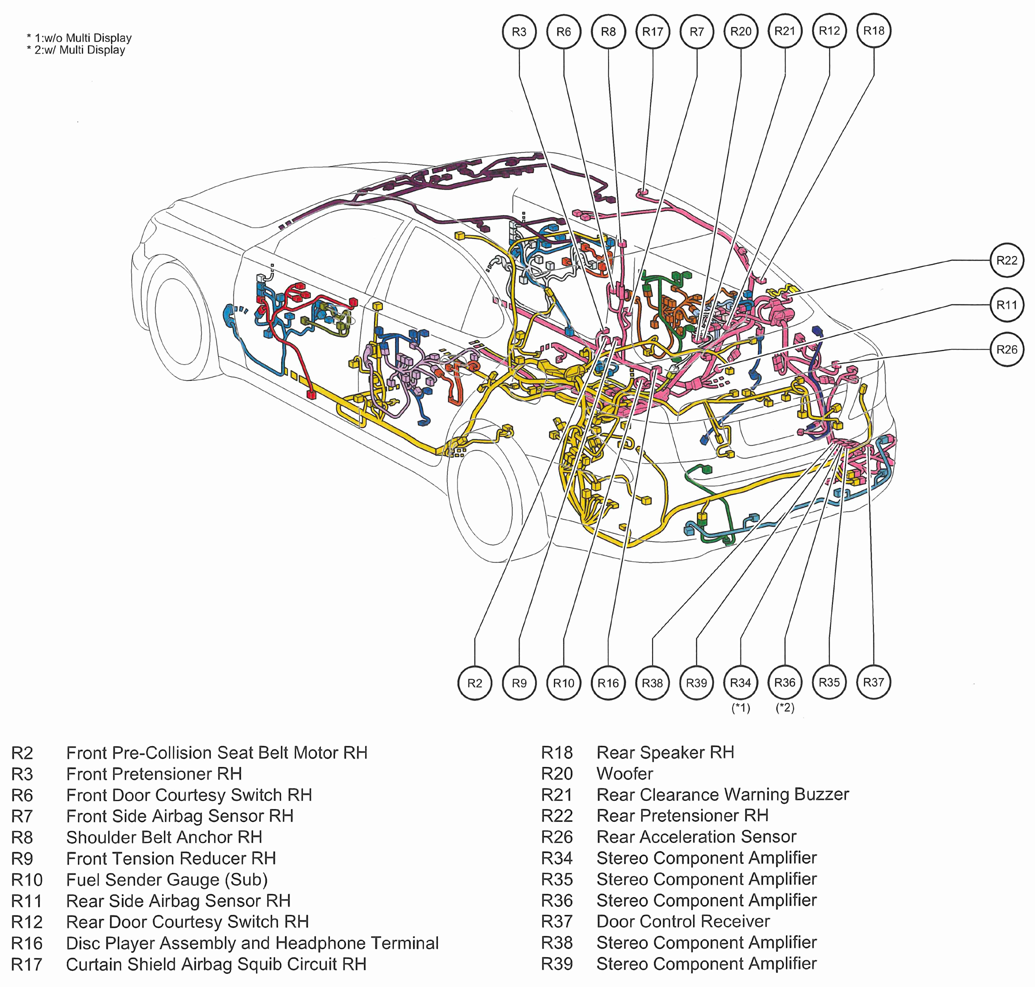

Fig 20: Right Side Of Vehicle

G00476731

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

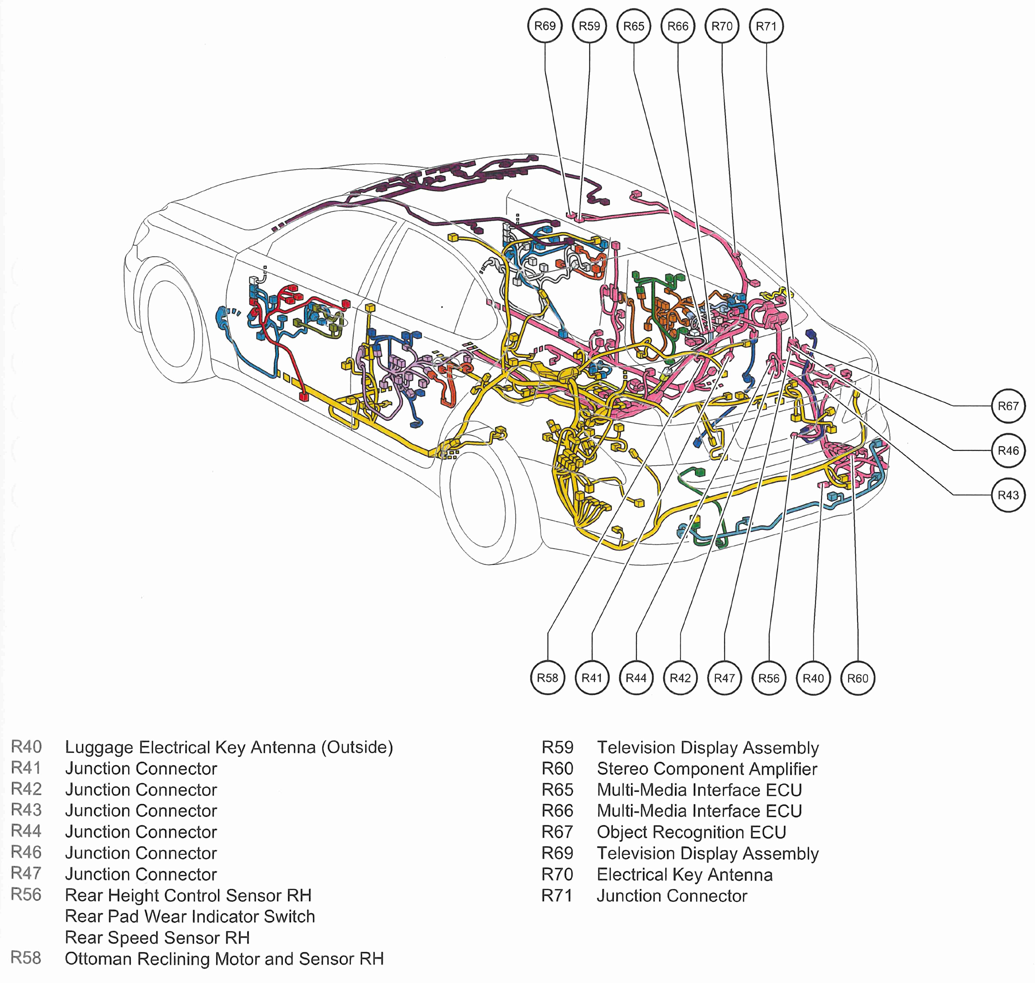

Fig 21: Right Rear Of Vehicle

G00476732

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

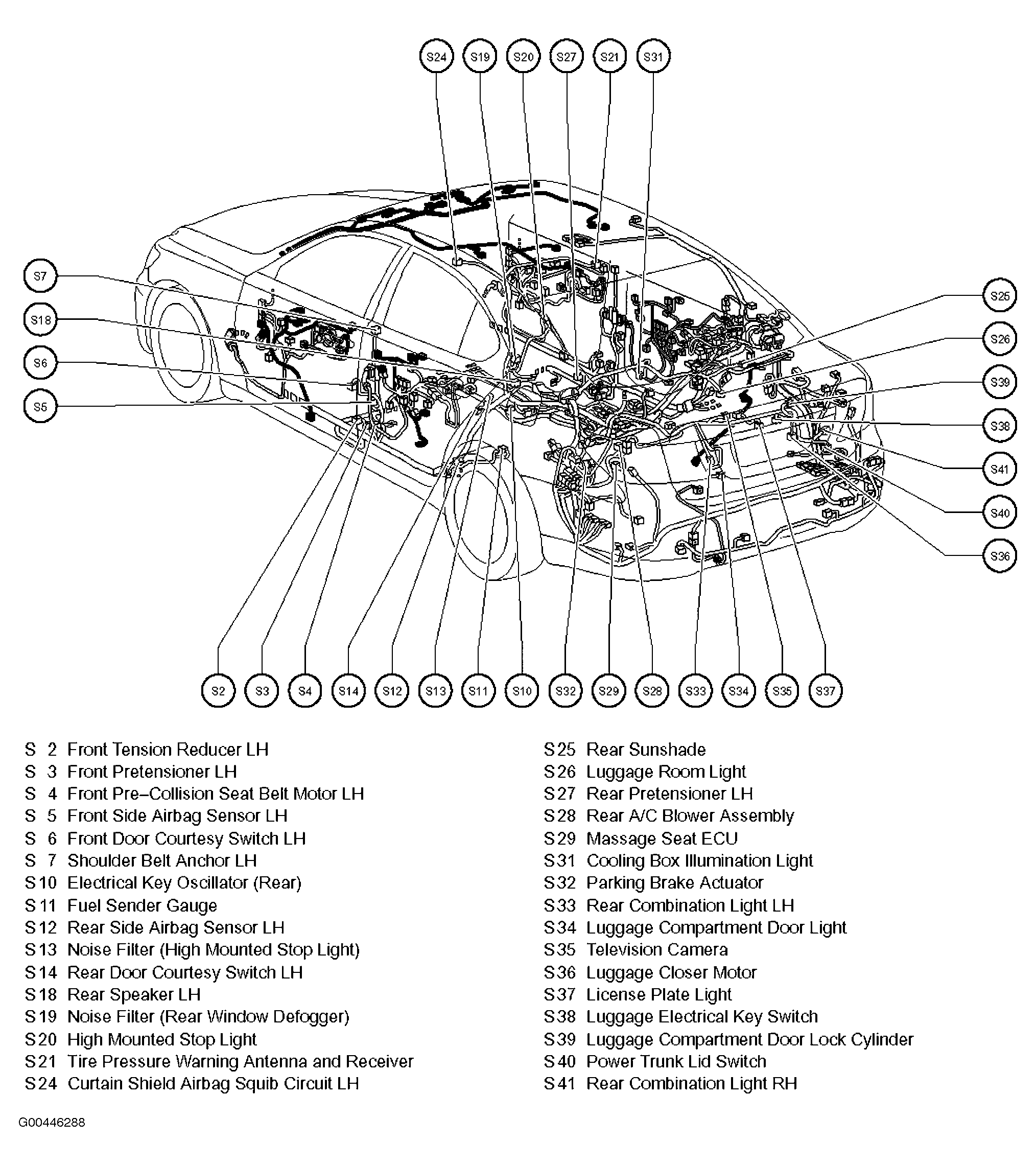

Fig 22: Left Side Of Vehicle

G00446288

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

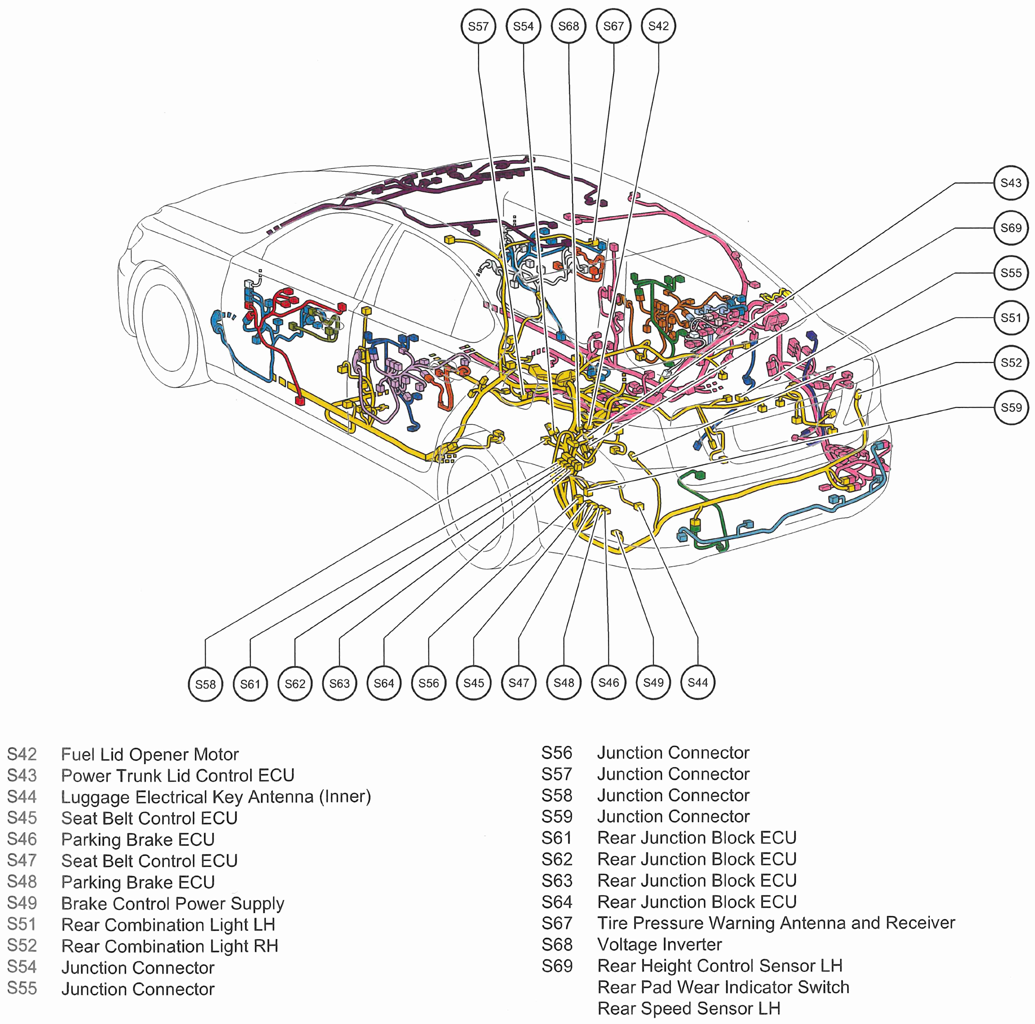

Fig 23: Left Rear Of Vehicle

G00476733

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

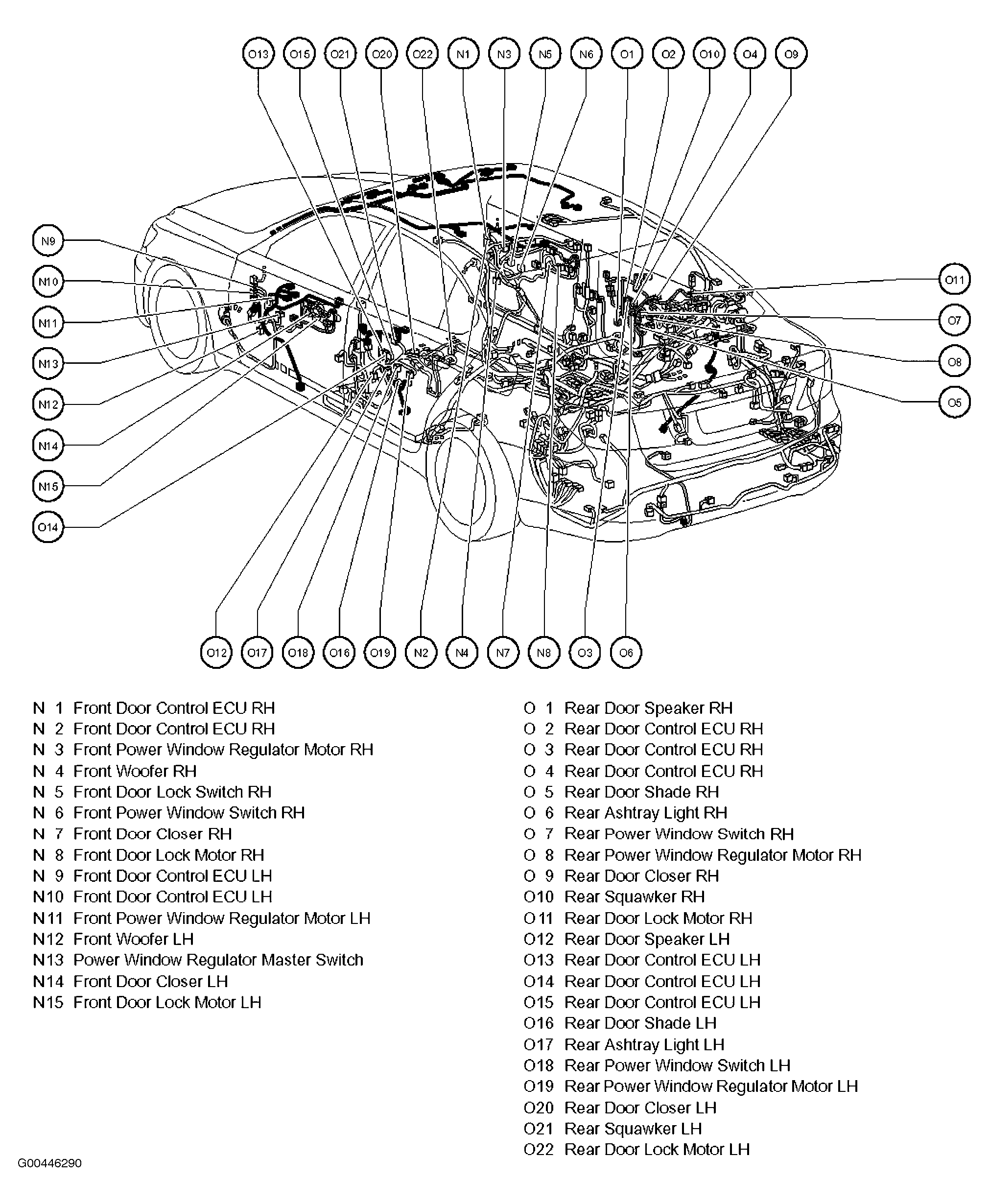

Fig 24: Vehicle Overview

G00446290

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

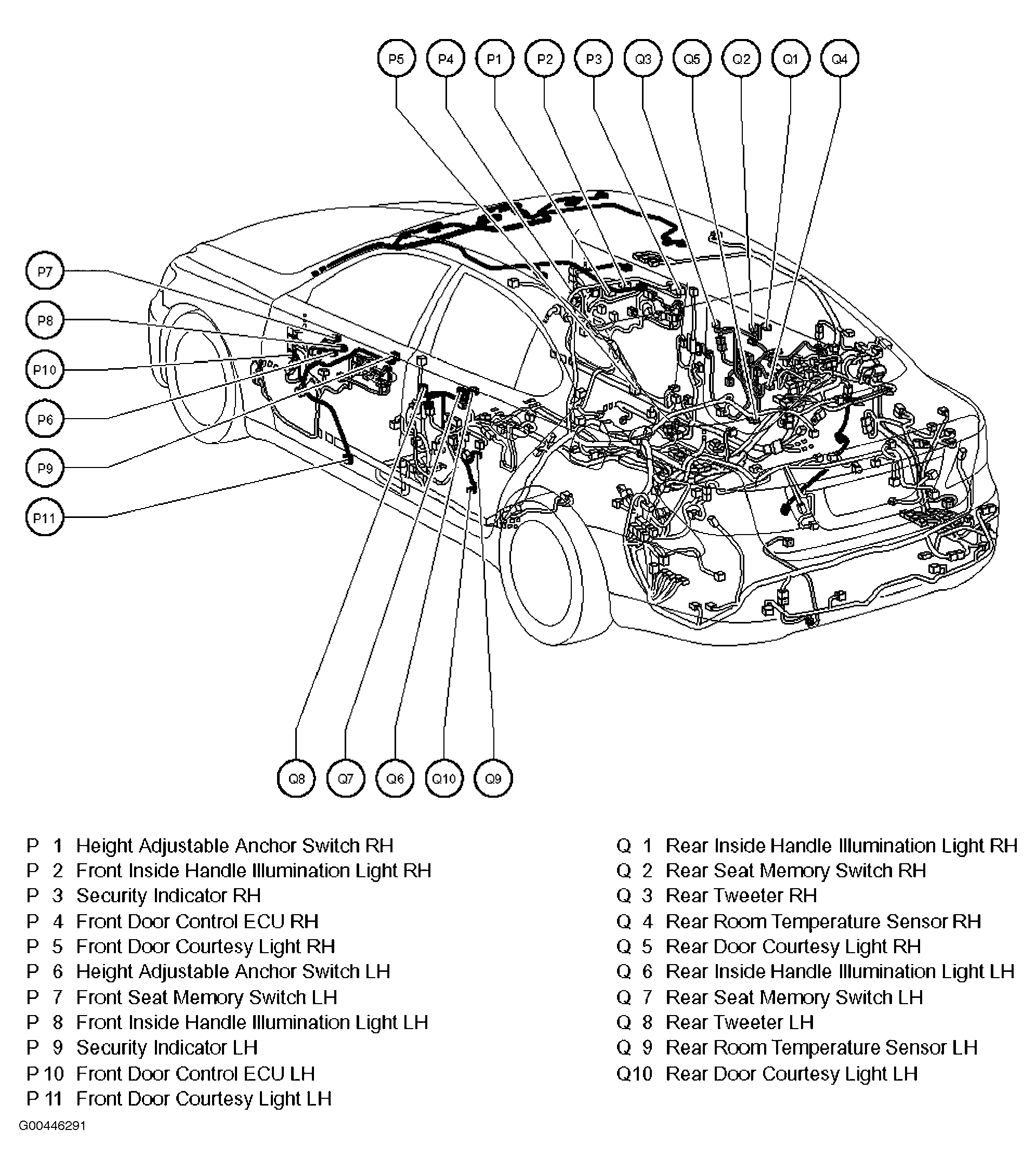

Fig 25: Vehicle Overview

G00446291

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 26: Vehicle Overview

G00459057

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 27: Vehicle Overview

G00476734

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 28: Front Seats

G00476735

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 29: Rear Seats (Power)

G00476736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

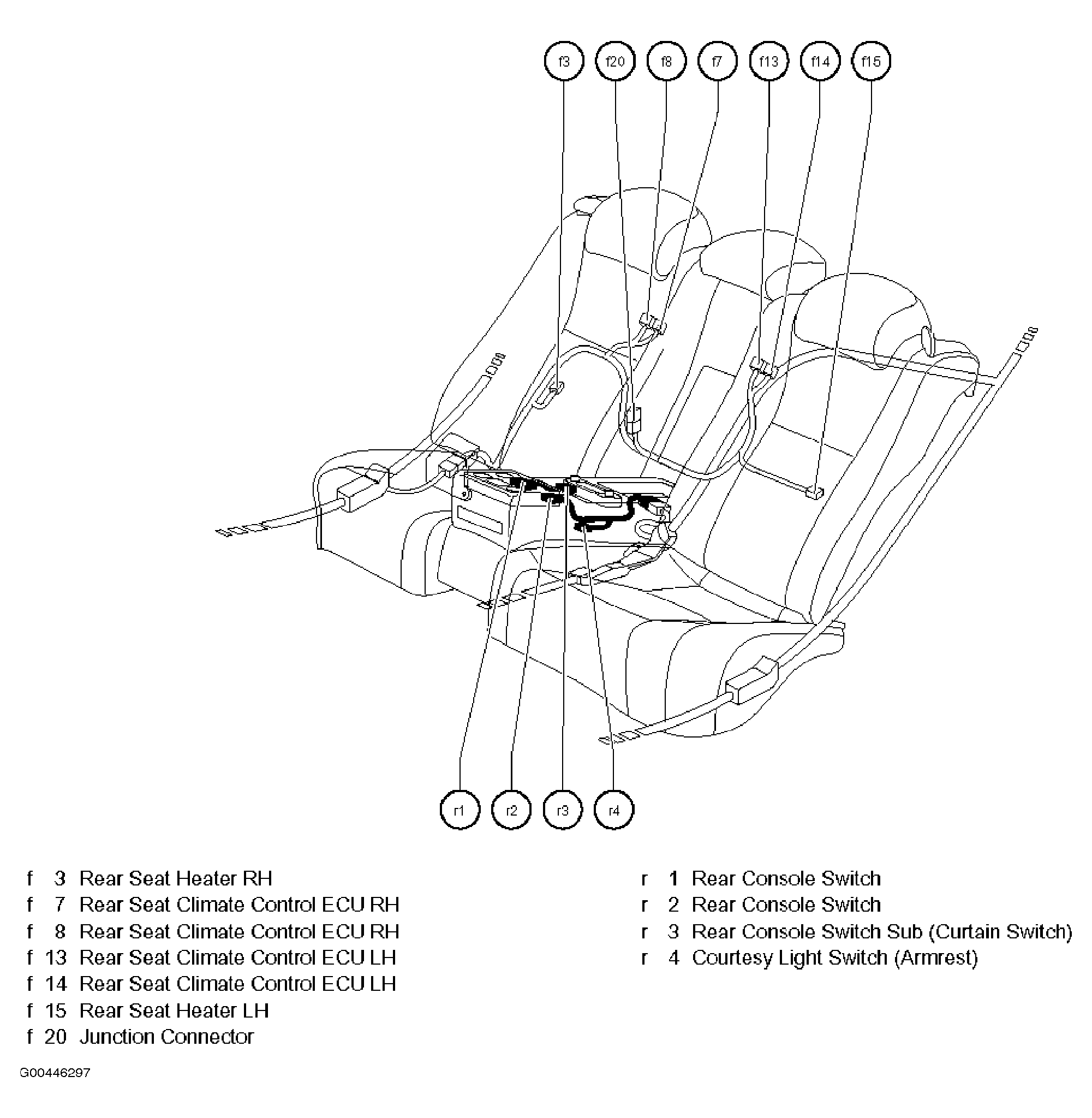

Fig 30: Rear Seats (Except Power)

G00446297

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

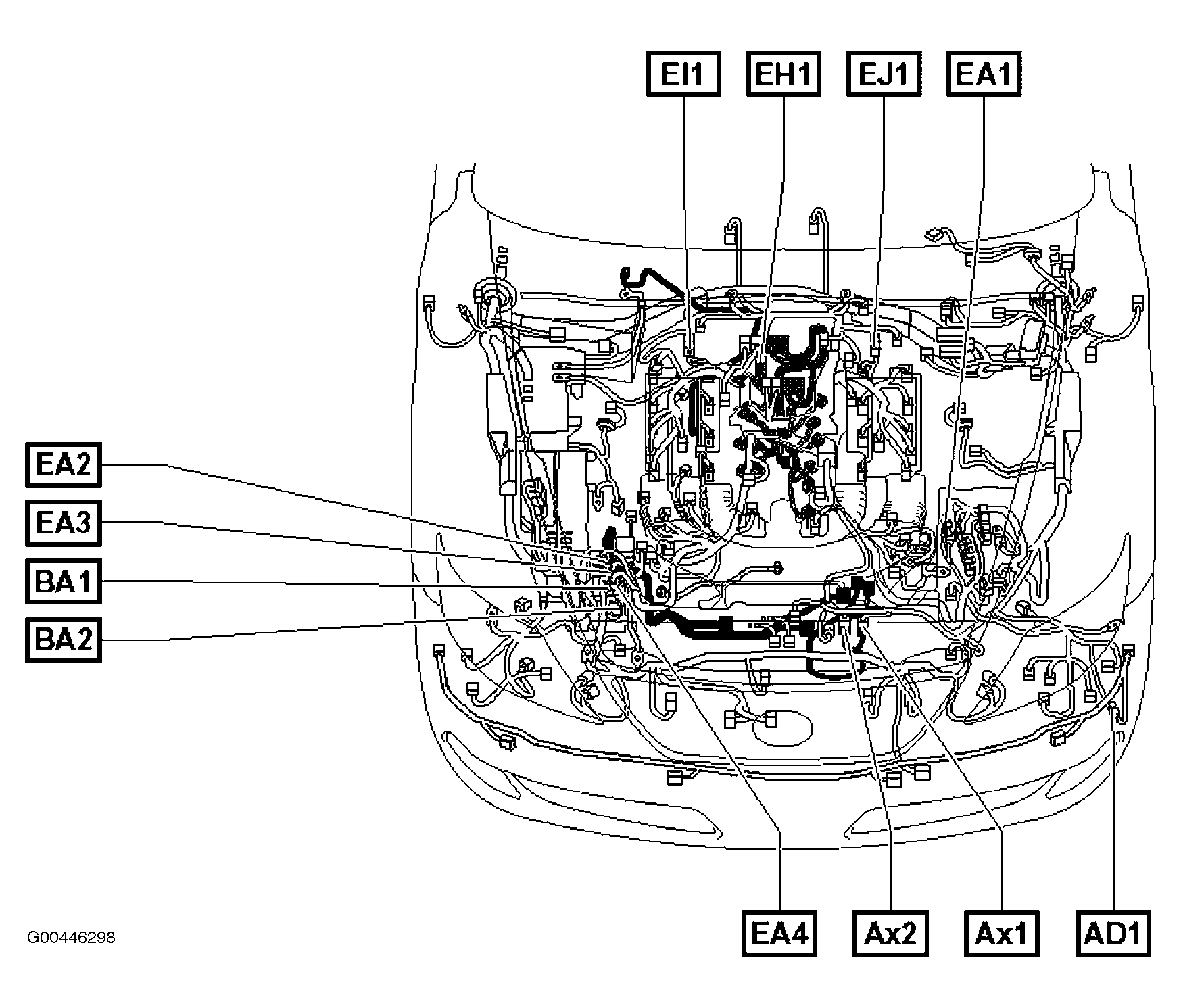

Fig 31: Engine Compartment

G00446298

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

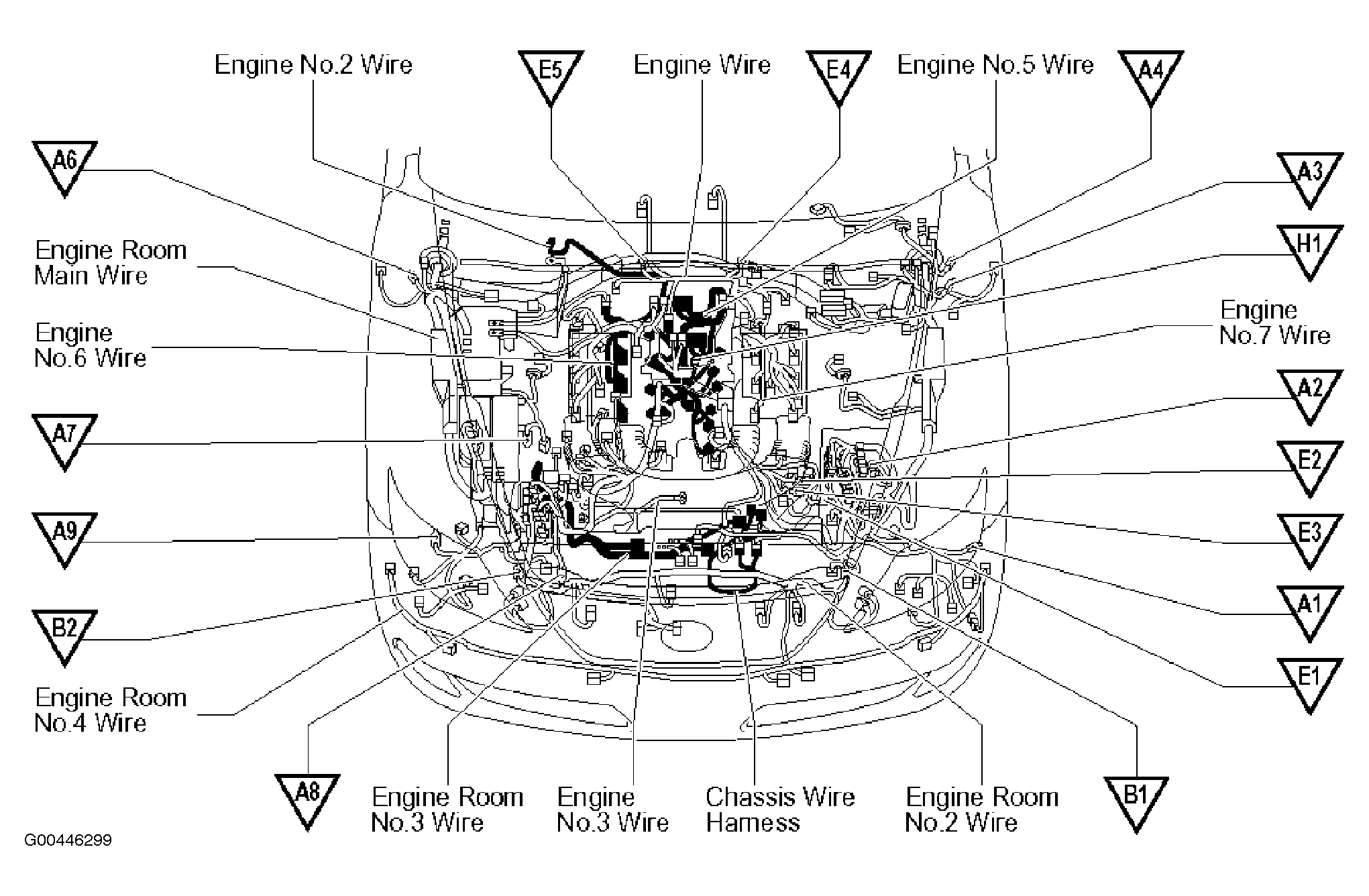

Fig 32: Engine Compartment

G00446299

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

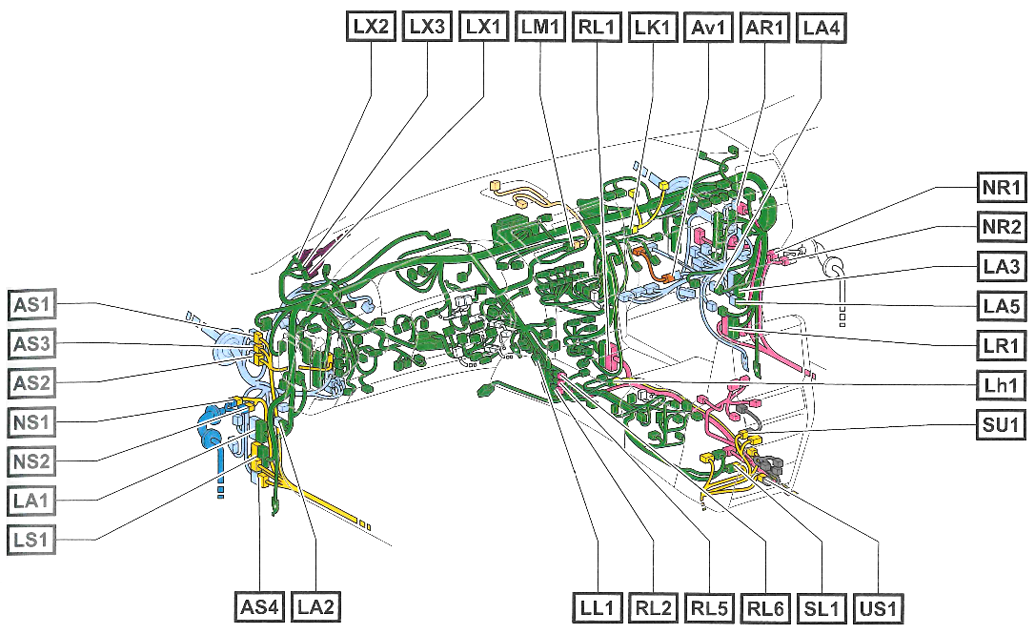

Fig 33: Dash & Center Floor Console

G00476737

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

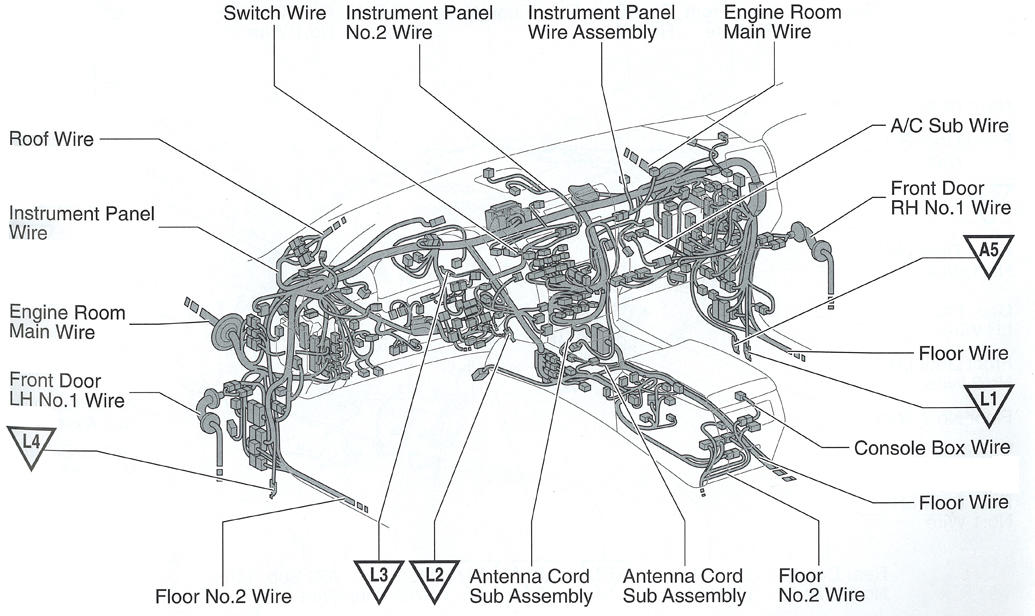

Fig 34: Dash & Center Floor Console

G00459059

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

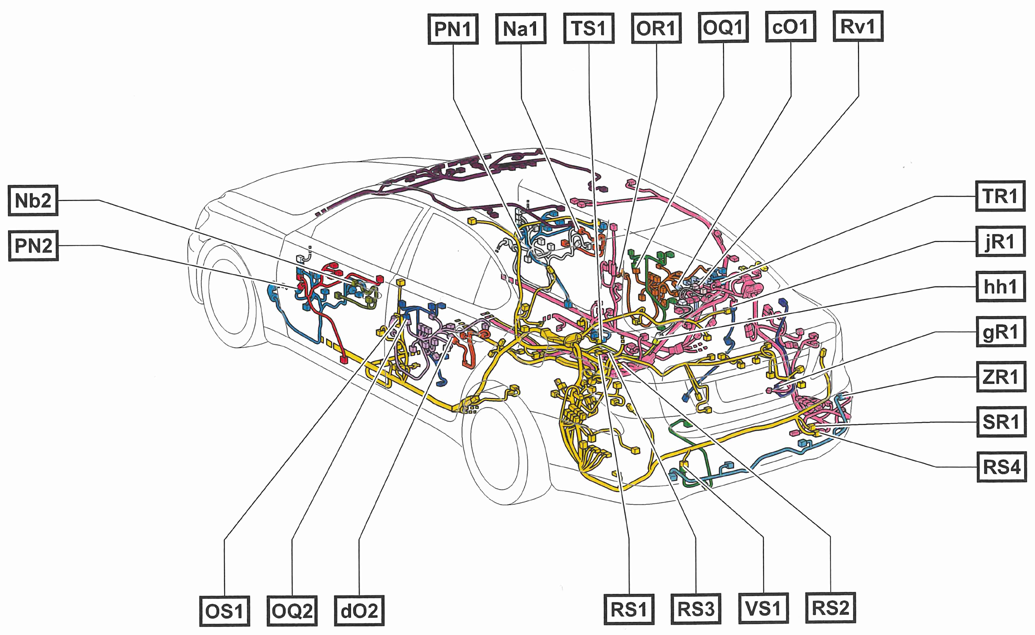

Fig 35: Vehicle Overview

G00476738

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

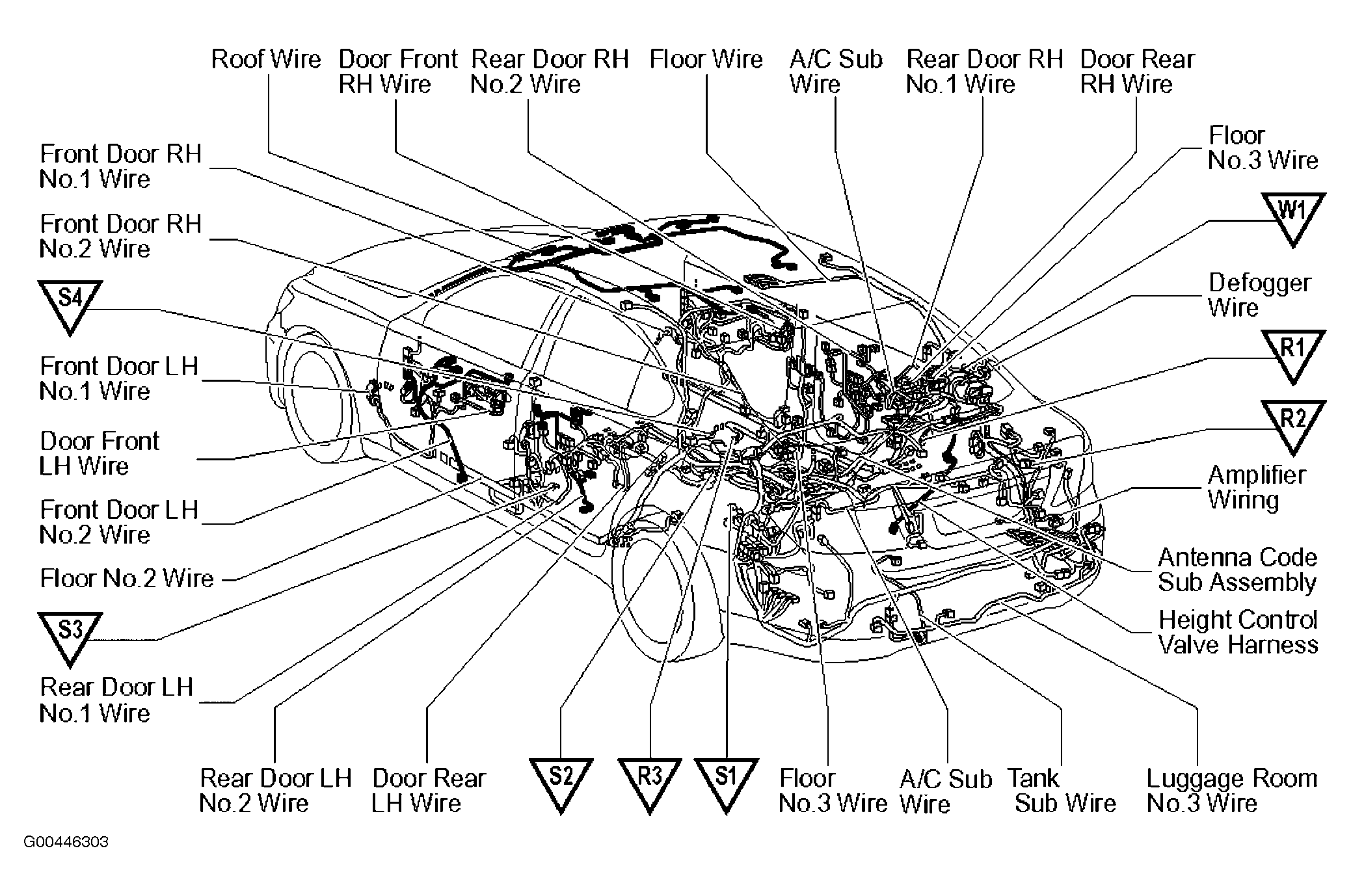

Fig 36: Vehicle Overview

G00446303

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

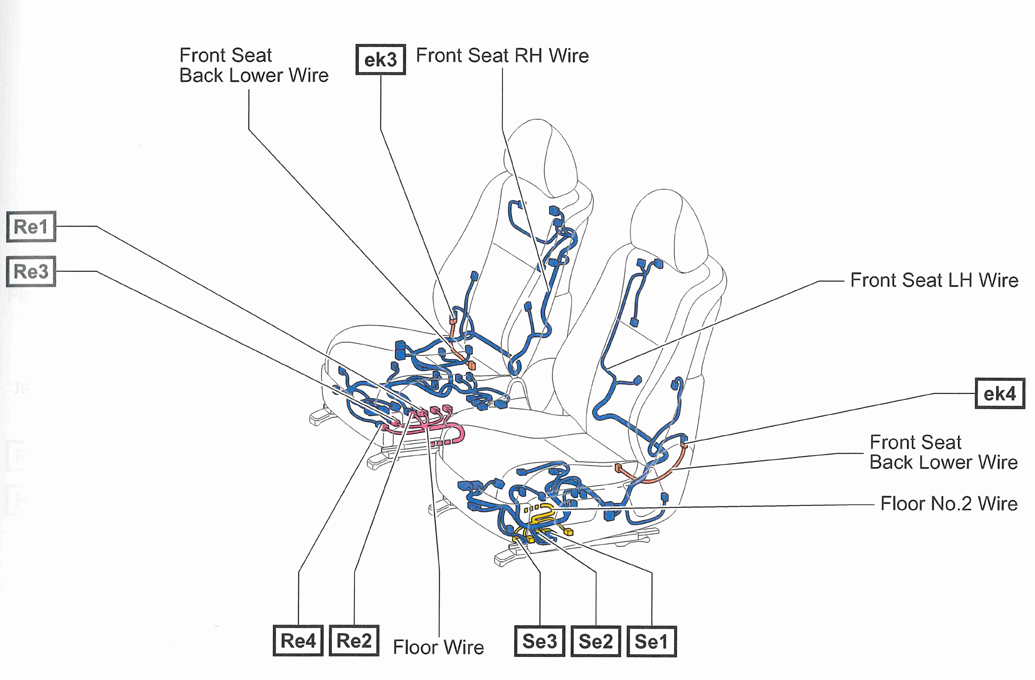

Fig 37: Front Seats

G00476739

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

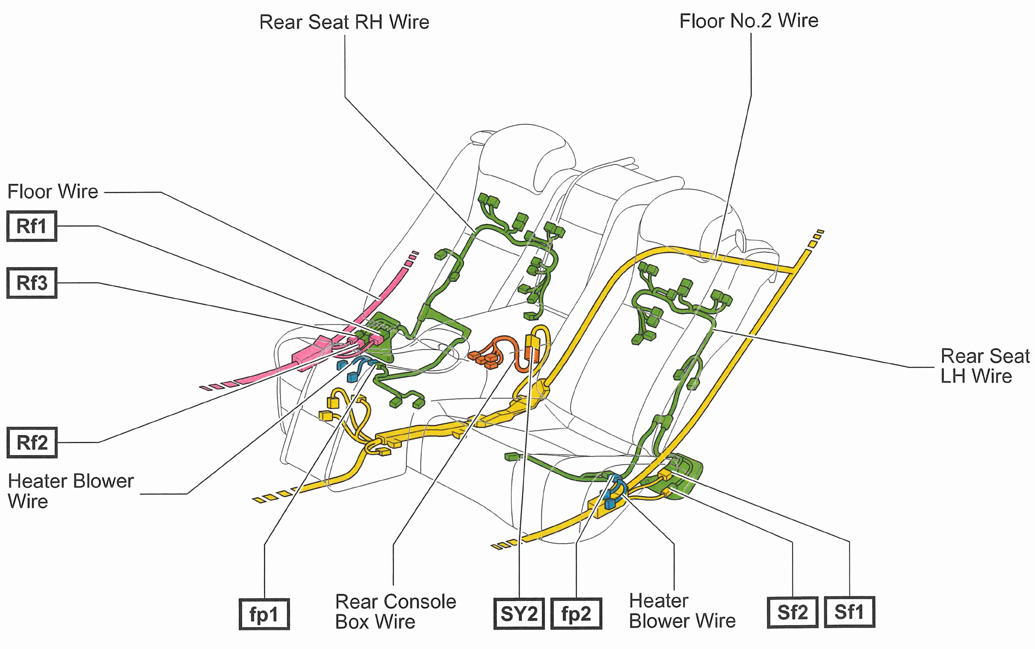

Fig 38: Rear Seats (4-Seater)

G00476740

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

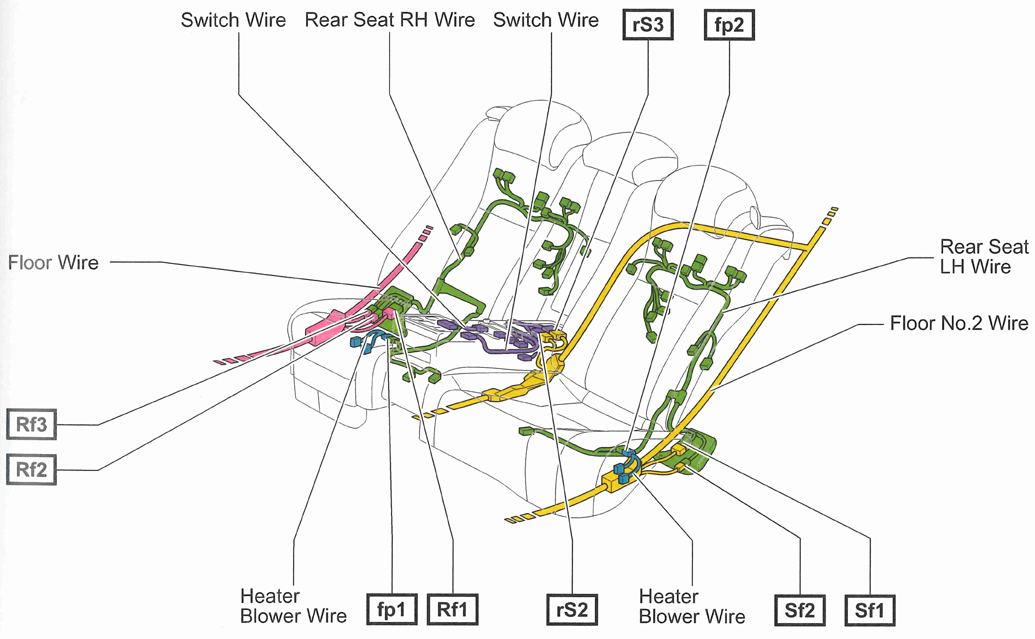

Fig 39: Power Rear Seats (5-Seater W/Power)

G00476741

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

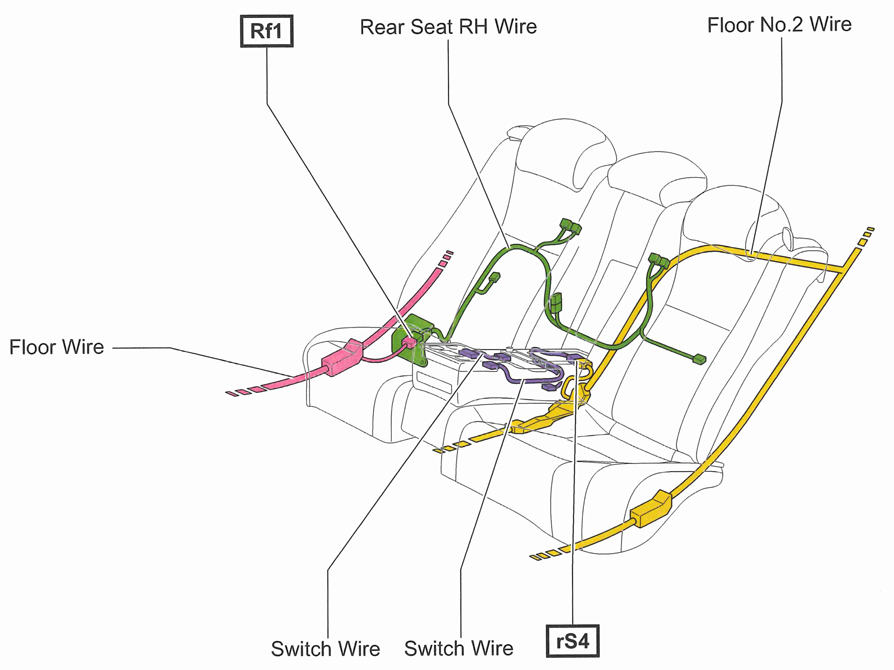

Fig 40: Rear Seats (5-Seater W/O Power)

G00476742

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

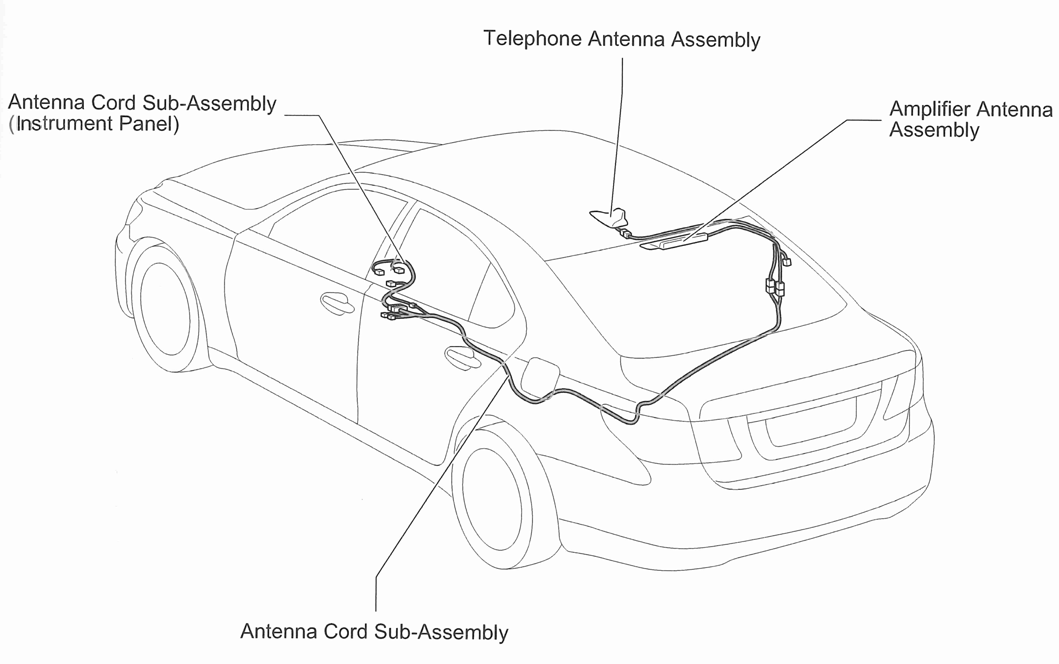

Fig 41: Vehicle Overview

G00476743

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
