Air Suspension: Notes

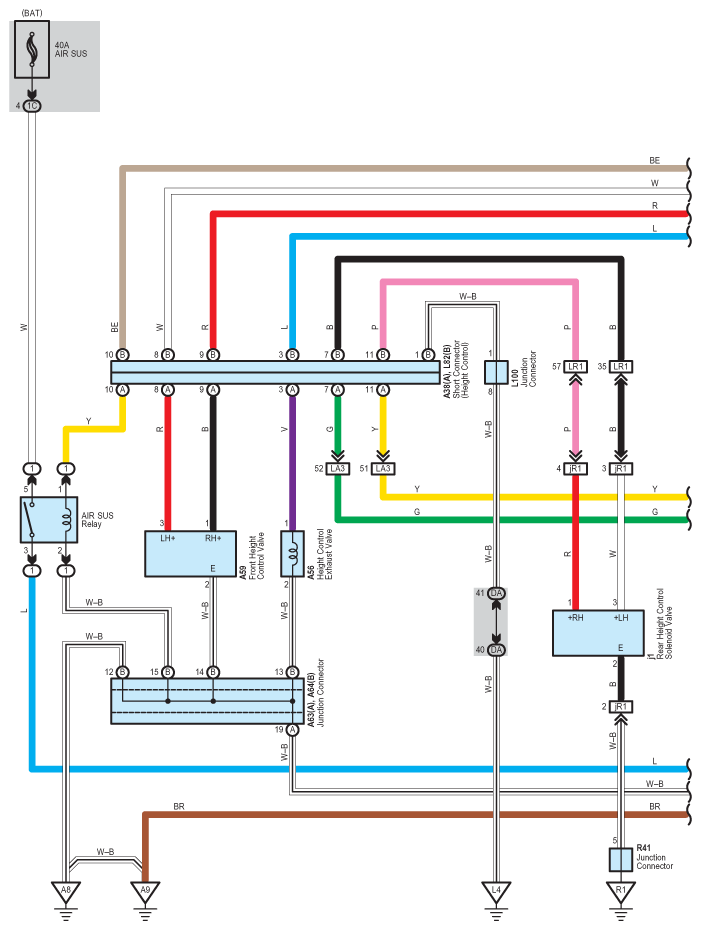

Fig 1: Air Suspension - Circuit Diagram (1 Of 9)

G07567890

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

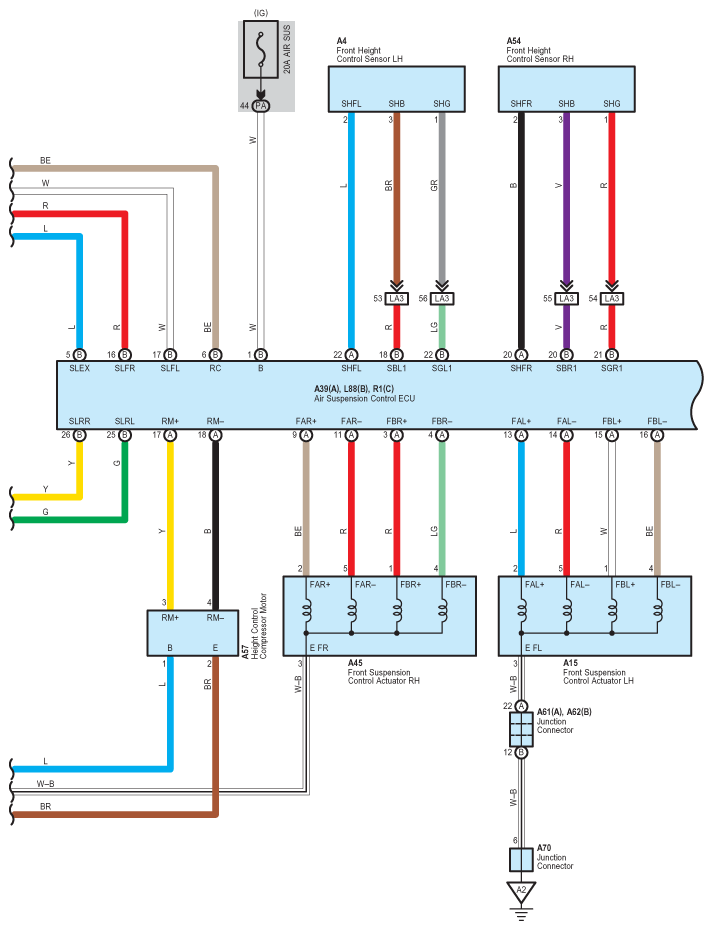

Fig 2: Air Suspension - Circuit Diagram (2 Of 9)

G07567891

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

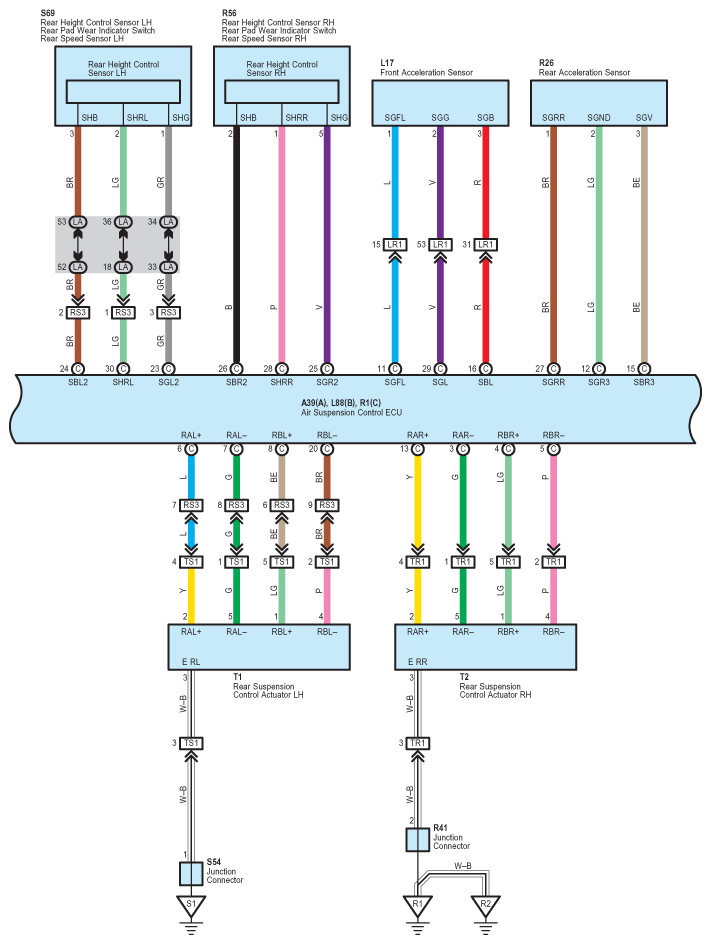

Fig 3: Air Suspension - Circuit Diagram (3 Of 9)

G07567892

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

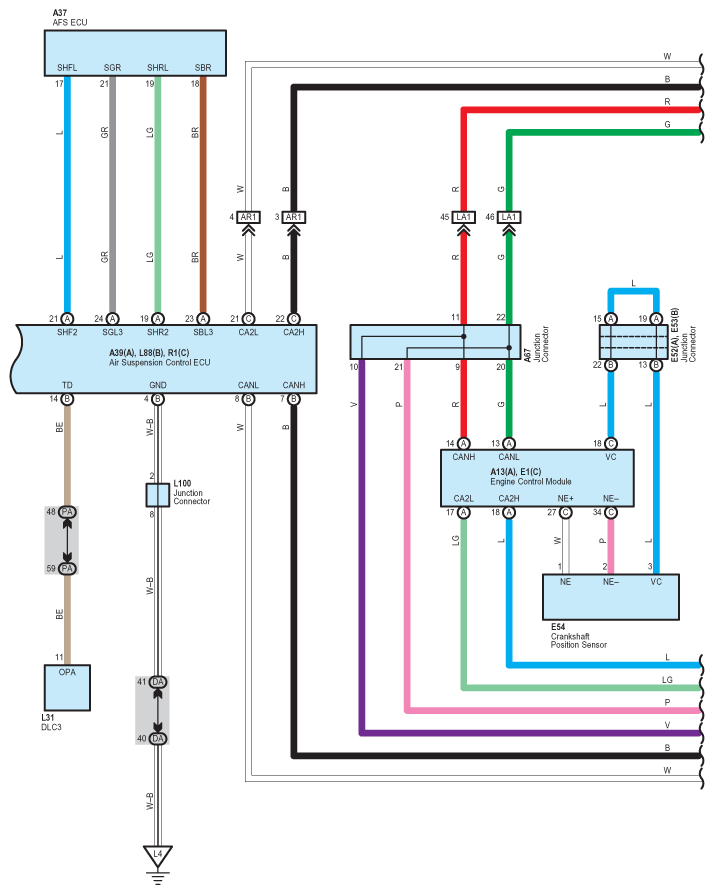

Fig 4: Air Suspension - Circuit Diagram (4 Of 9)

G07567893

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

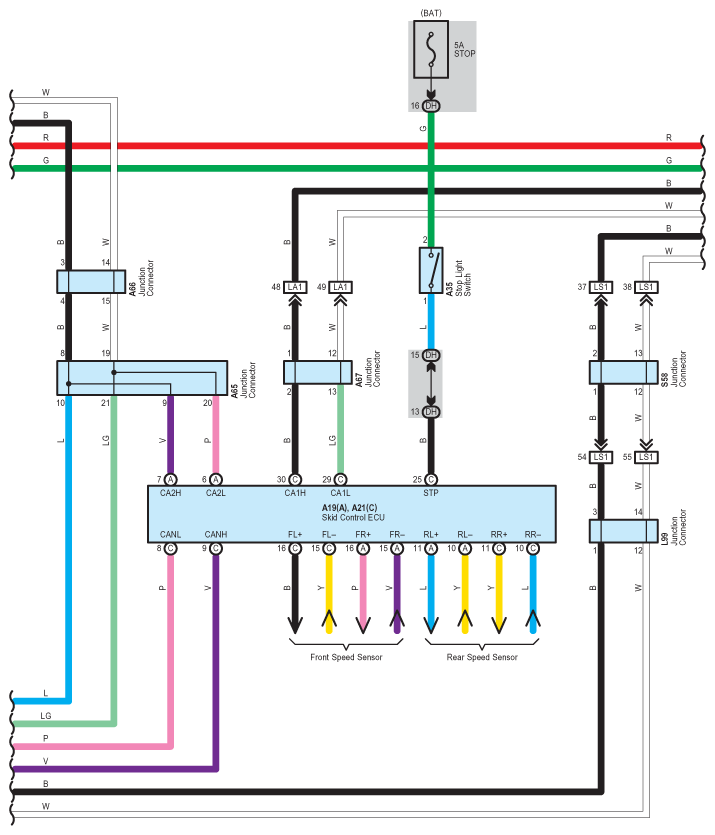

Fig 5: Air Suspension - Circuit Diagram (5 Of 9)

G07567894

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

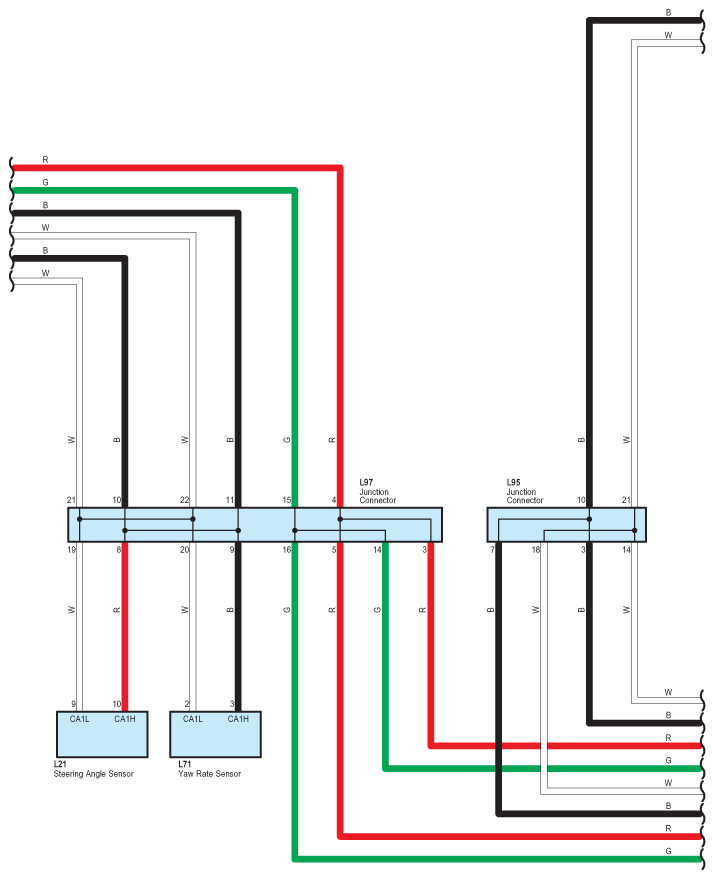

Fig 6: Air Suspension - Circuit Diagram (6 Of 9)

G07567895

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

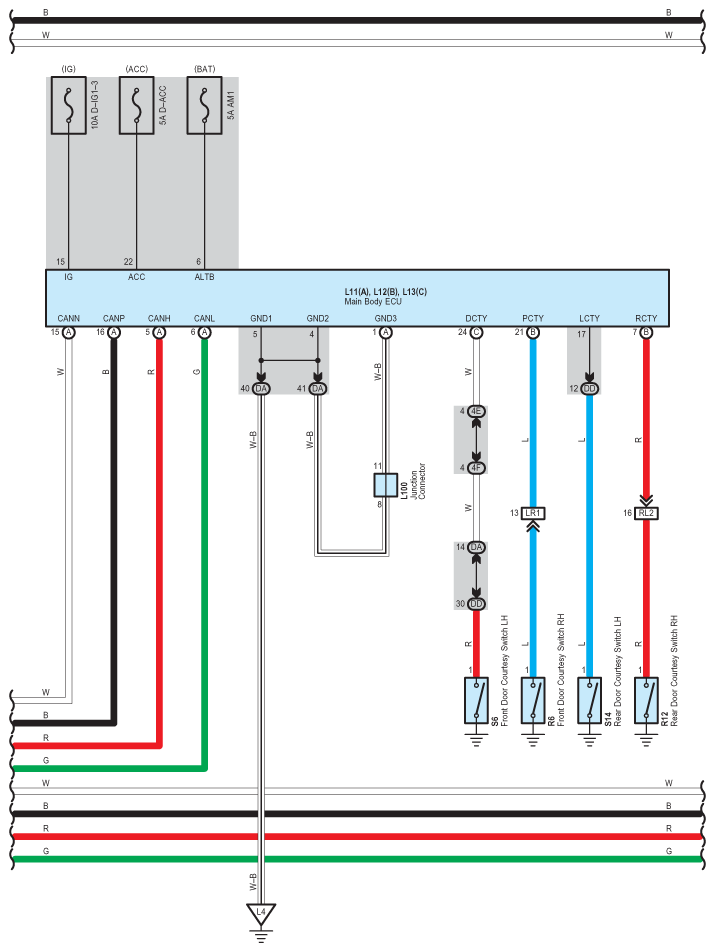

Fig 7: Air Suspension - Circuit Diagram (7 Of 9)

G07567896

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

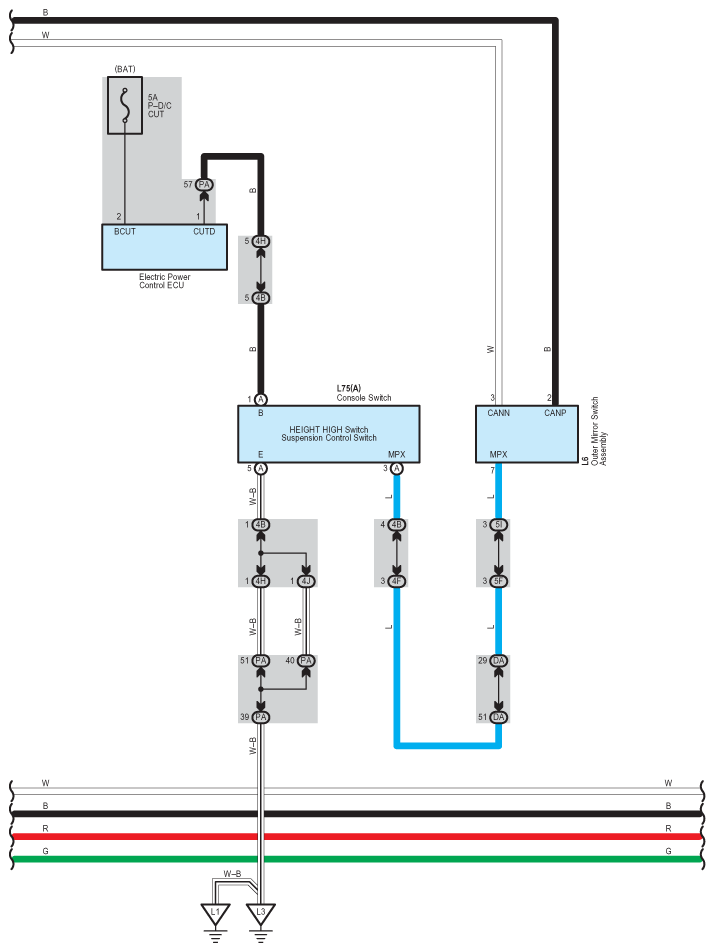

Fig 8: Air Suspension - Circuit Diagram (8 Of 9)

G07567897

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

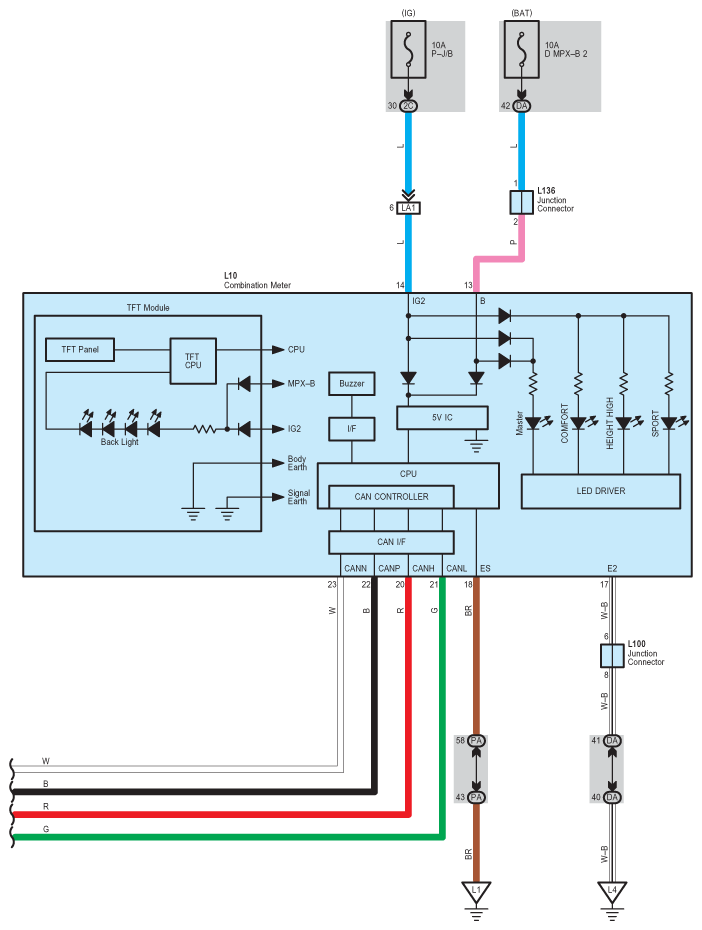

Fig 9: Air Suspension - Circuit Diagram (9 Of 9)

G07567898

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
