OEM System Circuits: Illumination: Notes

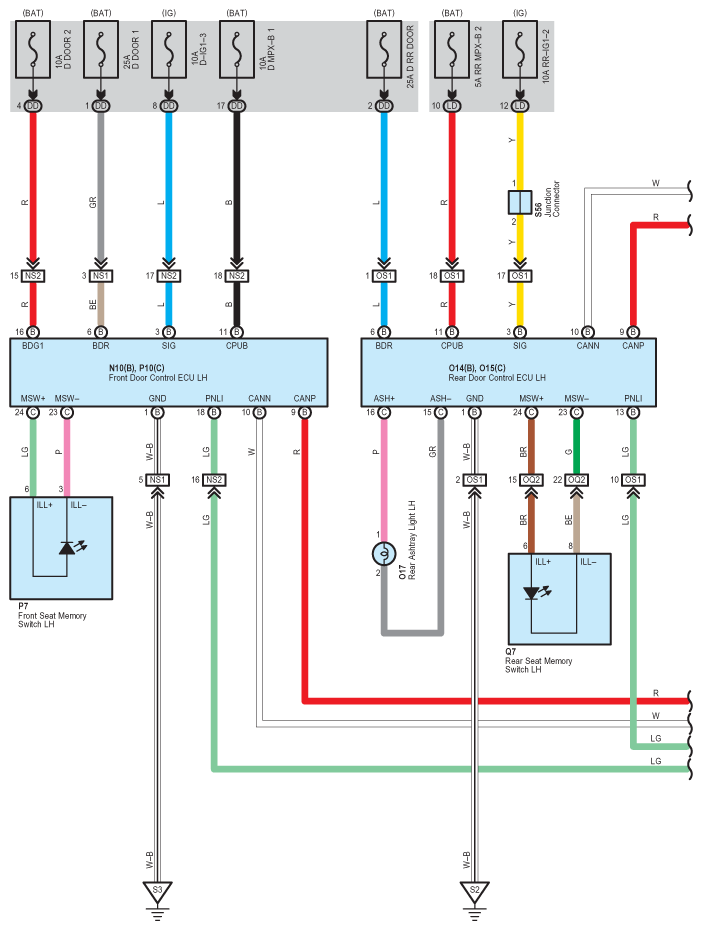

Fig 1: Illumination - Circuit Diagram (1 Of 16)

G07567768

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

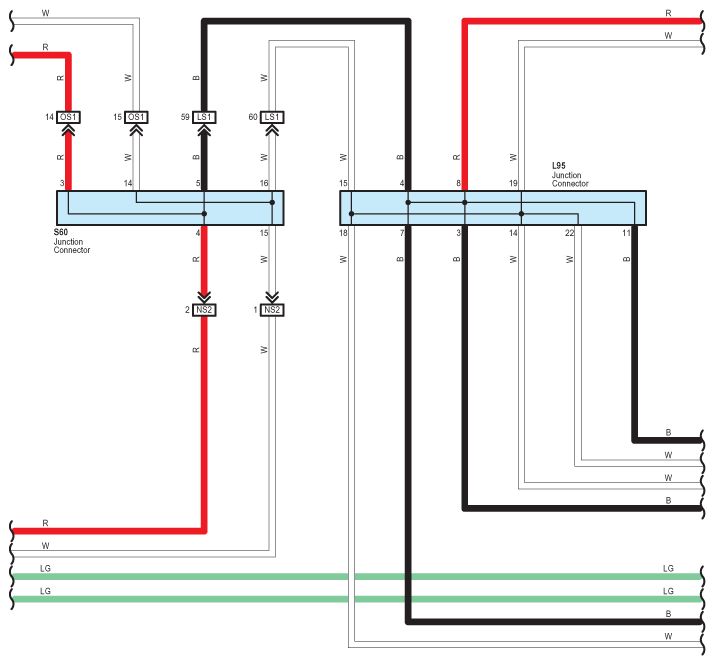

Fig 2: Illumination - Circuit Diagram (2 Of 16)

G07567769

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

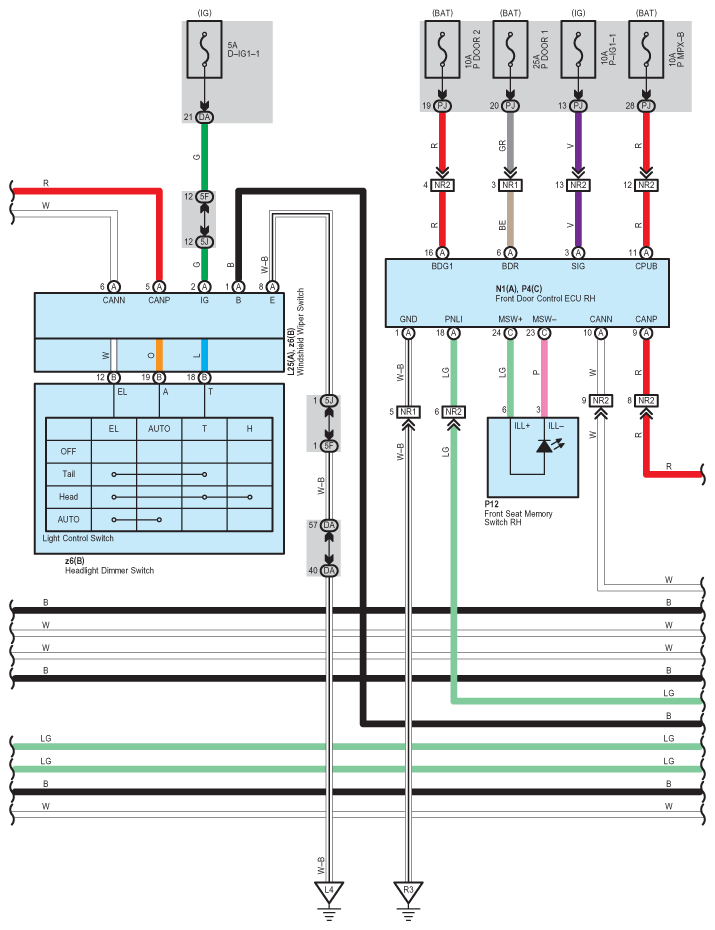

Fig 3: Illumination - Circuit Diagram (3 Of 16)

G07567770

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

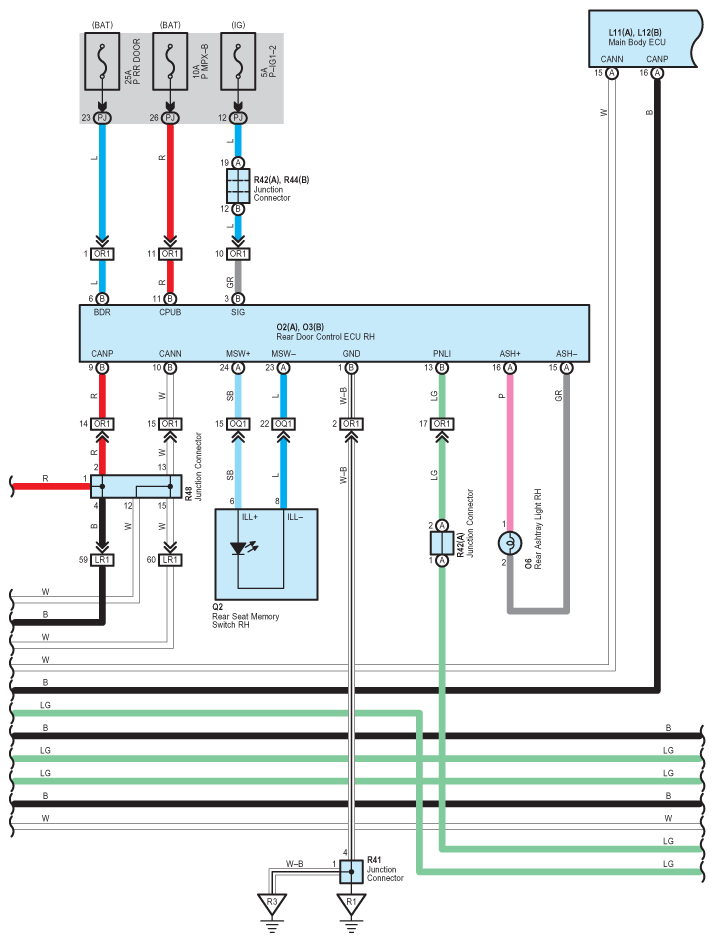

Fig 4: Illumination - Circuit Diagram (4 Of 16)

G07567771

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

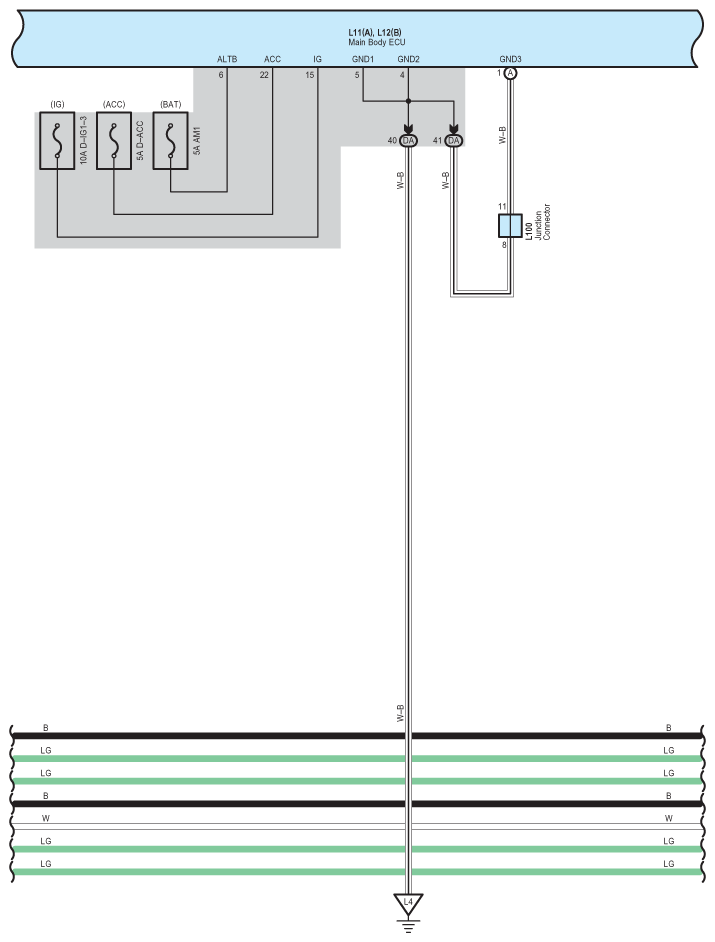

Fig 5: Illumination - Circuit Diagram (5 Of 16)

G07567772

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

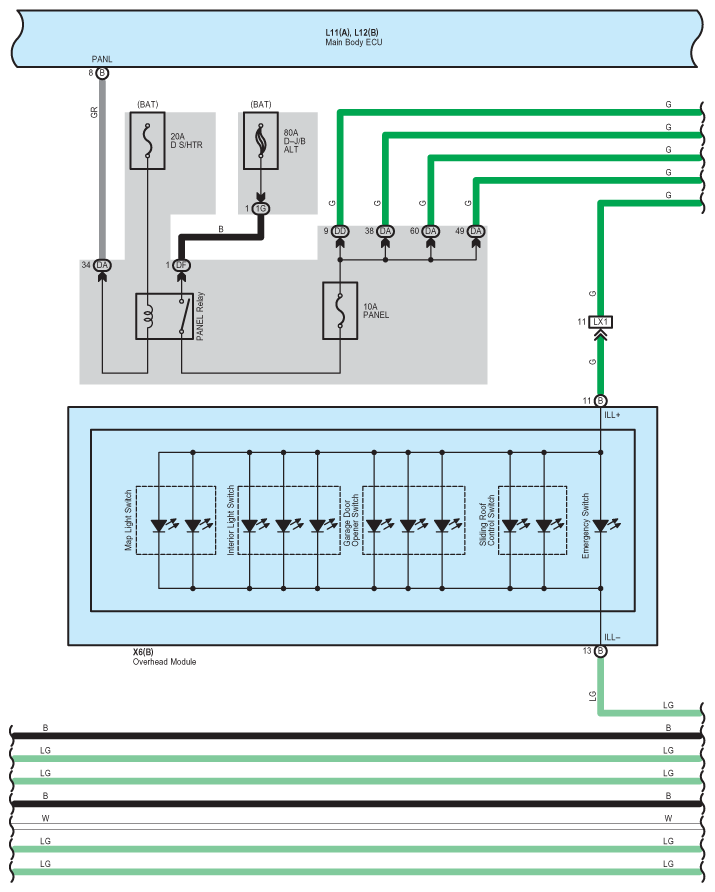

Fig 6: Illumination - Circuit Diagram (6 Of 16)

G07567773

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

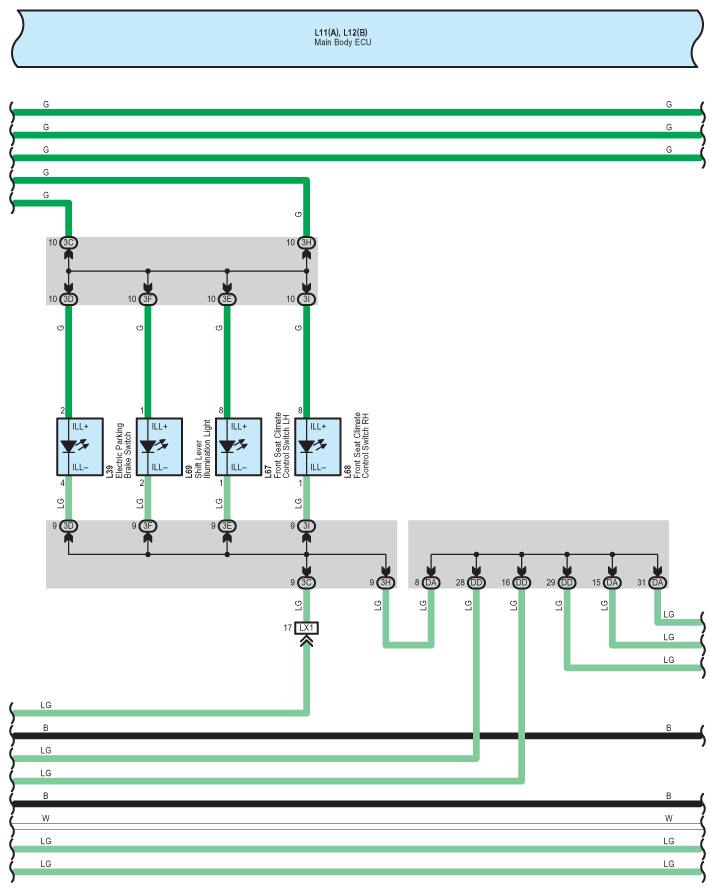

Fig 7: Illumination - Circuit Diagram (7 Of 16)

G07567774

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

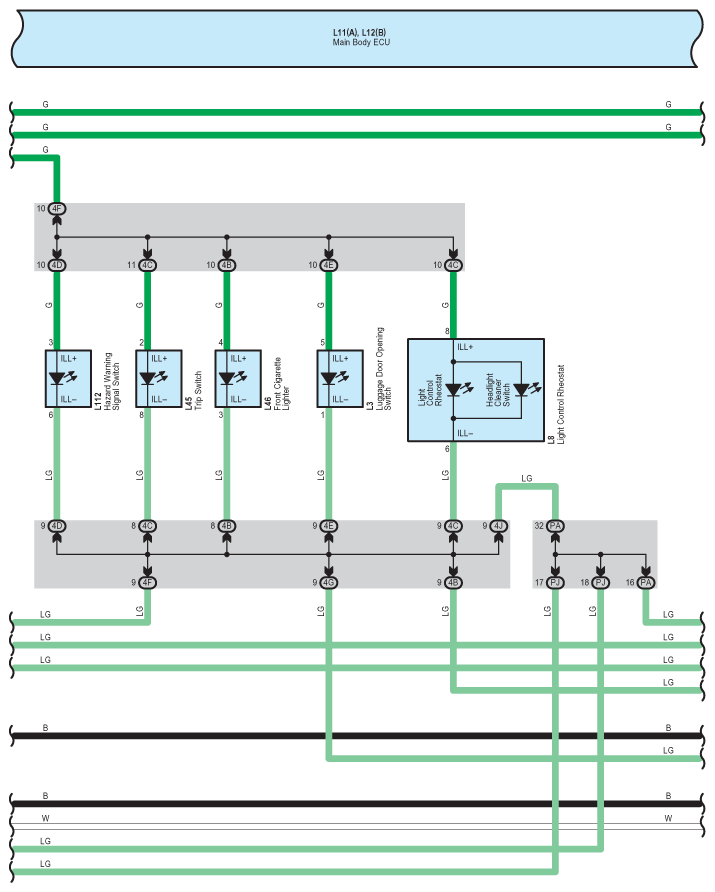

Fig 8: Illumination - Circuit Diagram (8 Of 16)

G07567775

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

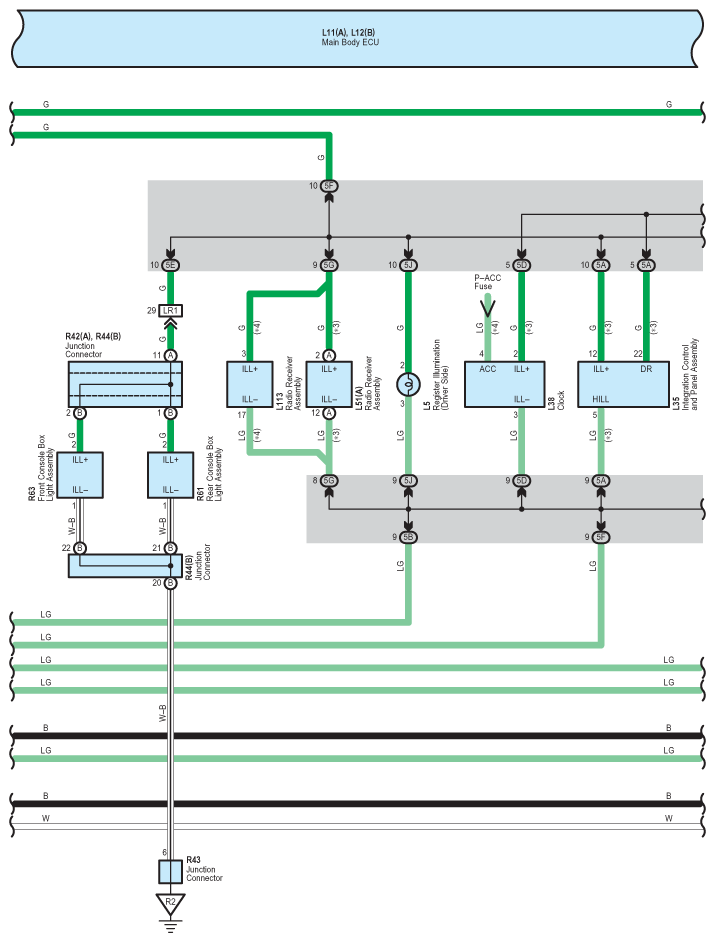

Fig 9: Illumination - Circuit Diagram (9 Of 16)

G07567776

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

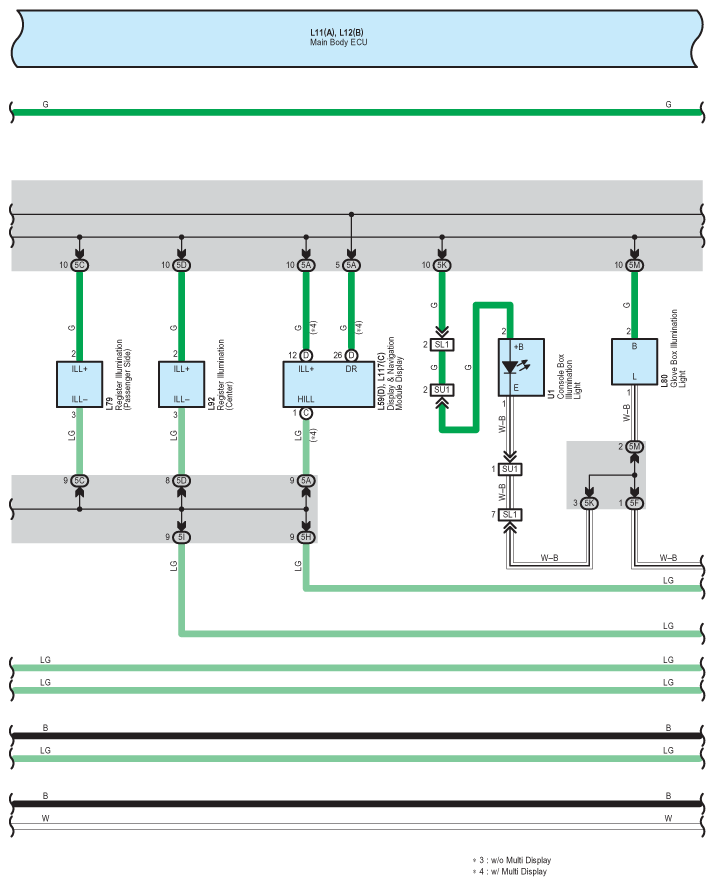

Fig 10: Illumination - Circuit Diagram (10 Of 16)

G07567777

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

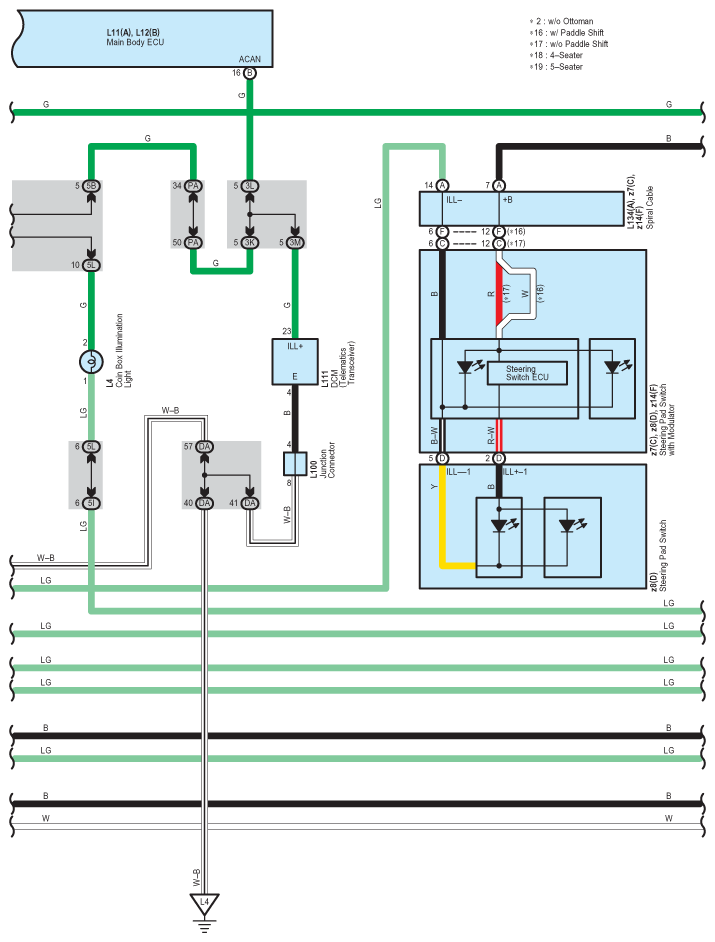

Fig 11: Illumination - Circuit Diagram (11 Of 16)

G07567778

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

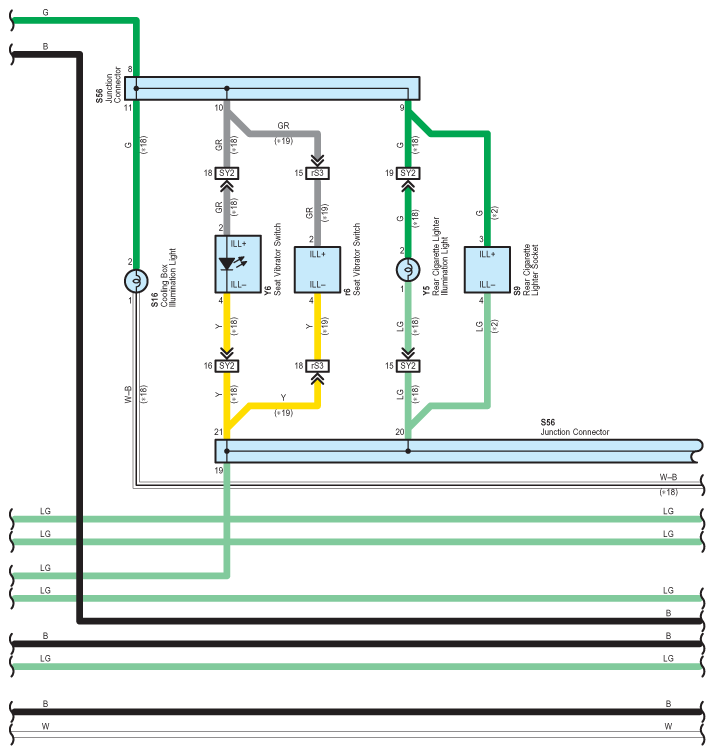

Fig 12: Illumination - Circuit Diagram (12 Of 16)

G07567779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

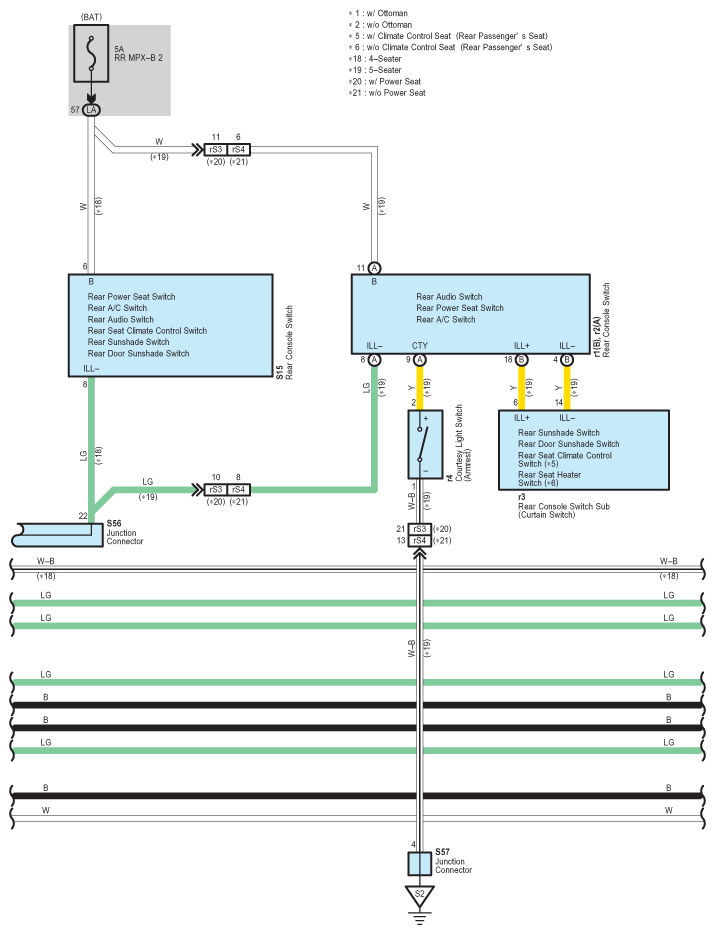

Fig 13: Illumination - Circuit Diagram (13 Of 16)

G07567780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

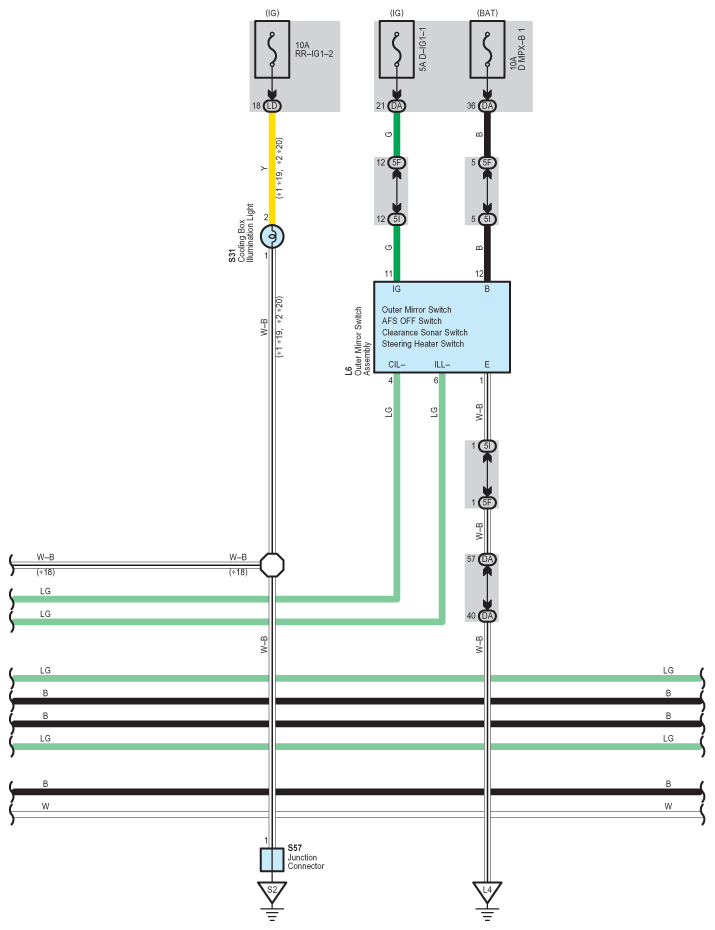

Fig 14: Illumination - Circuit Diagram (14 Of 16)

G07567781

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

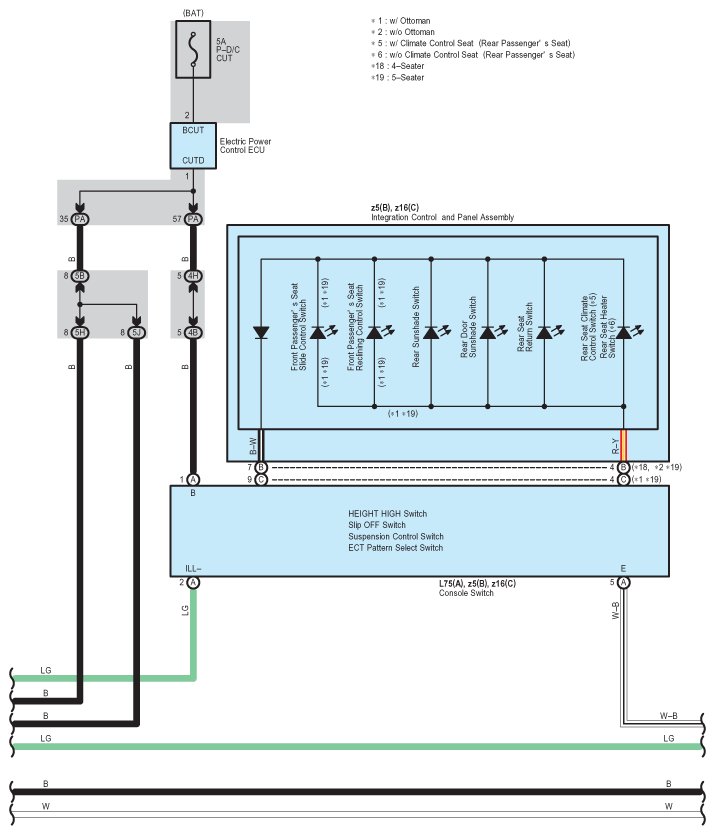

Fig 15: Illumination - Circuit Diagram (15 Of 16)

G07567782

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

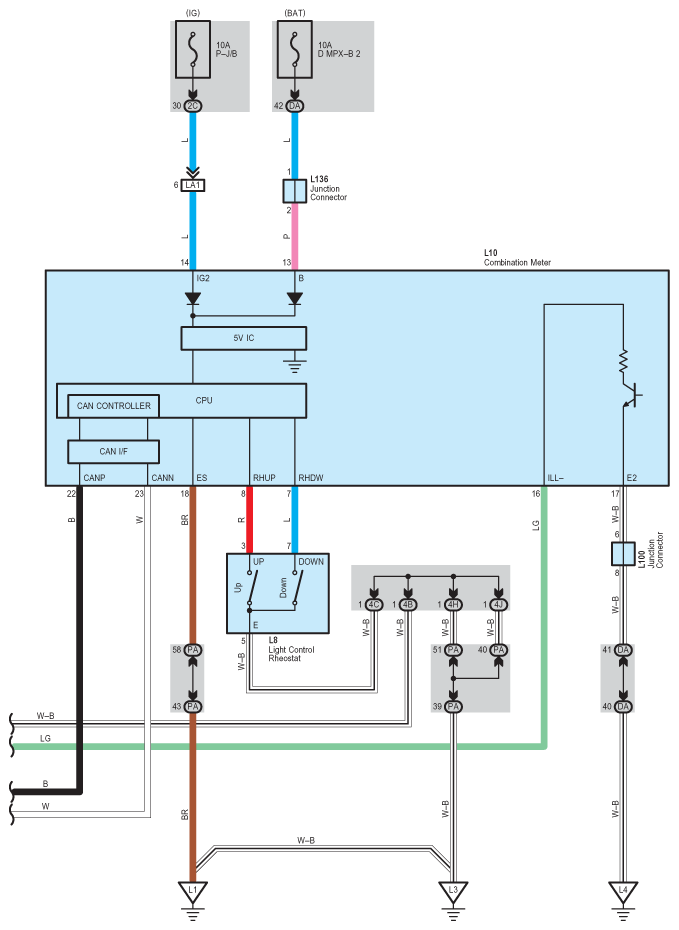

Fig 16: Illumination - Circuit Diagram (16 Of 16)

G07567783

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
