Smart Access System with Push-Button Start: Notes

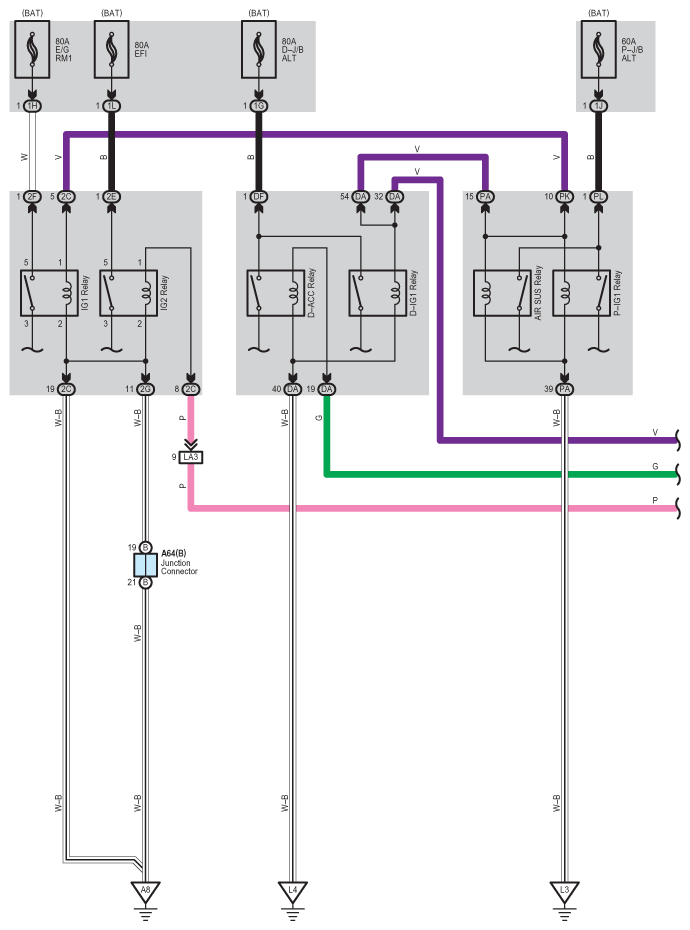

Fig 1: Smart Access System With Push-Button Start - Circuit Diagram (1 Of 25)

G07567674

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

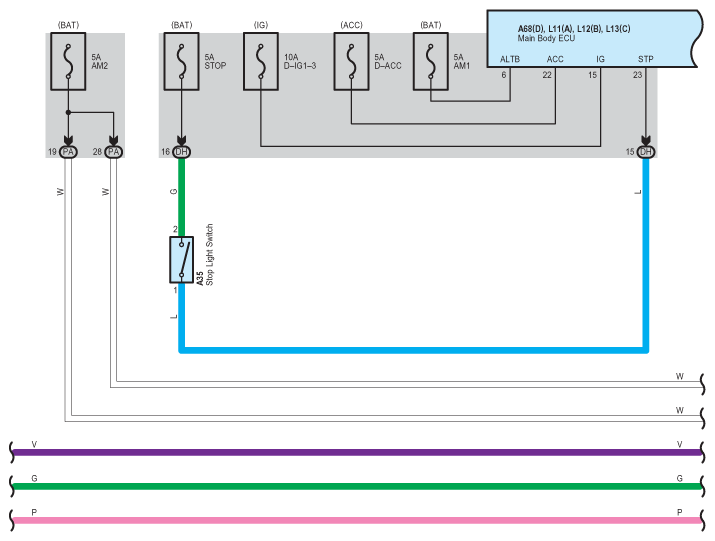

Fig 2: Smart Access System With Push-Button Start - Circuit Diagram (2 Of 25)

G07567675

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

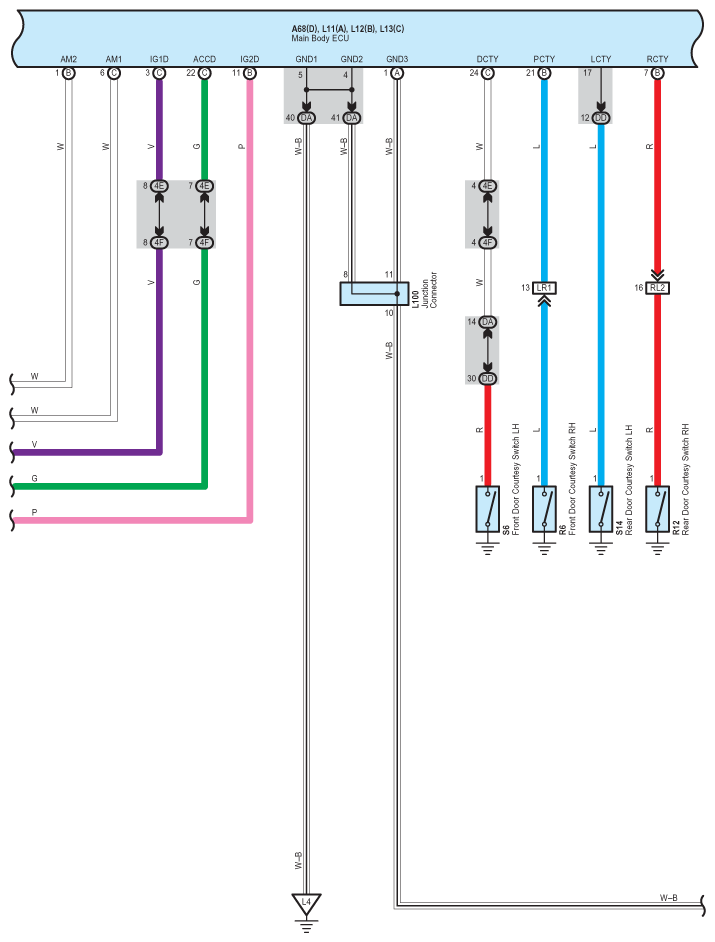

Fig 3: Smart Access System With Push-Button Start - Circuit Diagram (3 Of 25)

G07567676

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

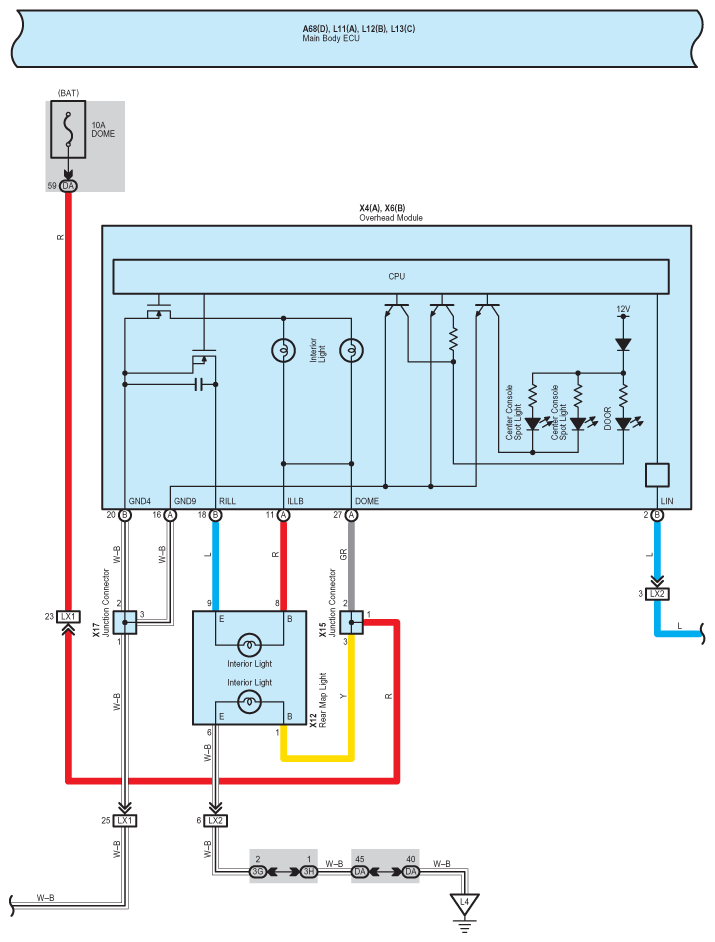

Fig 4: Smart Access System With Push-Button Start - Circuit Diagram (4 Of 25)

G07567677

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

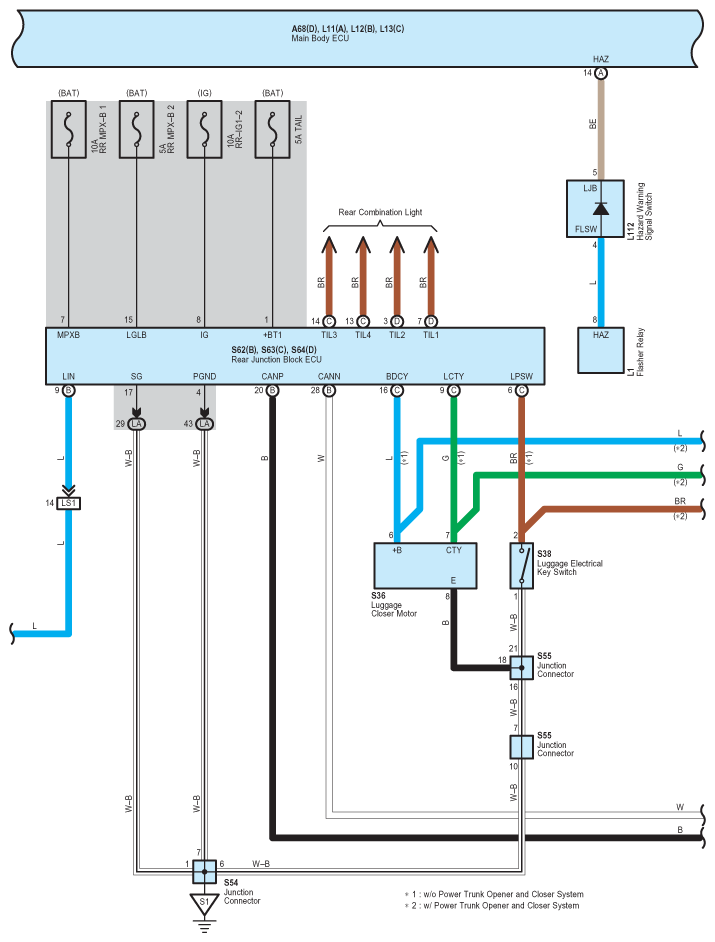

Fig 5: Smart Access System With Push-Button Start - Circuit Diagram (5 Of 25)

G07567678

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

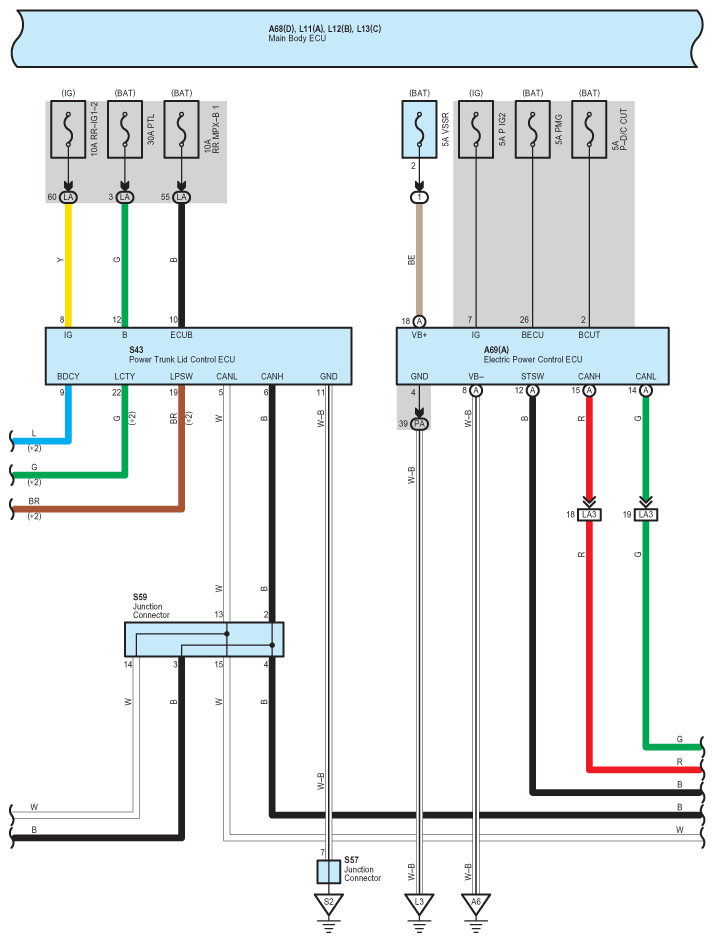

Fig 6: Smart Access System With Push-Button Start - Circuit Diagram (6 Of 25)

G07567679

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

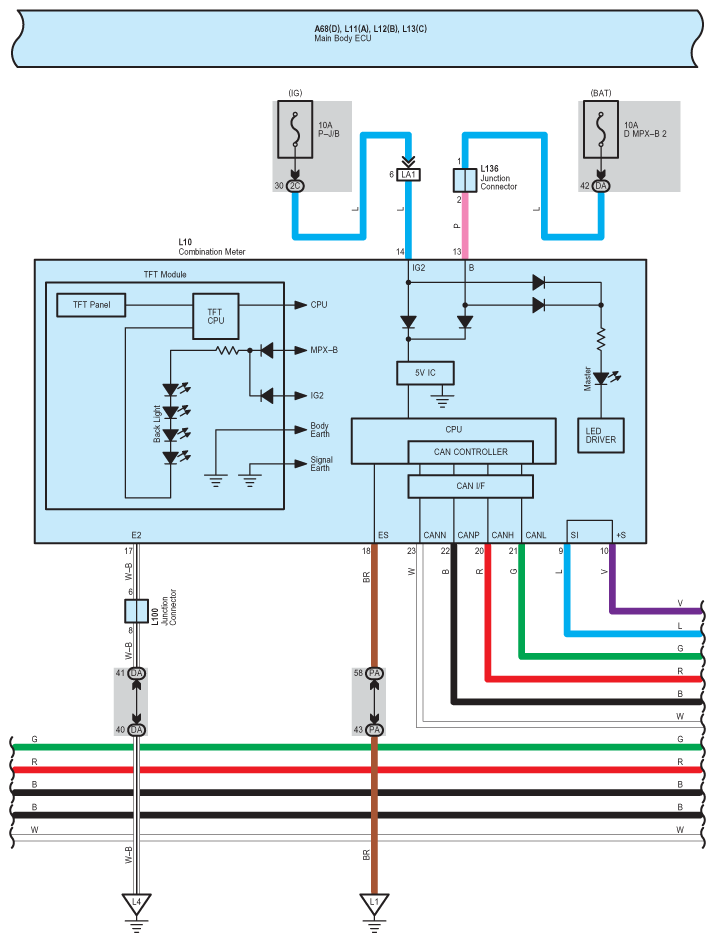

Fig 7: Smart Access System With Push-Button Start - Circuit Diagram (7 Of 25)

G07567680

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

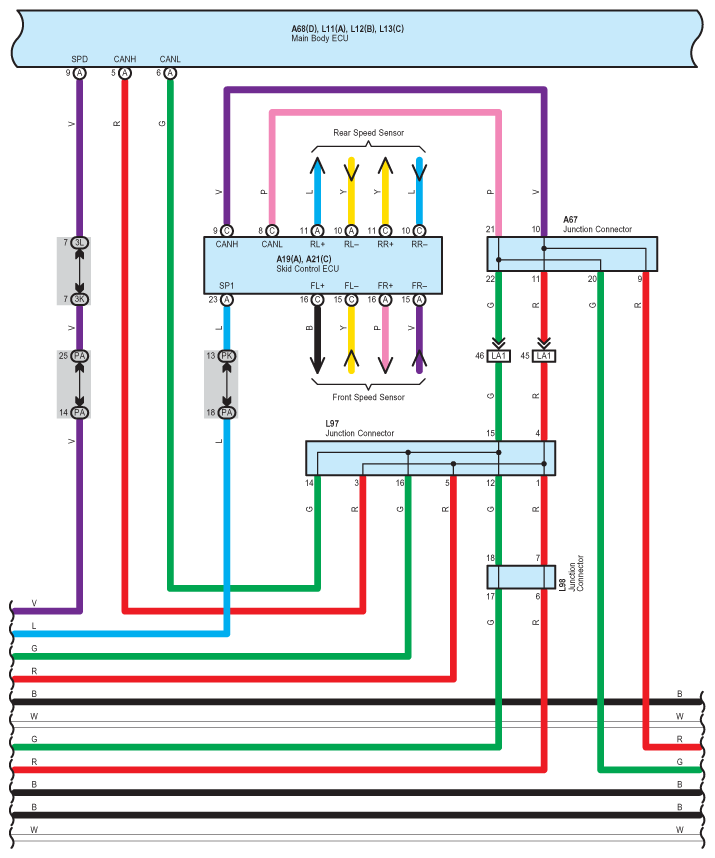

Fig 8: Smart Access System With Push-Button Start - Circuit Diagram (8 Of 25)

G07567681

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

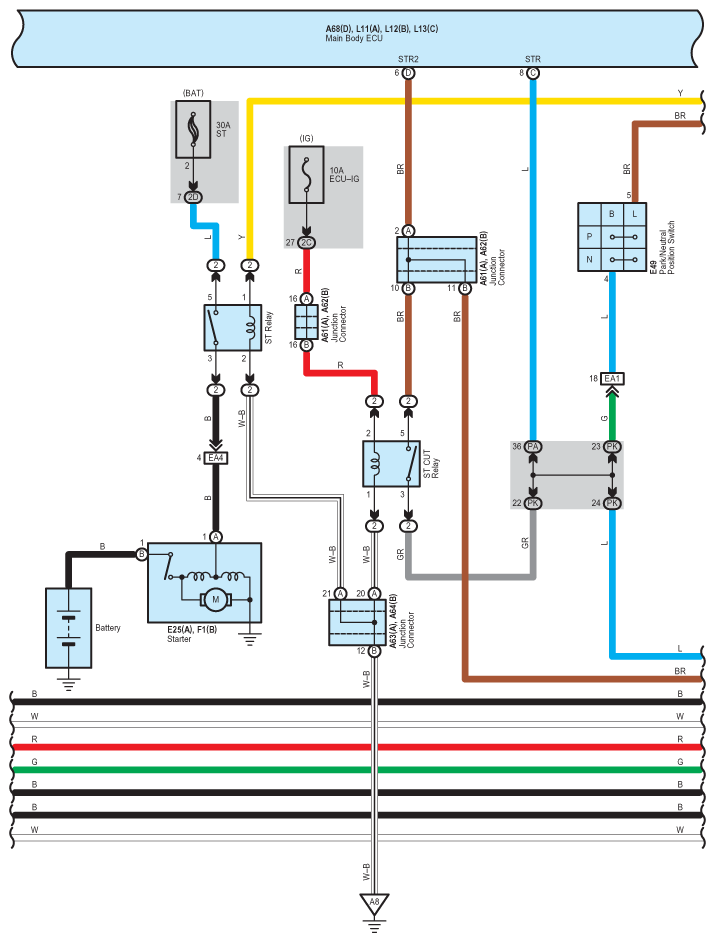

Fig 9: Smart Access System With Push-Button Start - Circuit Diagram (9 Of 25)

G07567682

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

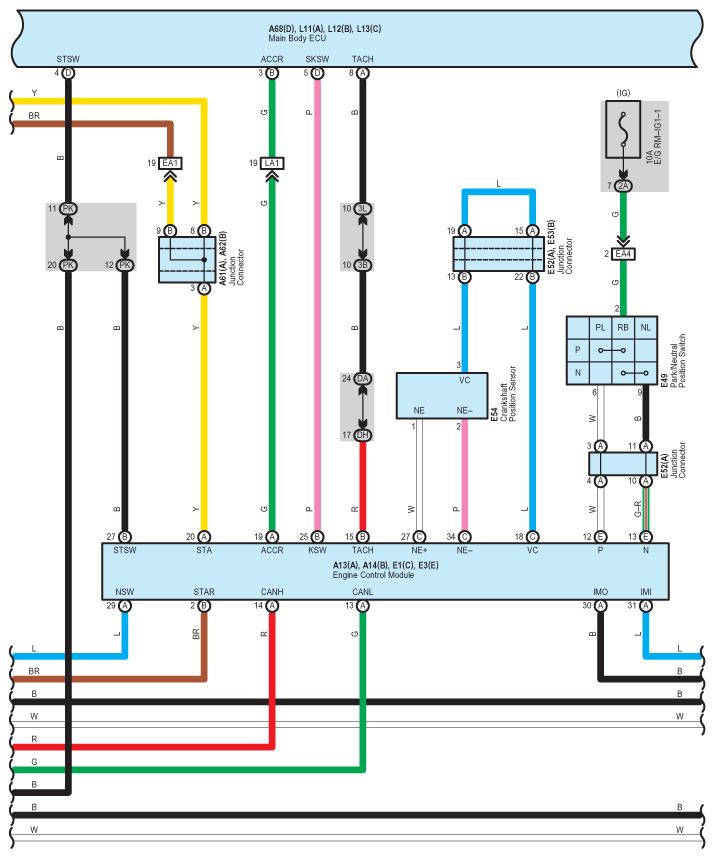

Fig 10: Smart Access System With Push-Button Start - Circuit Diagram (10 Of 25)

G07567683

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

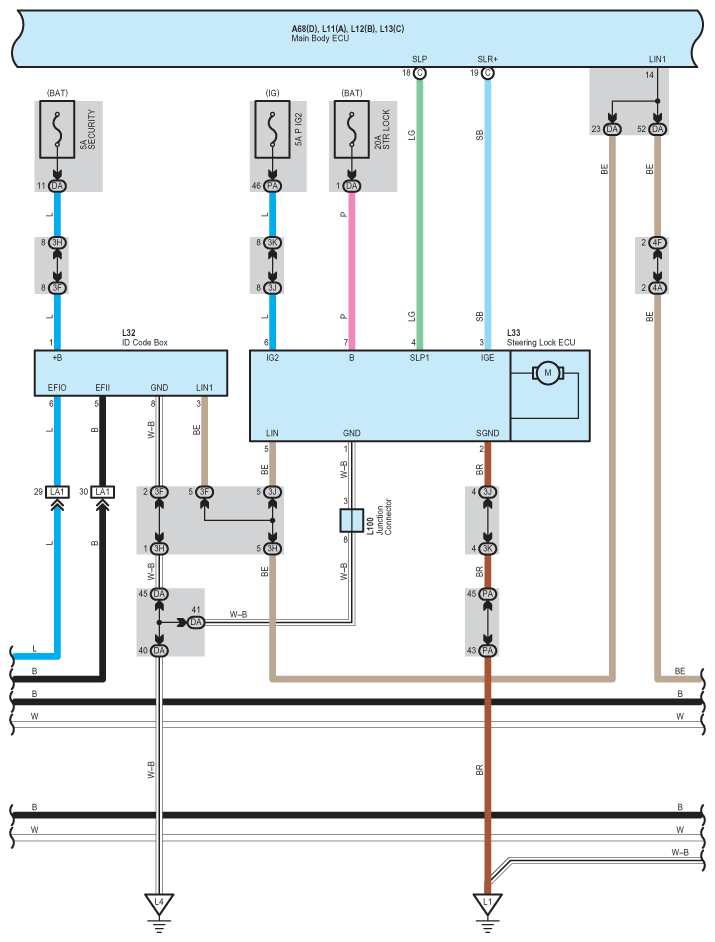

Fig 11: Smart Access System With Push-Button Start - Circuit Diagram (11 Of 25)

G07567684

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

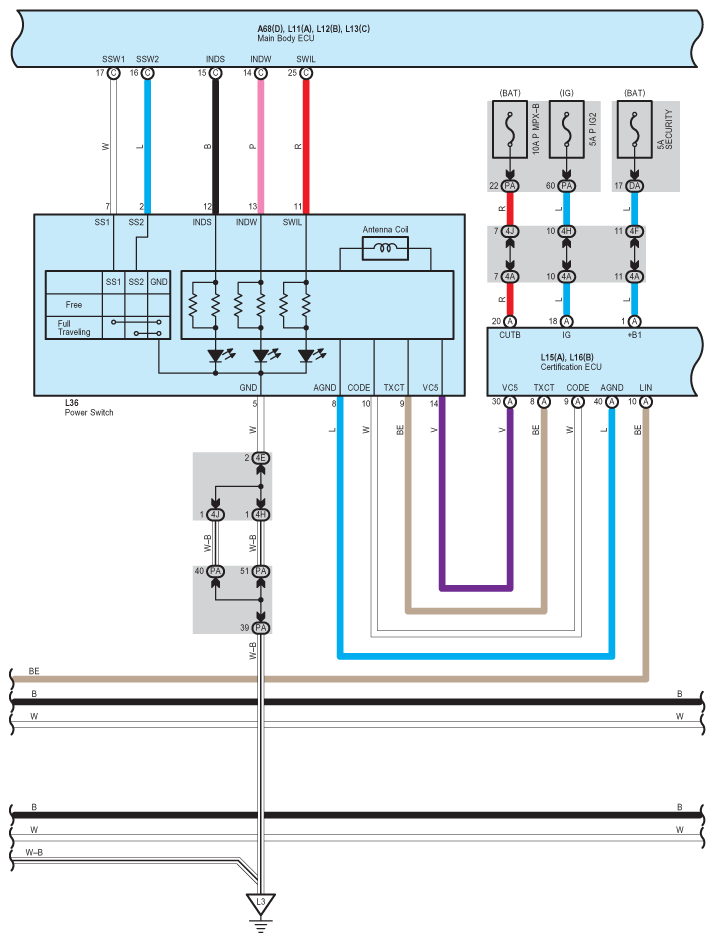

Fig 12: Smart Access System With Push-Button Start - Circuit Diagram (12 Of 25)

G07567685

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

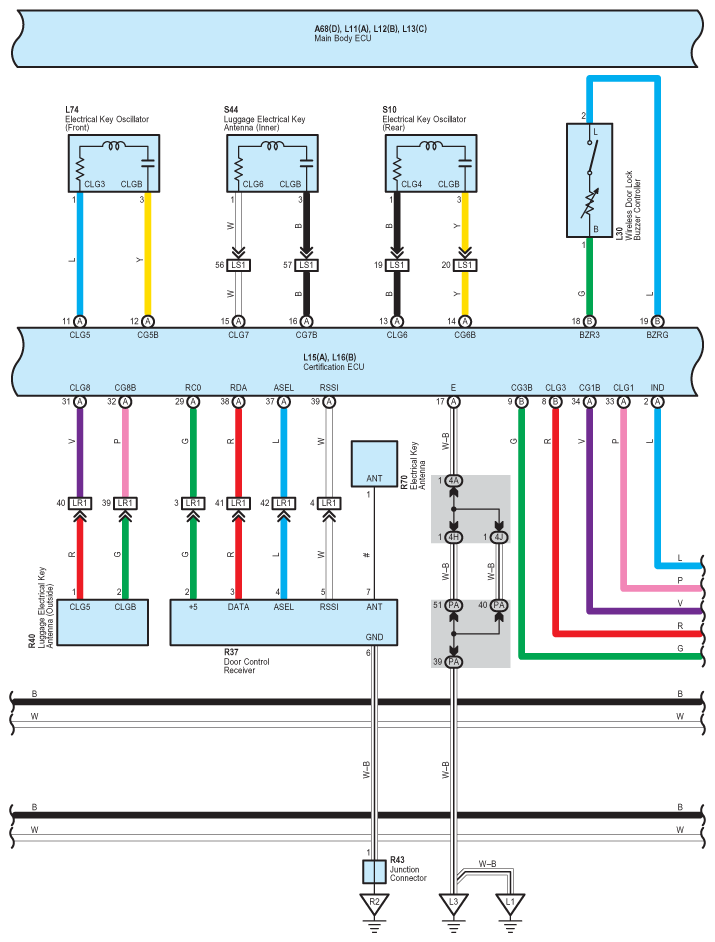

Fig 13: Smart Access System With Push-Button Start - Circuit Diagram (13 Of 25)

G07567686

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

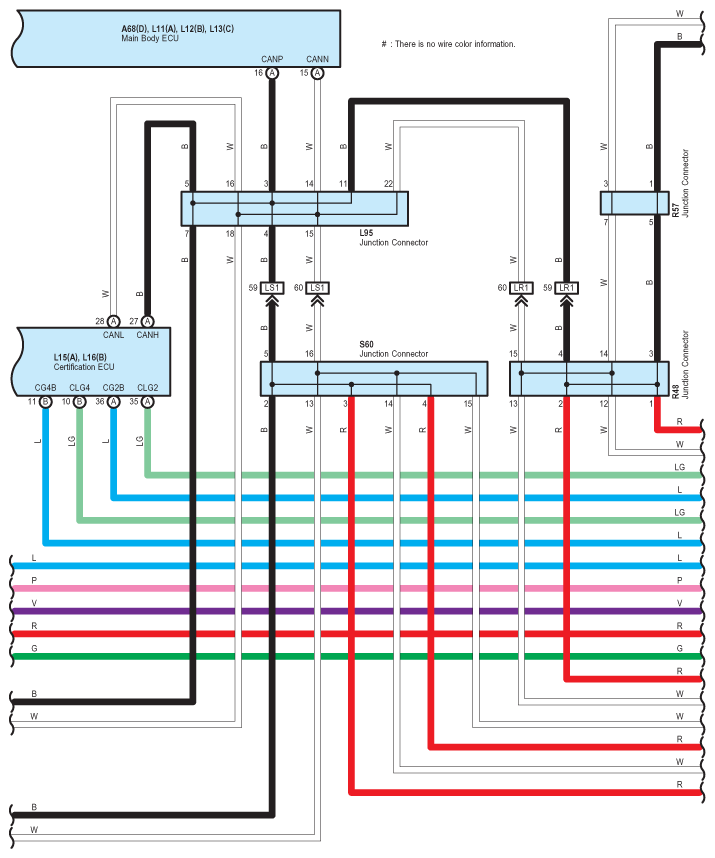

Fig 14: Smart Access System With Push-Button Start - Circuit Diagram (14 Of 25)

G07567687

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

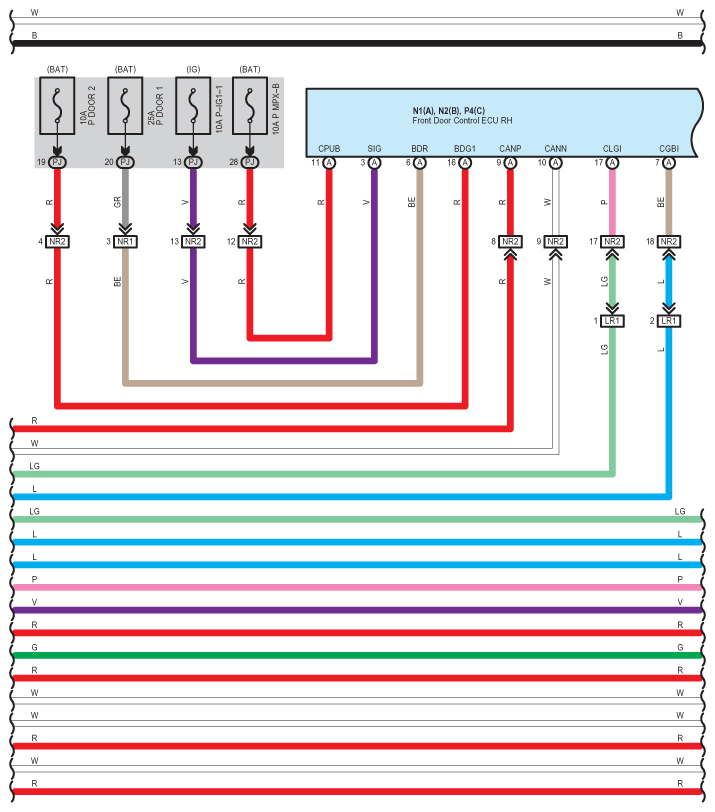

Fig 15: Smart Access System With Push-Button Start - Circuit Diagram (15 Of 25)

G07567688

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

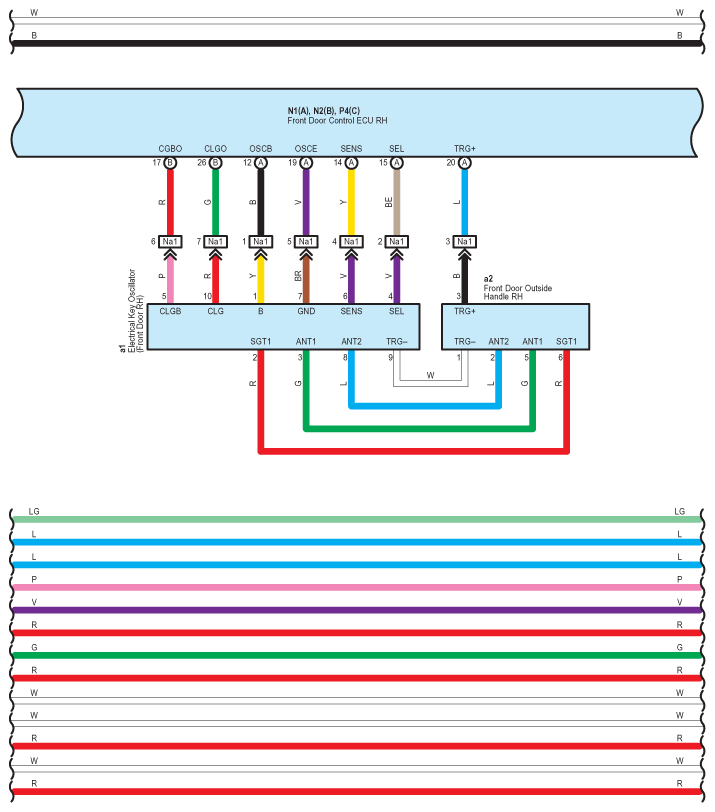

Fig 16: Smart Access System With Push-Button Start - Circuit Diagram (16 Of 25)

G07567689

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

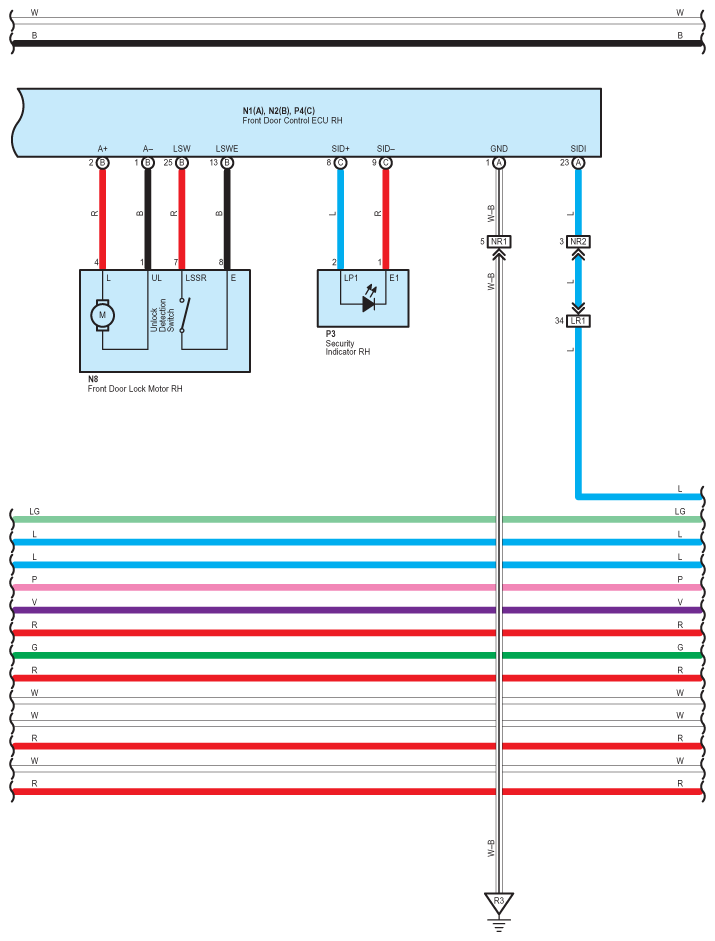

Fig 17: Smart Access System With Push-Button Start - Circuit Diagram (17 Of 25)

G07567690

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

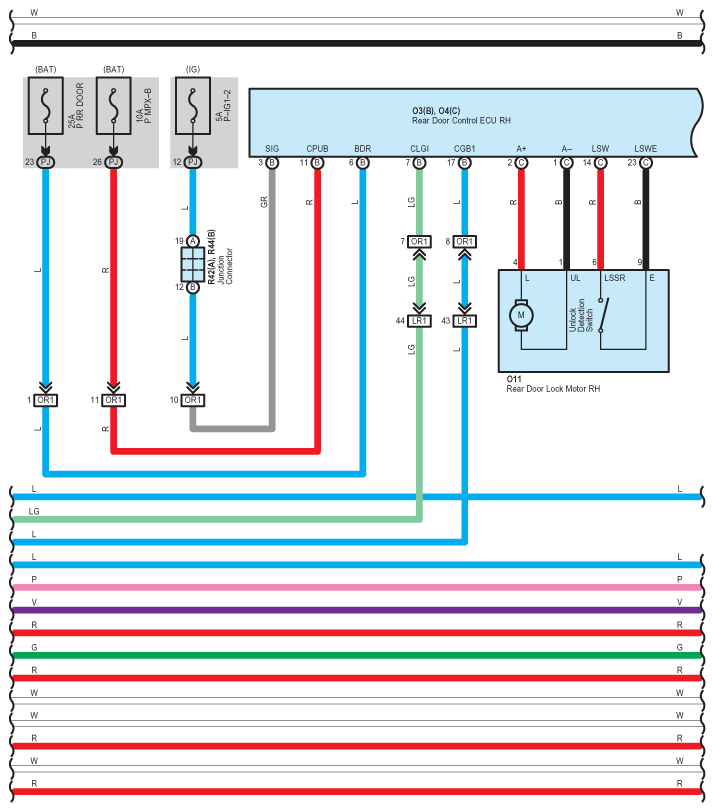

Fig 18: Smart Access System With Push-Button Start - Circuit Diagram (18 Of 25)

G07567691

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

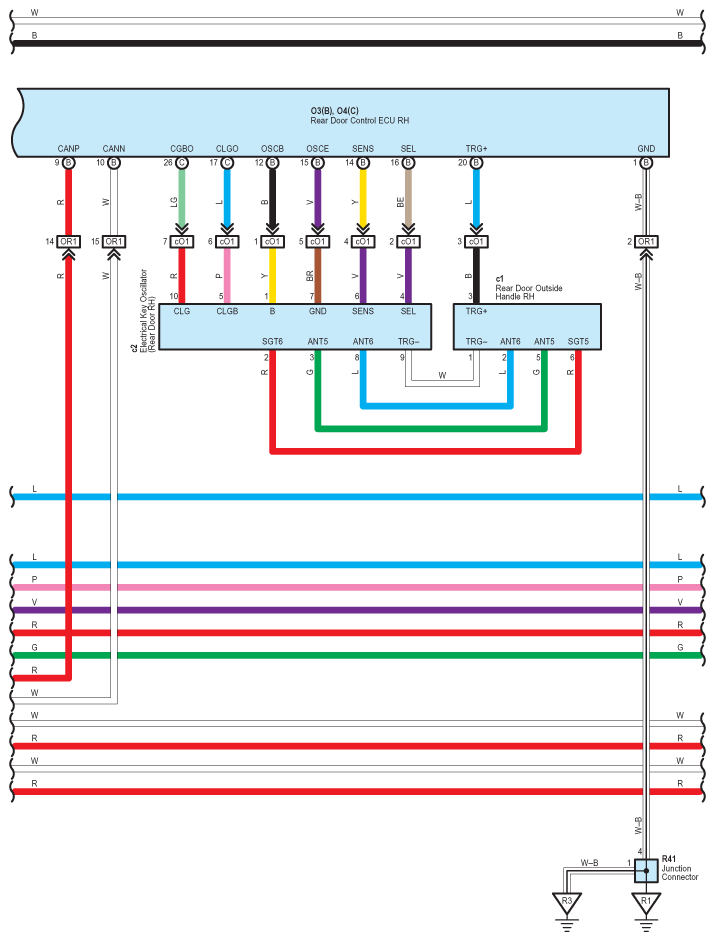

Fig 19: Smart Access System With Push-Button Start - Circuit Diagram (19 Of 25)

G07567692

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

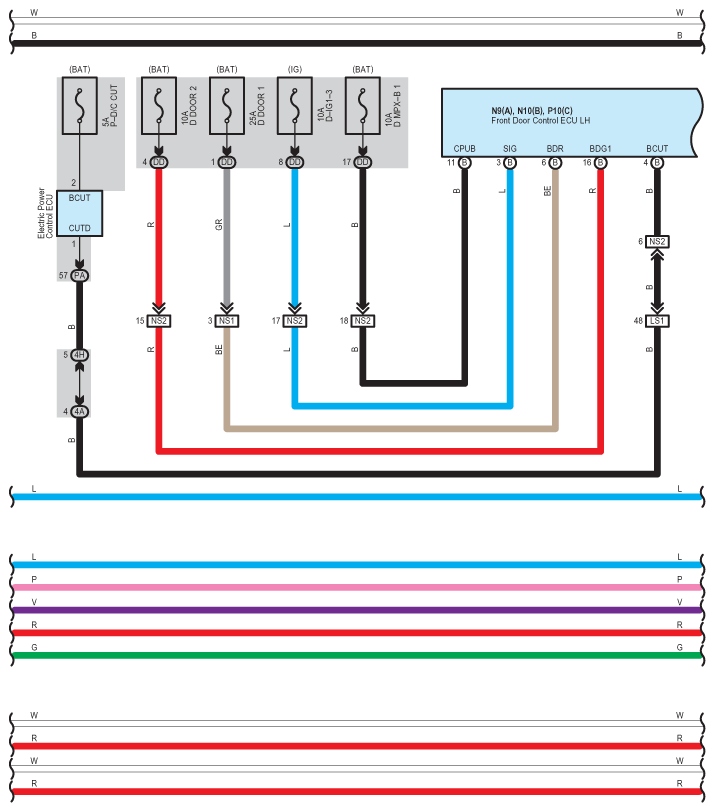

Fig 20: Smart Access System With Push-Button Start - Circuit Diagram (20 Of 25)

G07567693

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

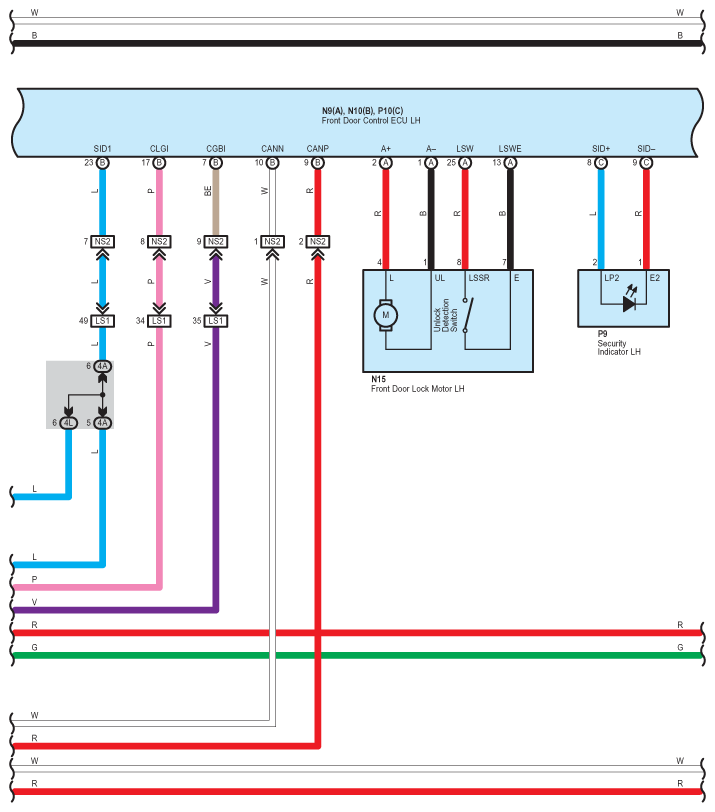

Fig 21: Smart Access System With Push-Button Start - Circuit Diagram (21 Of 25)

G07567694

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

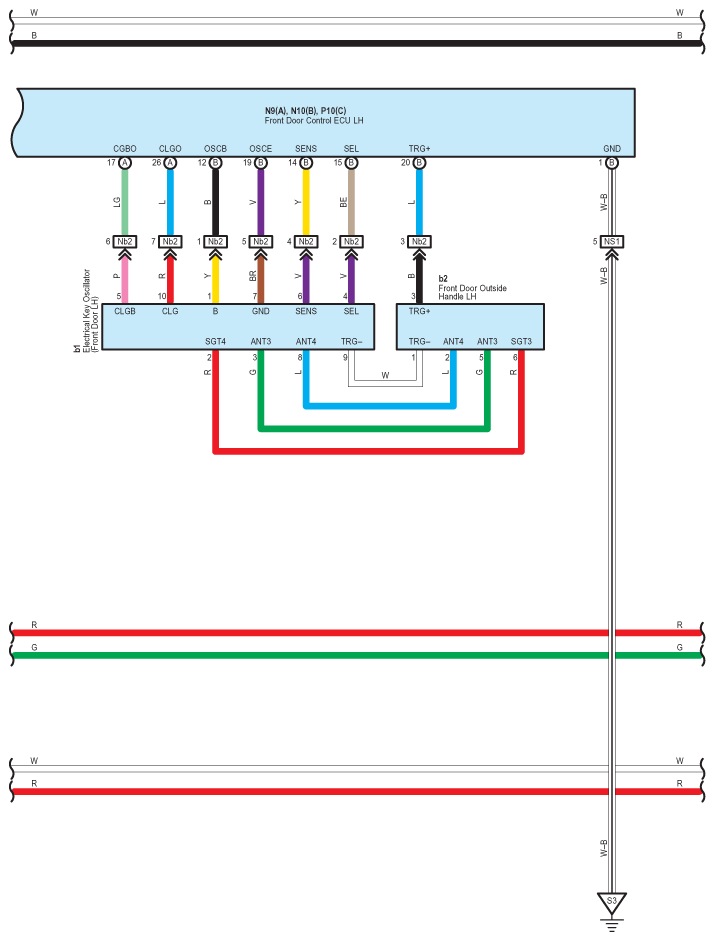

Fig 22: Smart Access System With Push-Button Start - Circuit Diagram (22 Of 25)

G07567695

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

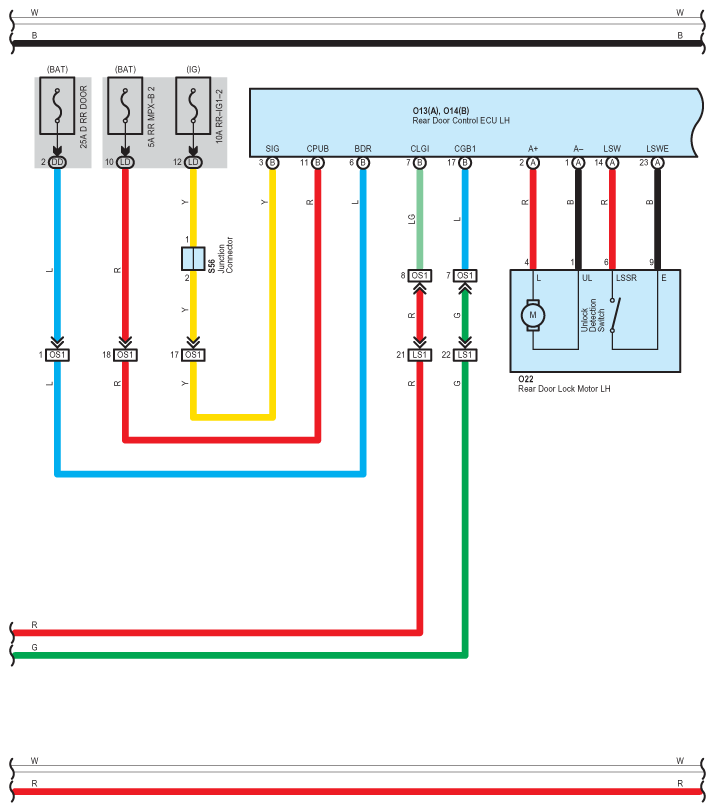

Fig 23: Smart Access System With Push-Button Start - Circuit Diagram (23 Of 25)

G07567696

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

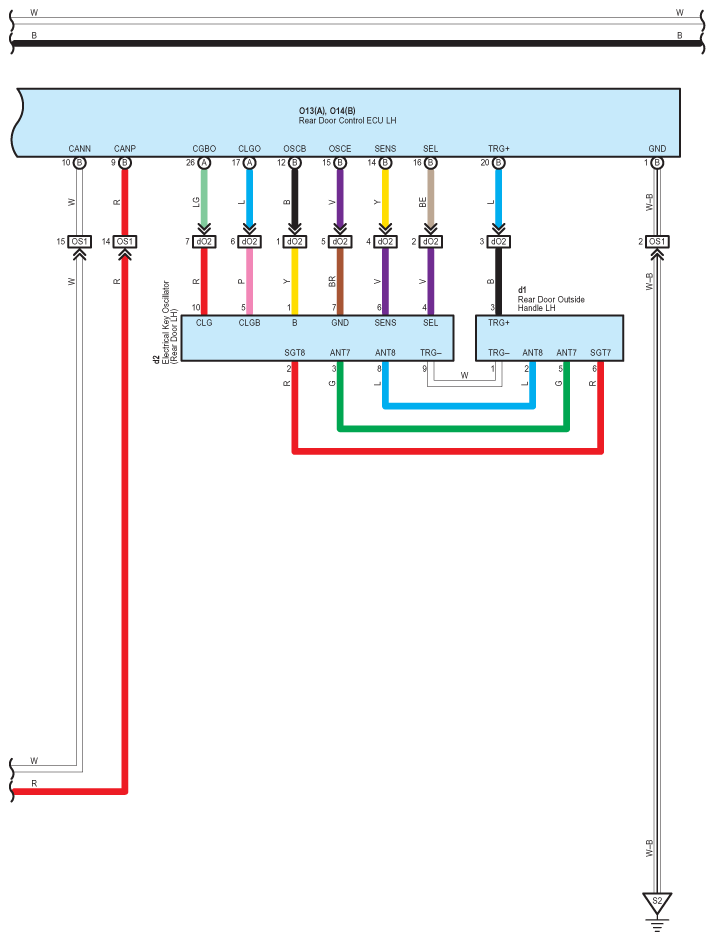

Fig 24: Smart Access System With Push-Button Start - Circuit Diagram (24 Of 25)

G07567697

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

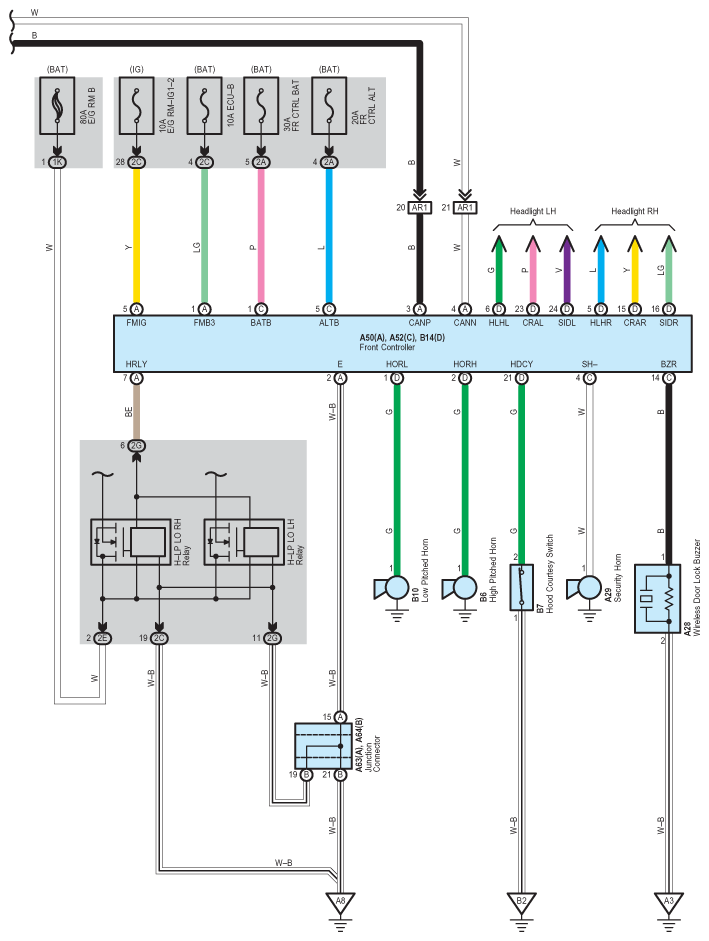

Fig 25: Smart Access System With Push-Button Start - Circuit Diagram (25 Of 25)

G07567698

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
