Engine Control: Notes

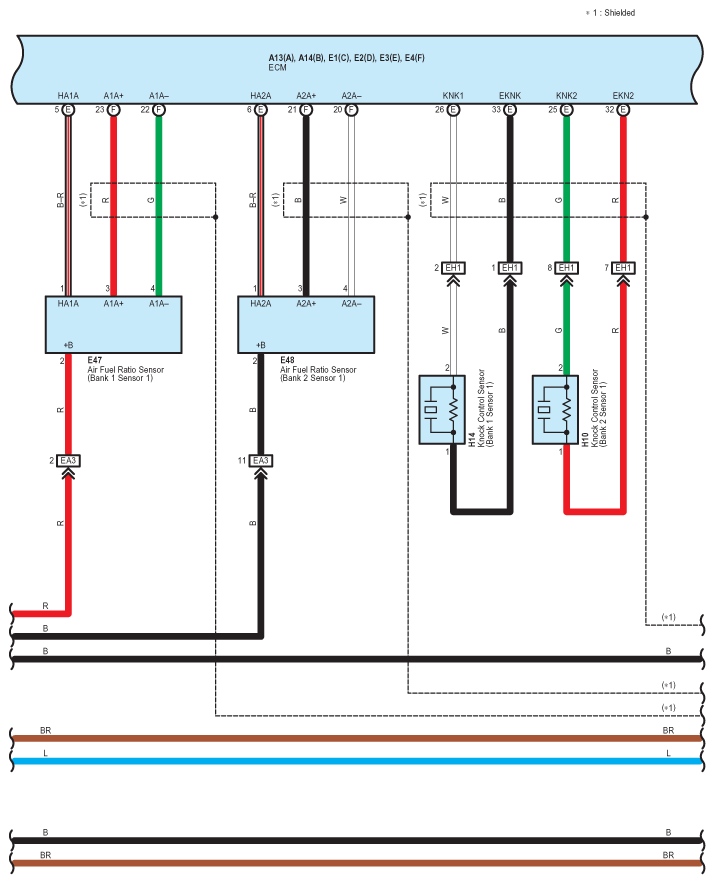

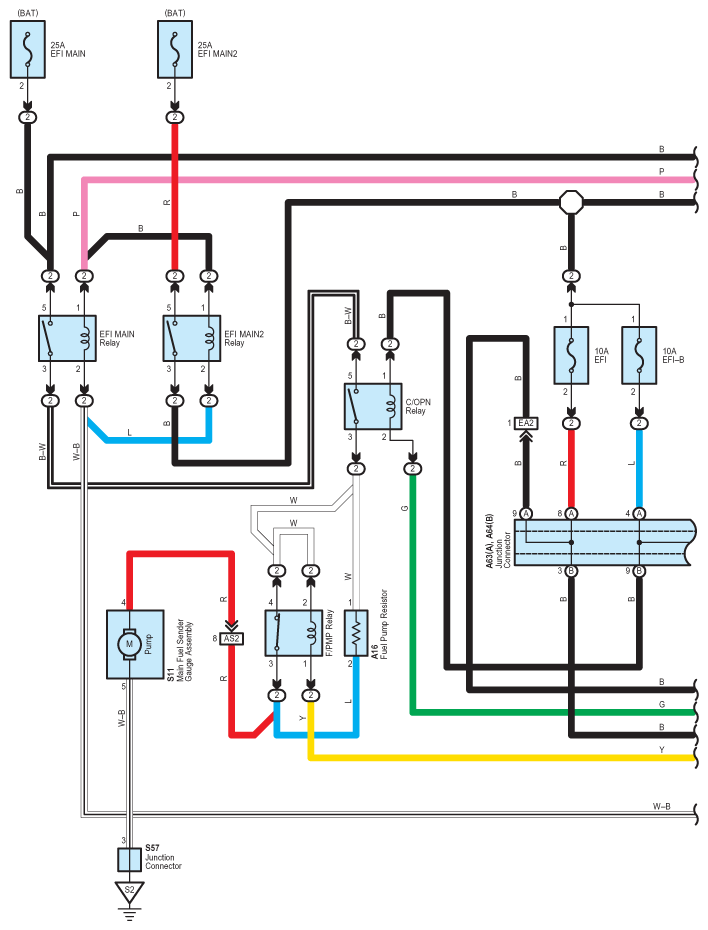

Fig 1: Engine Control - Circuit Diagram (1 Of 24)

G07568549

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

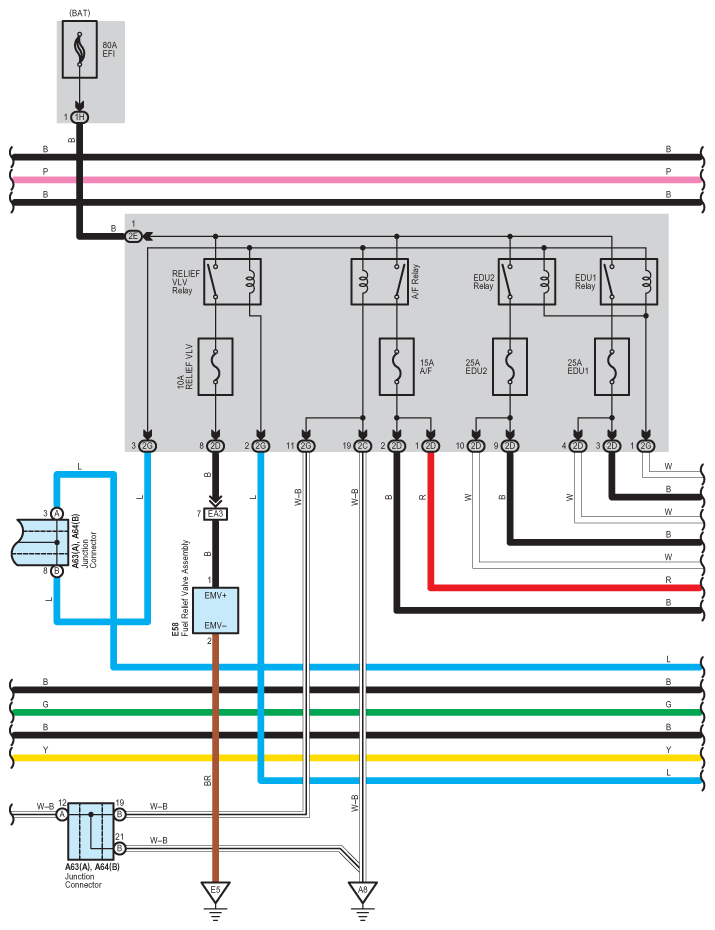

Fig 2: Engine Control - Circuit Diagram (2 Of 24)

G07568550

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

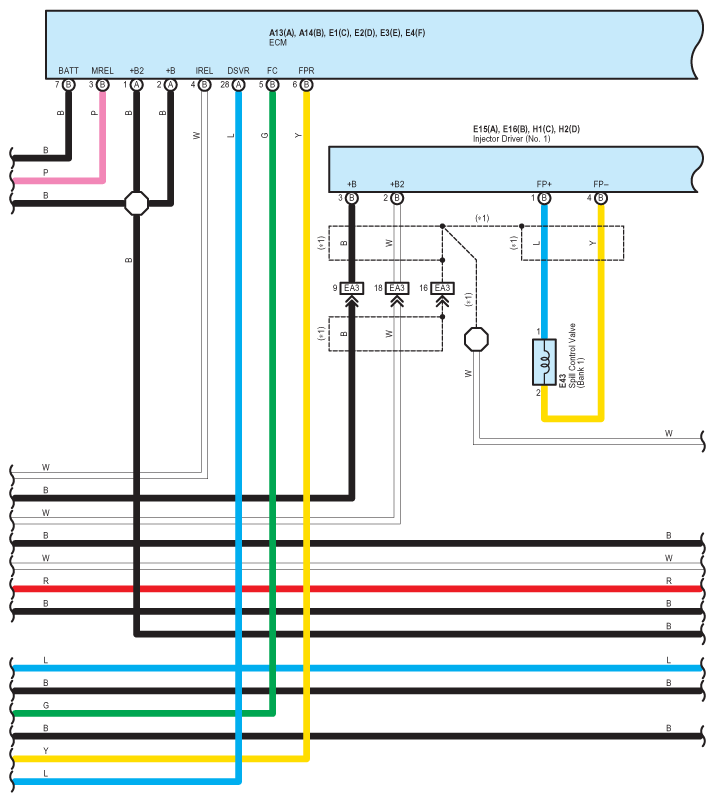

Fig 3: Engine Control - Circuit Diagram (3 Of 24)

G07568551

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

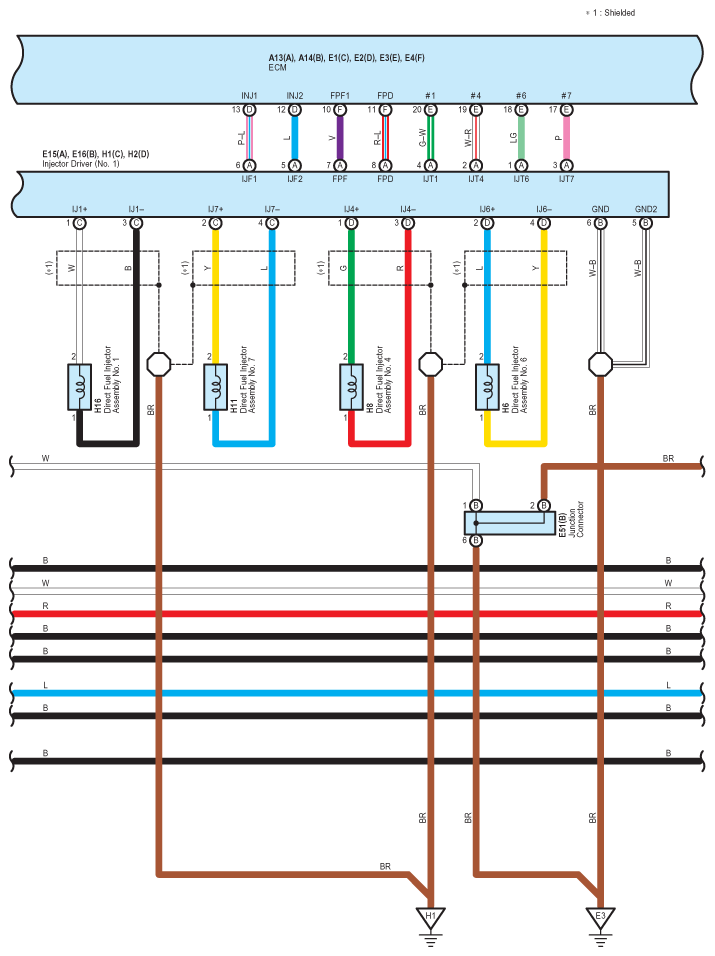

Fig 4: Engine Control - Circuit Diagram (4 Of 24)

G07568552

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

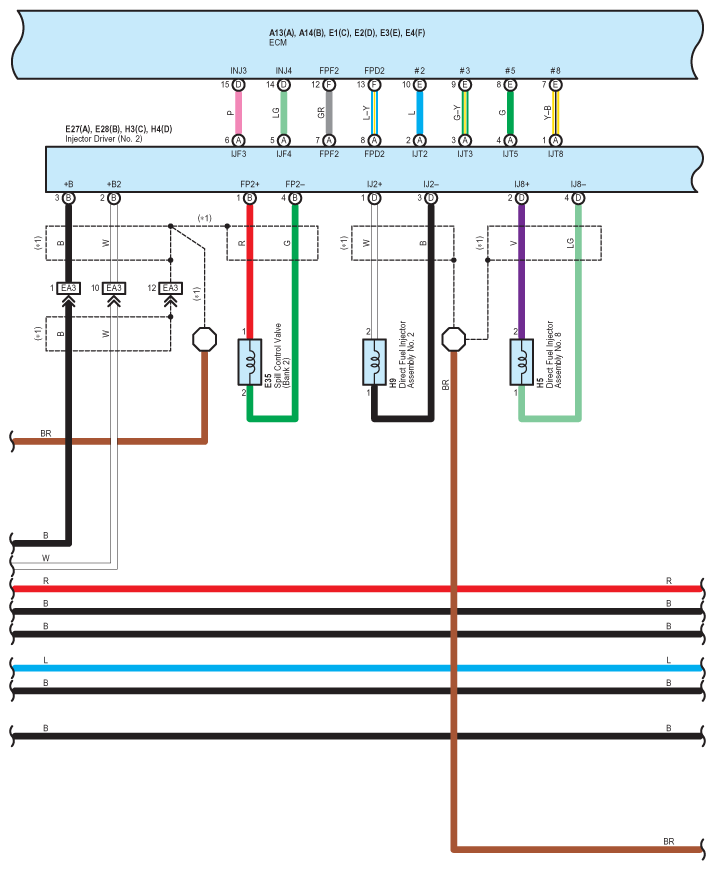

Fig 5: Engine Control - Circuit Diagram (5 Of 24)

G07568553

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

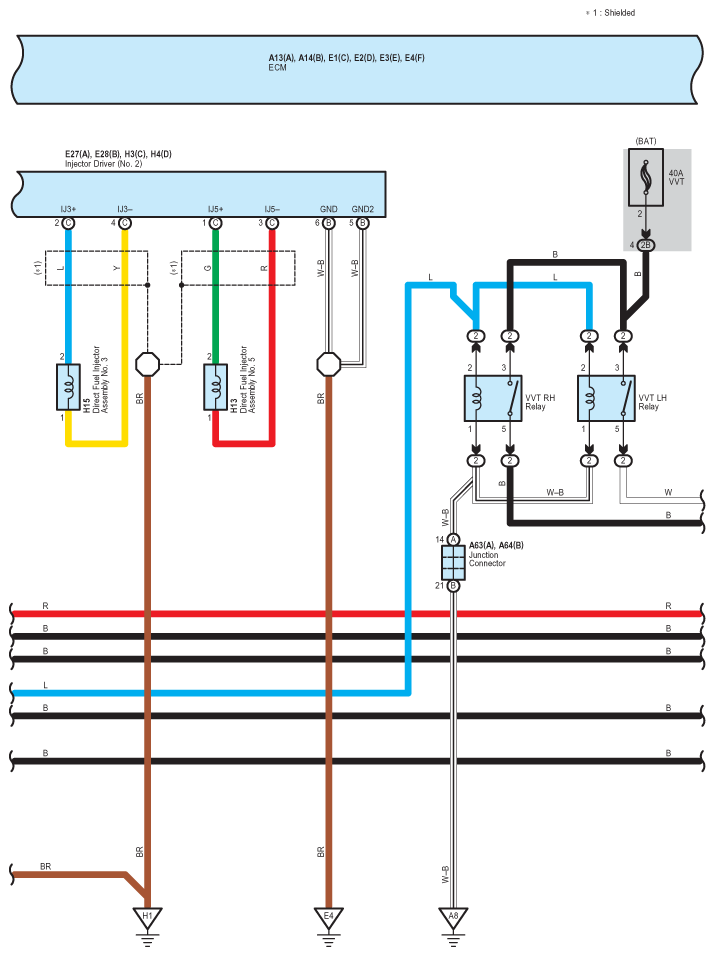

Fig 6: Engine Control - Circuit Diagram (6 Of 24)

G07568554

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

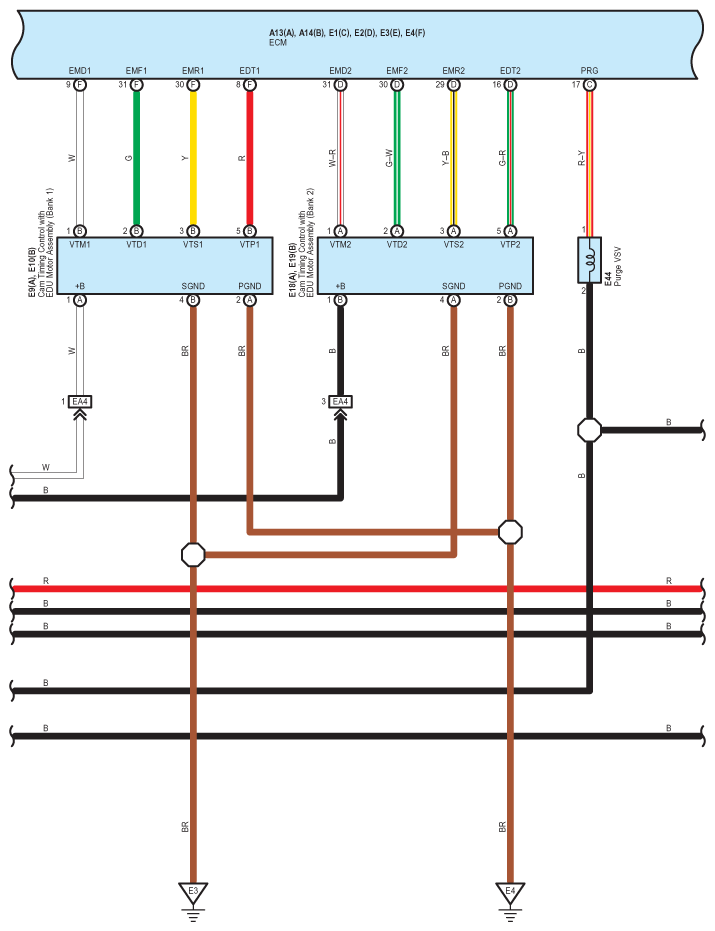

Fig 7: Engine Control - Circuit Diagram (7 Of 24)

G07568555

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

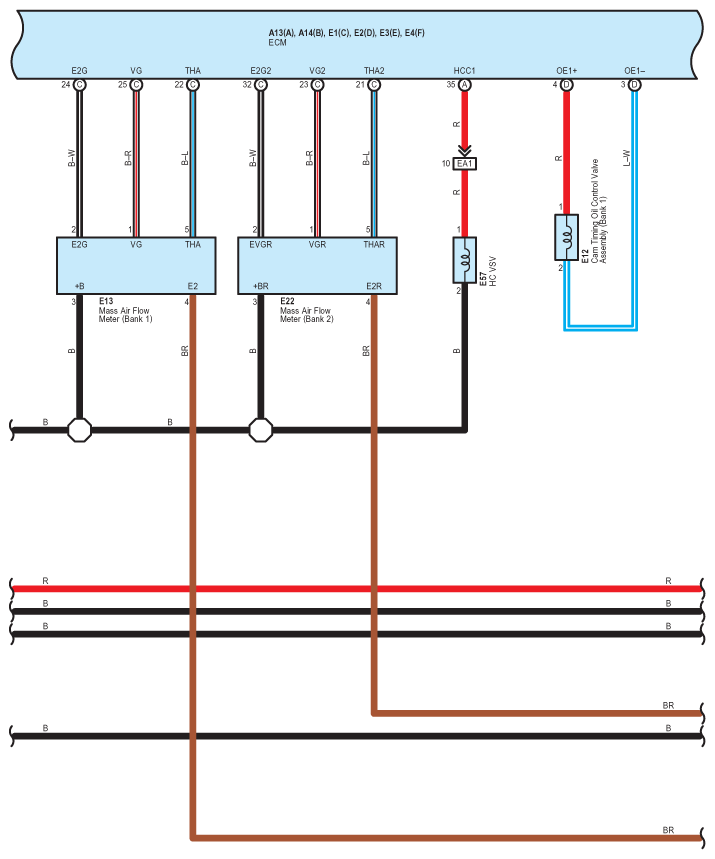

Fig 8: Engine Control - Circuit Diagram (8 Of 24)

G07568556

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

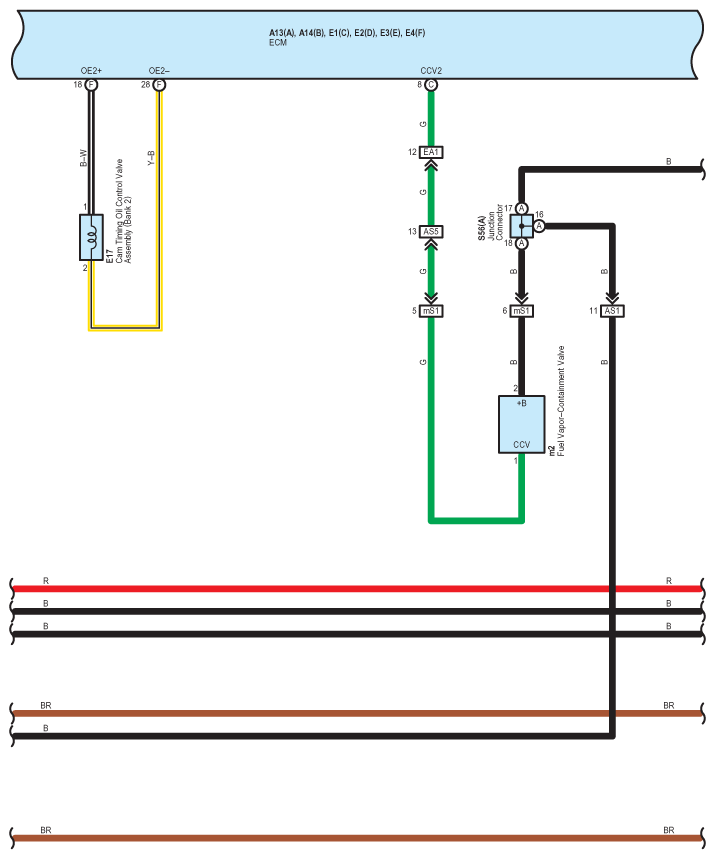

Fig 9: Engine Control - Circuit Diagram (9 Of 24)

G07568557

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

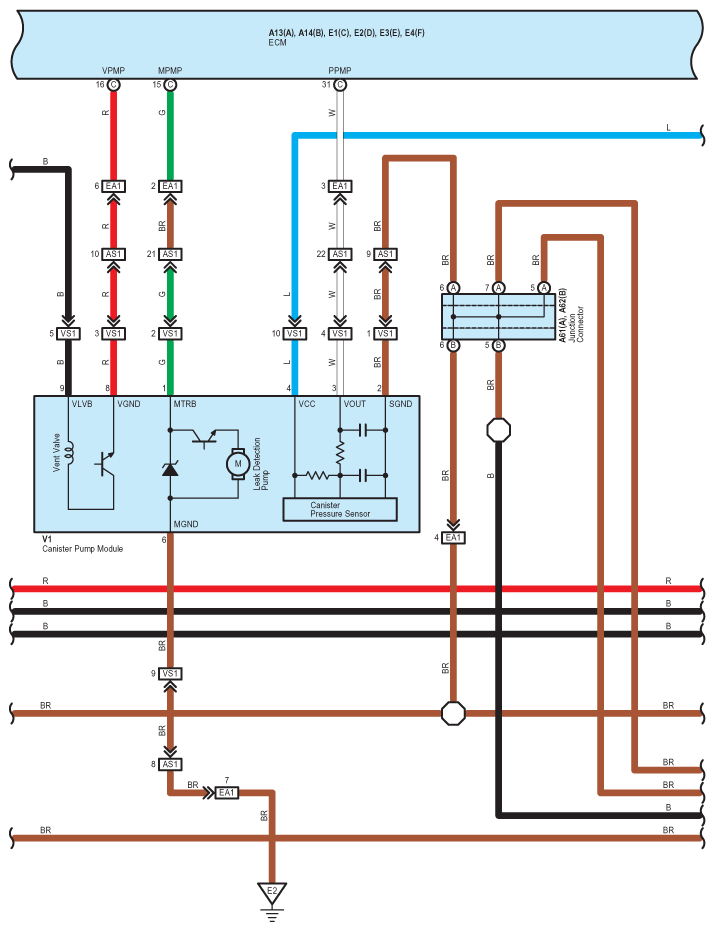

Fig 10: Engine Control - Circuit Diagram (10 Of 24)

G07568558

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

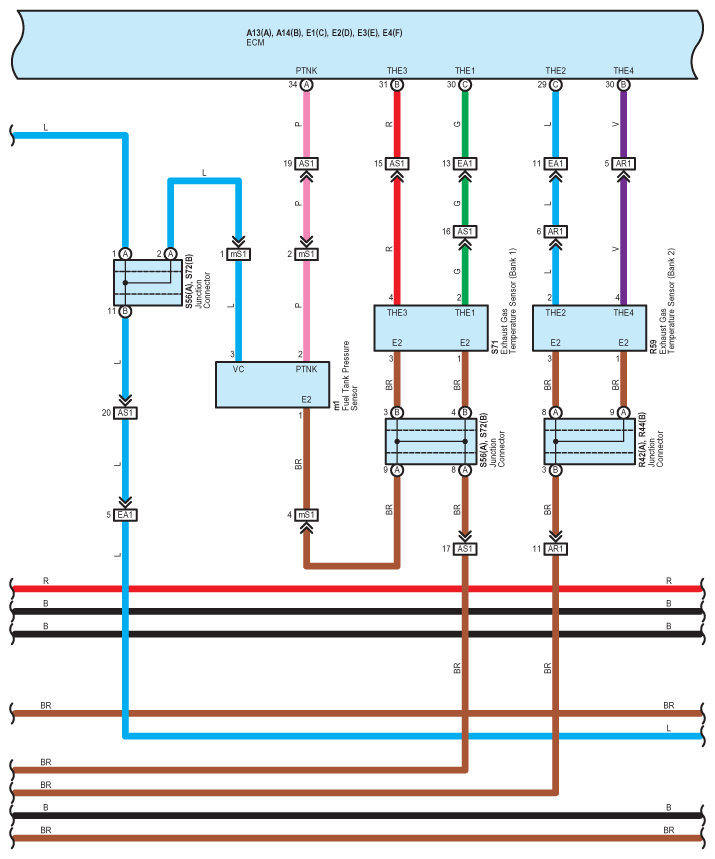

Fig 11: Engine Control - Circuit Diagram (11 Of 24)

G07568559

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Engine Control - Circuit Diagram (12 Of 24)

G07568560

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

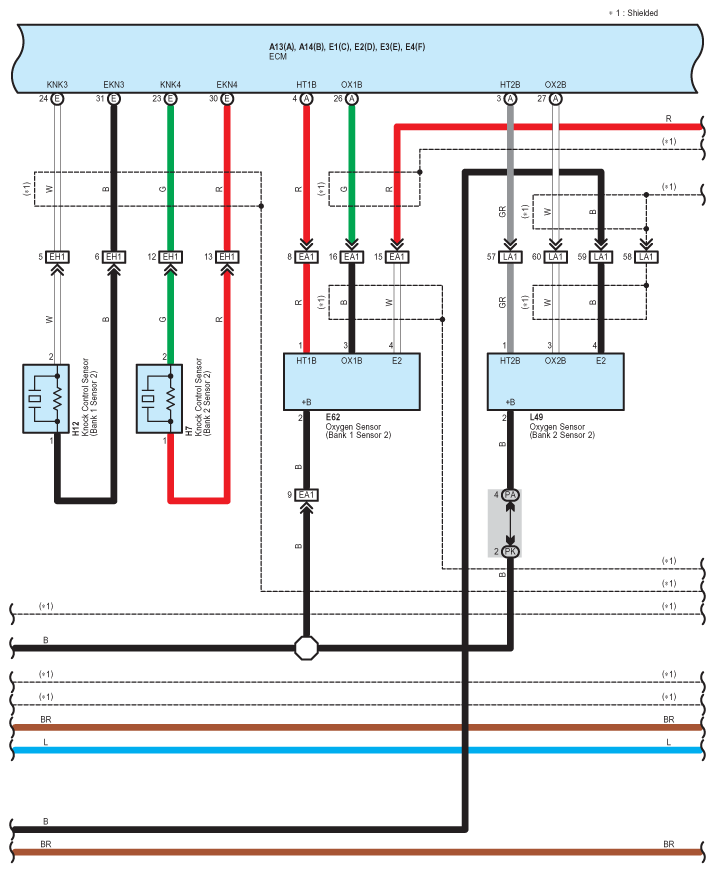

Fig 13: Engine Control - Circuit Diagram (13 Of 24)

G07568561

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

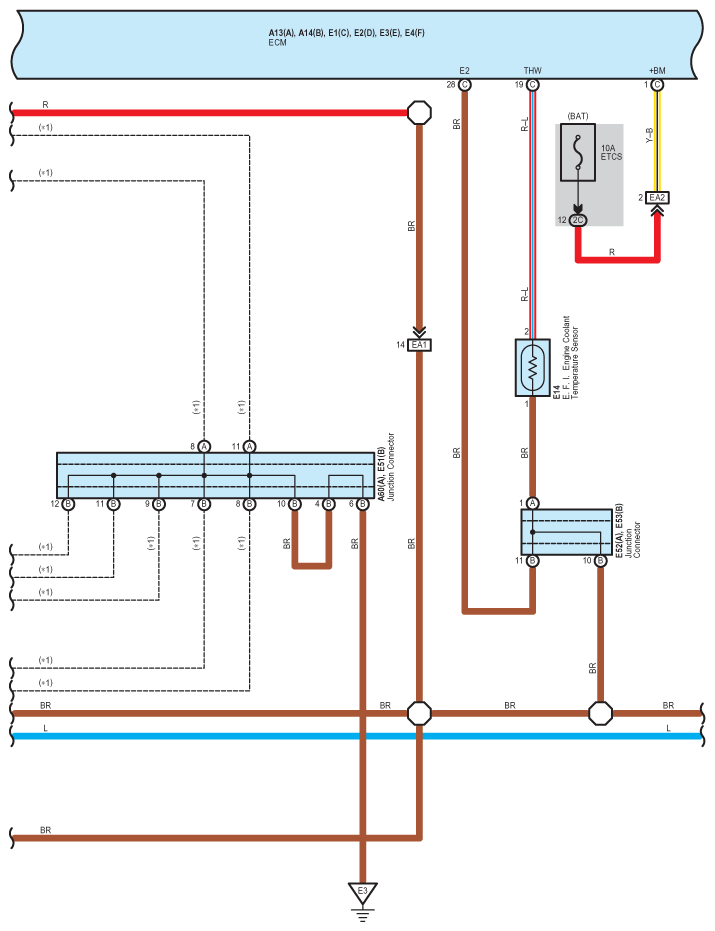

Fig 14: Engine Control - Circuit Diagram (14 Of 24)

G07568562

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

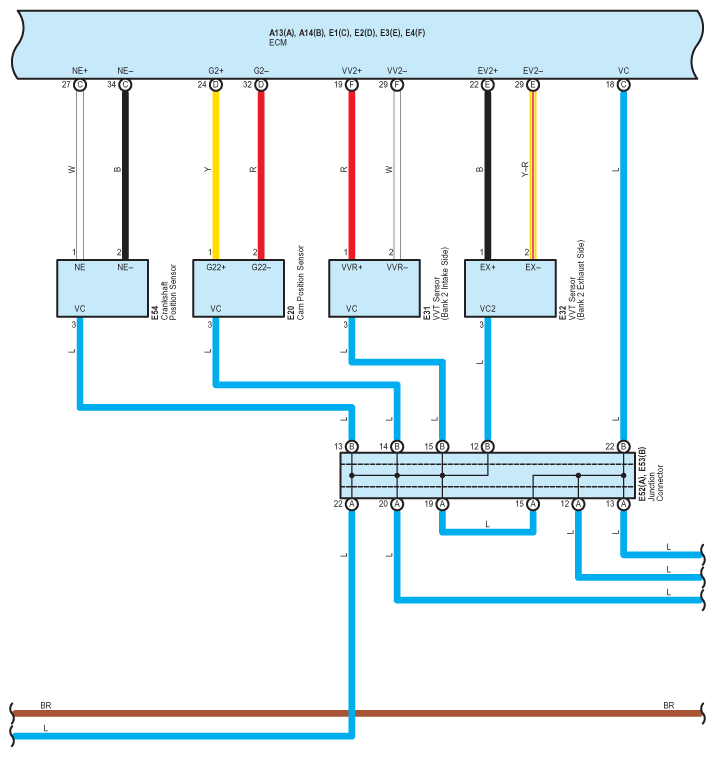

Fig 15: Engine Control - Circuit Diagram (15 Of 24)

G07568563

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

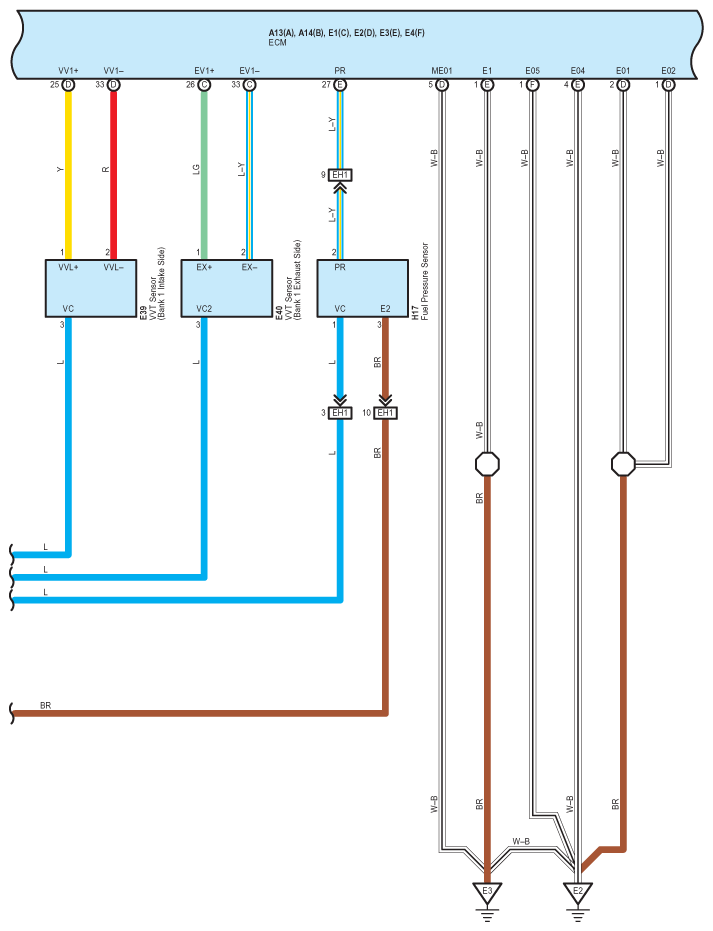

Fig 16: Engine Control - Circuit Diagram (16 Of 24)

G07568564

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

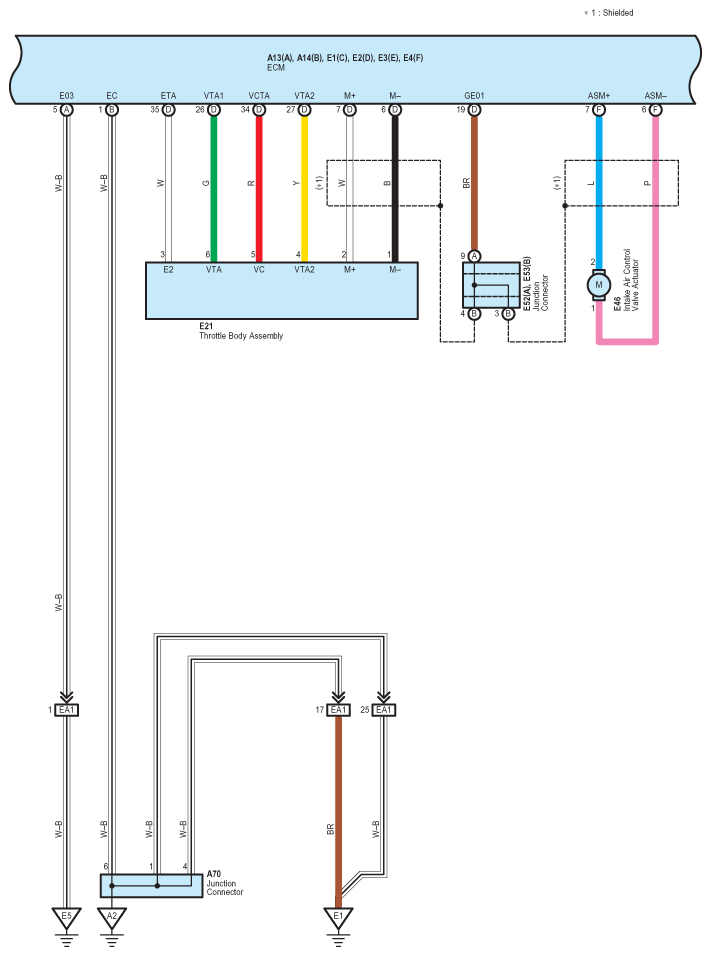

Fig 17: Engine Control - Circuit Diagram (17 Of 24)

G07568565

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

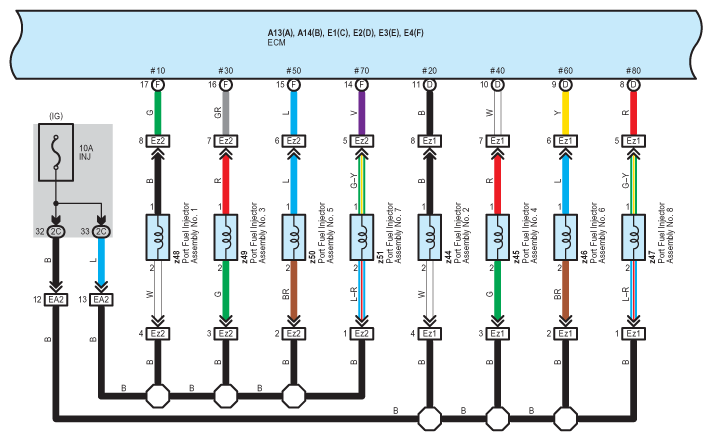

Fig 18: Engine Control - Circuit Diagram (18 Of 24)

G07568566

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

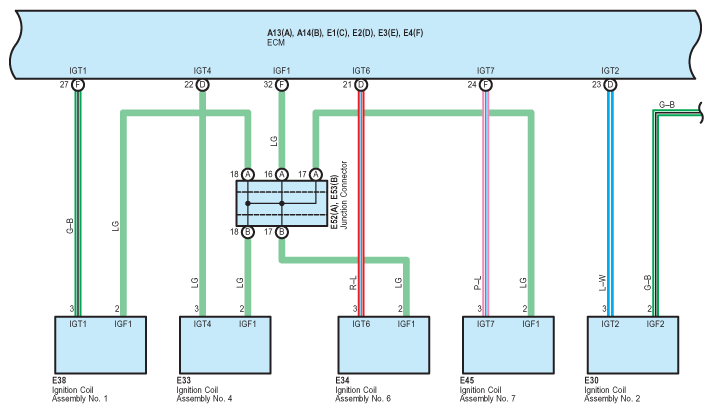

Fig 19: Engine Control - Circuit Diagram (19 Of 24)

G07568567

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

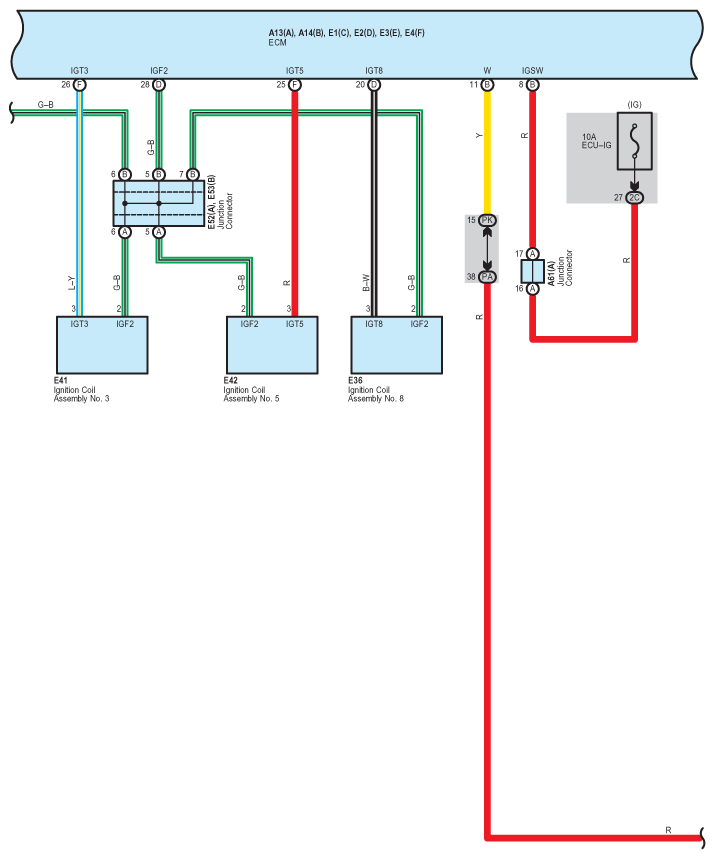

Fig 20: Engine Control - Circuit Diagram (20 Of 24)

G07568568

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

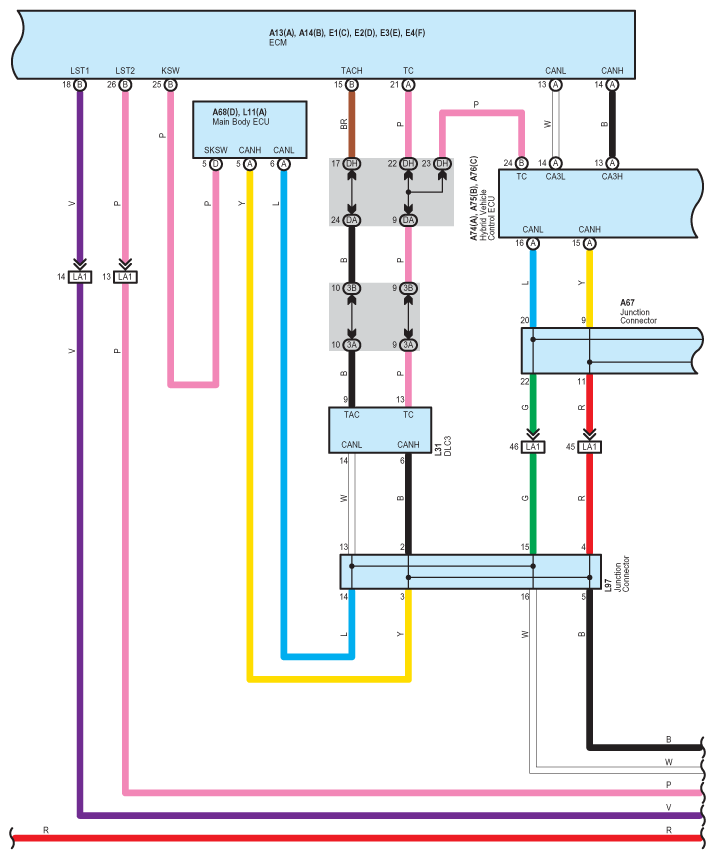

Fig 21: Engine Control - Circuit Diagram (21 Of 24)

G07568569

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

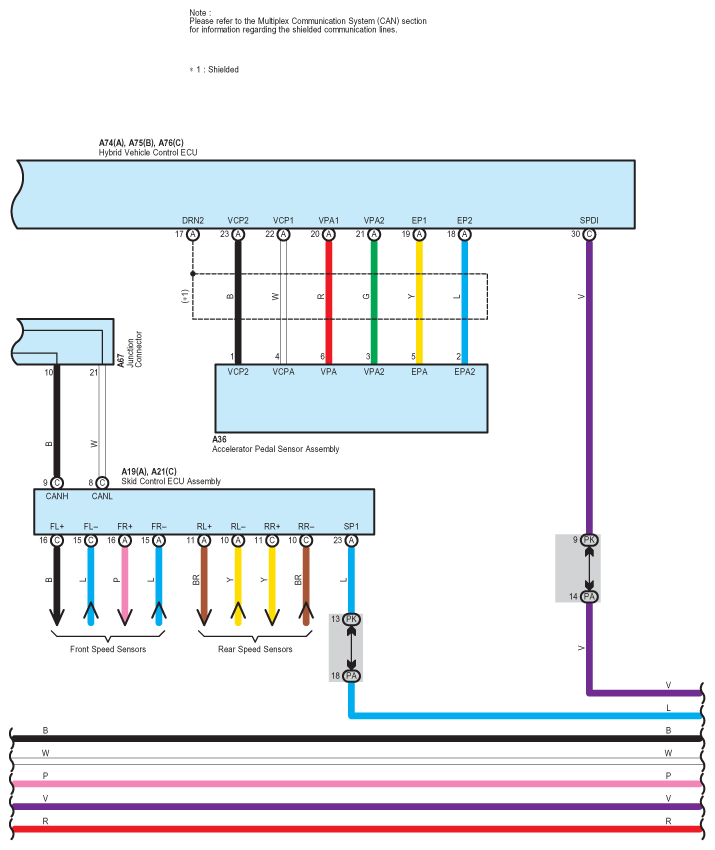

Fig 22: Engine Control - Circuit Diagram (22 Of 24)

G07568570

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

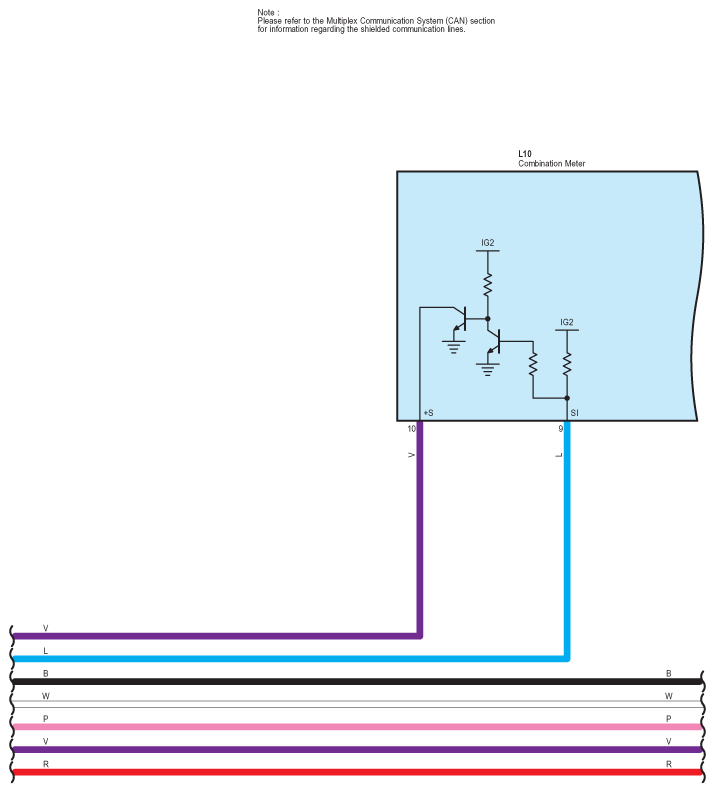

Fig 23: Engine Control - Circuit Diagram (23 Of 24)

G07568571

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

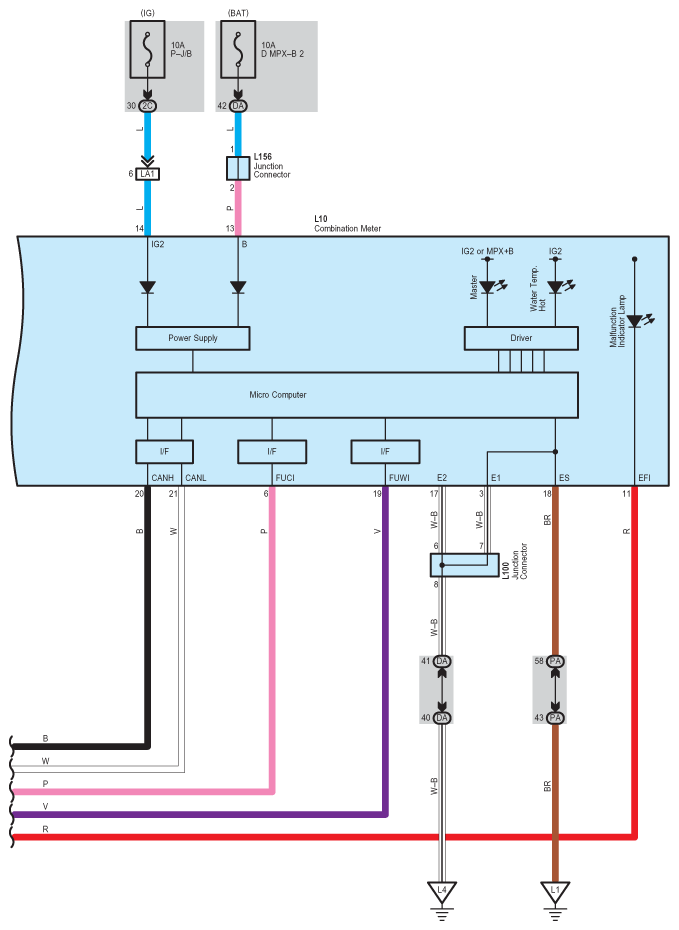

Fig 24: Engine Control - Circuit Diagram (24 Of 24)

G07568572

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
