OEM System Circuits: Illumination: Notes

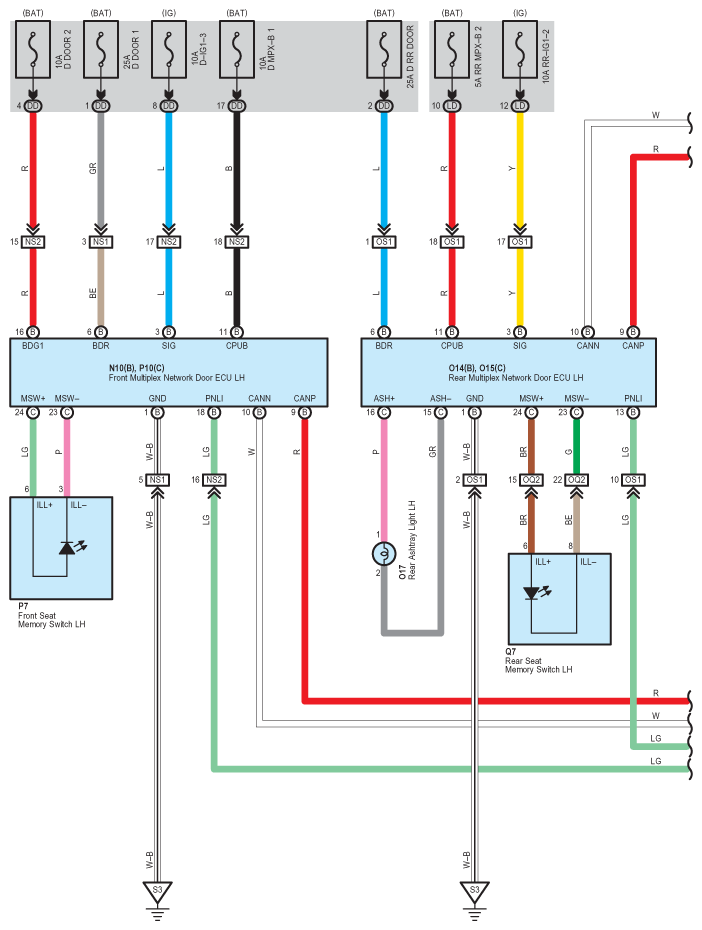

Fig 1: Illumination - Circuit Diagram (1 Of 15)

G07568618

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

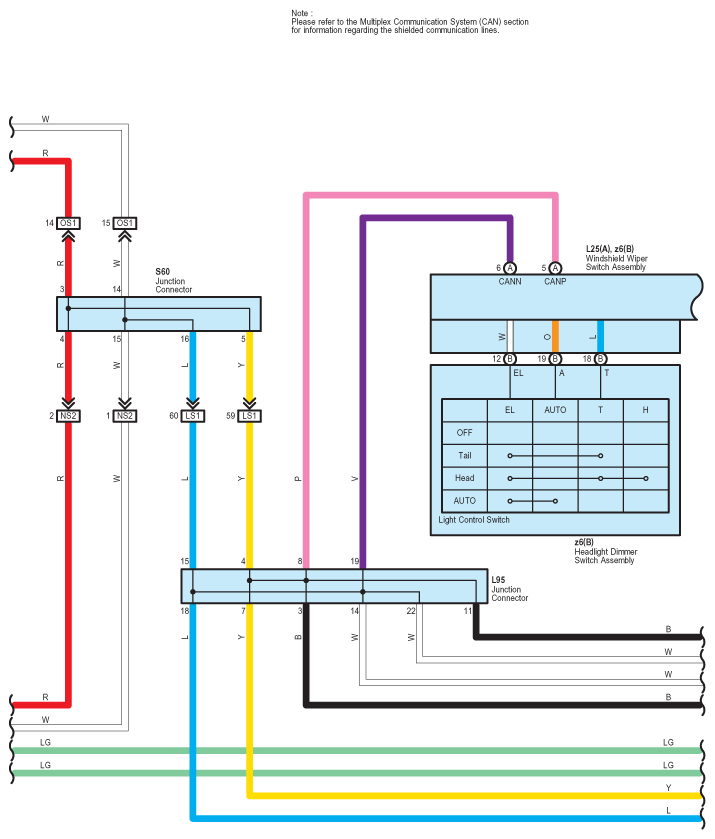

Fig 2: Illumination - Circuit Diagram (2 Of 15)

G07568619

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

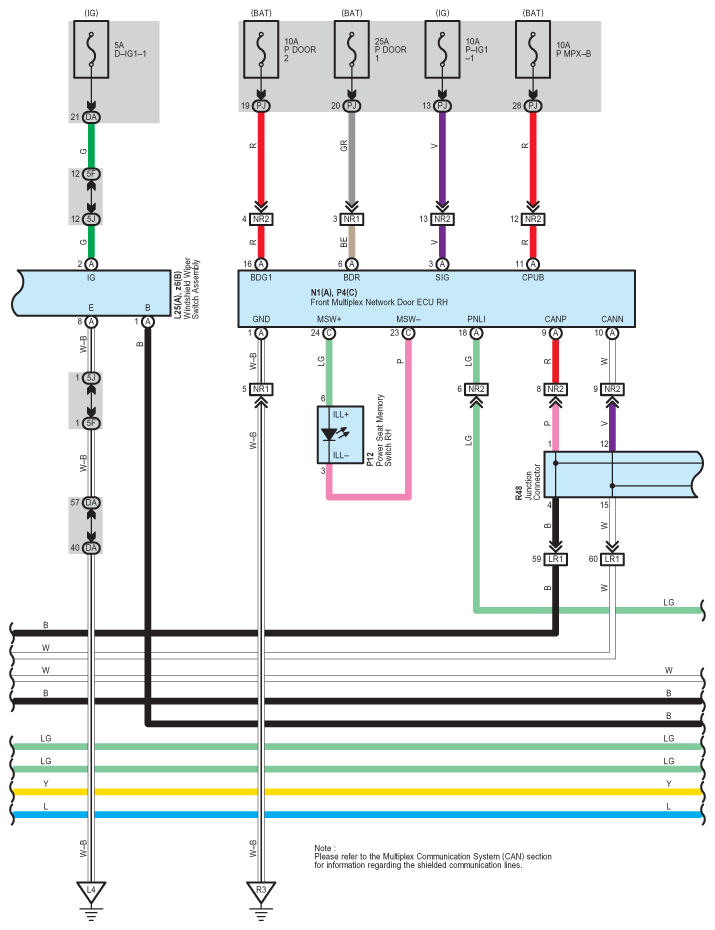

Fig 3: Illumination - Circuit Diagram (3 Of 15)

G07568620

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

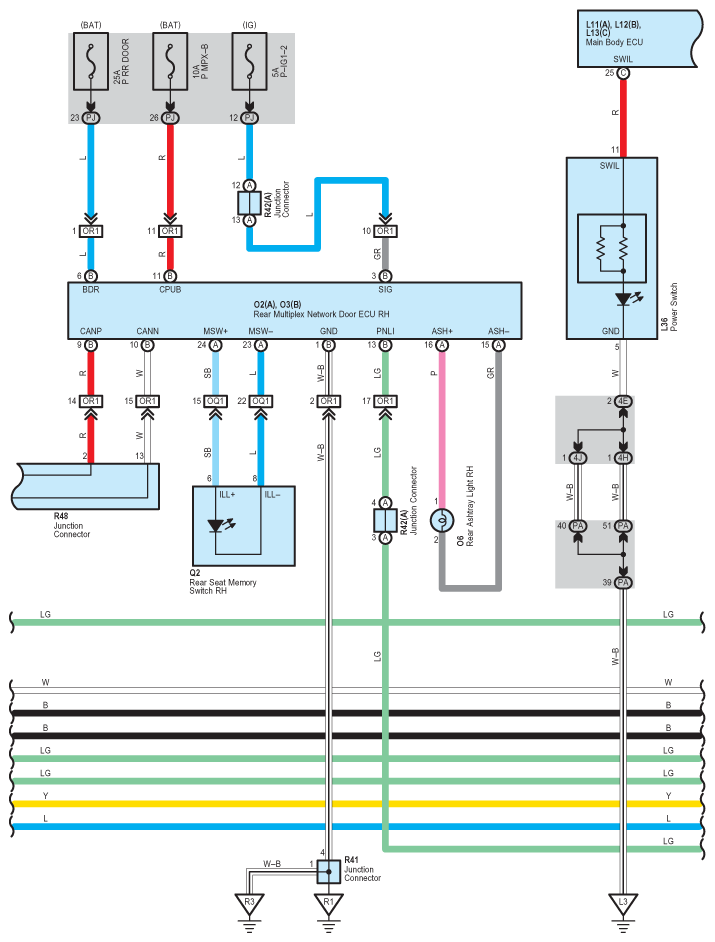

Fig 4: Illumination - Circuit Diagram (4 Of 15)

G07568621

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

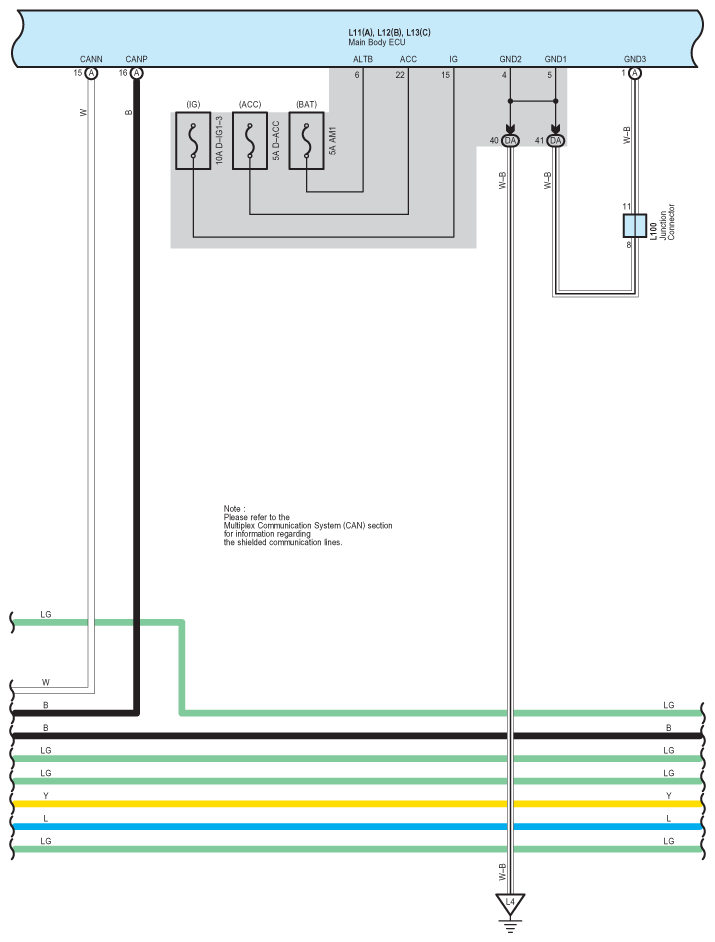

Fig 5: Illumination - Circuit Diagram (5 Of 15)

G07568622

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

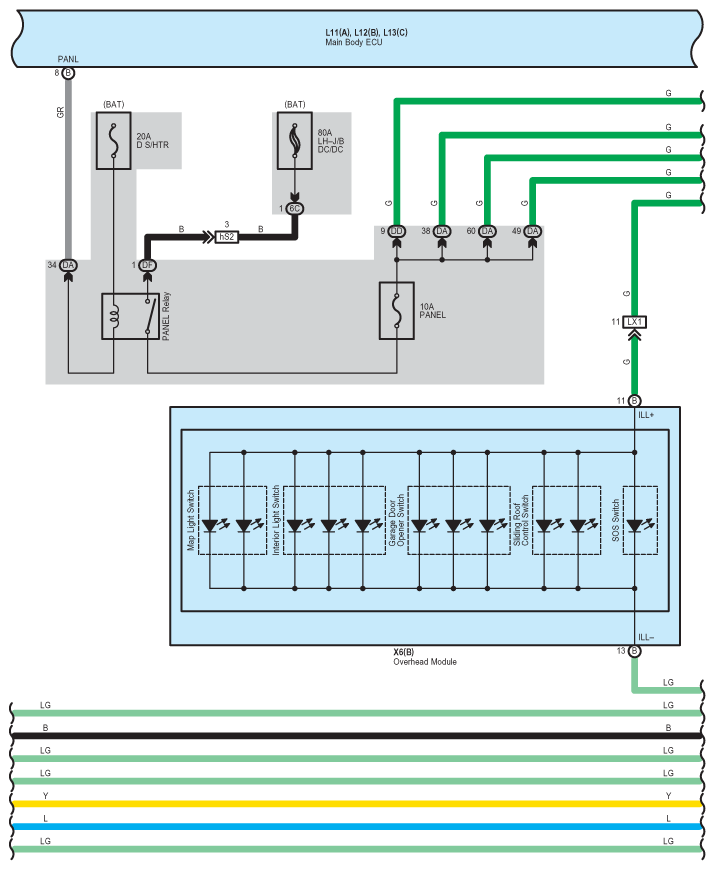

Fig 6: Illumination - Circuit Diagram (6 Of 15)

G07568623

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

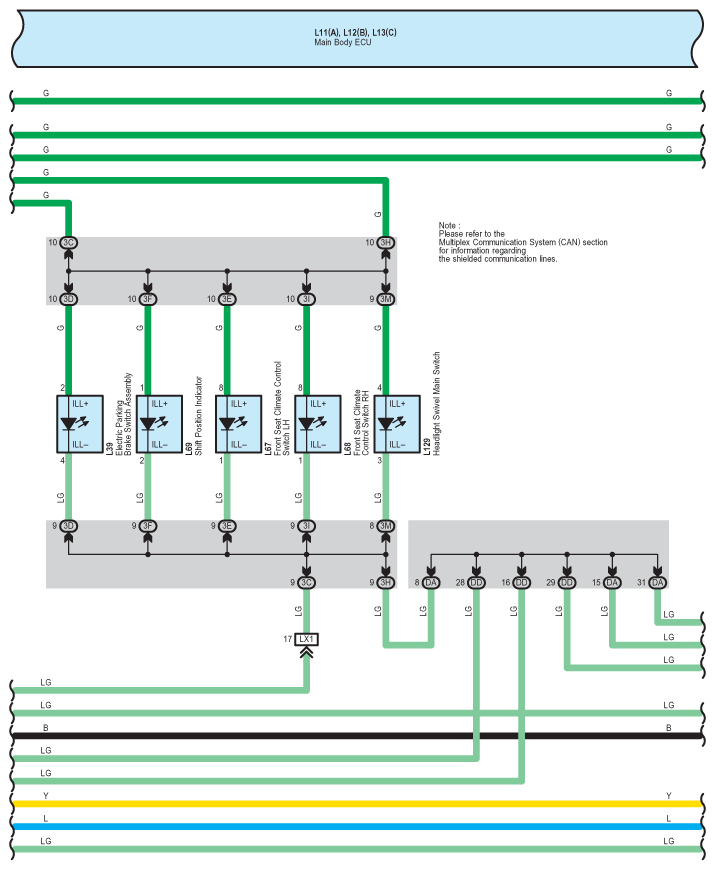

Fig 7: Illumination - Circuit Diagram (7 Of 15)

G07568624

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

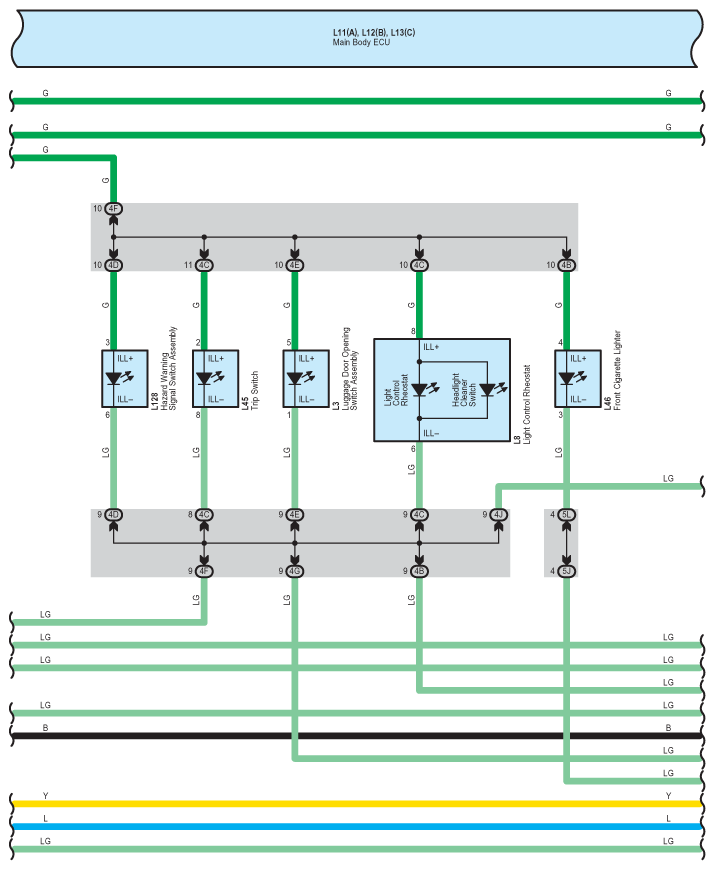

Fig 8: Illumination - Circuit Diagram (8 Of 15)

G07568625

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

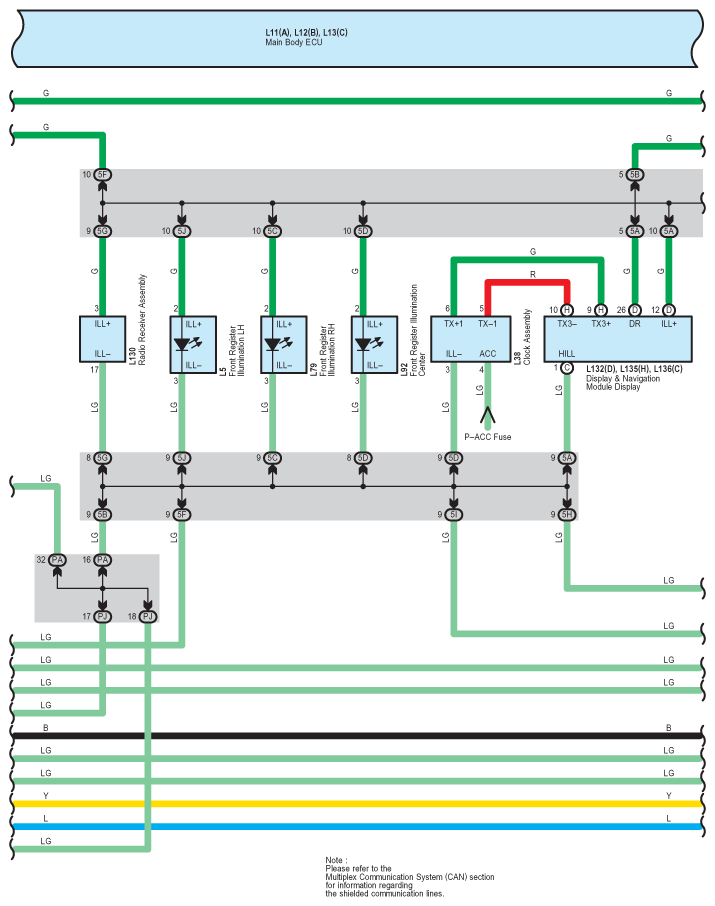

Fig 9: Illumination - Circuit Diagram (9 Of 15)

G07568626

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

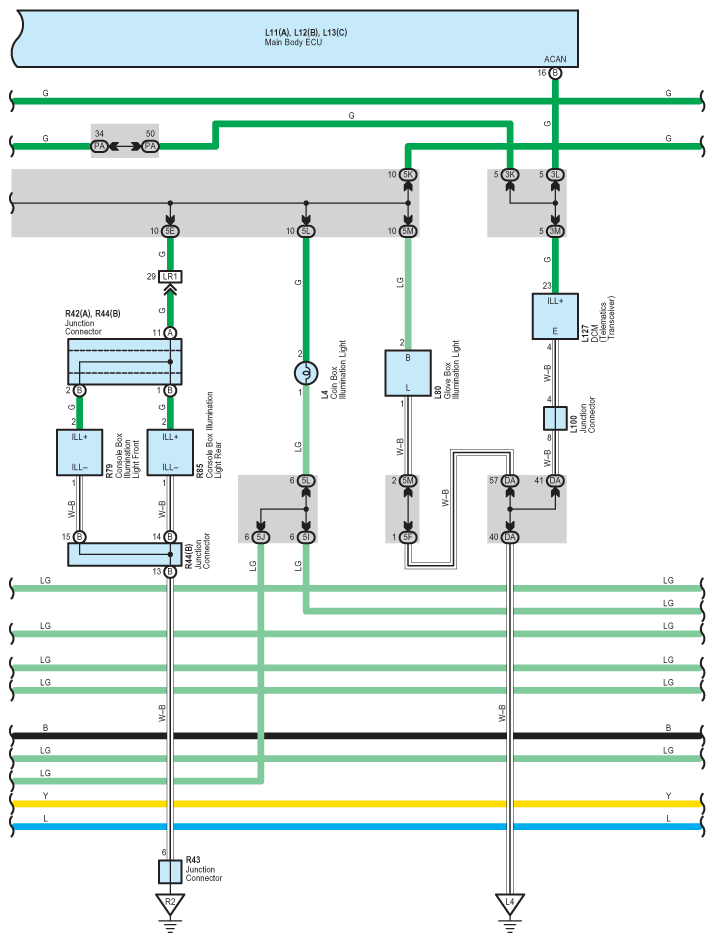

Fig 10: Illumination - Circuit Diagram (10 Of 15)

G07568627

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

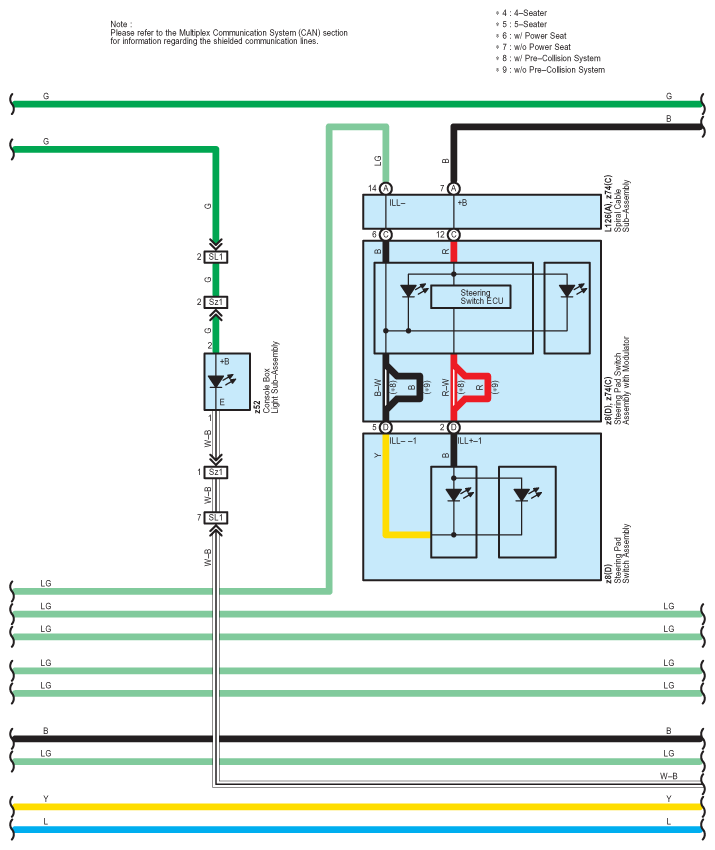

Fig 11: Illumination - Circuit Diagram (11 Of 15)

G07568628

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

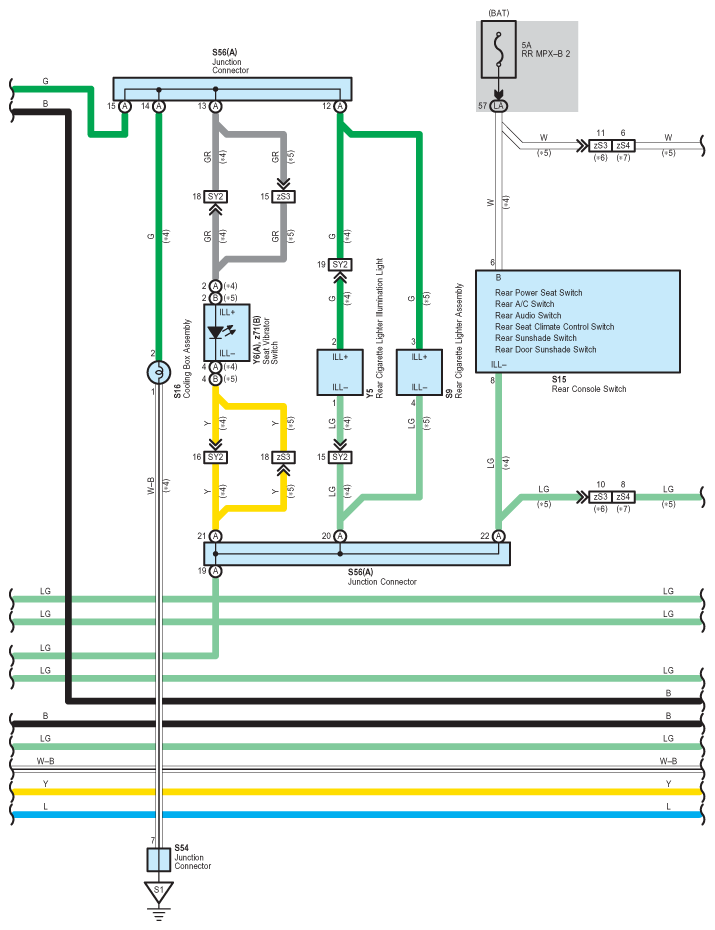

Fig 12: Illumination - Circuit Diagram (12 Of 15)

G07568629

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

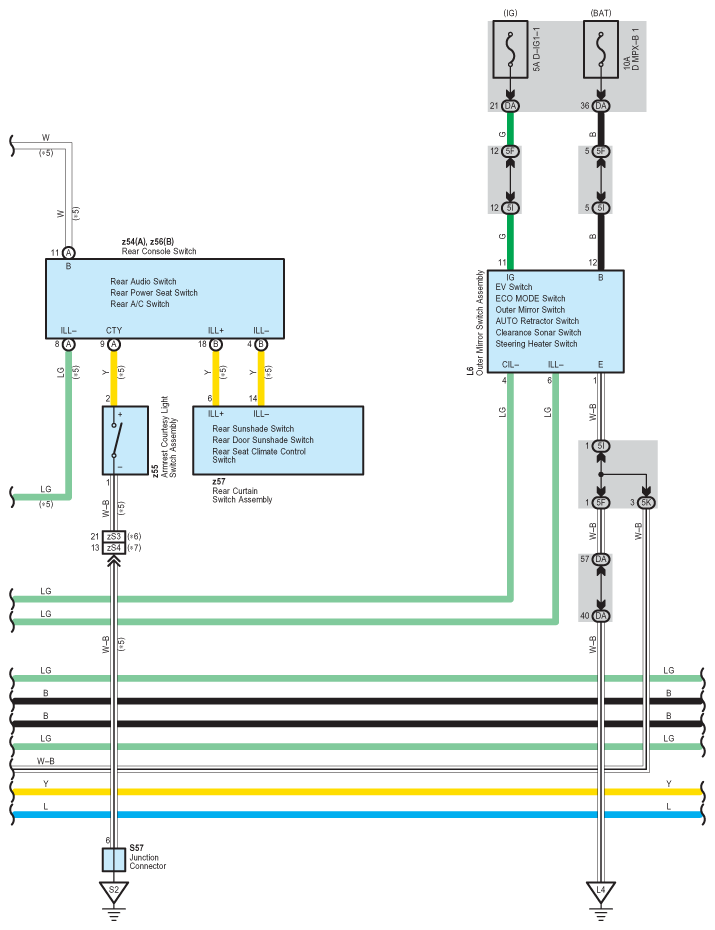

Fig 13: Illumination - Circuit Diagram (13 Of 15)

G07568630

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

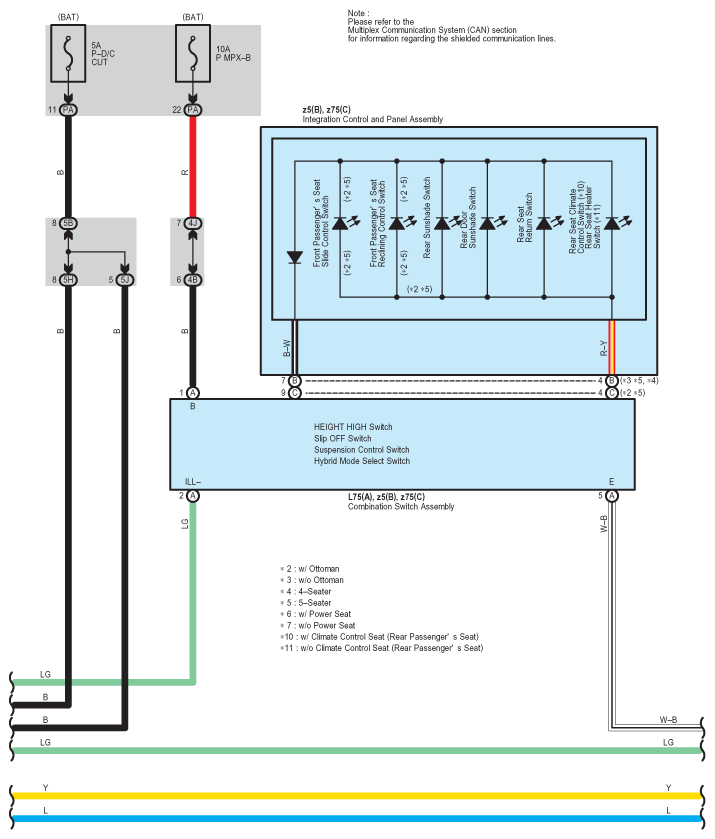

Fig 14: Illumination - Circuit Diagram (14 Of 15)

G07568631

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

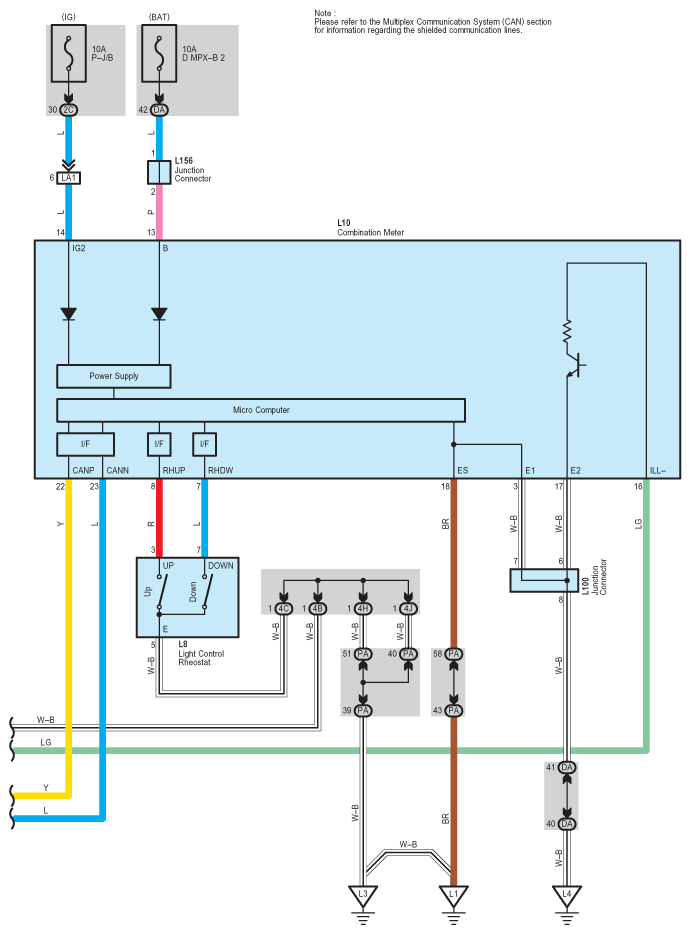

Fig 15: Illumination - Circuit Diagram (15 Of 15)

G07568632

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
