Lane Keeping Assist: Notes

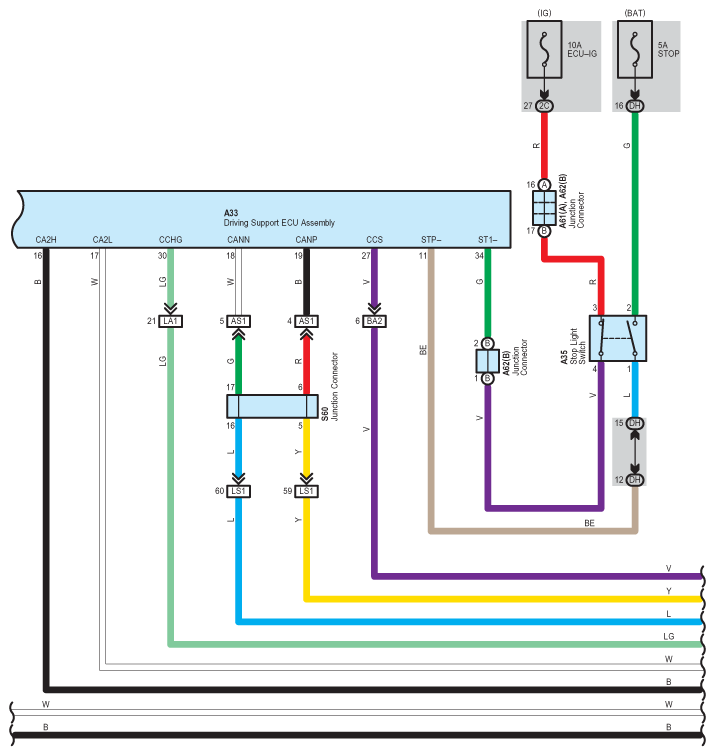

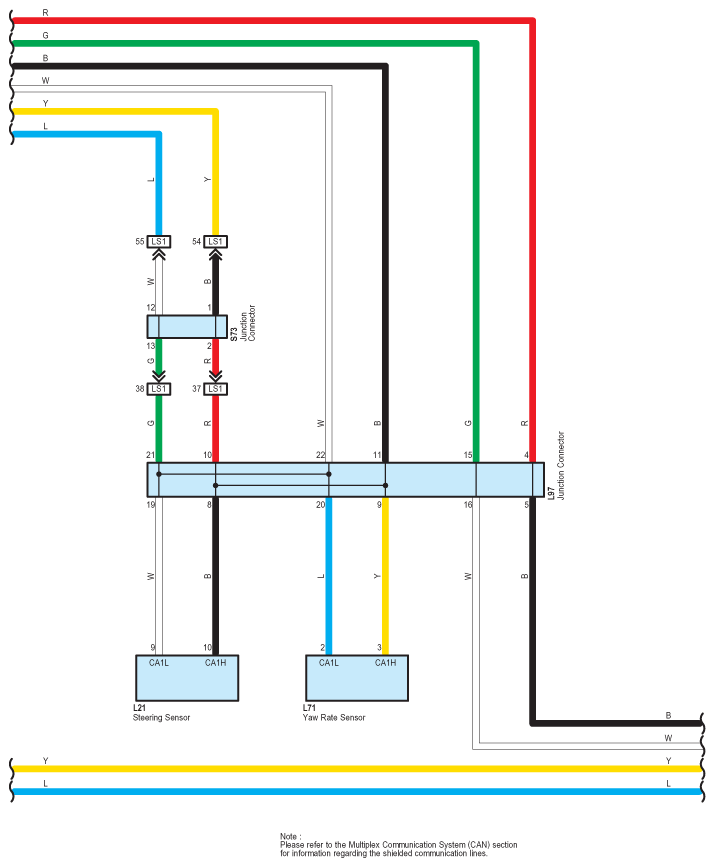

Fig 1: Lane Keeping Assist - Circuit Diagram (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

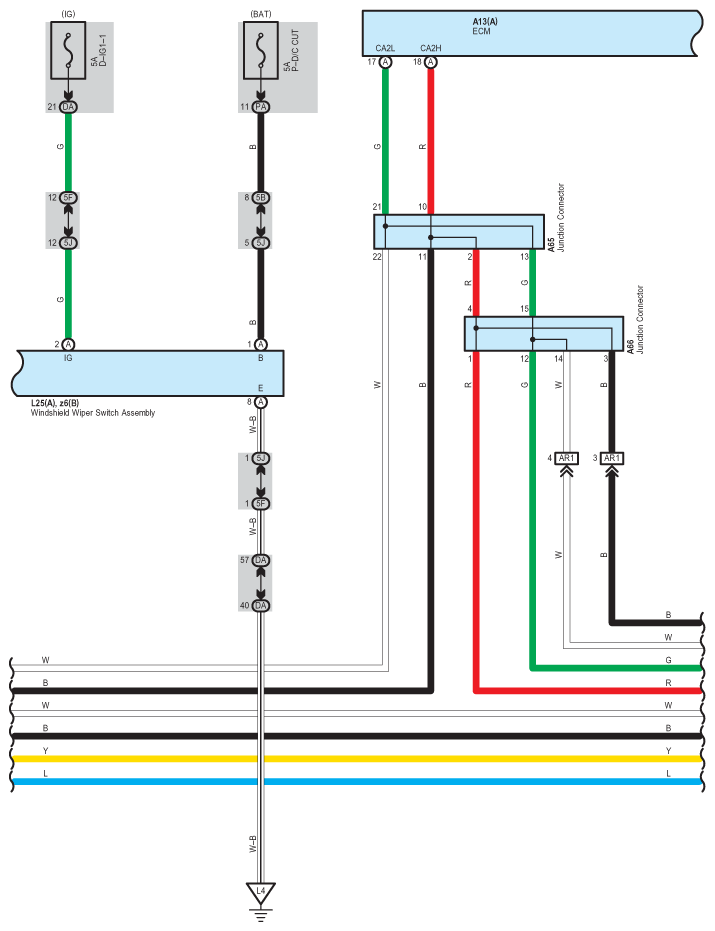

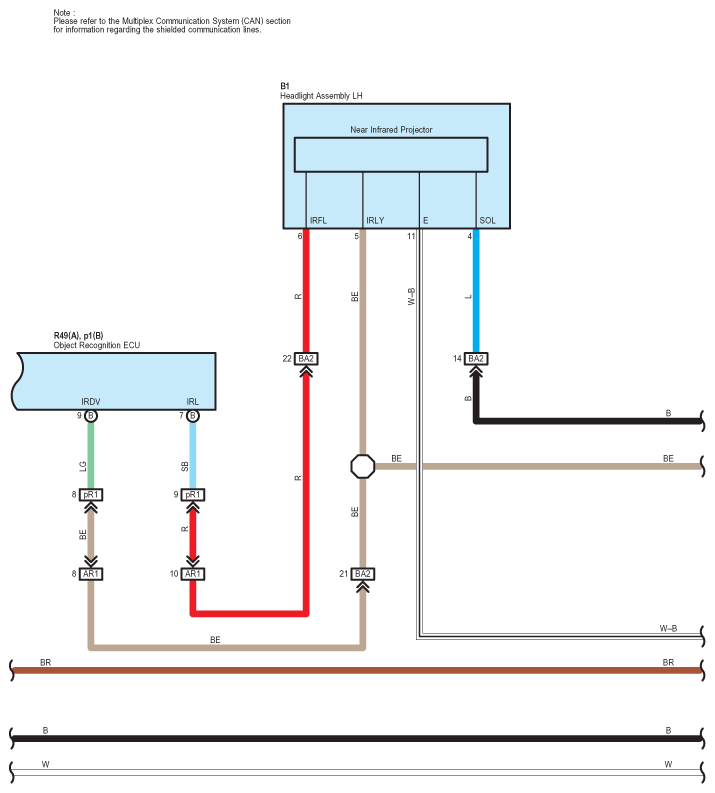

Fig 2: Lane Keeping Assist - Circuit Diagram (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

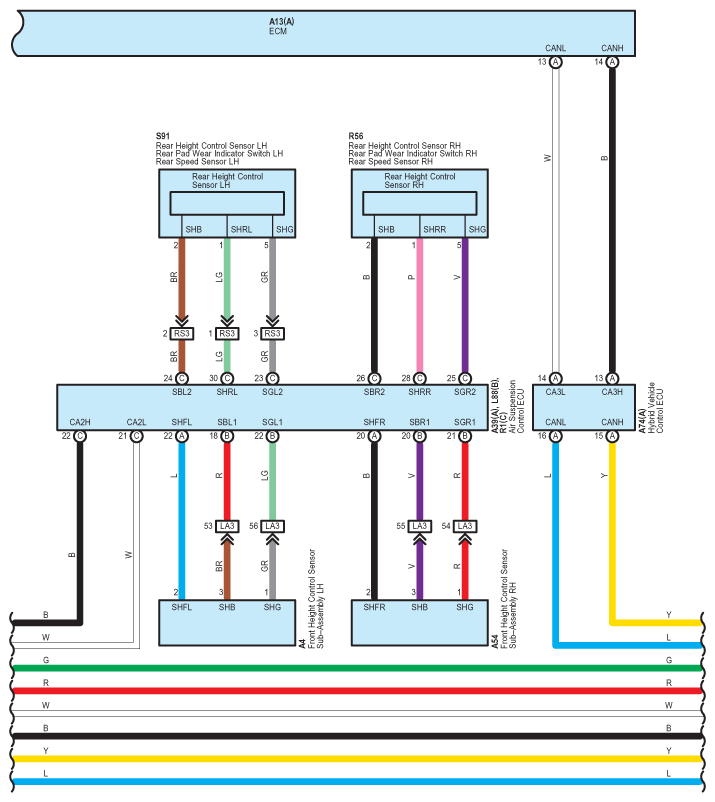

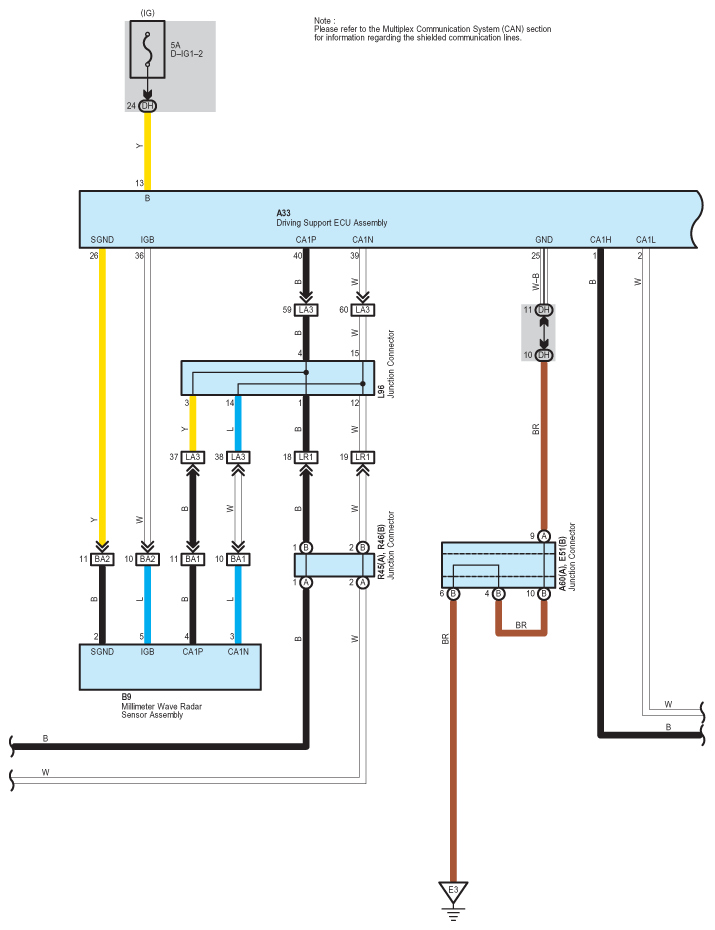

Fig 3: Lane Keeping Assist - Circuit Diagram (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

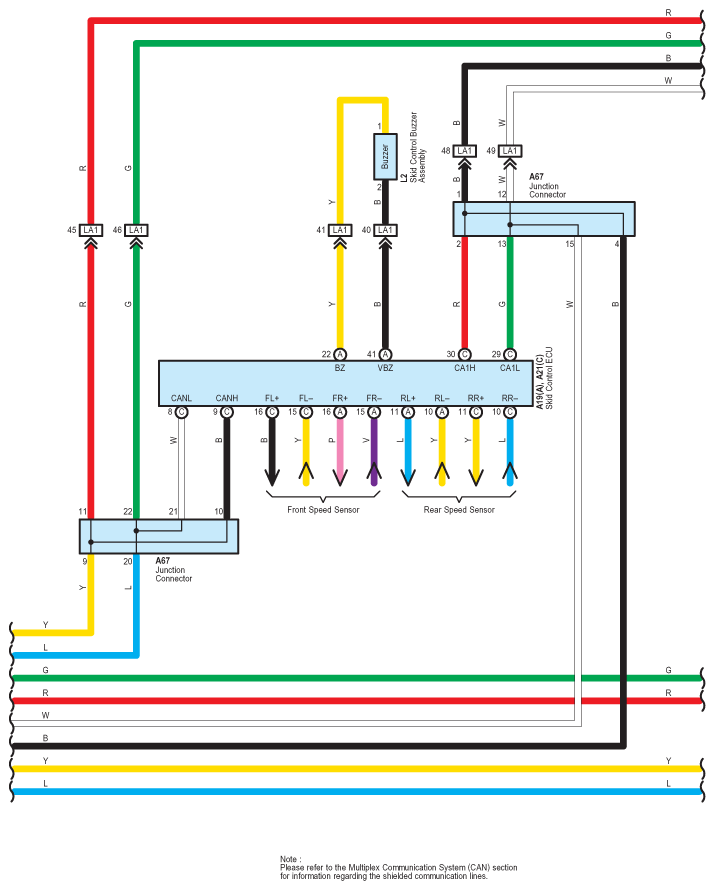

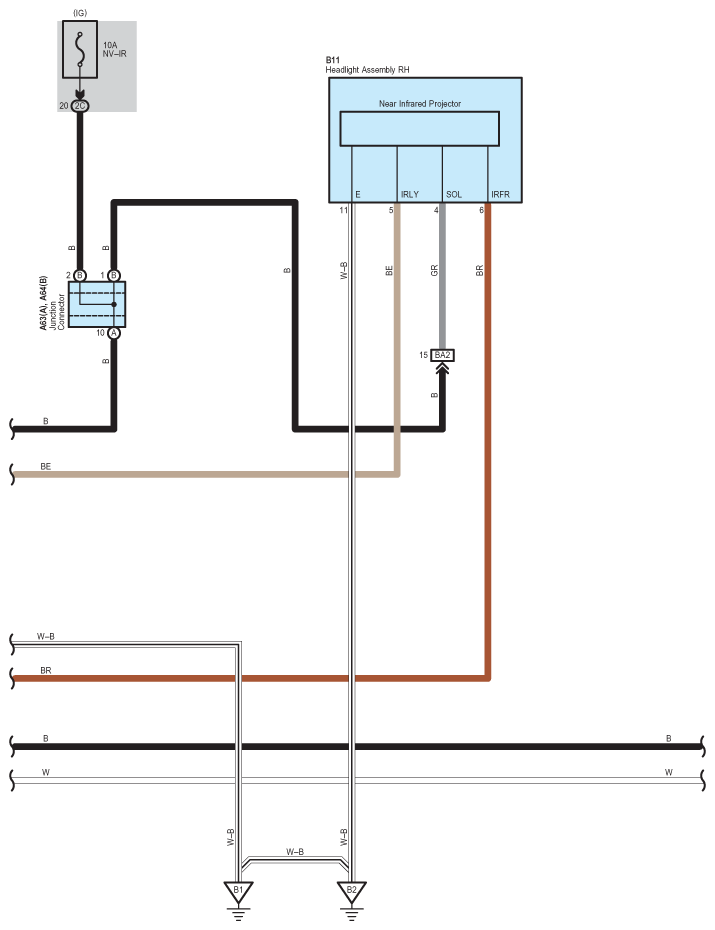

Fig 4: Lane Keeping Assist - Circuit Diagram (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

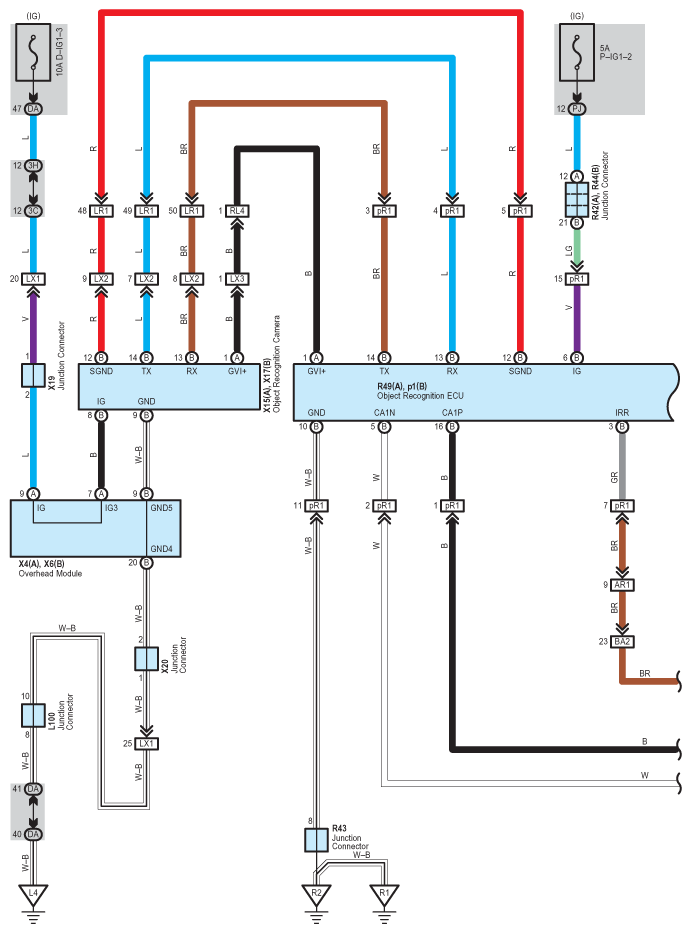

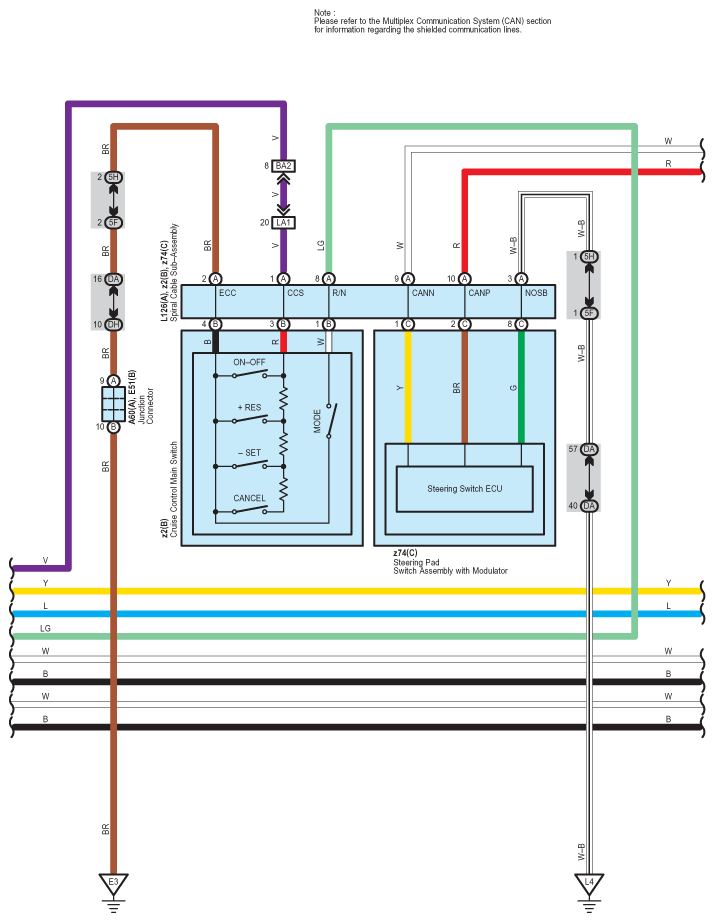

Fig 5: Lane Keeping Assist - Circuit Diagram (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

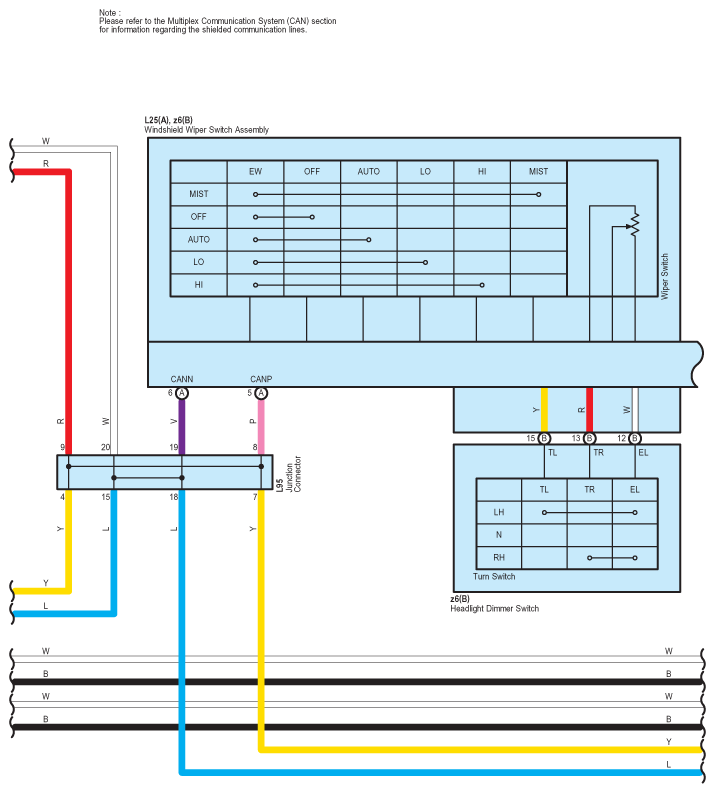

Fig 6: Lane Keeping Assist - Circuit Diagram (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

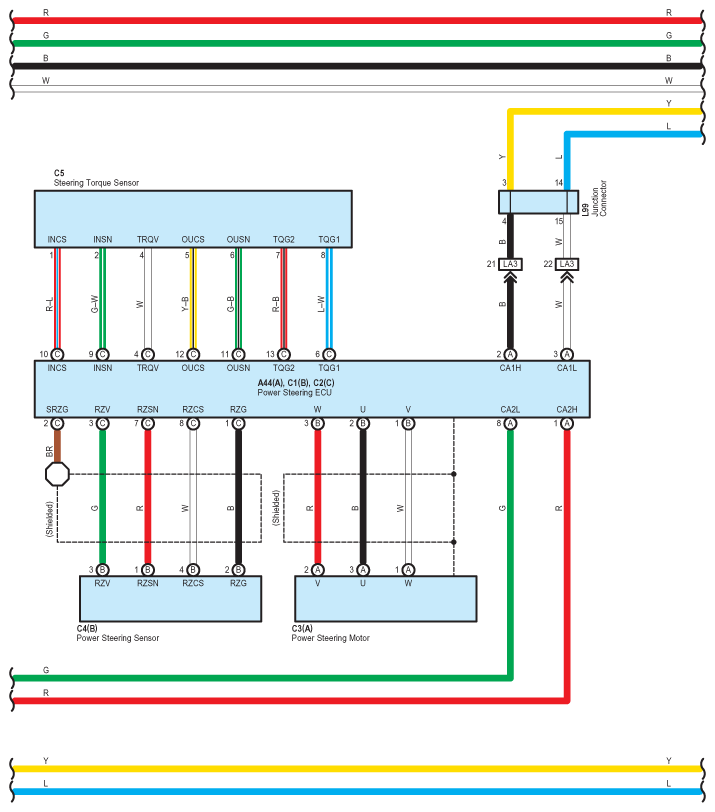

Fig 7: Lane Keeping Assist - Circuit Diagram (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

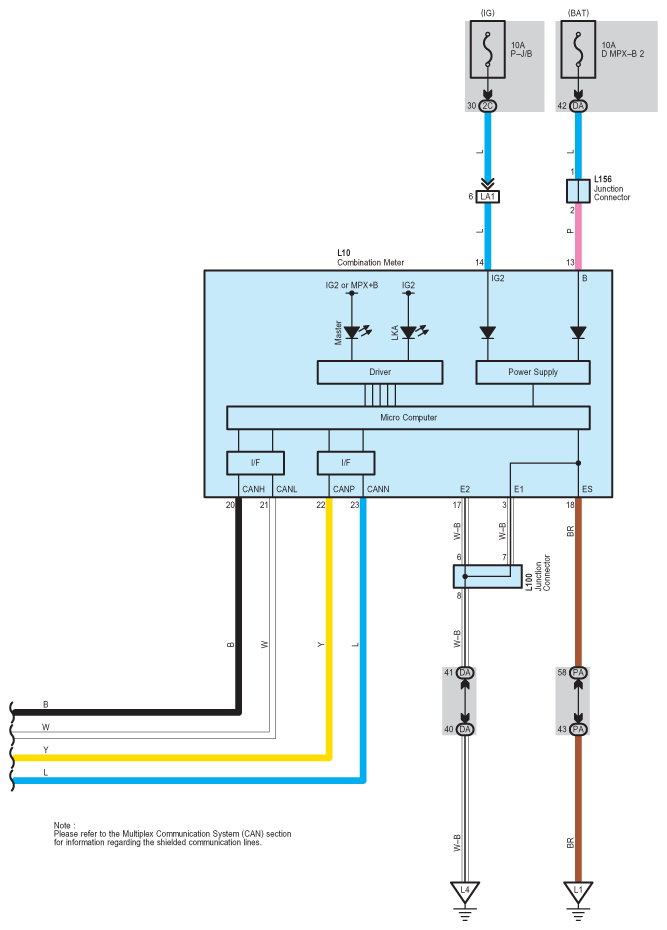

Fig 8: Lane Keeping Assist - Circuit Diagram (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Lane Keeping Assist - Circuit Diagram (9 Of 13)

Fig 10: Lane Keeping Assist - Circuit Diagram (10 Of 13)

Fig 11: Lane Keeping Assist - Circuit Diagram (11 Of 13)

Fig 12: Lane Keeping Assist - Circuit Diagram (12 Of 13)

Fig 13: Lane Keeping Assist - Circuit Diagram (13 Of 13)
