Confirmation Driving Pattern

HINT:

Performing this confirmation pattern will activate the mass air flow performance monitor.

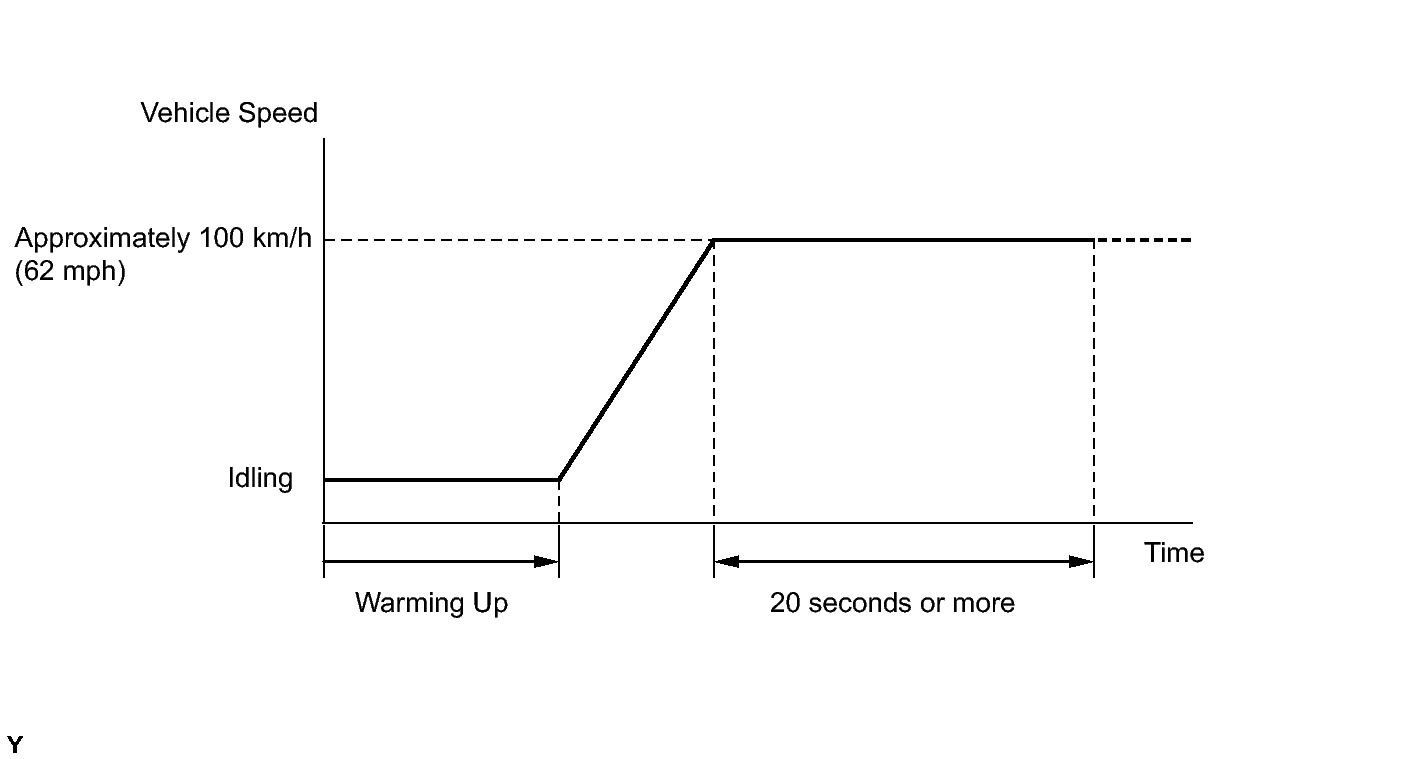

Fig 1: Confirmation Driving Pattern Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream ON.
4. Clear DTCs. Refer to DTC CHECK / CLEAR .
5. Start the engine, and warm it up until the engine coolant temperature reaches 70°C (158°F) or higher.
6. Drive the vehicle at approximately 100 km/h (62 mph) for 20 seconds or more.
7. On the Techstream, enter the following menus: Powertrain / Engine and ECT / Trouble Codes / Pending; then check if any DTCs (any pending DTCs) are set.
