Pre-Collision System: Notes

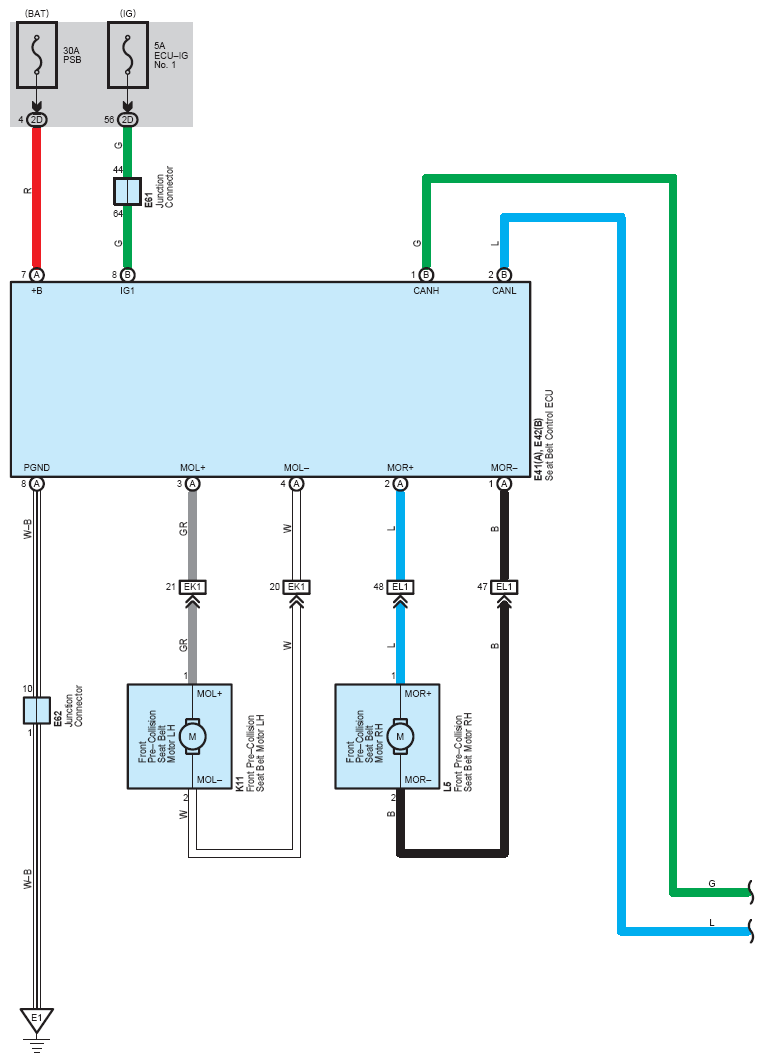

Fig 1: Pre-Collision System - Circuit Diagram (1 Of 5)
G07562213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

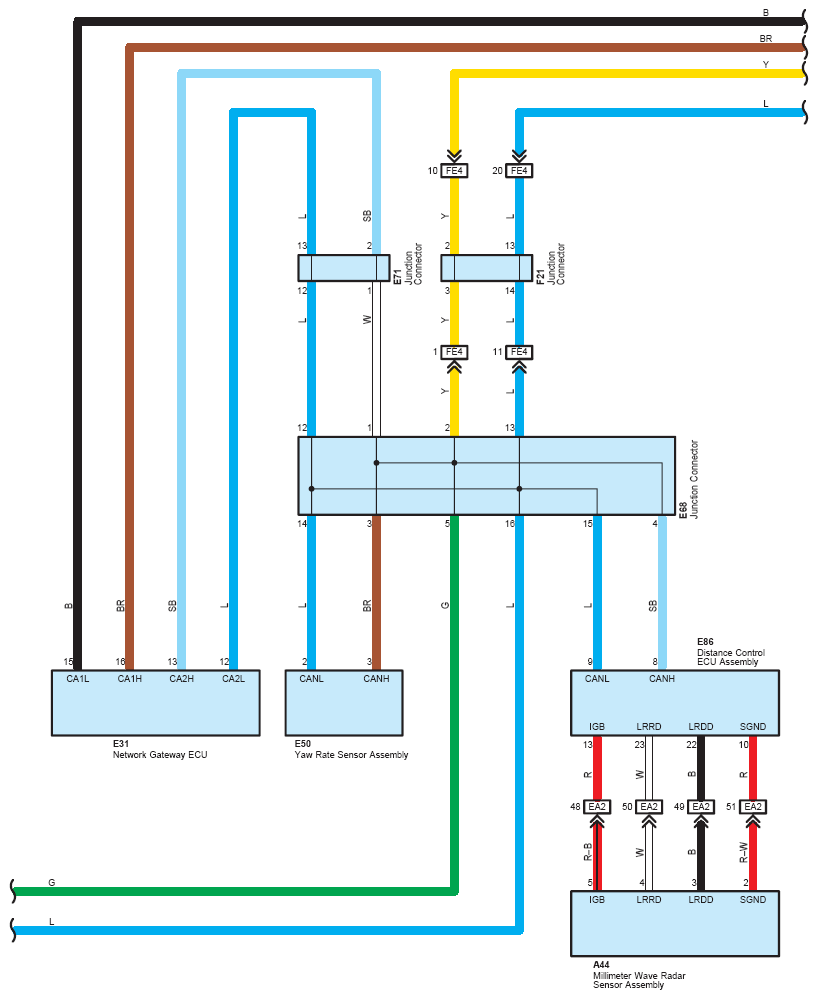

Fig 2: Pre-Collision System - Circuit Diagram (2 Of 5)
G07562214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

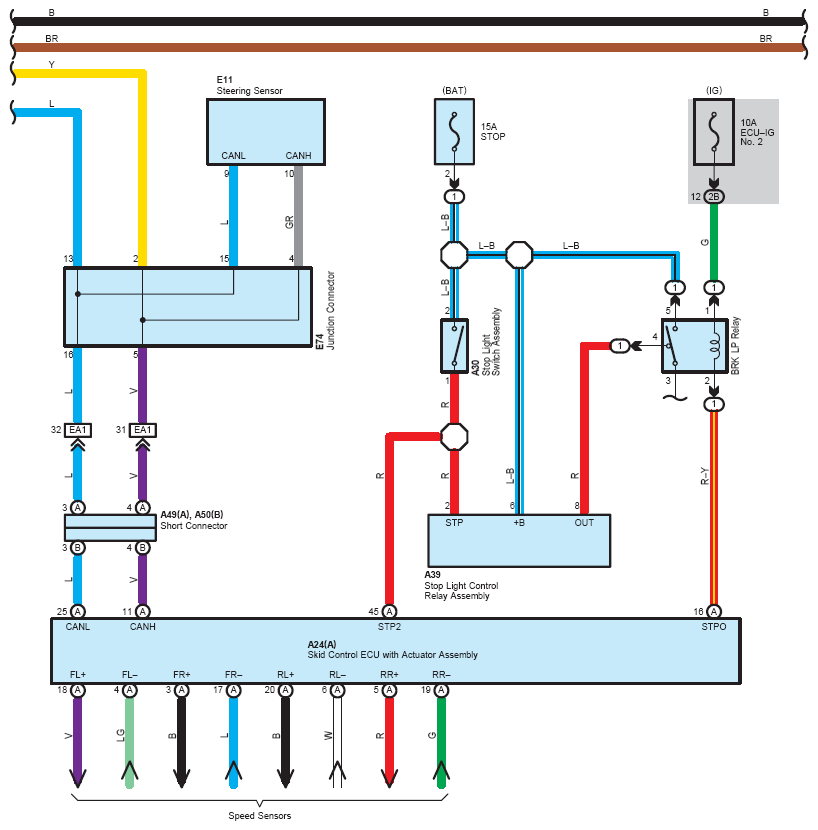

Fig 3: Pre-Collision System - Circuit Diagram (3 Of 5)
G07562215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

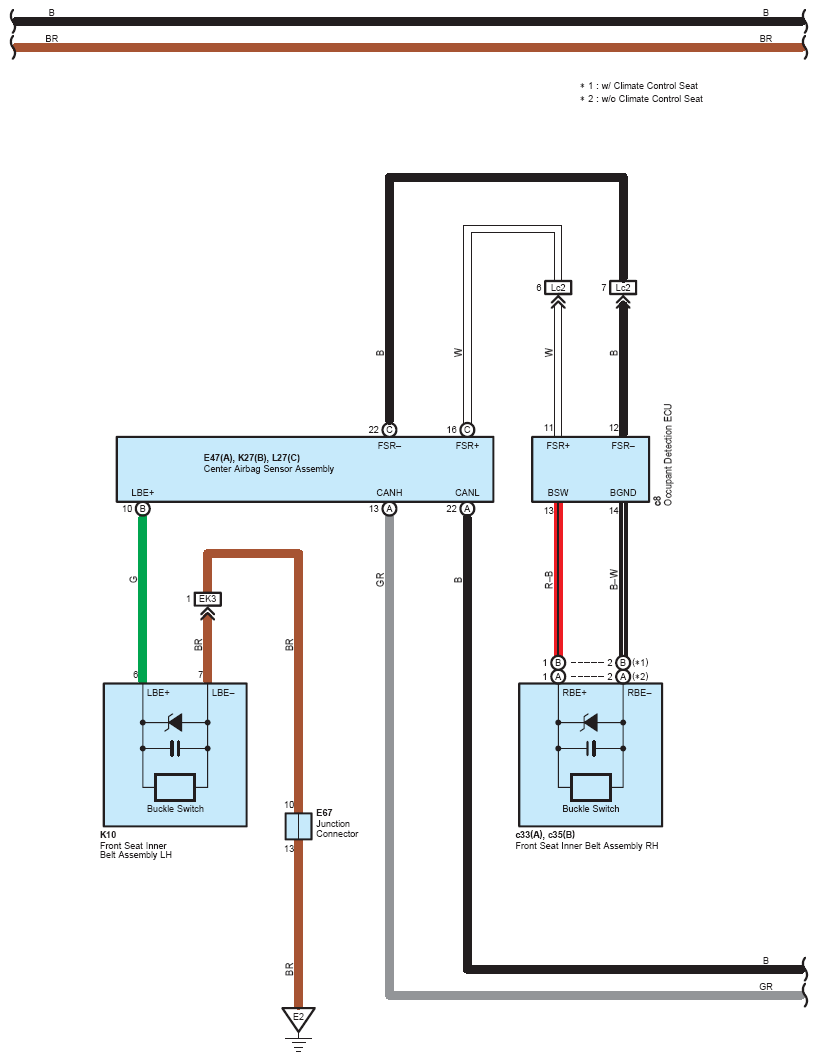

Fig 4: Pre-Collision System - Circuit Diagram (4 Of 5)
G07562216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

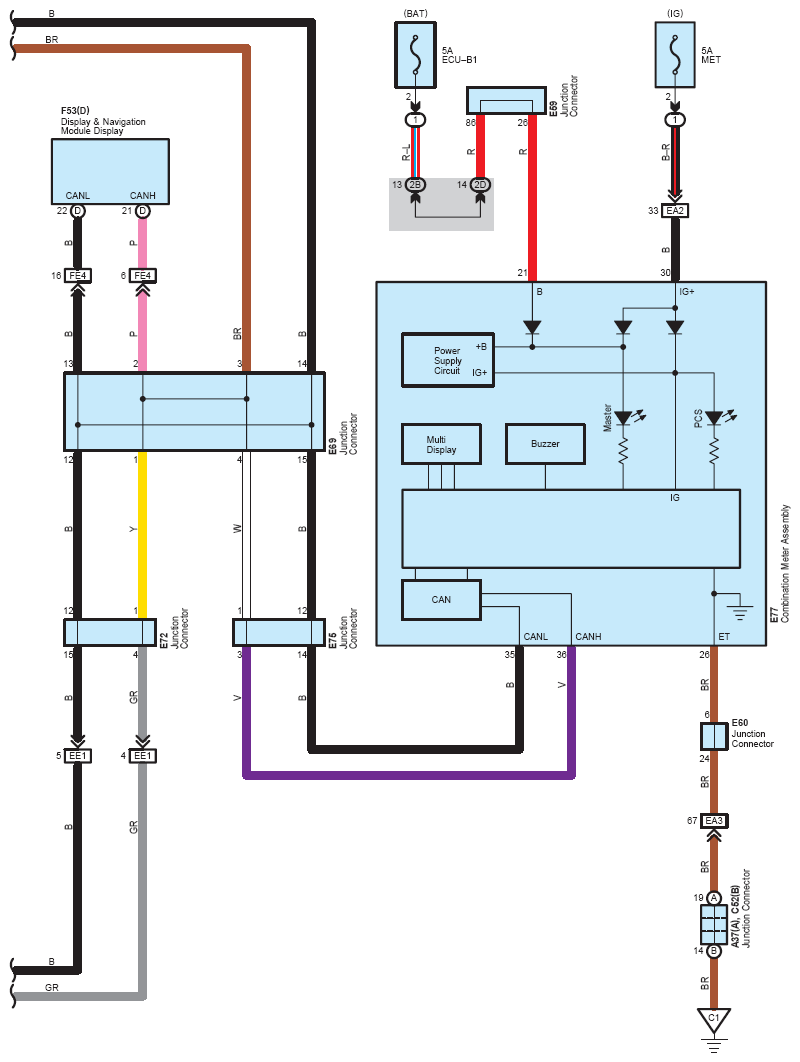

Fig 5: Pre-Collision System - Circuit Diagram (5 Of 5)
G07562217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
