Dynamic Radar Cruise Control: Notes

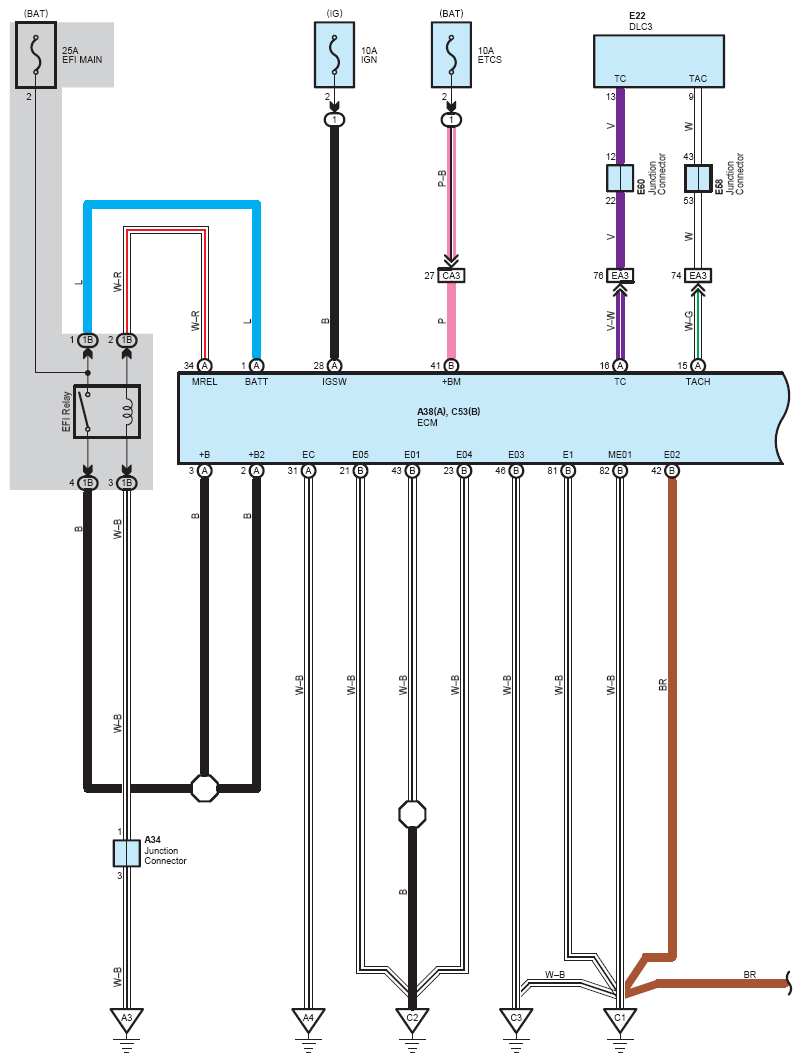

Fig 1: Dynamic Radar Cruise Control - Circuit Diagram (1 Of 13)
G07562155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

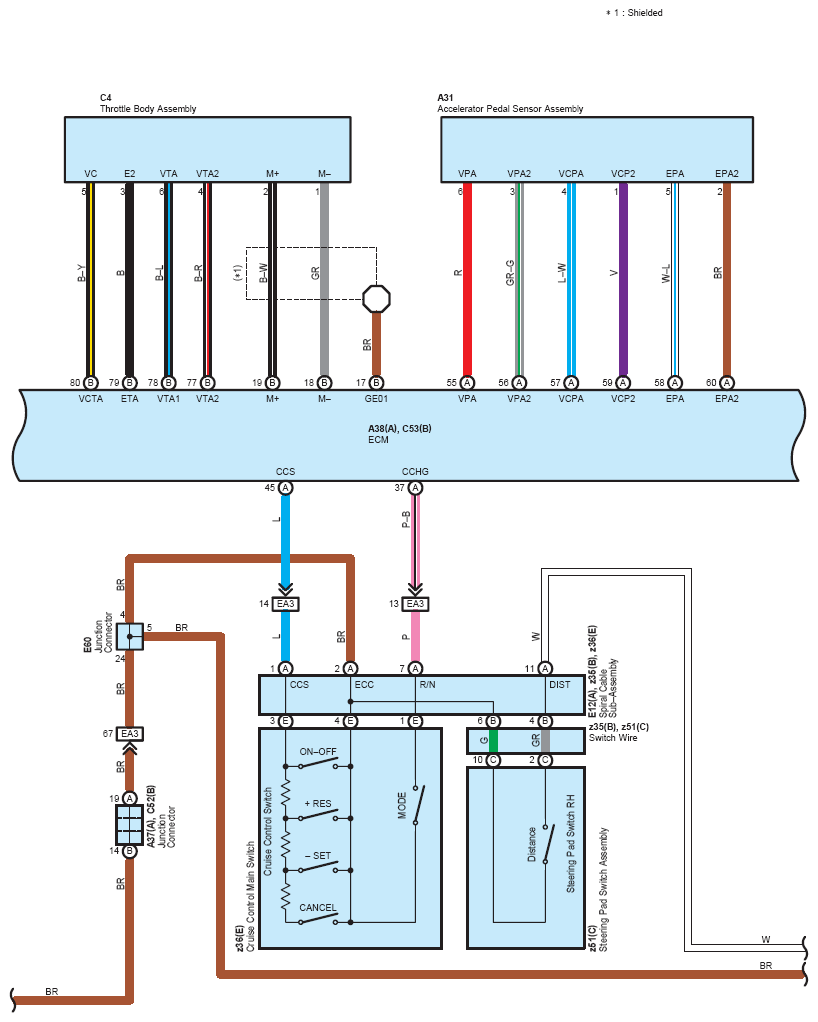

Fig 2: Dynamic Radar Cruise Control - Circuit Diagram (2 Of 13)
G07562156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

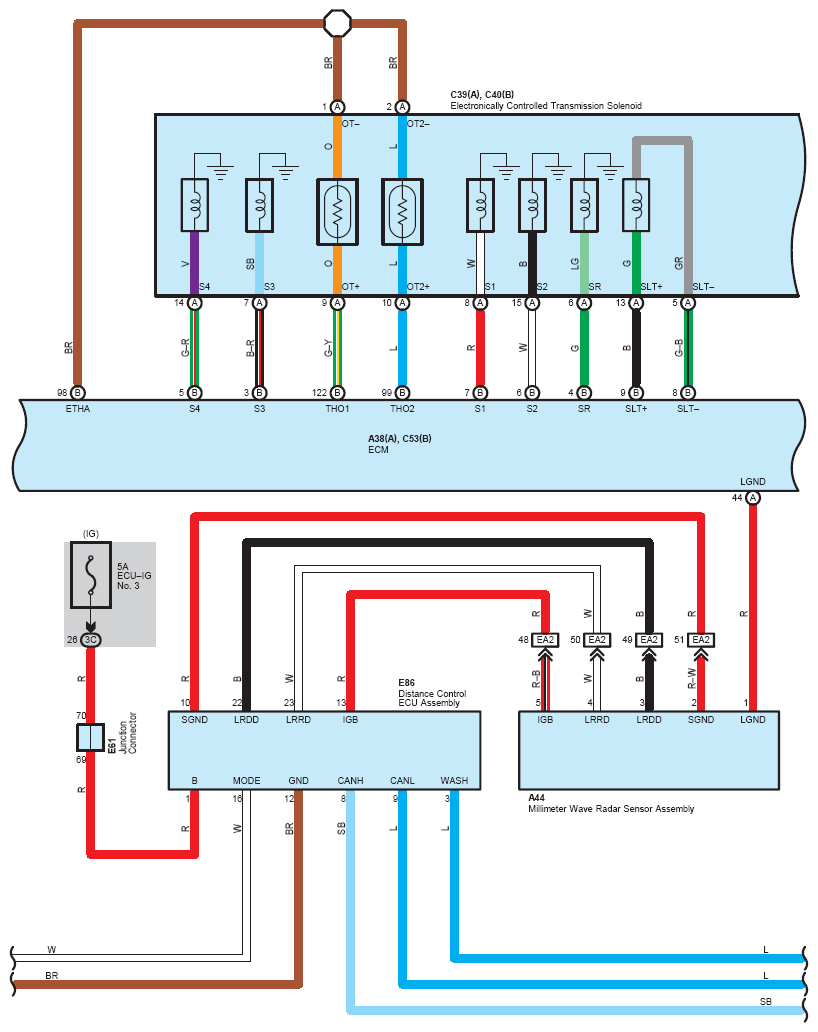

Fig 3: Dynamic Radar Cruise Control - Circuit Diagram (3 Of 13)
G07562157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

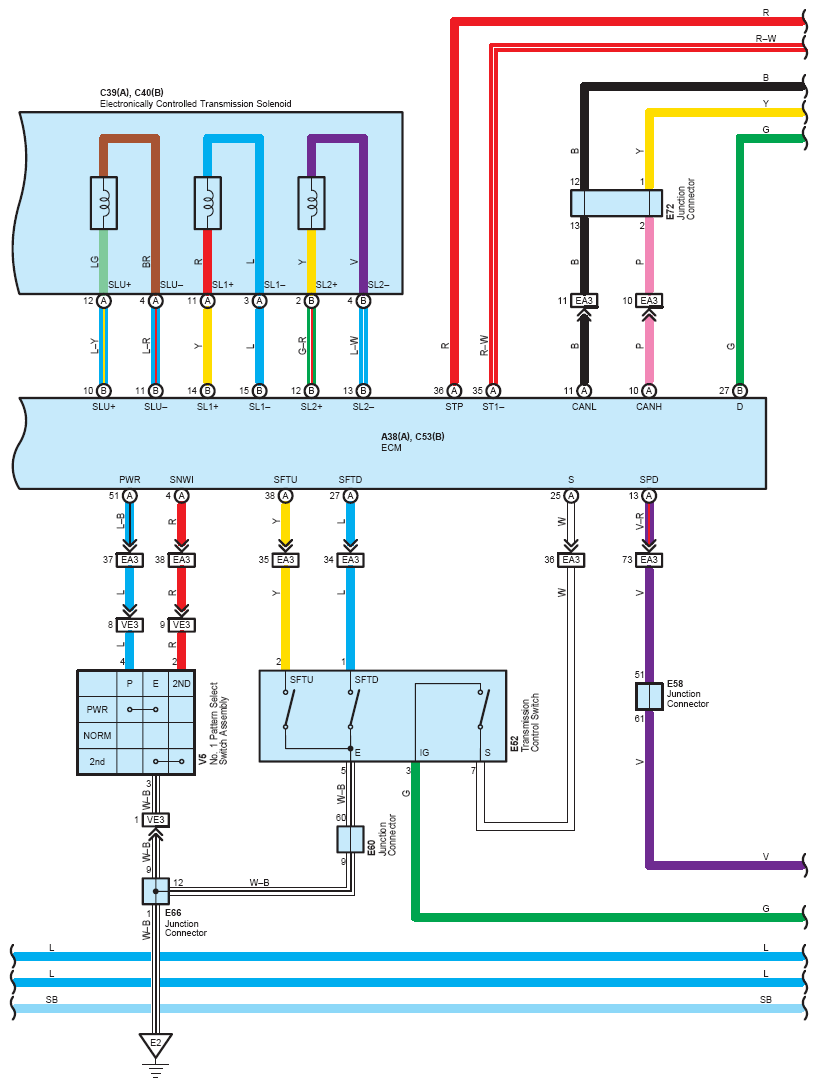

Fig 4: Dynamic Radar Cruise Control - Circuit Diagram (4 Of 13)
G07562158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

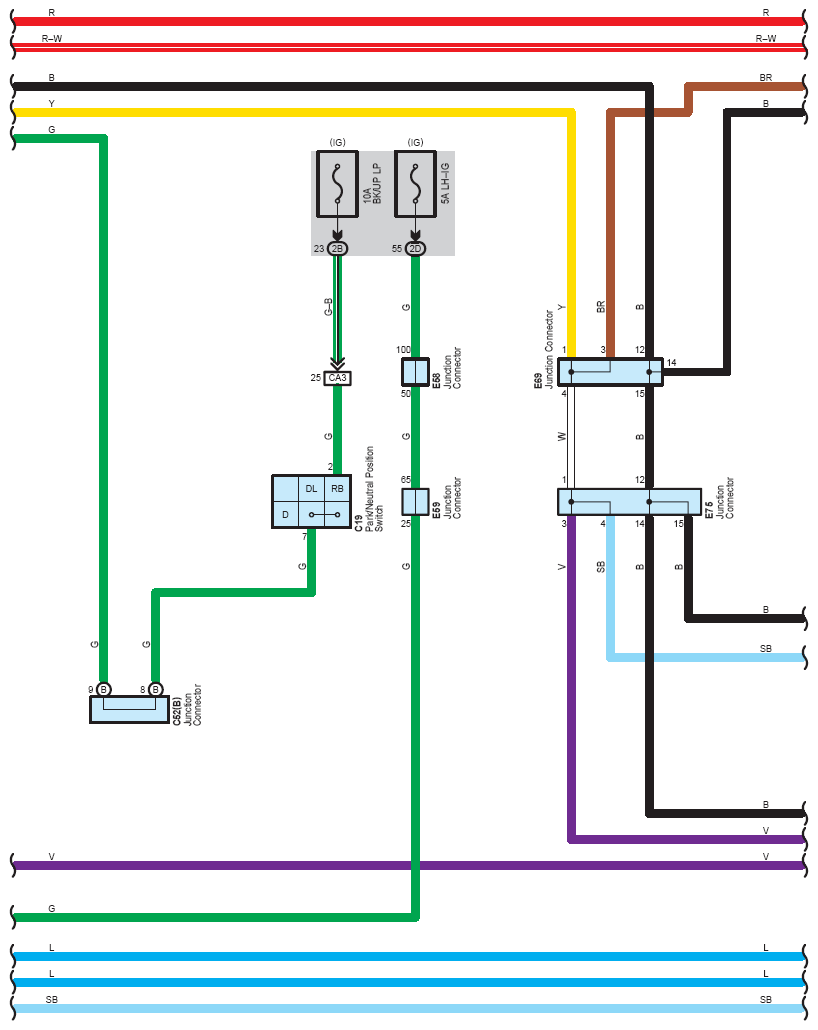

Fig 5: Dynamic Radar Cruise Control - Circuit Diagram (5 Of 13)
G07562159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

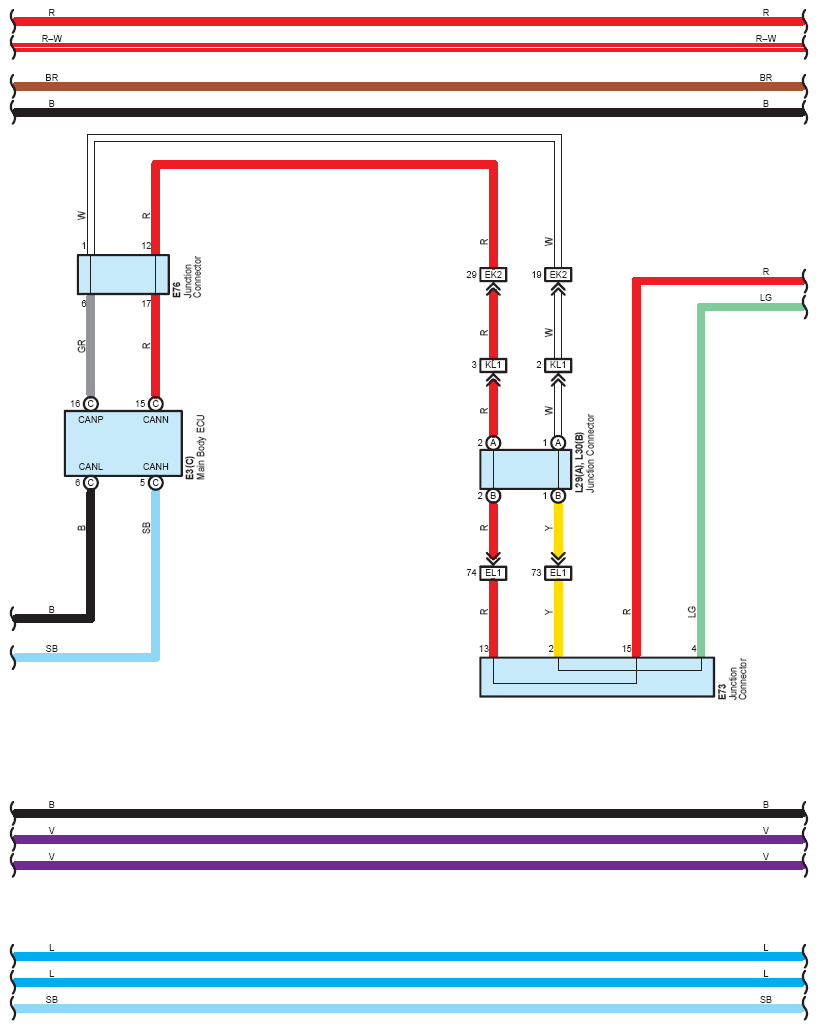

Fig 6: Dynamic Radar Cruise Control - Circuit Diagram (6 Of 13)
G07562160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

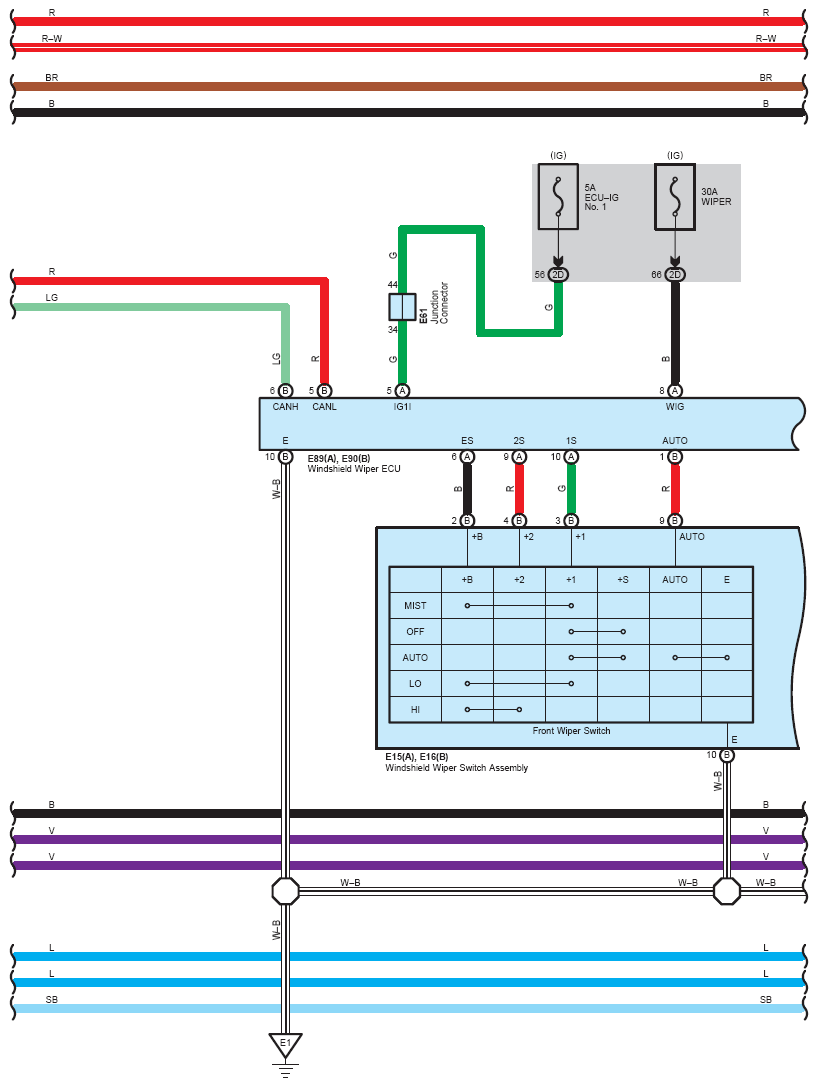

Fig 7: Dynamic Radar Cruise Control - Circuit Diagram (7 Of 13)
G07562161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

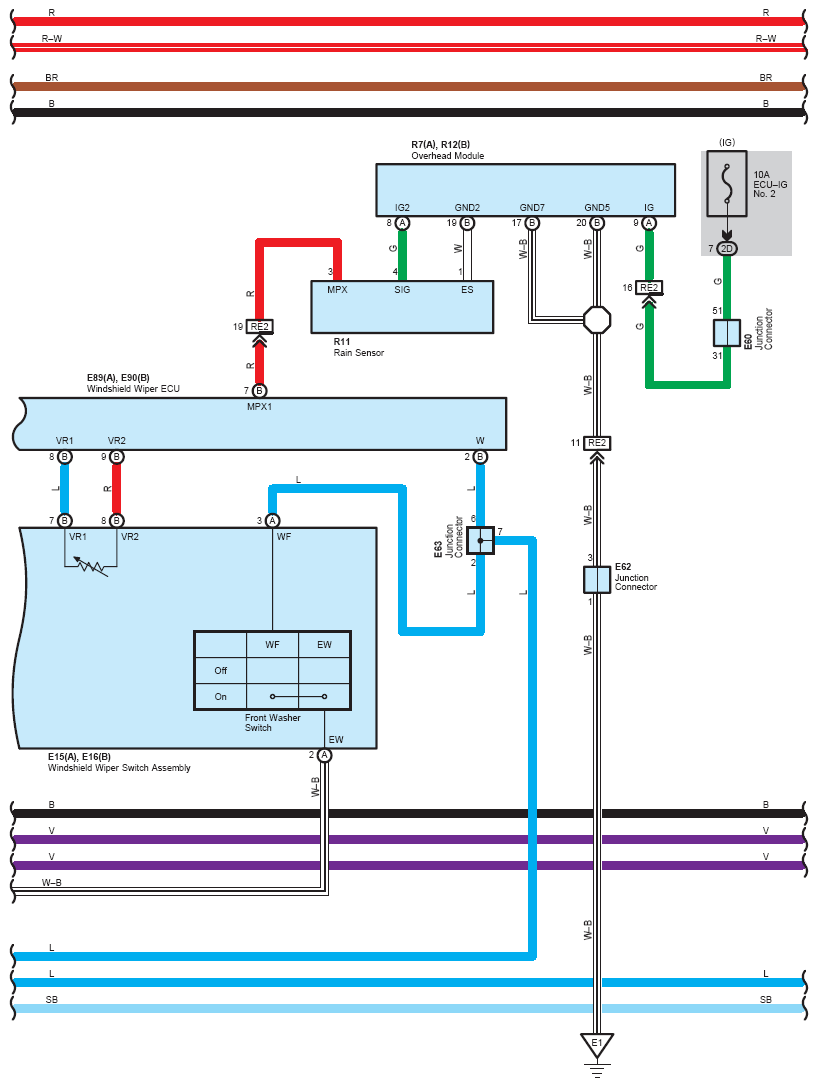

Fig 8: Dynamic Radar Cruise Control - Circuit Diagram (8 Of 13)
G07562162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

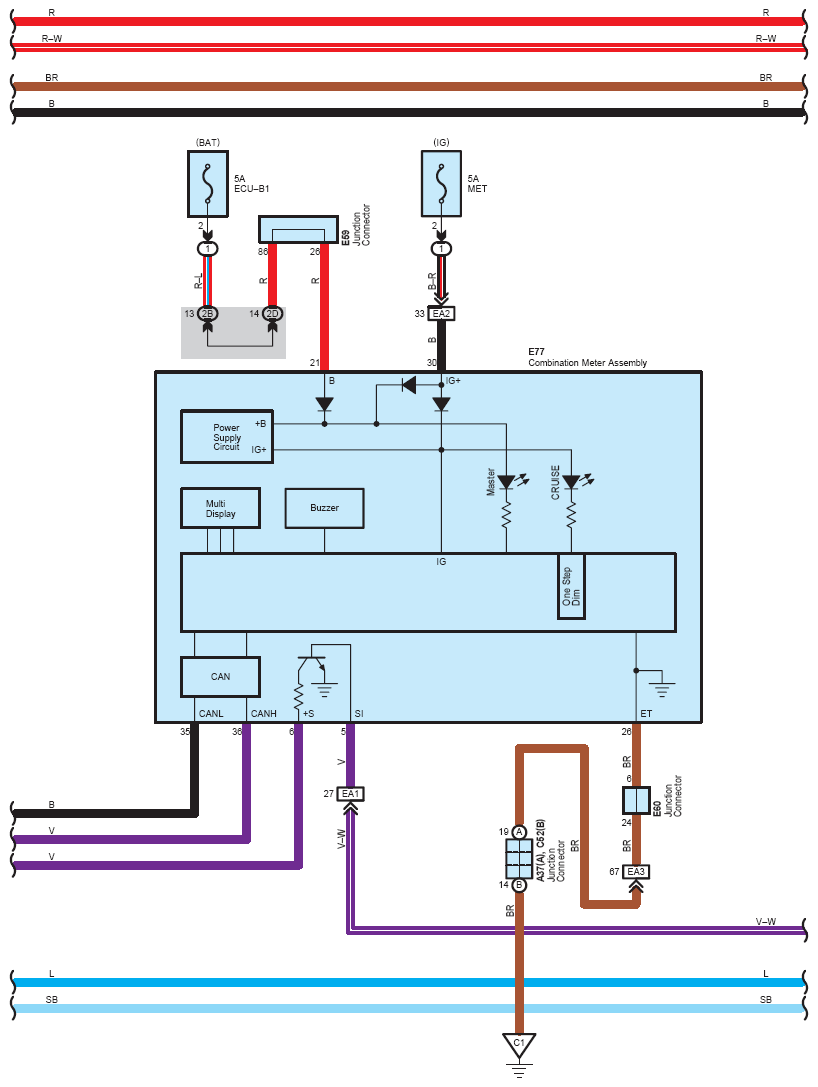

Fig 9: Dynamic Radar Cruise Control - Circuit Diagram (9 Of 13)
G07562163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

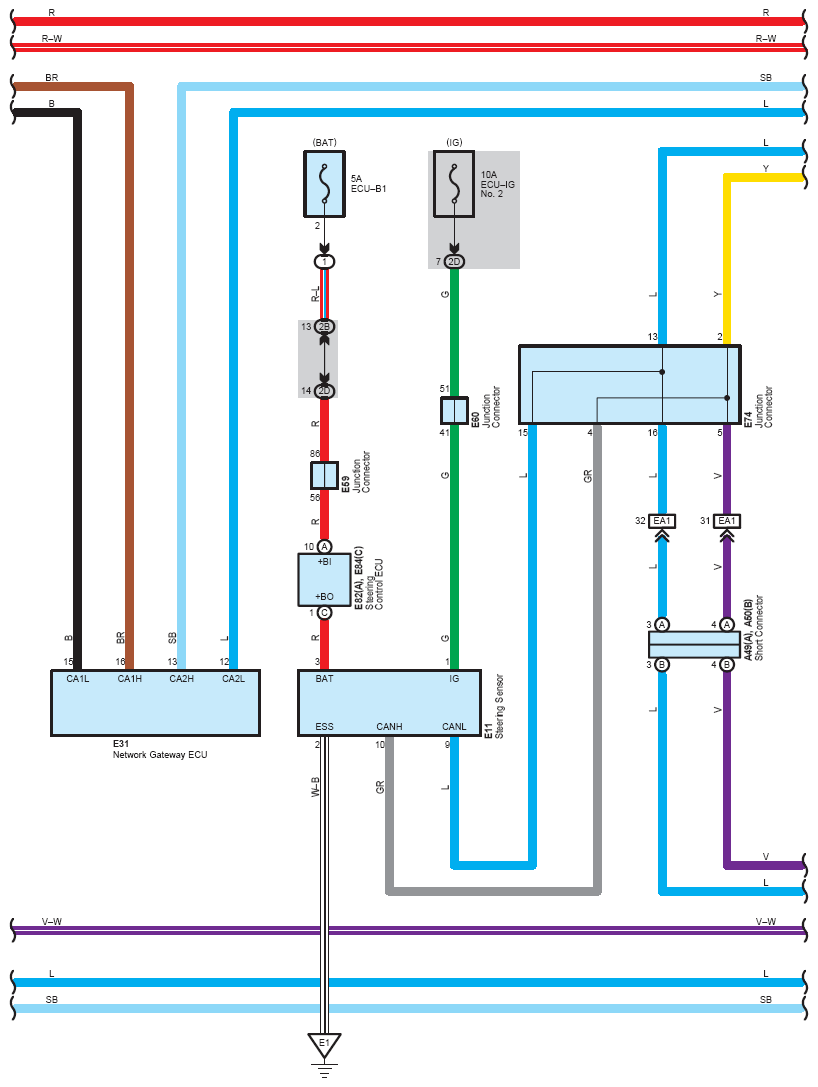

Fig 10: Dynamic Radar Cruise Control - Circuit Diagram (10 Of 13)
G07562164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

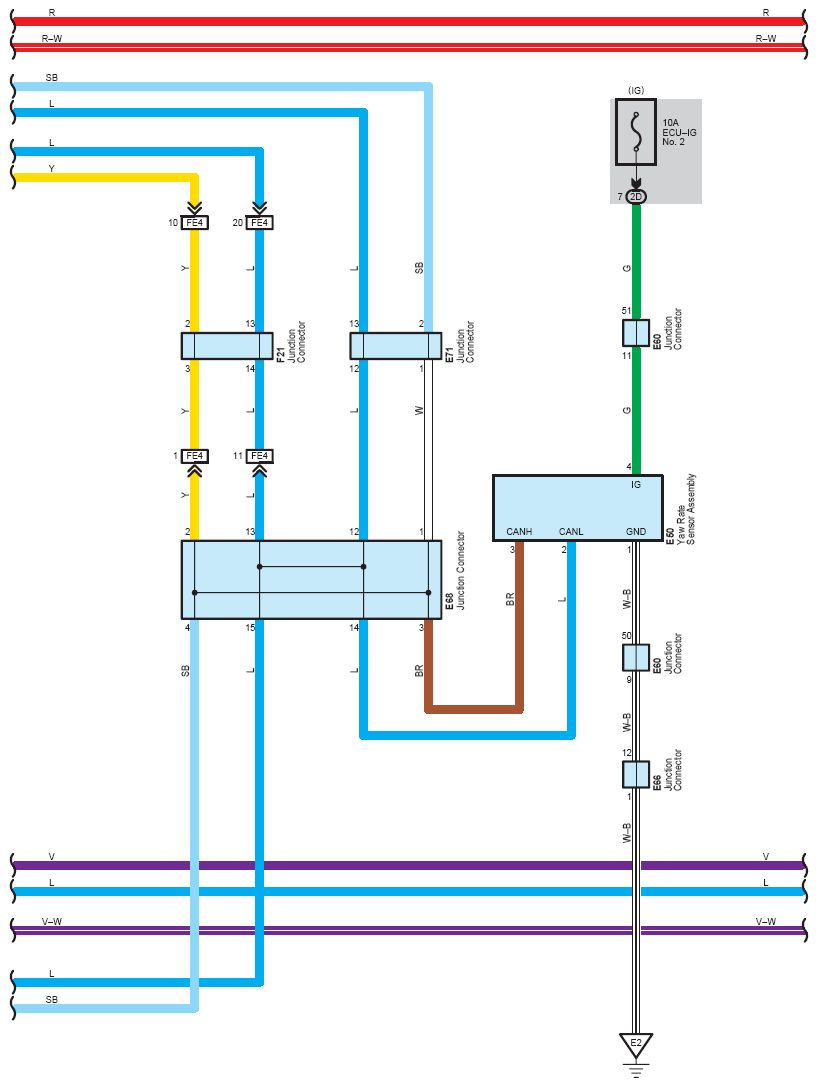

Fig 11: Dynamic Radar Cruise Control - Circuit Diagram (11 Of 13)
G07562165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

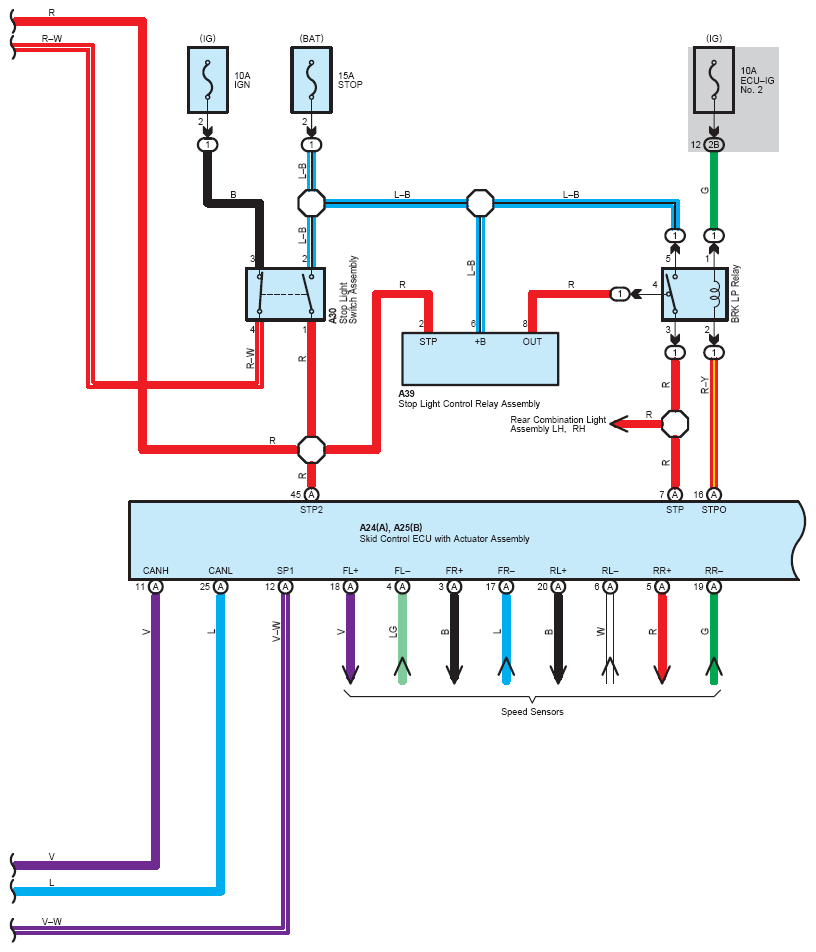

Fig 12: Dynamic Radar Cruise Control - Circuit Diagram (12 Of 13)
G07562166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

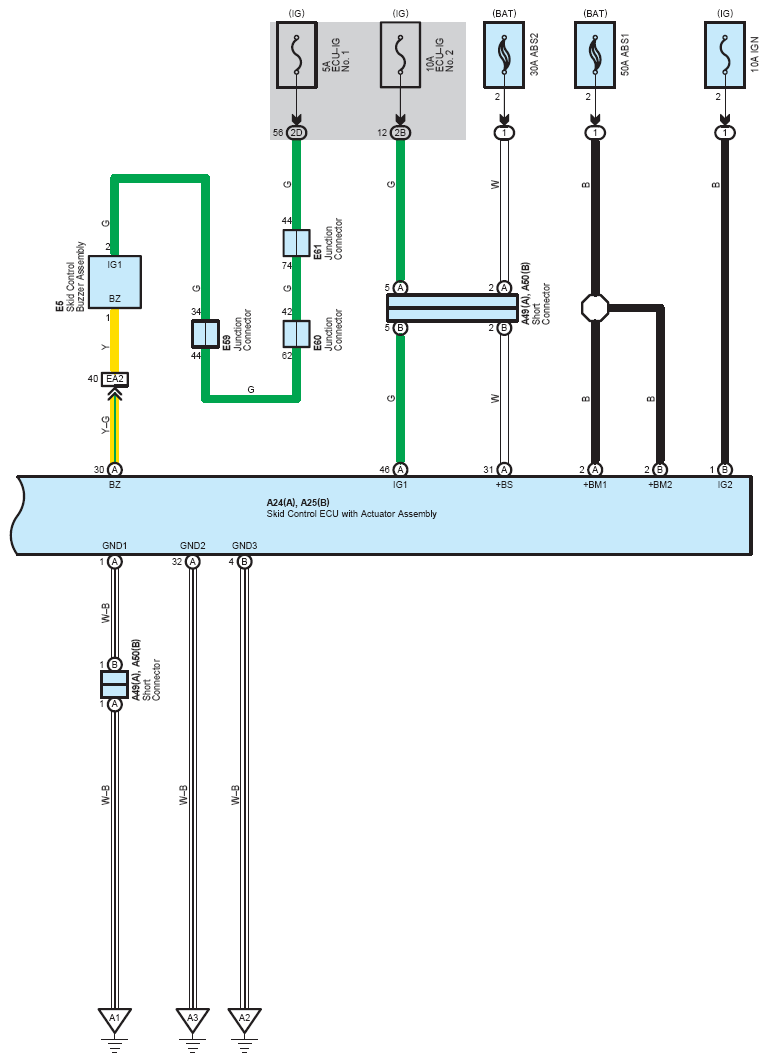

Fig 13: Dynamic Radar Cruise Control - Circuit Diagram (13 Of 13)
G07562167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
