Multi Mode 4WD: Notes

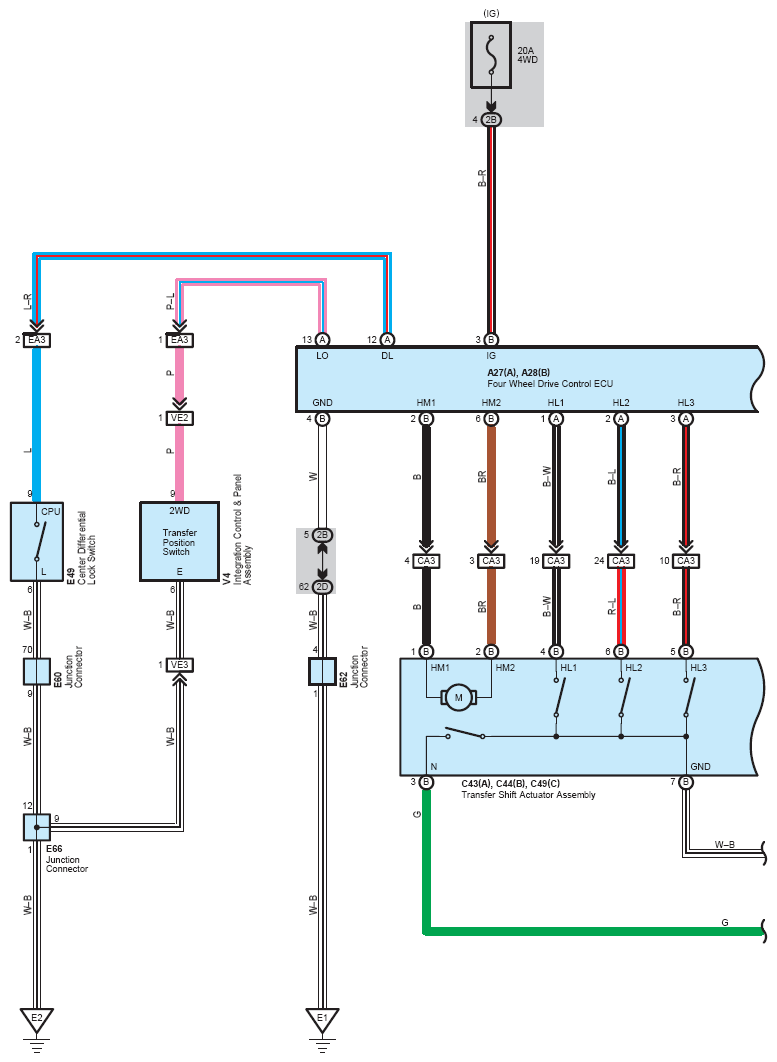

Fig 1: Multi Mode 4WD - Circuit Diagram (1 Of 7)

G07562186

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

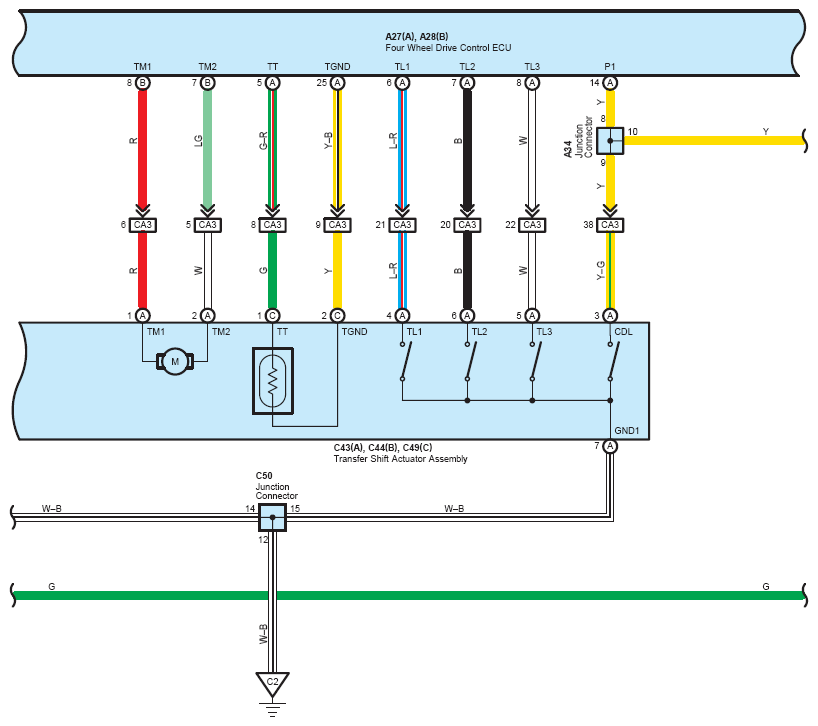

Fig 2: Multi Mode 4WD - Circuit Diagram (2 Of 7)

G07562187

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

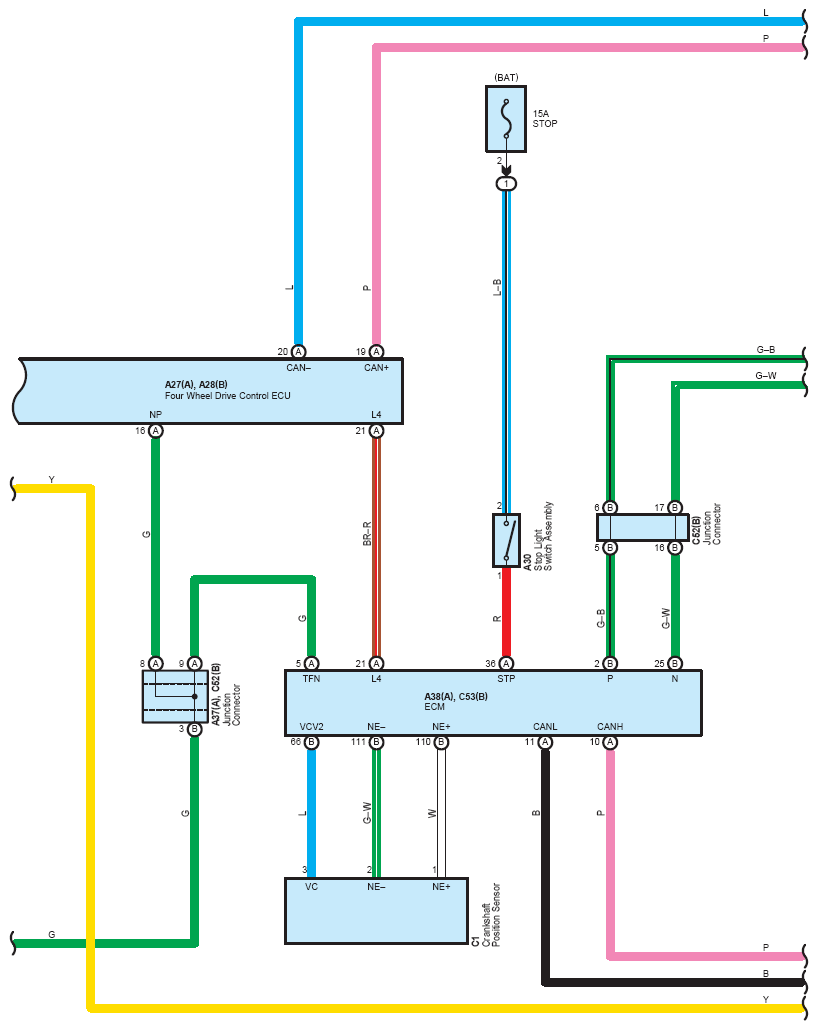

Fig 3: Multi Mode 4WD - Circuit Diagram (3 Of 7)

G07562188

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

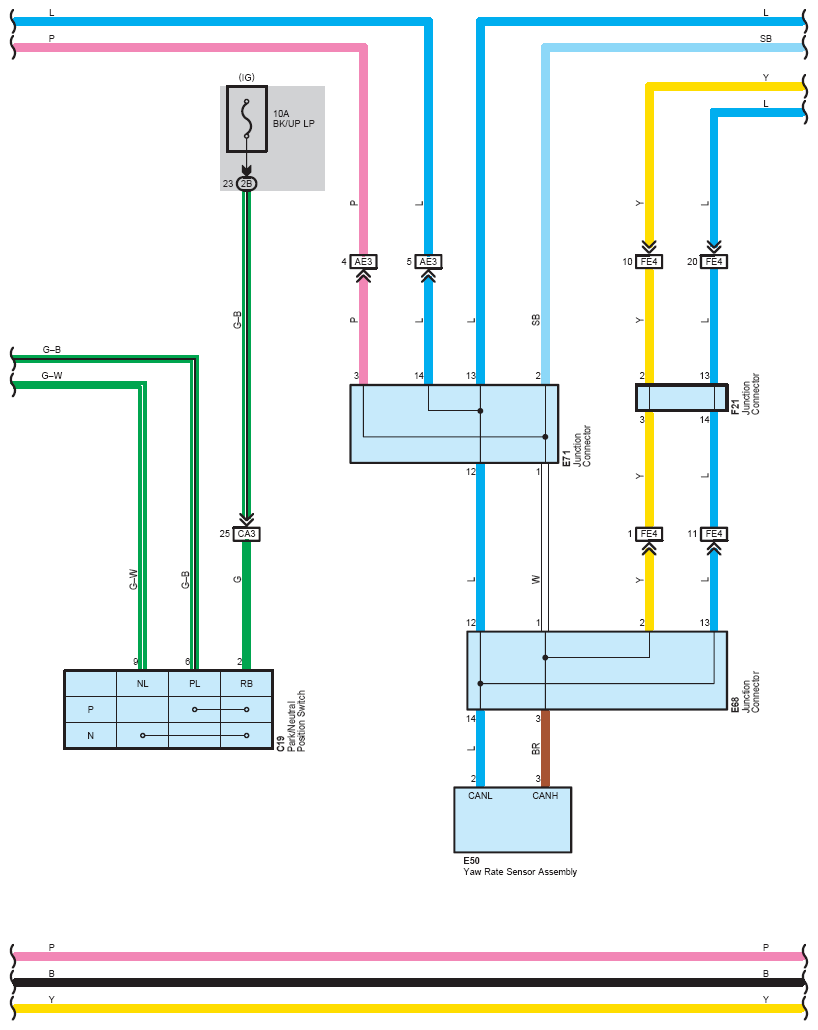

Fig 4: Multi Mode 4WD - Circuit Diagram (4 Of 7)

G07562189

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

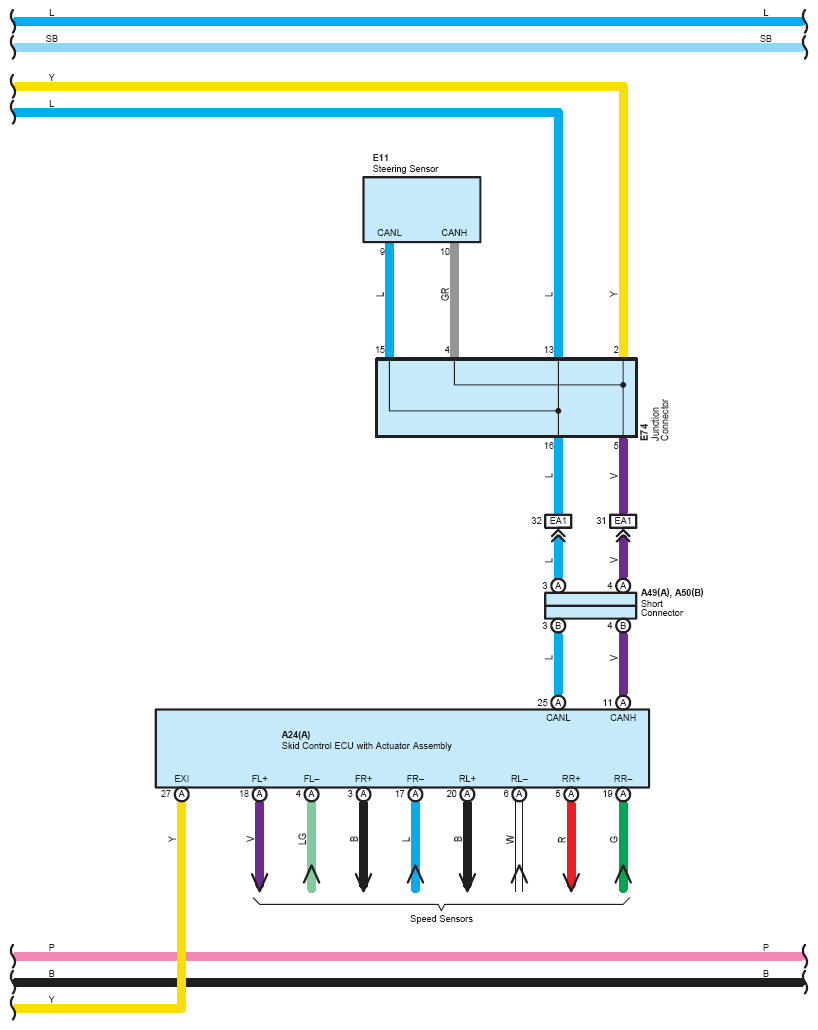

Fig 5: Multi Mode 4WD - Circuit Diagram (5 Of 7)

G07562190

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

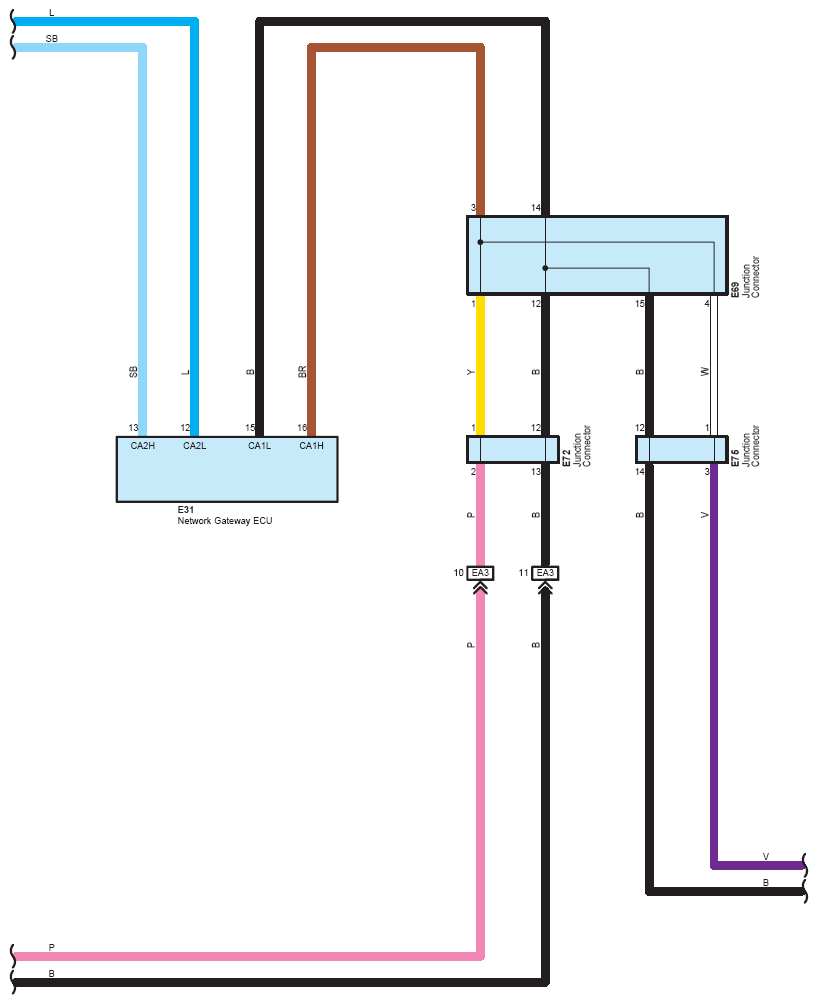

Fig 6: Multi Mode 4WD - Circuit Diagram (6 Of 7)

G07562191

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

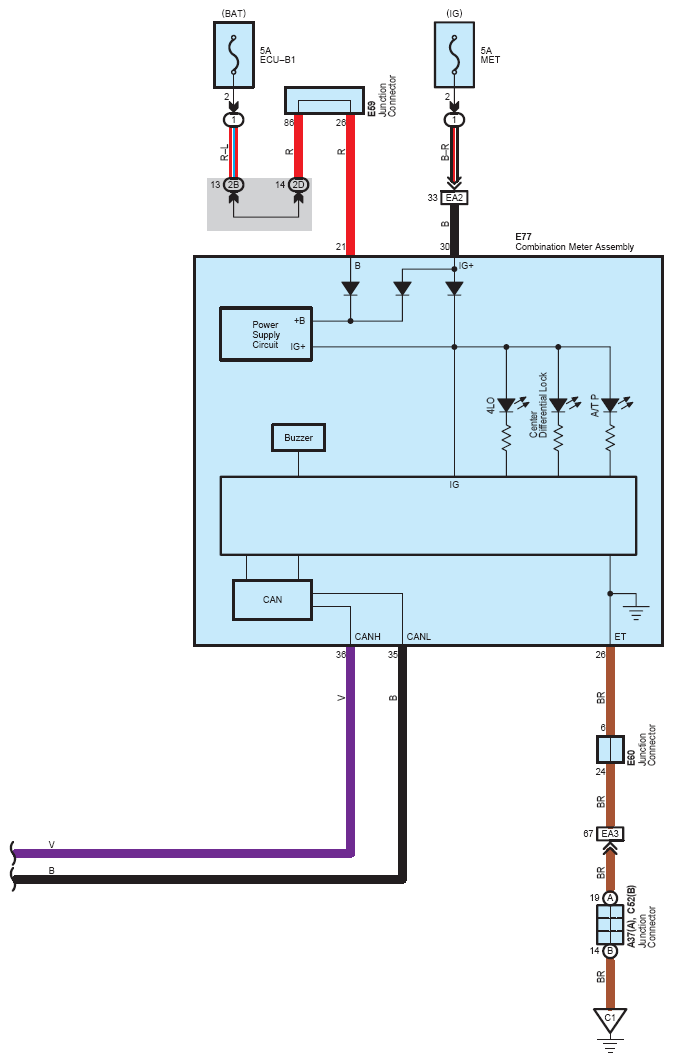

Fig 7: Multi Mode 4WD - Circuit Diagram (7 Of 7)

G07562192

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
