Power Back Door: Notes

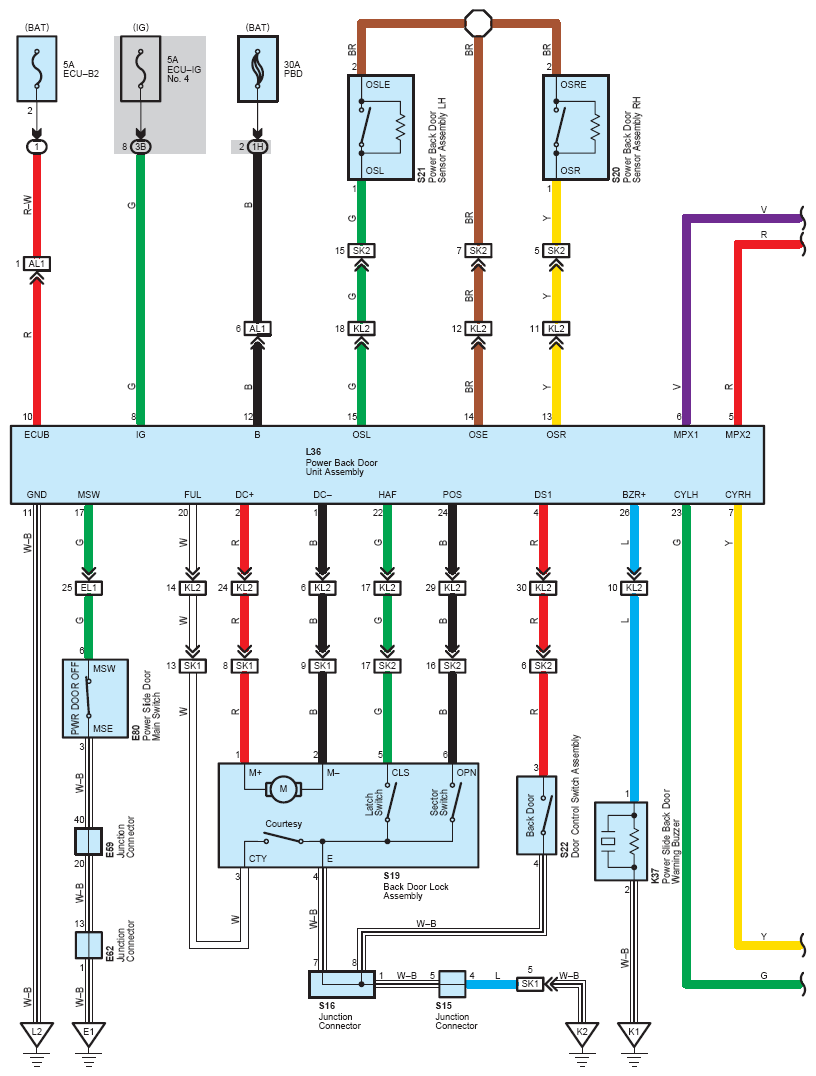

Fig 1: Power Back Door - Circuit Diagram (1 Of 5)
G07562150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

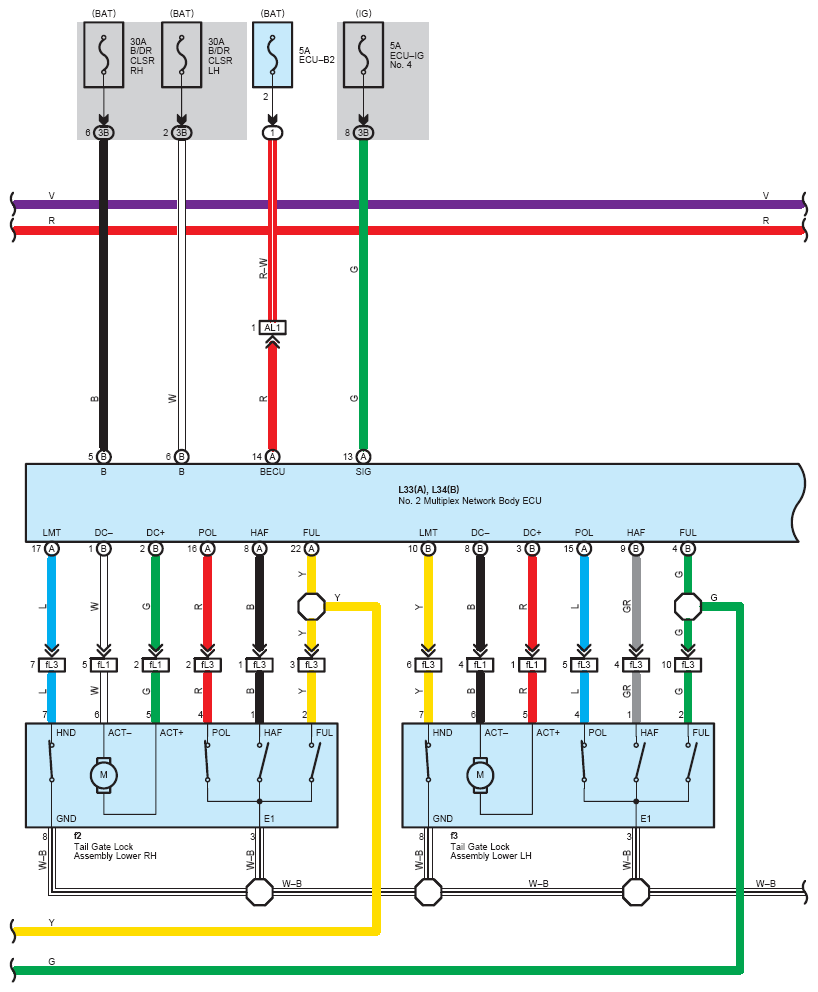

Fig 2: Power Back Door - Circuit Diagram (2 Of 5)
G07562151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

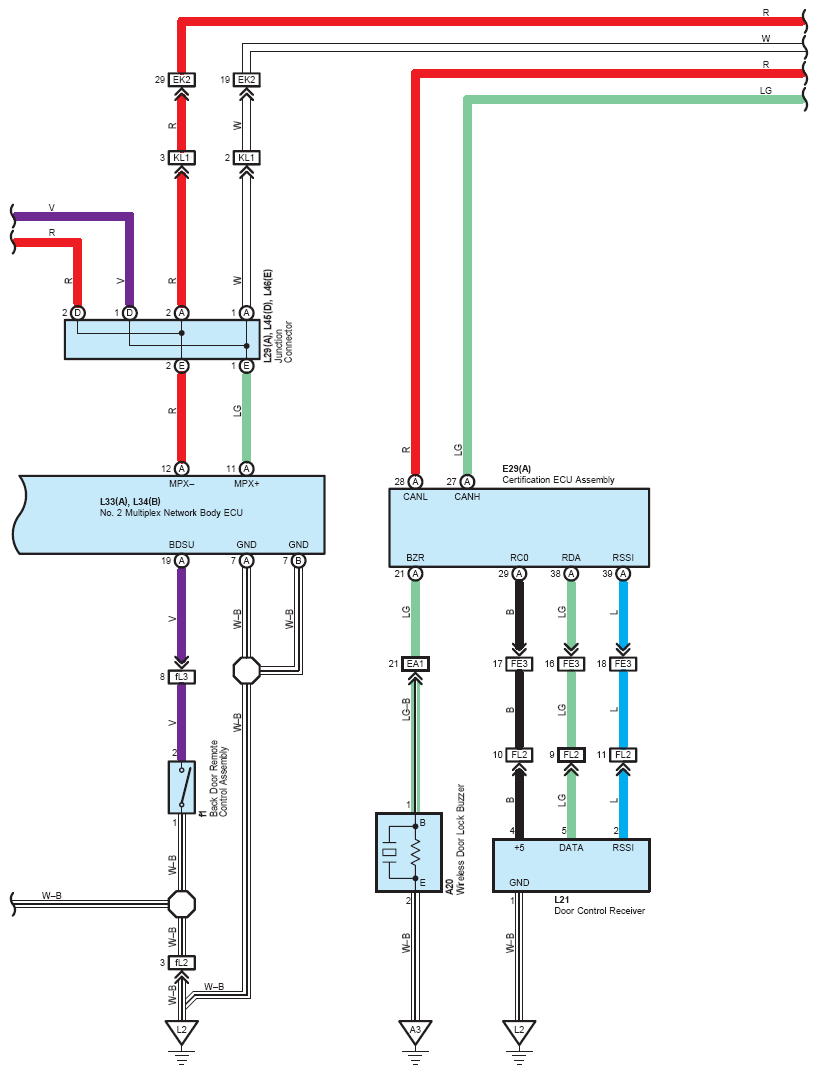

Fig 3: Power Back Door - Circuit Diagram (3 Of 5)
G07562152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

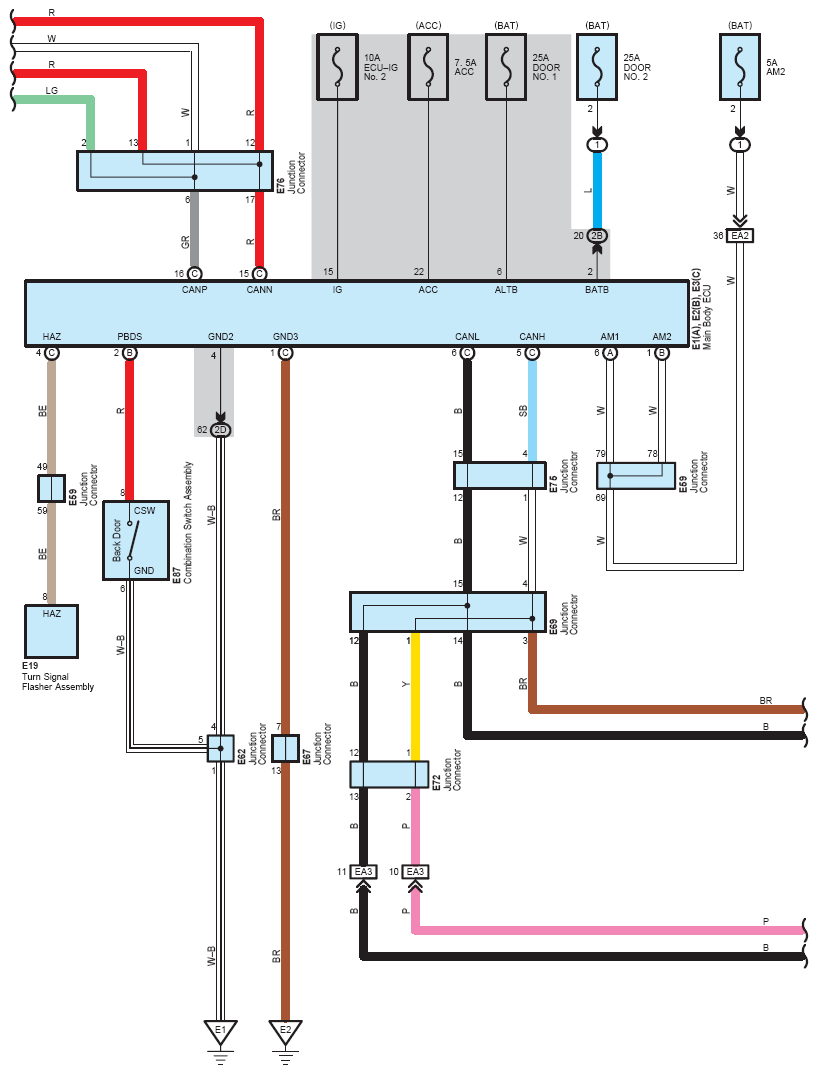

Fig 4: Power Back Door - Circuit Diagram (4 Of 5)
G07562153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

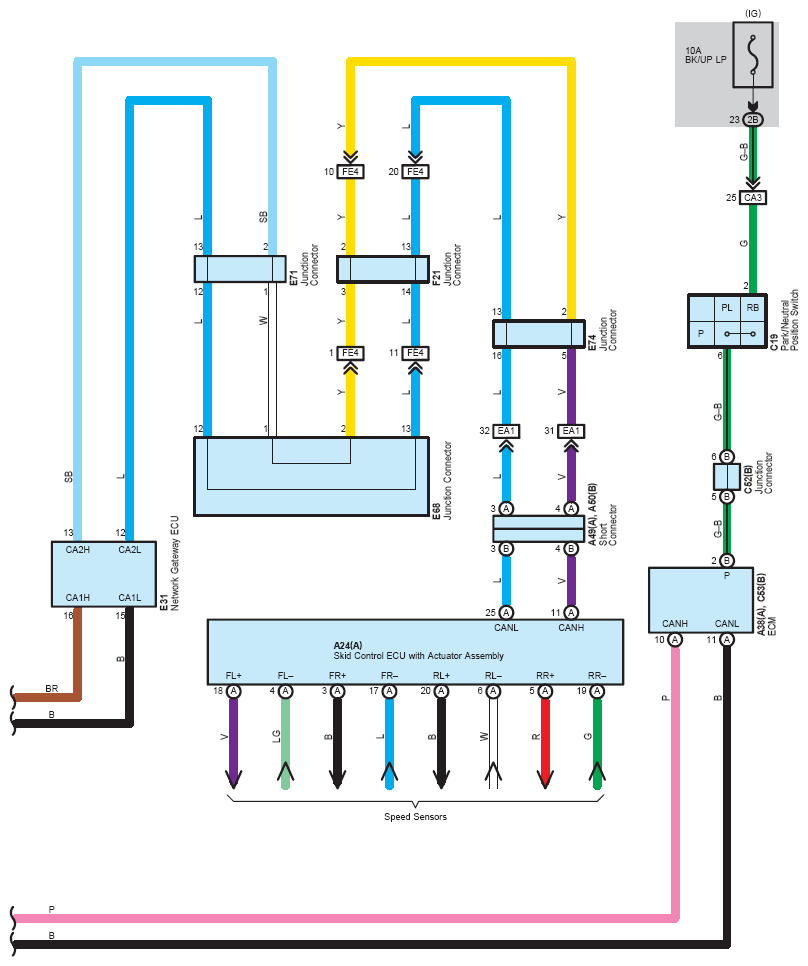

Fig 5: Power Back Door - Circuit Diagram (5 Of 5)
G07562154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
