Generator (Service Information): Generator: Disassembly: Disassembly

  1. REMOVE GENERATOR PULLEY

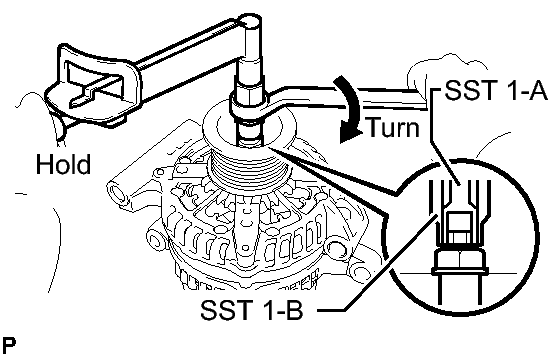

    Fig 1: Securing SST On Rotor Shaft
    GTY148612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • SST: 09820-63011
      • 09820-06010
      • 09820-06021

    HINT:

    SST 1-A and B 09820-06010
    SST 2 09820-06021
    1. Hold SST 1-A with a torque wrench, and tighten SST 1-B clockwise to the specified torque.

      Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)

      NOTE:

      Check that SST is secured on the rotor shaft.

    2. Mount SST 2 in a vise.

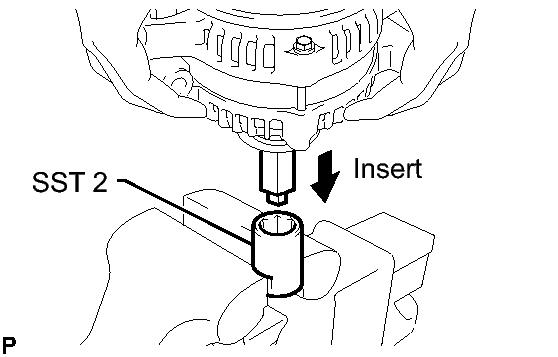

      Fig 2: Attaching Pulley Nut To SST 2
      GTY147667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Insert SST 1-A and B into SST 2, and attach the pulley nut to SST 2.
    4. To loosen the pulley nut, turn SST 1-A in the direction shown in the illustration.

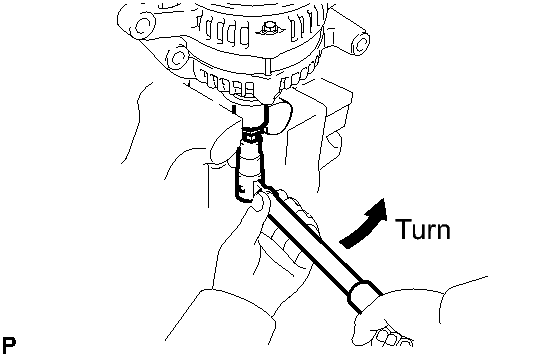

      Fig 3: Loosening Pulley Nut
      GTY132339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      To prevent damage to the rotor shaft, do not loosen the pulley nut more than one-half turn.

    5. Remove the generator from SST 2.
    6. Turn SST 1-B, and remove SST 1-A and B.

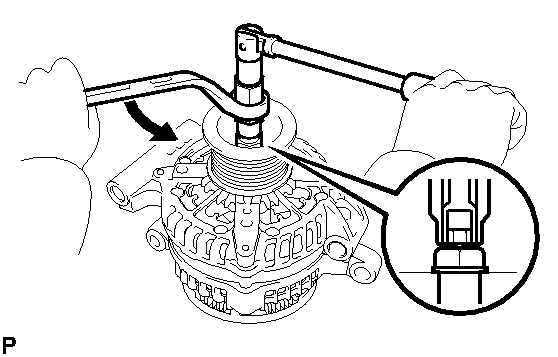

      Fig 4: Removing Pulley
      GTY148613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the pulley nut and pulley.
  2. REMOVE GENERATOR REAR END COVER
    1. Place the generator on the pulley.

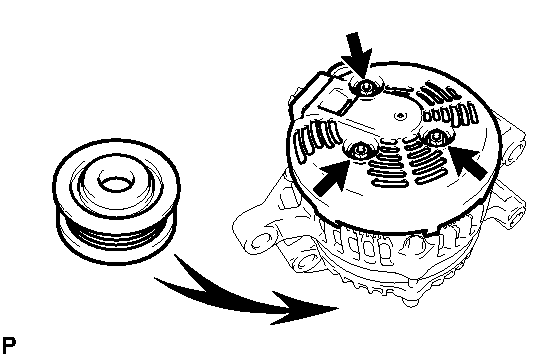

      Fig 5: Locating End Cover Nuts
      GTY128551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 nuts and end cover.
    3. Remove the terminal insulator.

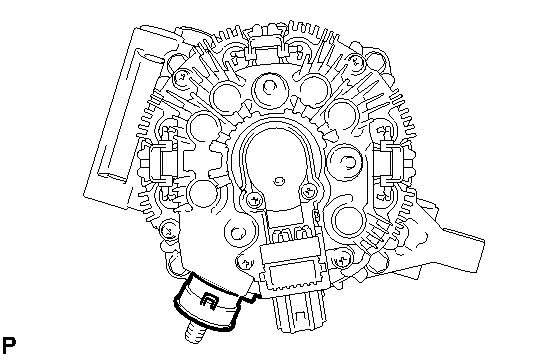

      Fig 6: Identifying Terminal Insulator
      GTY127602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE GENERATOR BRUSH HOLDER ASSEMBLY
    1. Remove the 2 screws and brush holder.

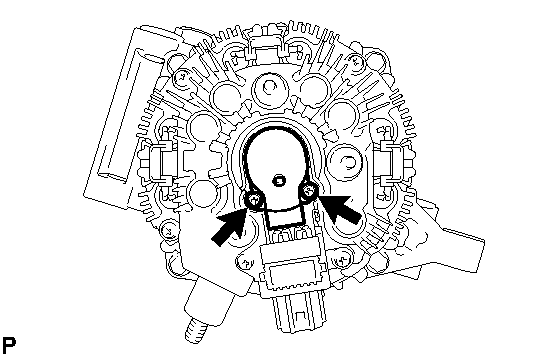

      Fig 7: Identifying Brush Holder And Screws
      GTY128550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE GENERATOR COIL ASSEMBLY
    1. Remove the 4 bolts.

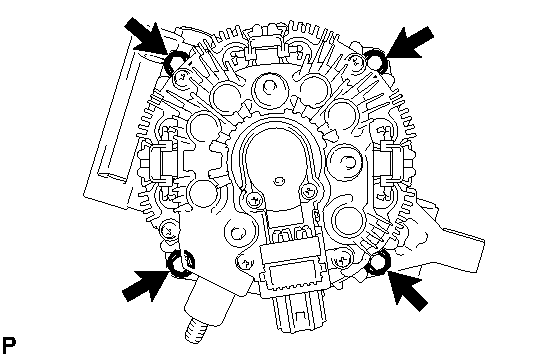

      Fig 8: Locating Generator Coil Assembly Bolts
      GTY142357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the coil assembly.

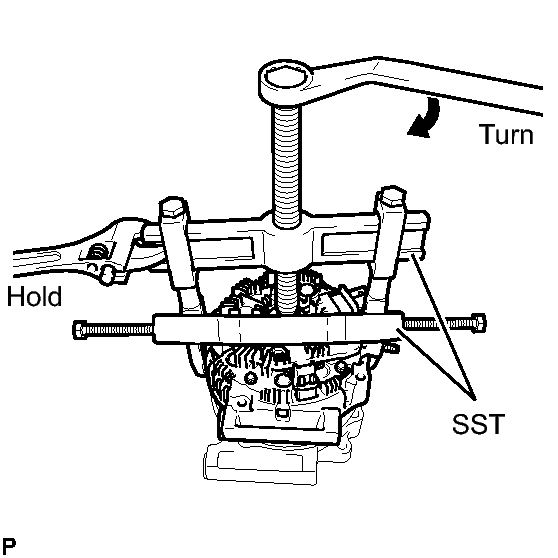

      Fig 9: Identifying SST & Coil Assembly
      GTY125945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-40011
        • 09951-04020
        • 09952-04010
        • 09953-04020
        • 09954-04010
        • 09955-04071
        • 09957-04010
        • 09958-04011
  5. REMOVE GENERATOR ROTOR ASSEMBLY

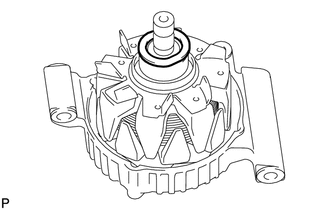

      Fig 10: Identifying Generator Washer On Rotor
      GTY147668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the generator washer and generator rotor.
  6. REPLACE GENERATOR DRIVE END FRAME BEARING
    1. Remove the 4 screws and retainer plate.

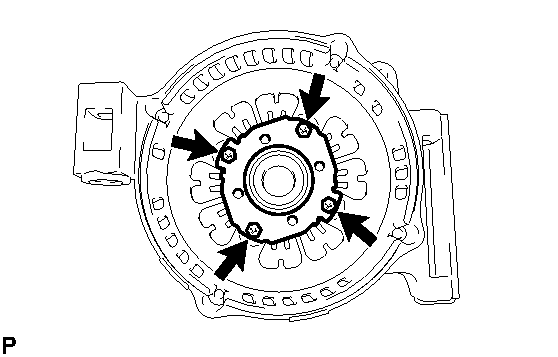

      Fig 11: Locating Retainer Plate Screws
      GTY142361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a hammer, tap out the bearing.
      • SST: 09950-60010
        • 09951-00250
      • SST: 09950-70010
        • 09951-07100

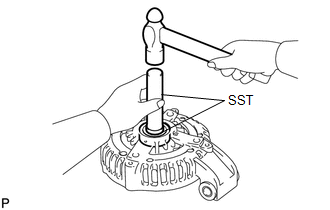

      Fig 12: Tapping Out Bearing
      GTY135725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST and a press, press in a new bearing.
      • SST: 09950-60010
        • 09951-00500
      • SST: 09950-70010
        • 09951-07100

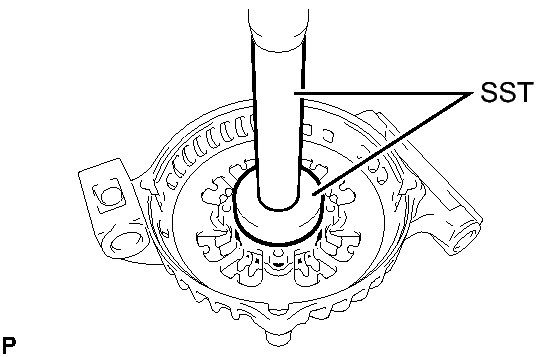

      Fig 13: Identifying SST To Press In Bearing
      GTY125997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the retainer plate with the 4 screws.
      Fig 14: Locating Retainer Plate Screws
      GTY142361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 3.0 N*m (30 kgf*cm, 26 in.*lbf)
