Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00463760

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Dash & Center Console

G00475206

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Vehicle Overview

G00475207

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Front Seats

G00463763

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Rear No. 2 Seats

G00463764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Engine Room Relay Box

G00463765

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Engine

G00463766

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Engine Compartment

G00463767

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine

G00463768

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Compartment

G00463769

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Dash & Center Console

G00475208

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Dash & Center Console

G00463771

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

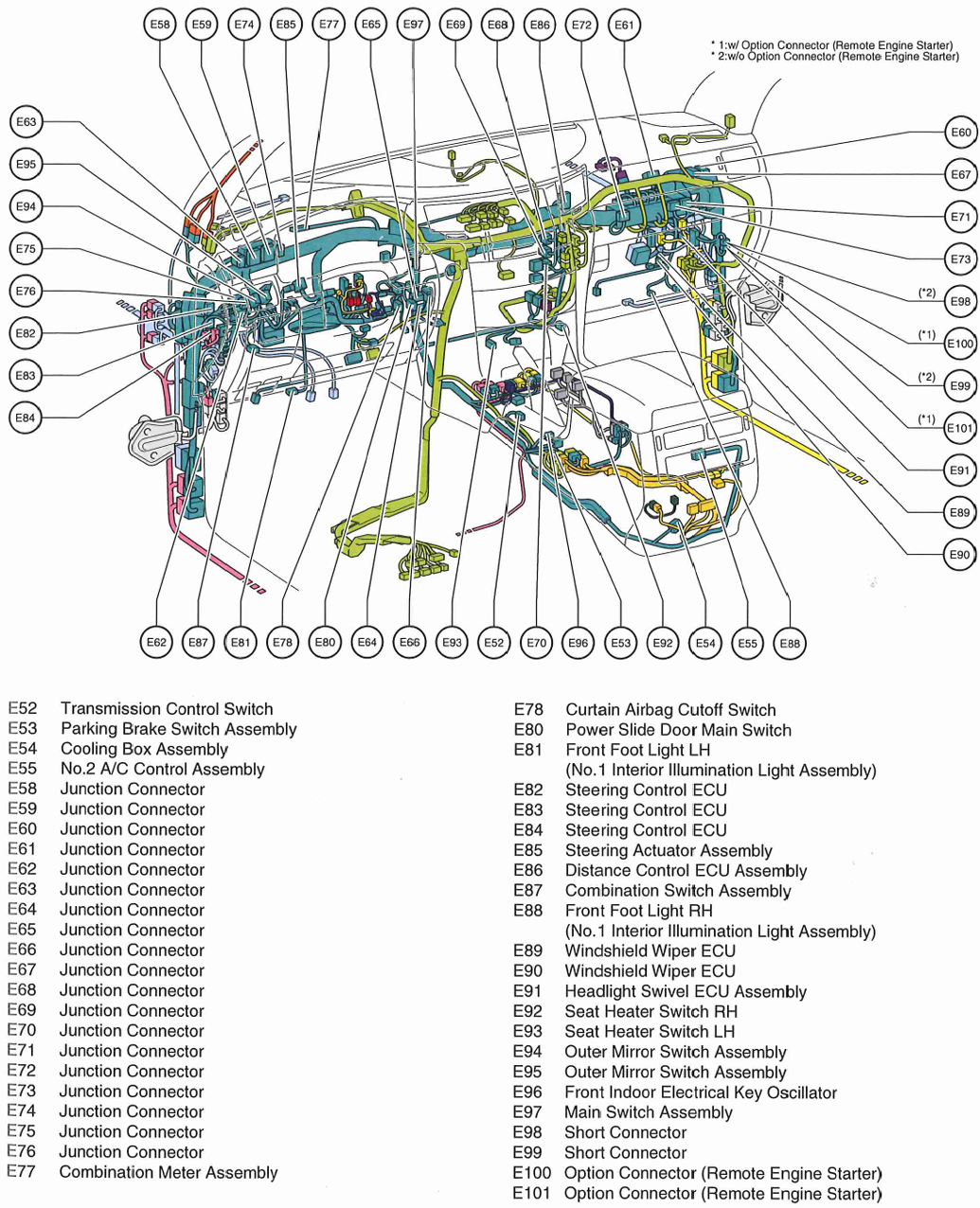

Fig 13: Dash & Center Console

G00475209

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

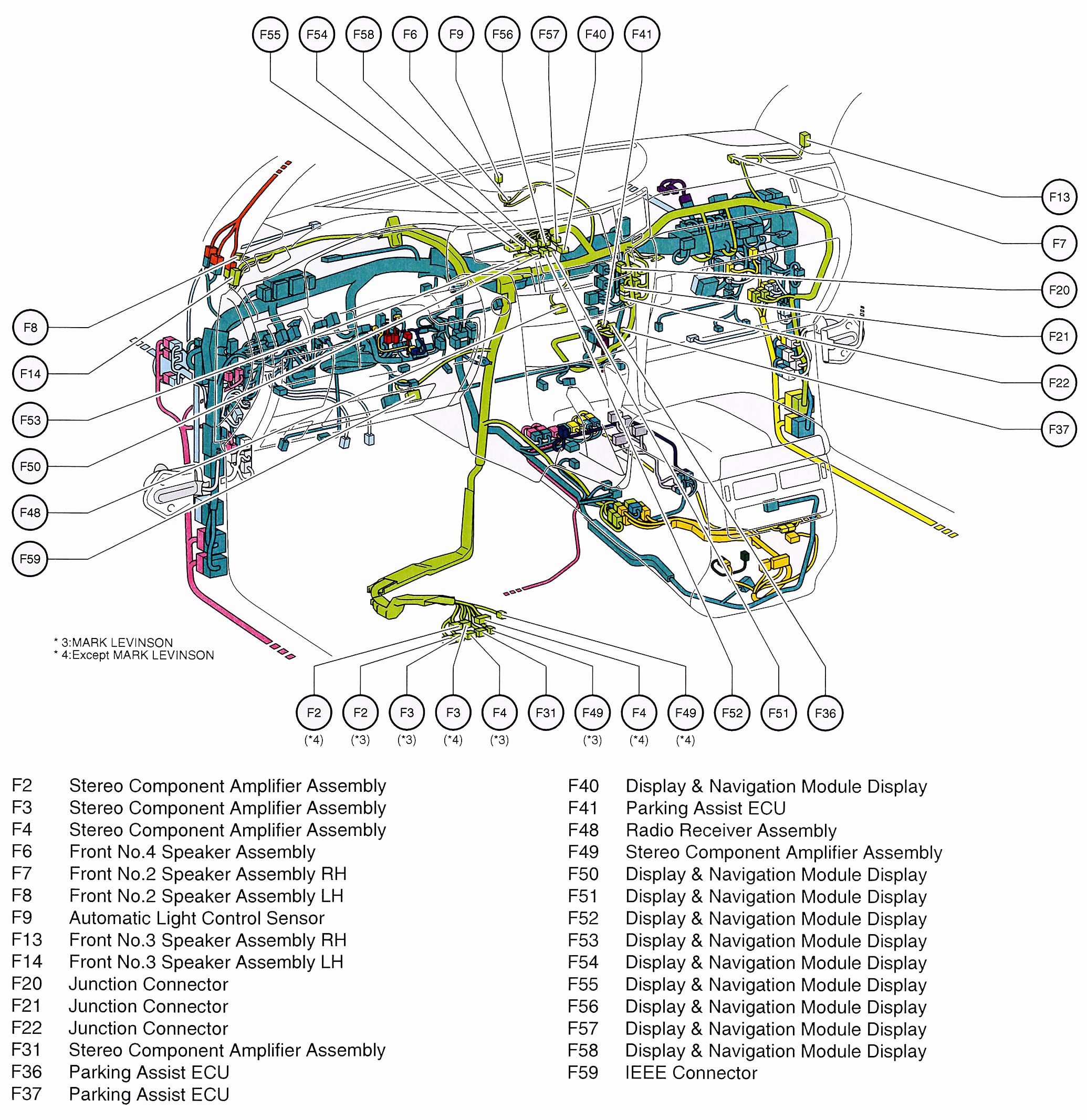

Fig 14: Dash & Center Console

G00475210

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Vehicle Overview

G00463774

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Vehicle Overview

G00475211

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

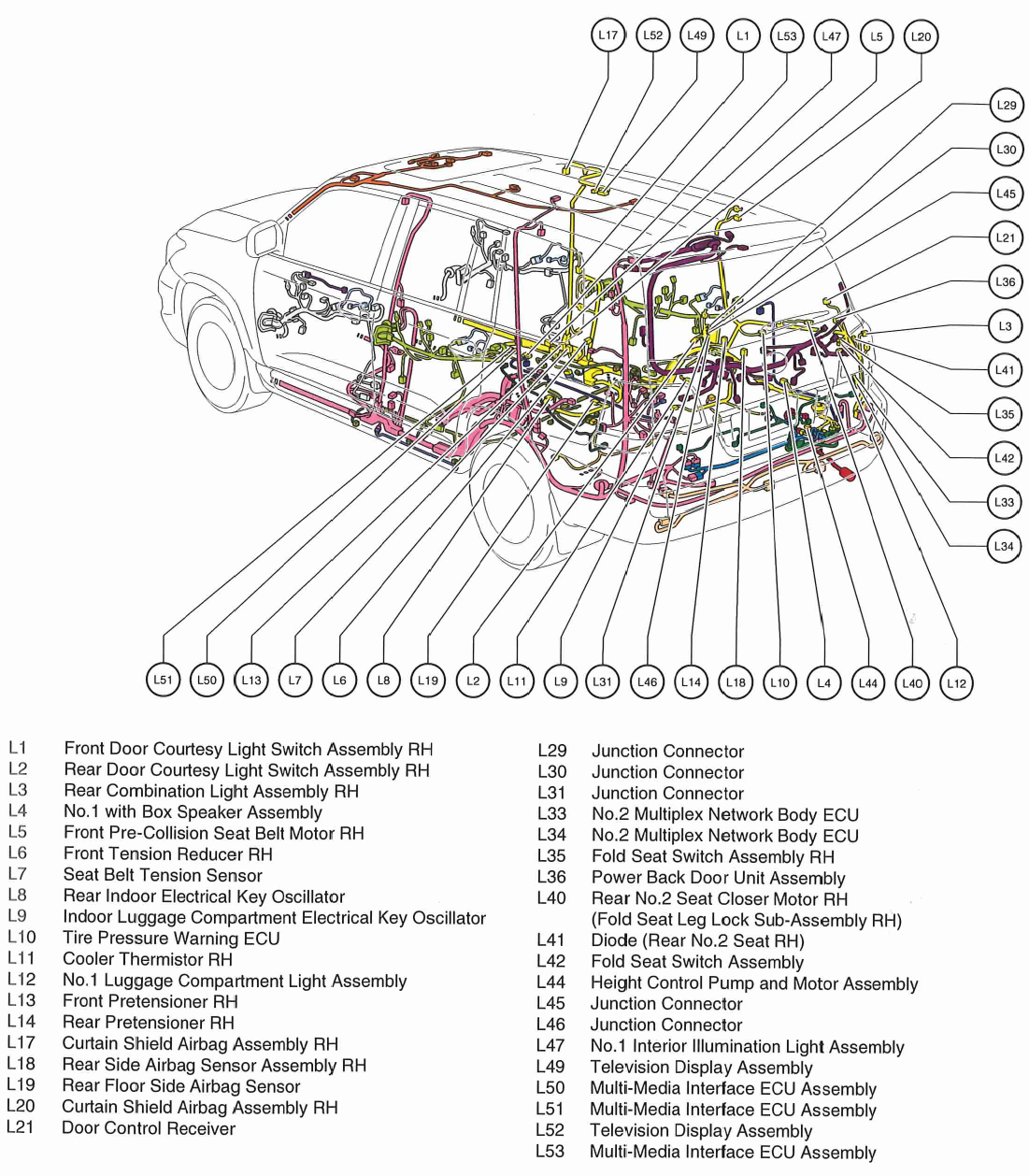

Fig 17: Vehicle Overview

G00475212

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Vehicle Overview

G00463777

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Vehicle Overview

G00463778

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Vehicle Overview

G00463779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Front Seats

G00463780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Rear No. 2 Seats

G00463781

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Rear No. 1 Seats

G00463782

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Engine Compartment

G00463783

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 25: Engine Compartment

G00463784

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 26: Dash & Center Console

G00463785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 27: Dash & Center Console

G00463786

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 28: Dash & Center Console

G00463787

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

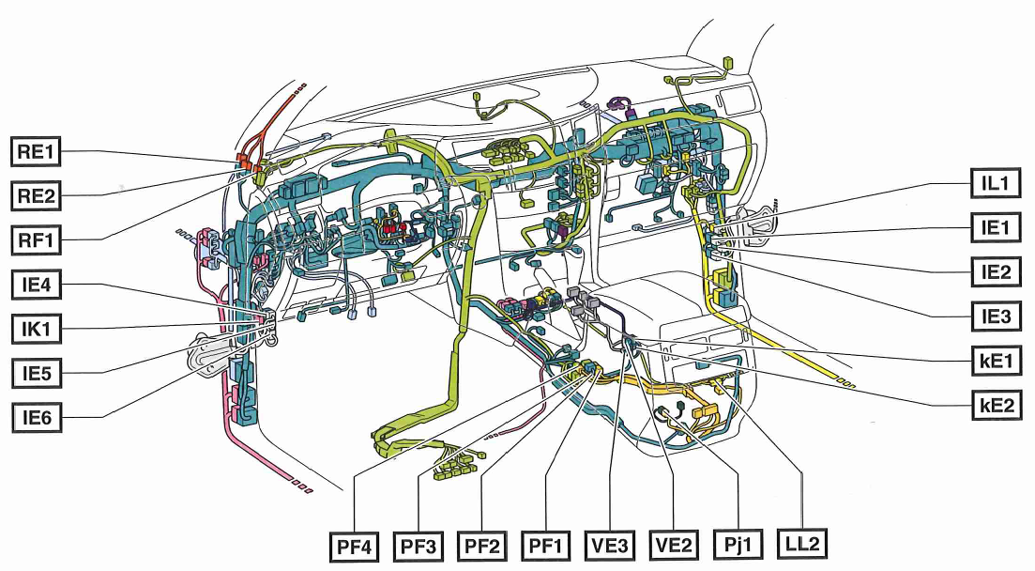

Fig 29: Dash & Center Console

G00475213

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 30: Vehicle Overview

G00463789

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 31: Vehicle Overview

G00463790

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 32: Front Seats

G00463791

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

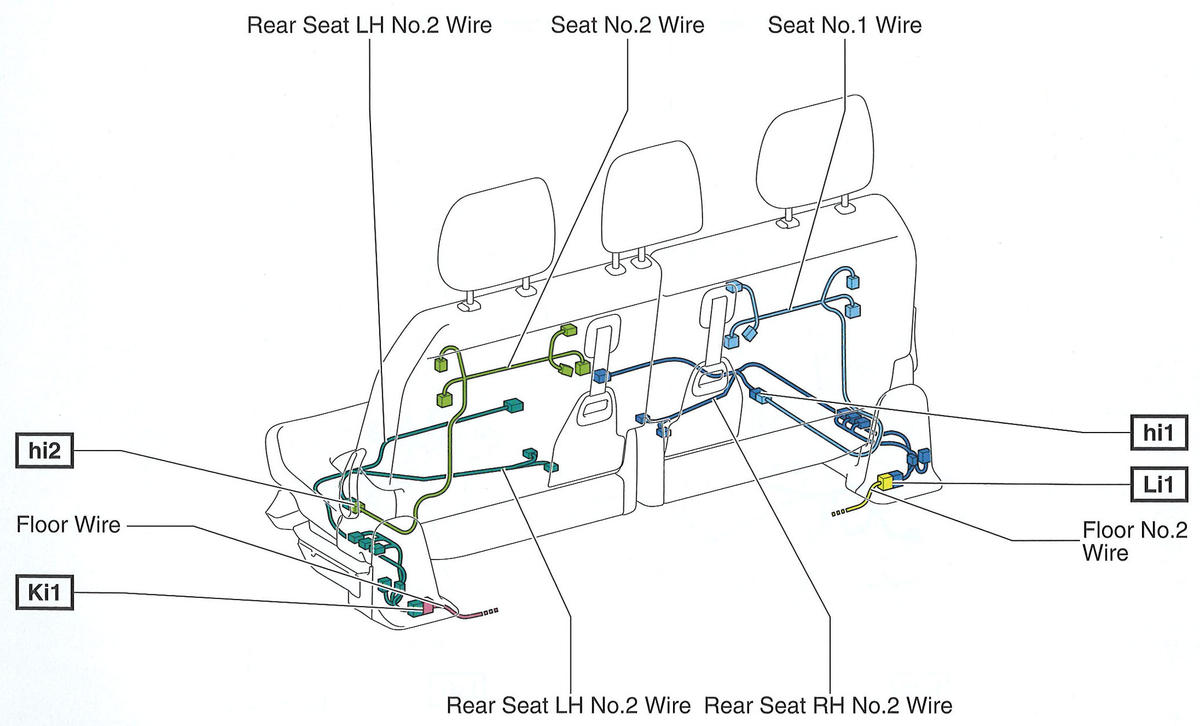

Fig 33: Rear No. 2 Seats

G00467360

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

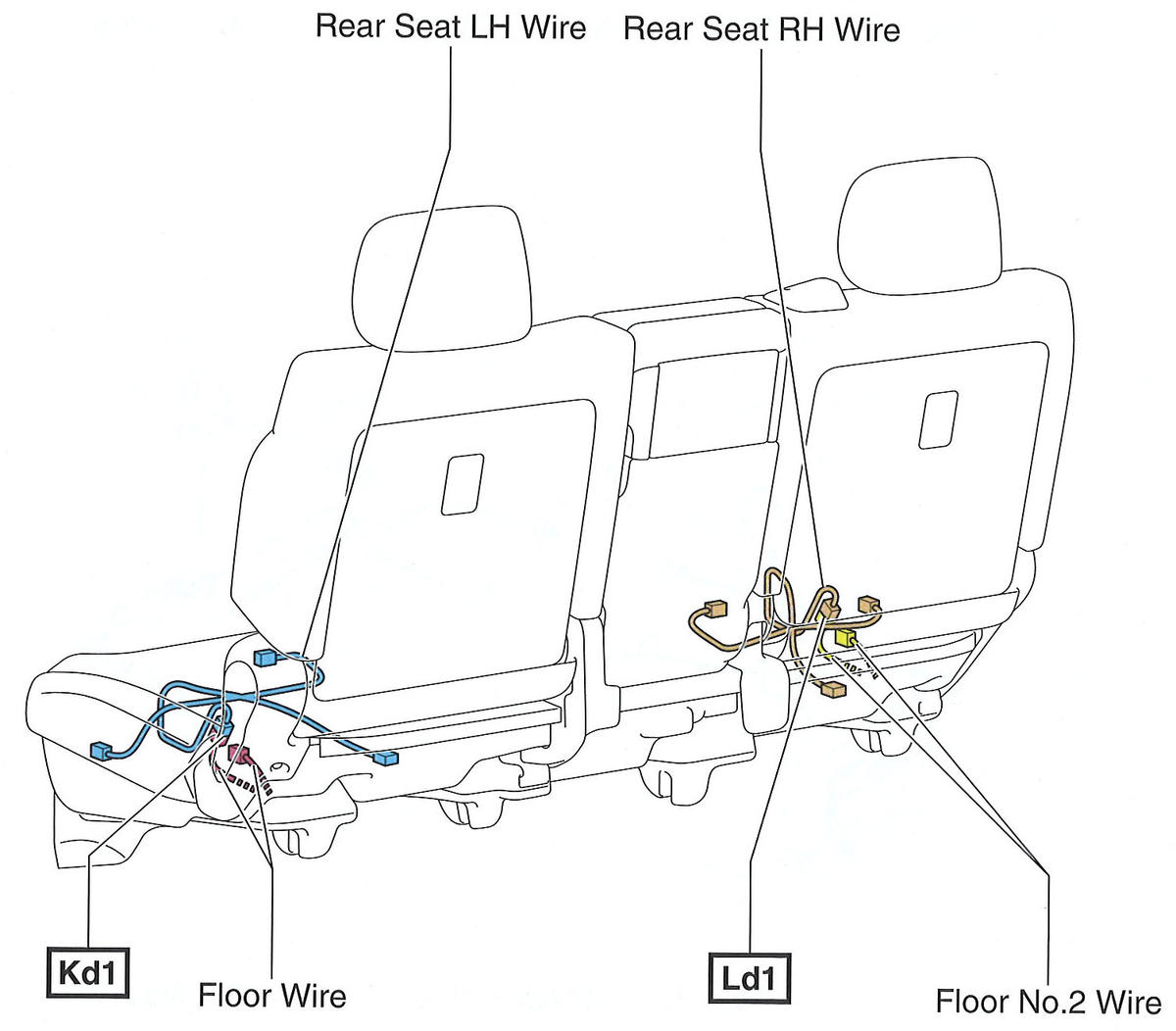

Fig 34: Rear No. 1 Seats

G00467361

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
