Headlight Cleaner: Notes

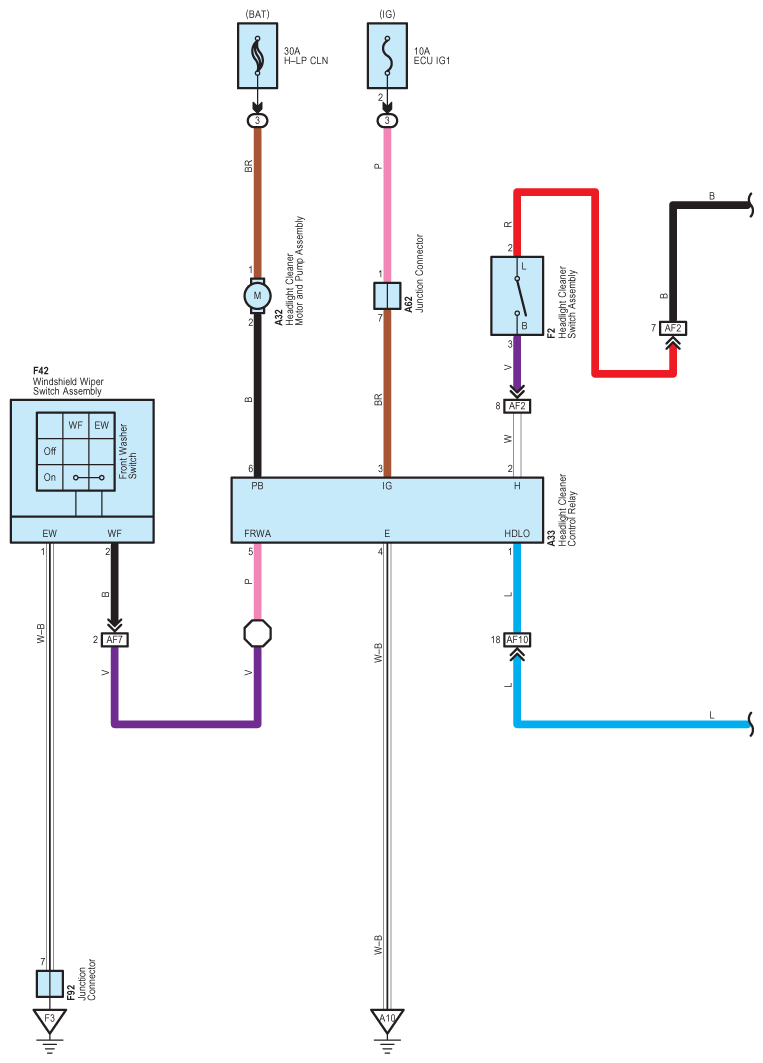

Fig 1: Headlight Cleaner - Circuit Diagram (1 Of 3)
G07573917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

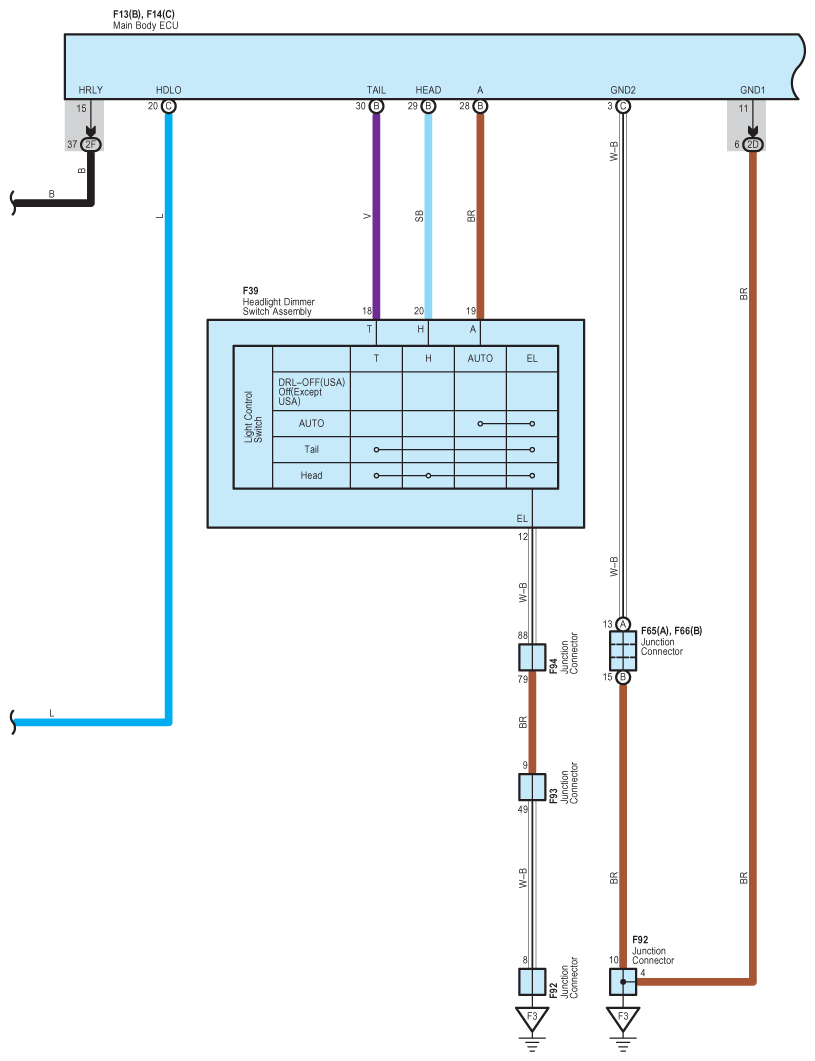

Fig 2: Headlight Cleaner - Circuit Diagram (2 Of 3)
G07573918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

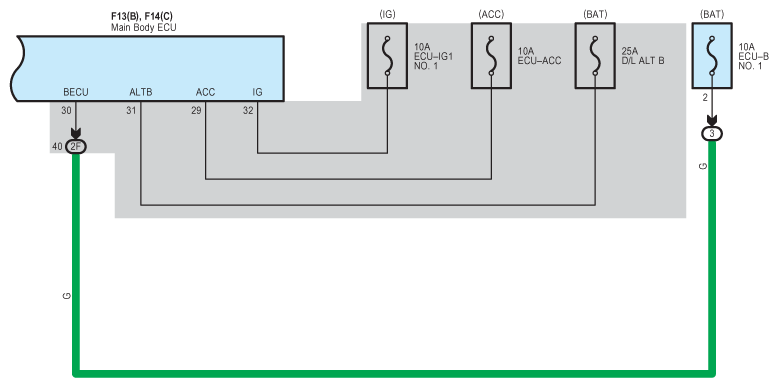

Fig 3: Headlight Cleaner - Circuit Diagram (3 Of 3)
G07573919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
