OEM System Circuits: Illumination: Notes

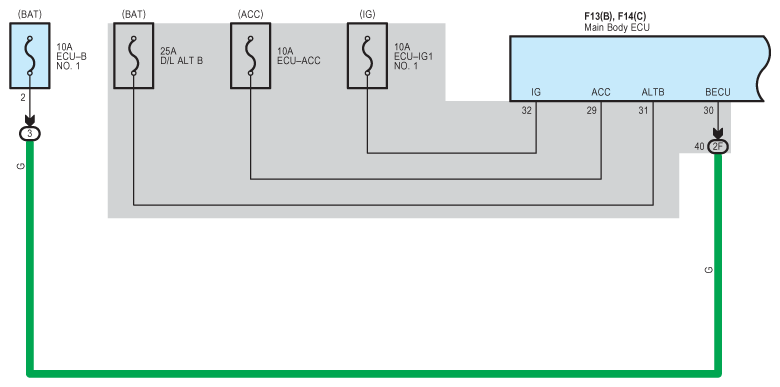

Fig 1: Illumination - Circuit Diagram (1 Of 10)

G07573778

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

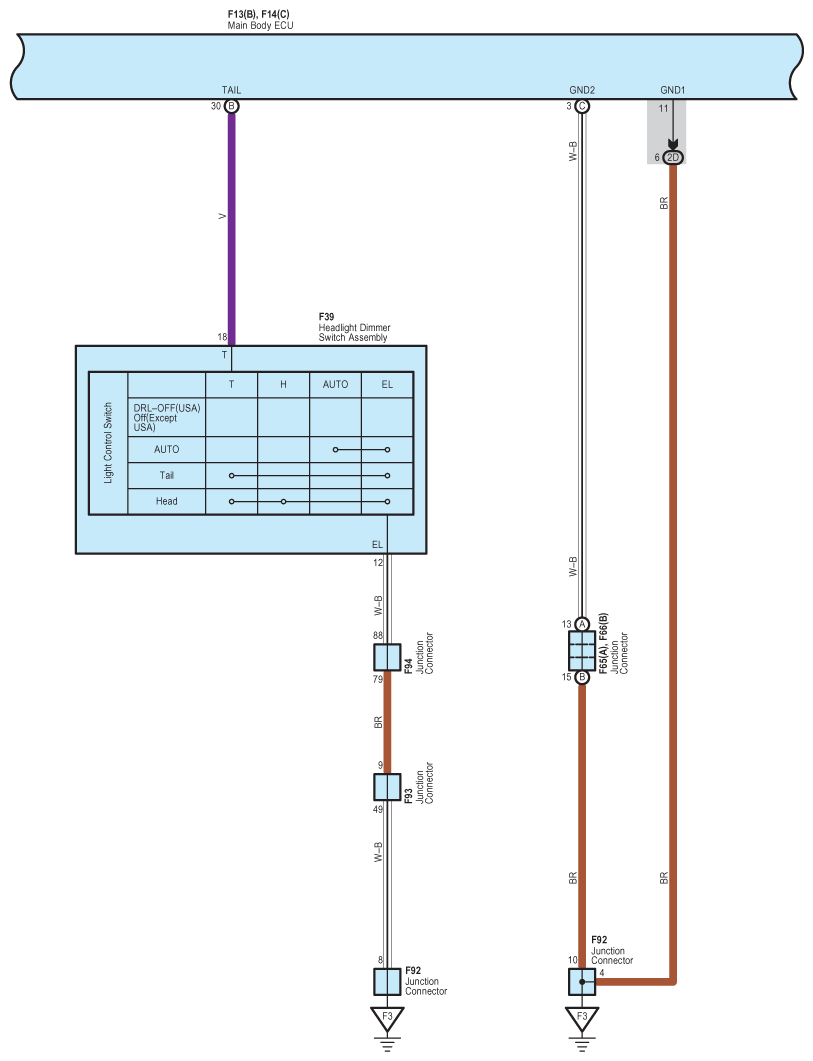

Fig 2: Illumination - Circuit Diagram (2 Of 10)

G07573779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Illumination - Circuit Diagram (3 Of 10)

G07573780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

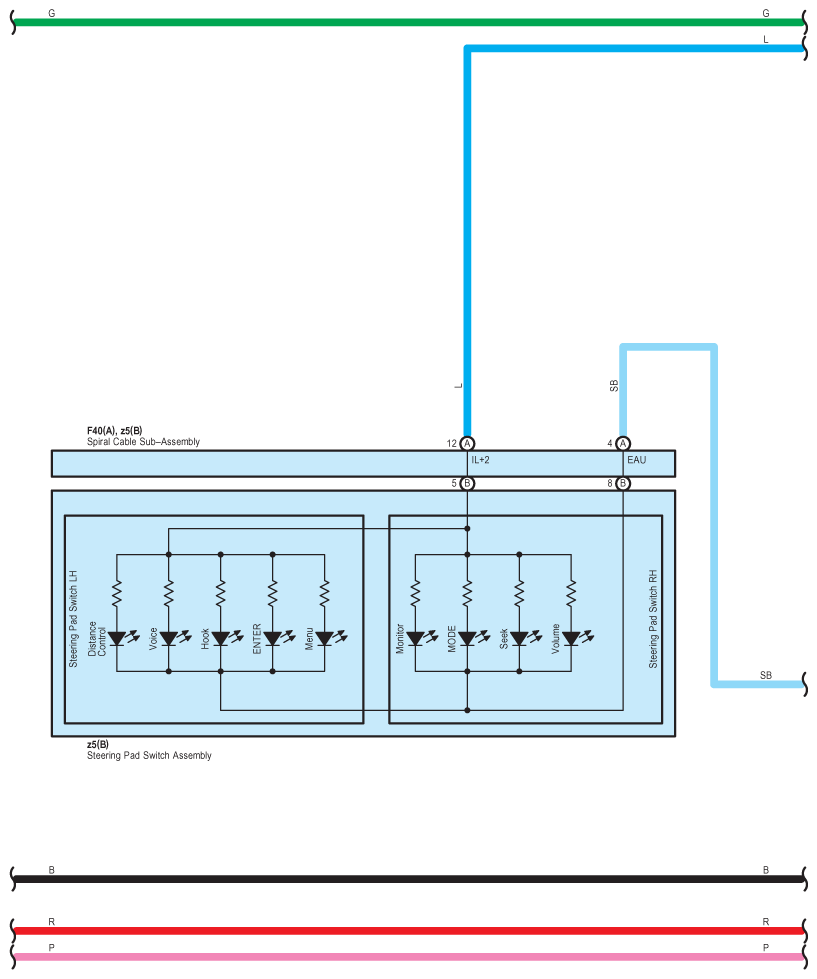

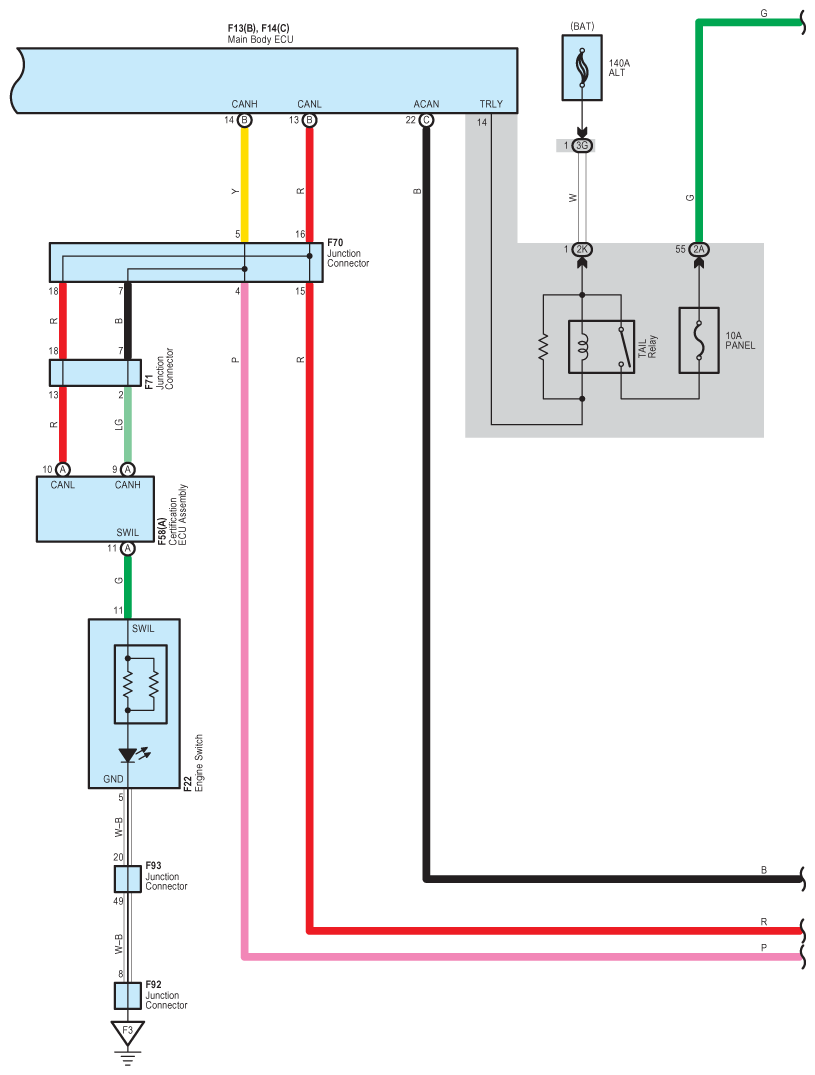

Fig 4: Illumination - Circuit Diagram (4 Of 10)

G07573781

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

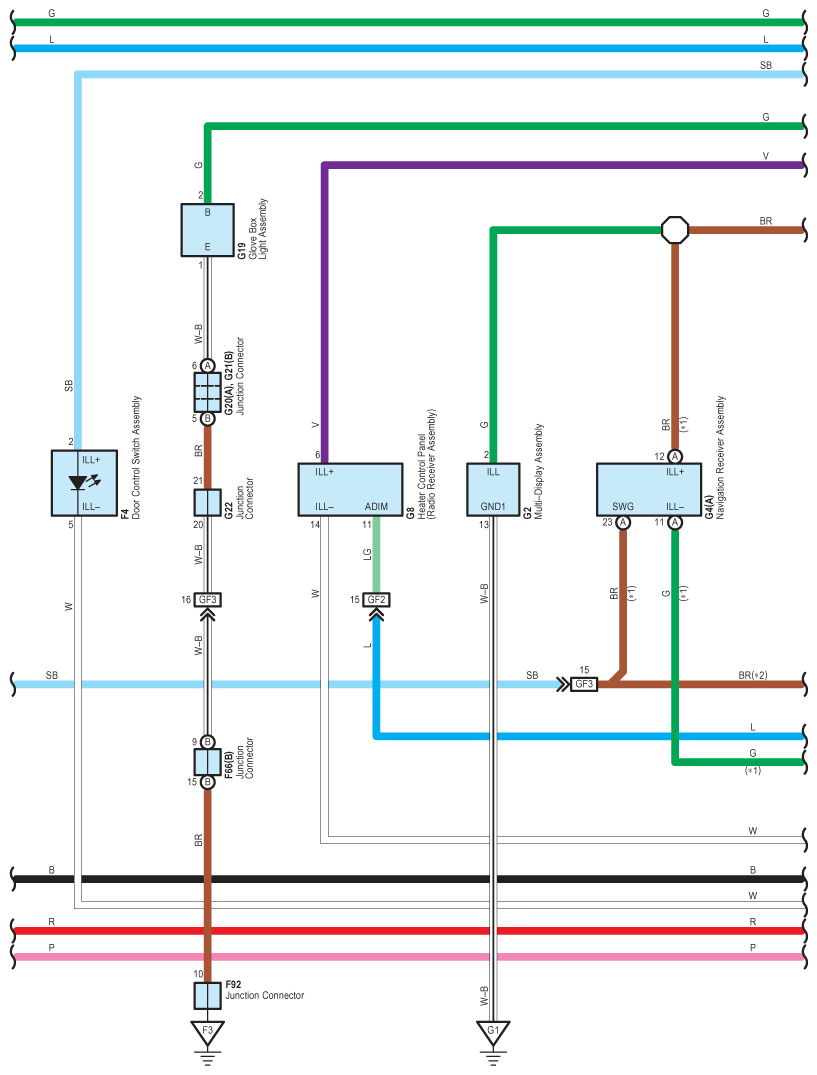

Fig 5: Illumination - Circuit Diagram (5 Of 10)

G07573782

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

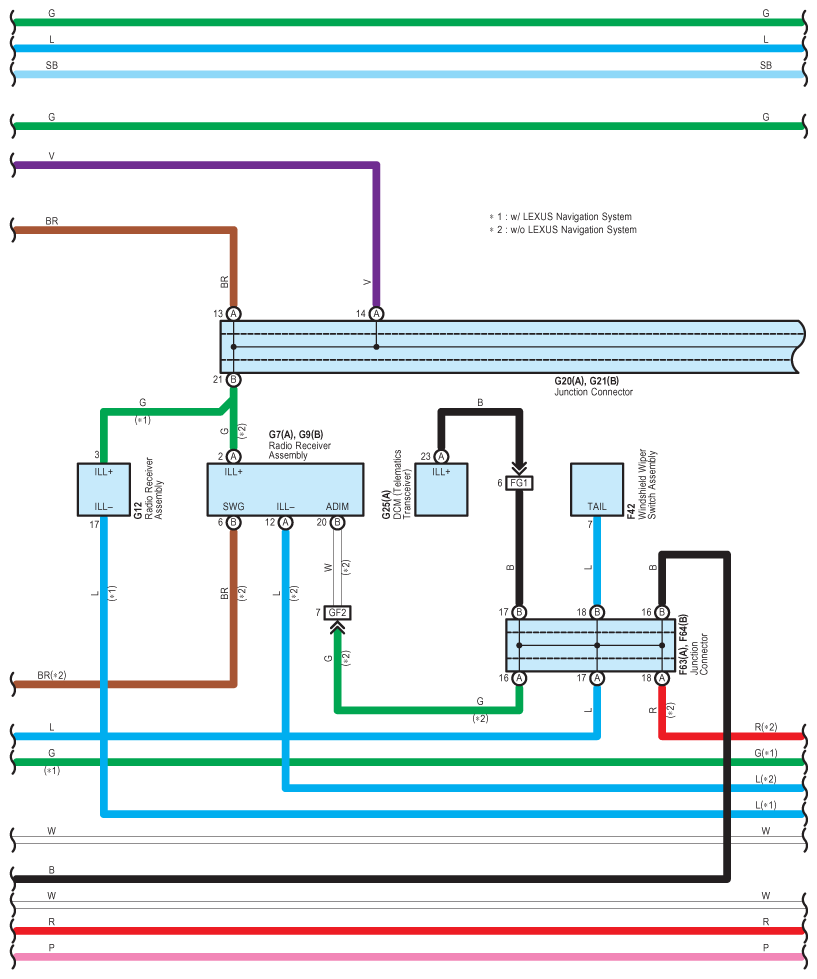

Fig 6: Illumination - Circuit Diagram (6 Of 10)

G07573783

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

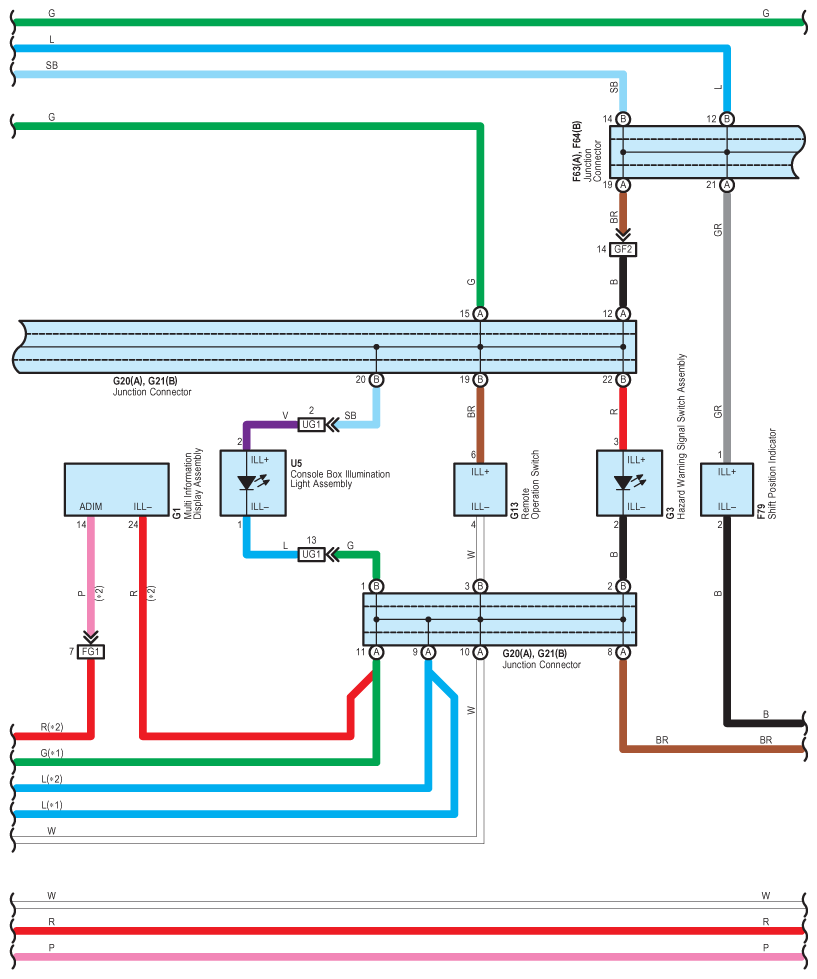

Fig 7: Illumination - Circuit Diagram (7 Of 10)

G07573784

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

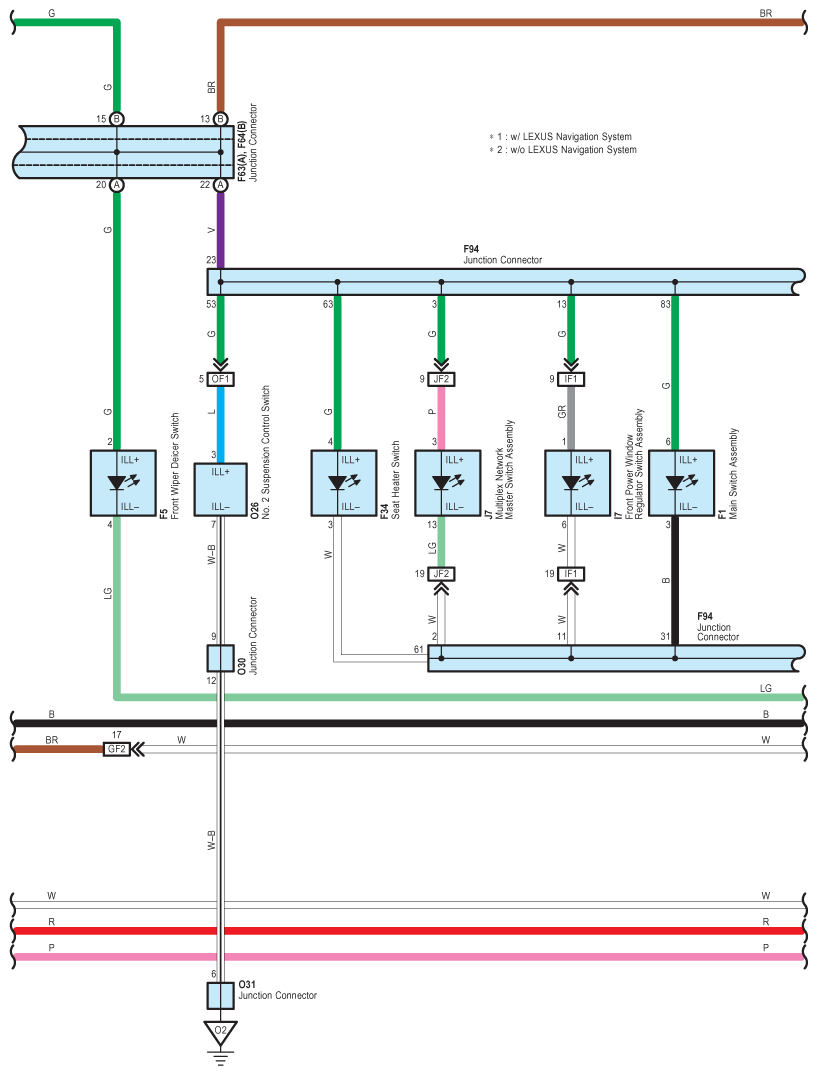

Fig 8: Illumination - Circuit Diagram (8 Of 10)

G07573785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

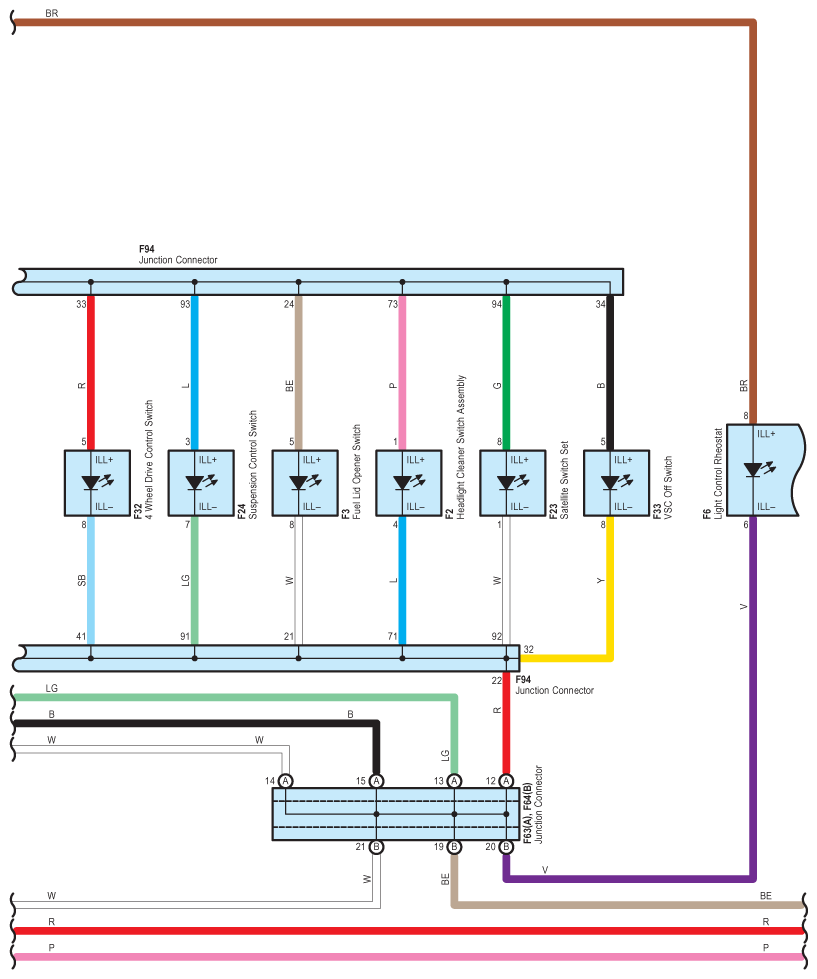

Fig 9: Illumination - Circuit Diagram (9 Of 10)

G07573786

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

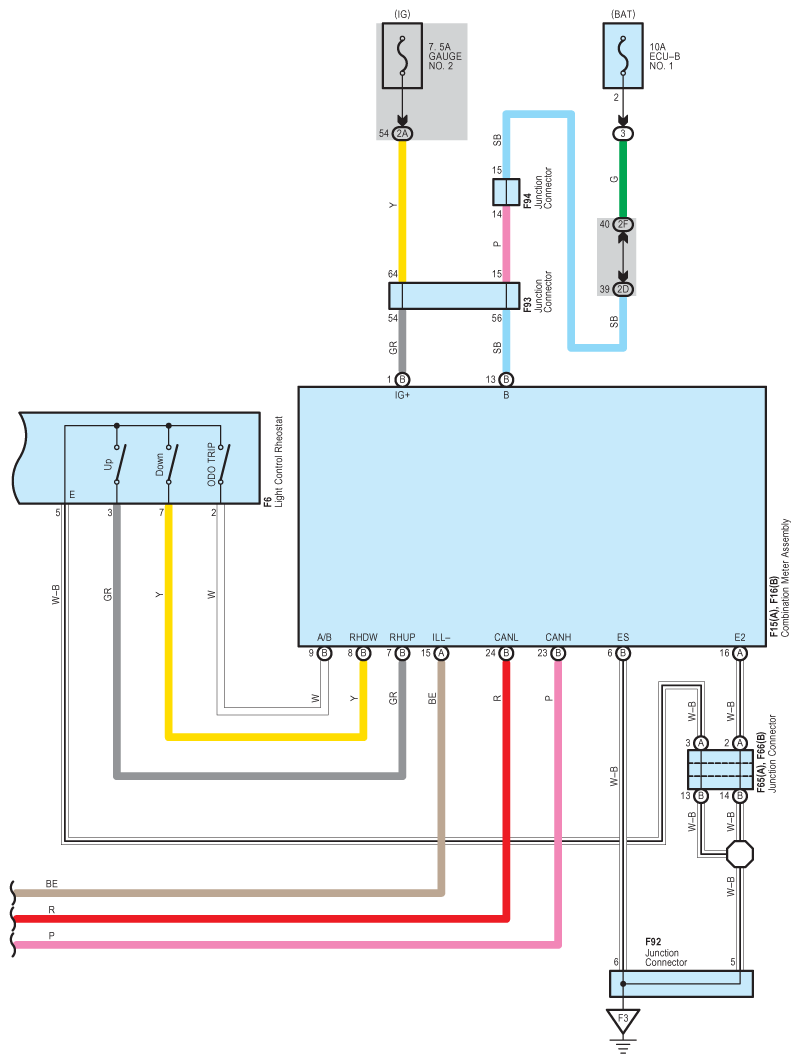

Fig 10: Illumination - Circuit Diagram (10 Of 10)

G07573787

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
