Interior Light: Notes

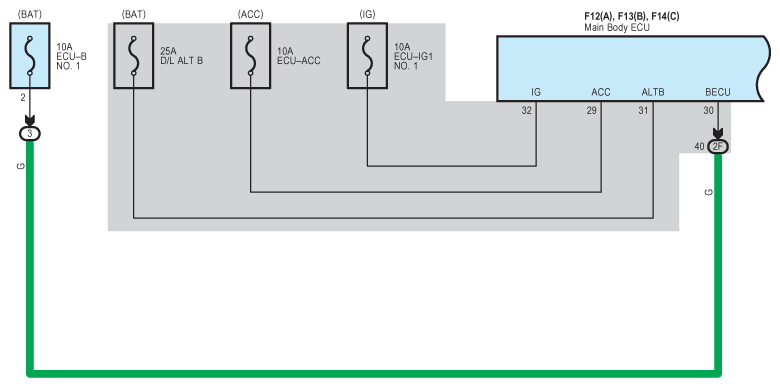

Fig 1: Interior Light - Circuit Diagram (1 Of 10)

G07573763

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

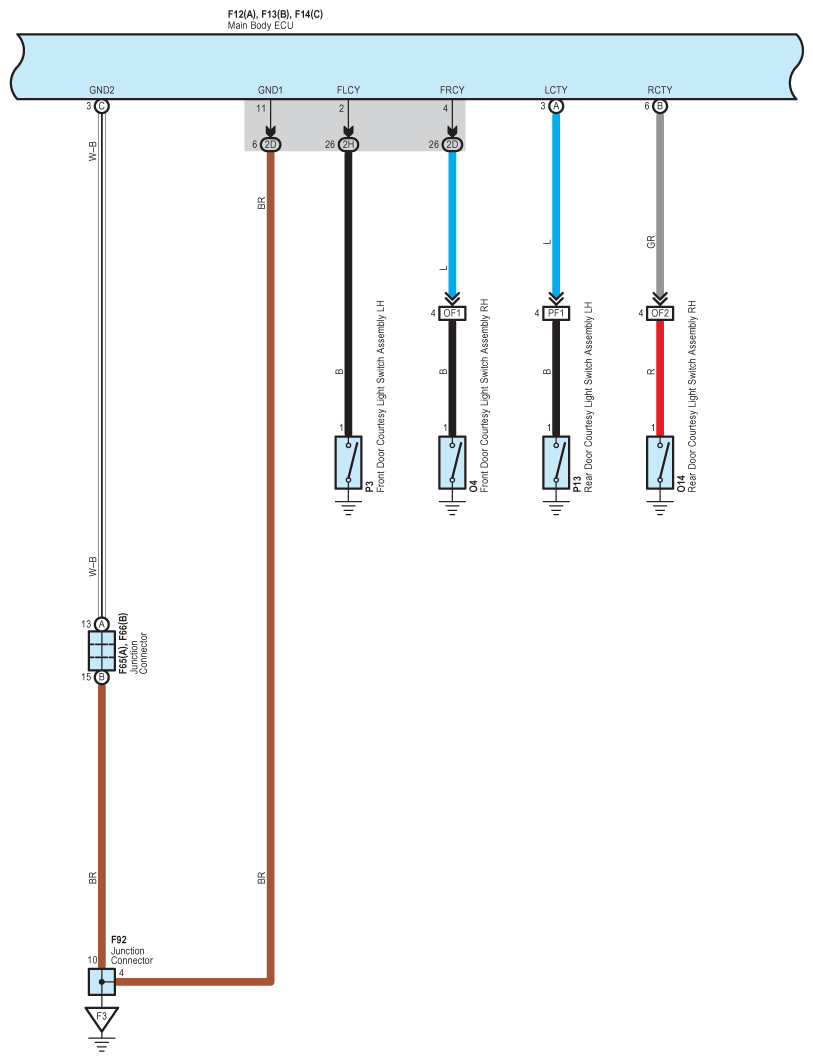

Fig 2: Interior Light - Circuit Diagram (2 Of 10)

G07573764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

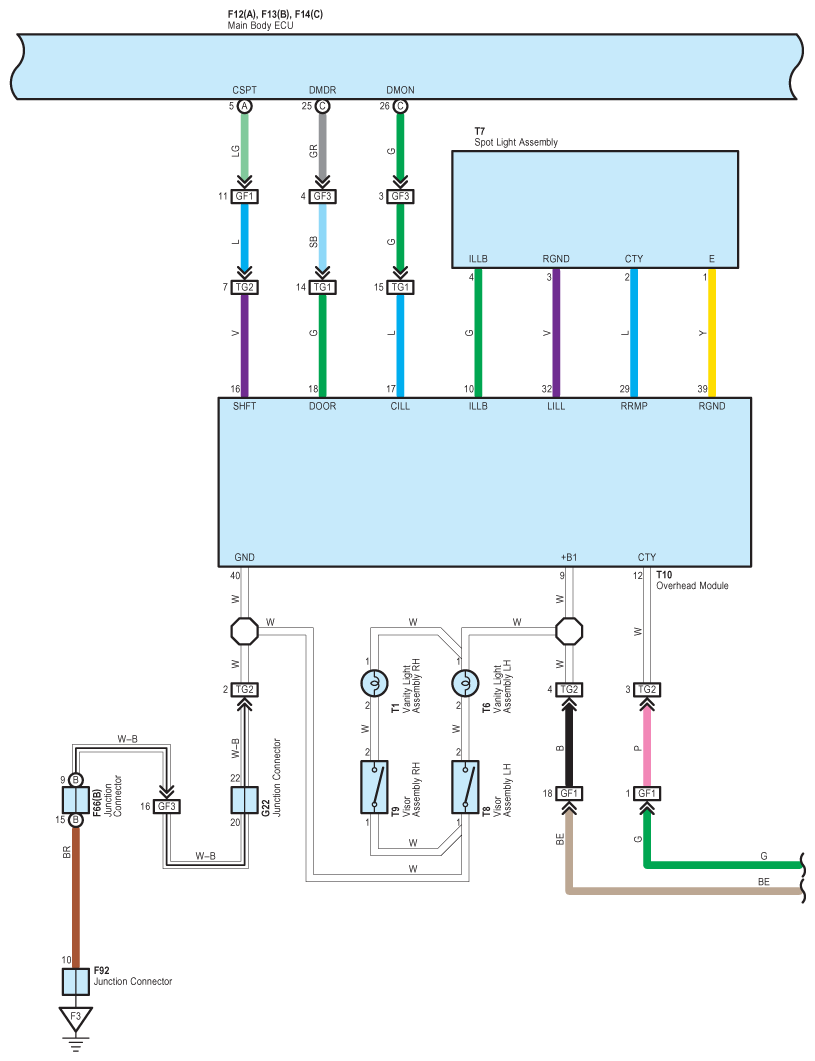

Fig 3: Interior Light - Circuit Diagram (3 Of 10)

G07573765

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

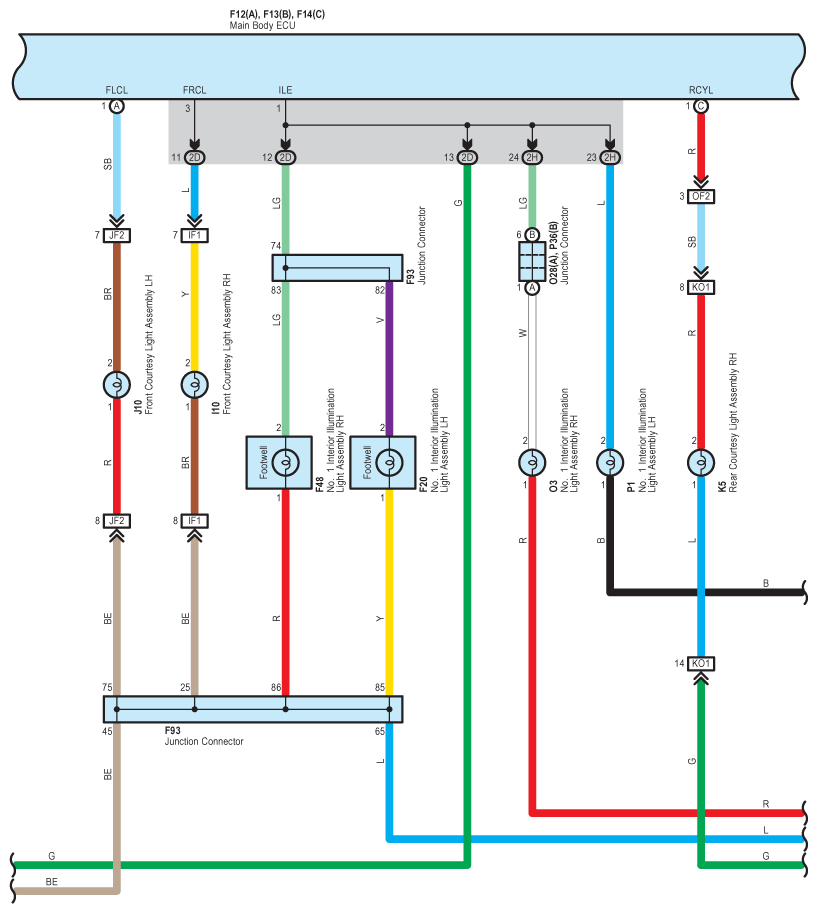

Fig 4: Interior Light - Circuit Diagram (4 Of 10)

G07573766

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

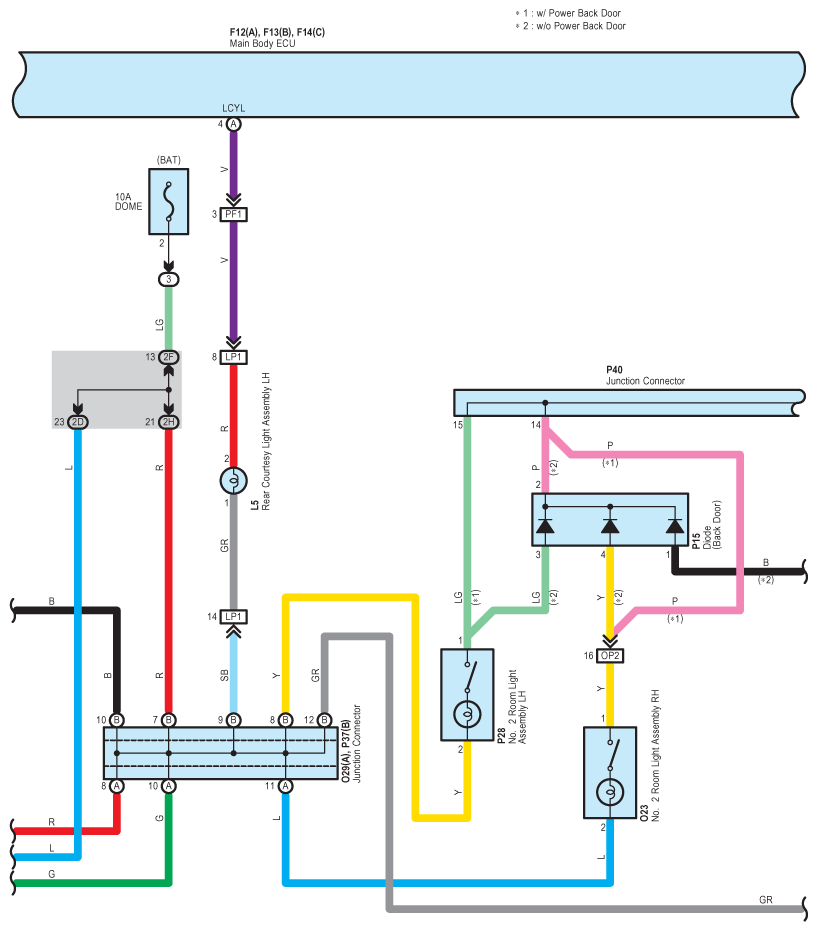

Fig 5: Interior Light - Circuit Diagram (5 Of 10)

G07573767

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

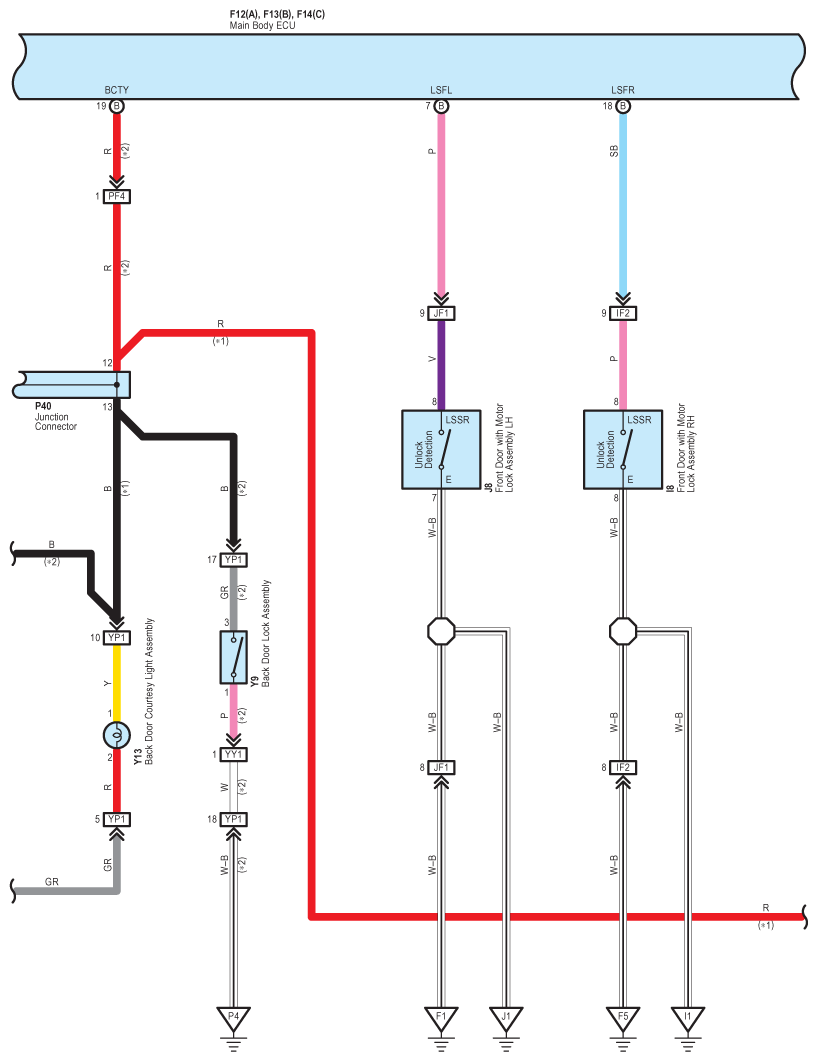

Fig 6: Interior Light - Circuit Diagram (6 Of 10)

G07573768

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

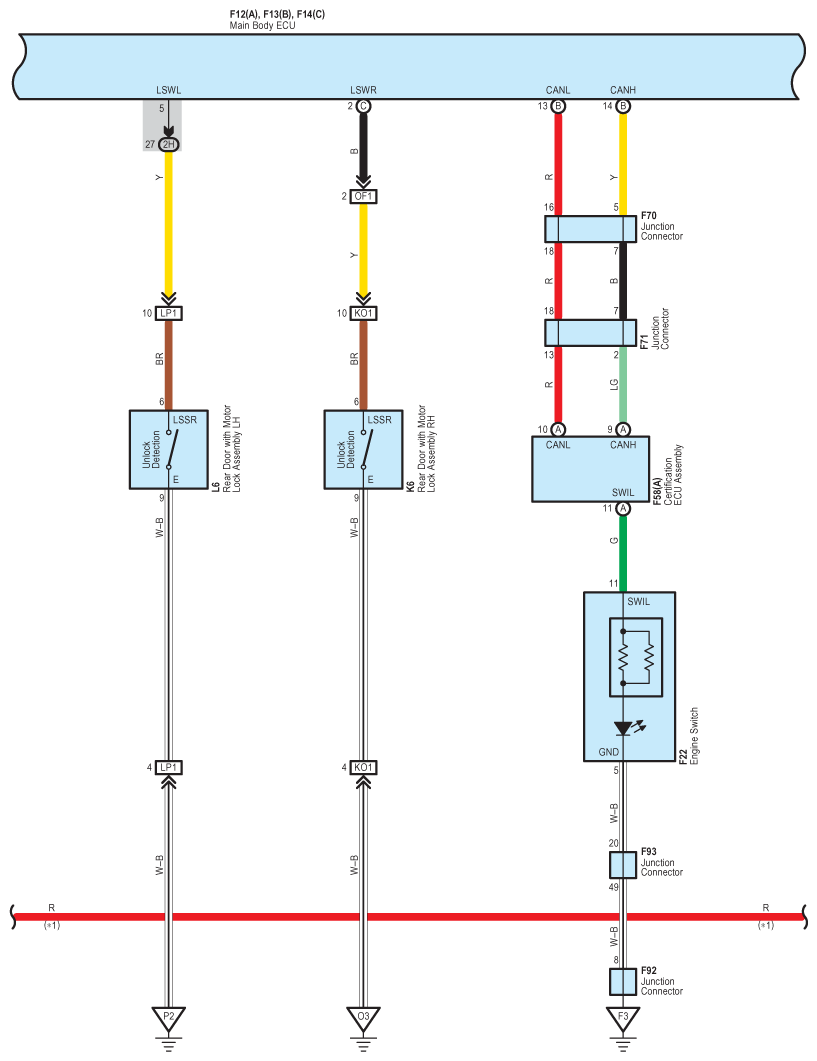

Fig 7: Interior Light - Circuit Diagram (7 Of 10)

G07573769

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

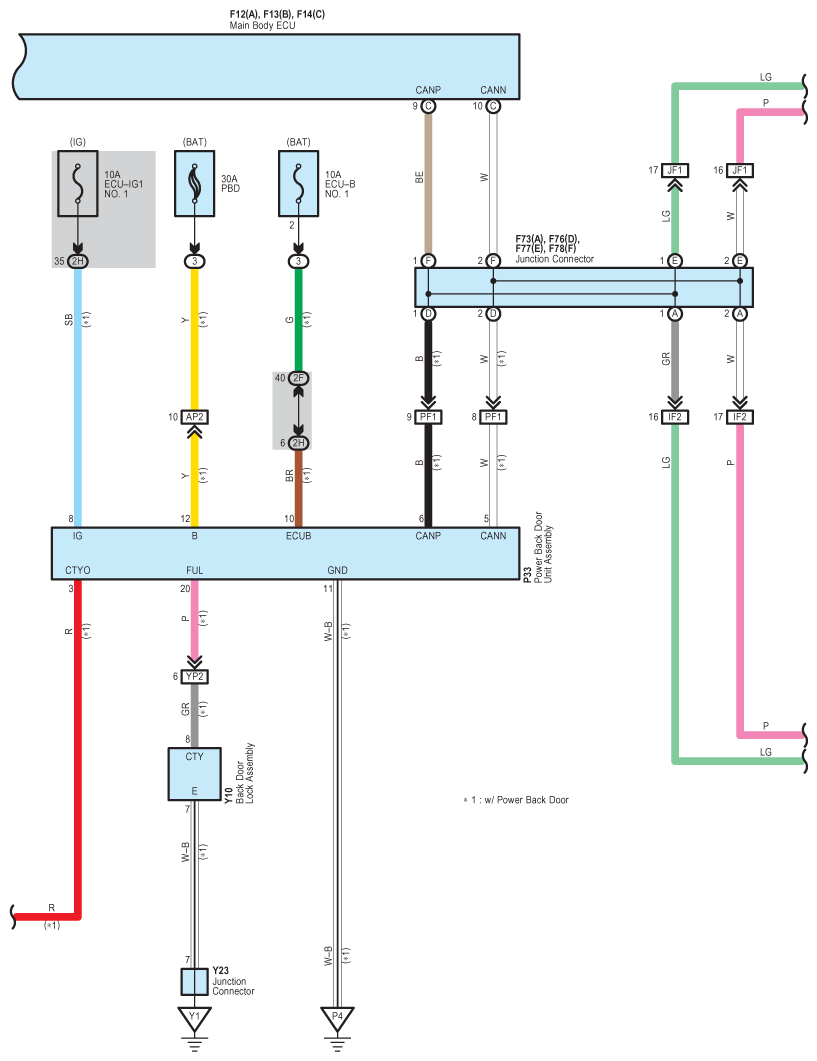

Fig 8: Interior Light - Circuit Diagram (8 Of 10)

G07573770

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

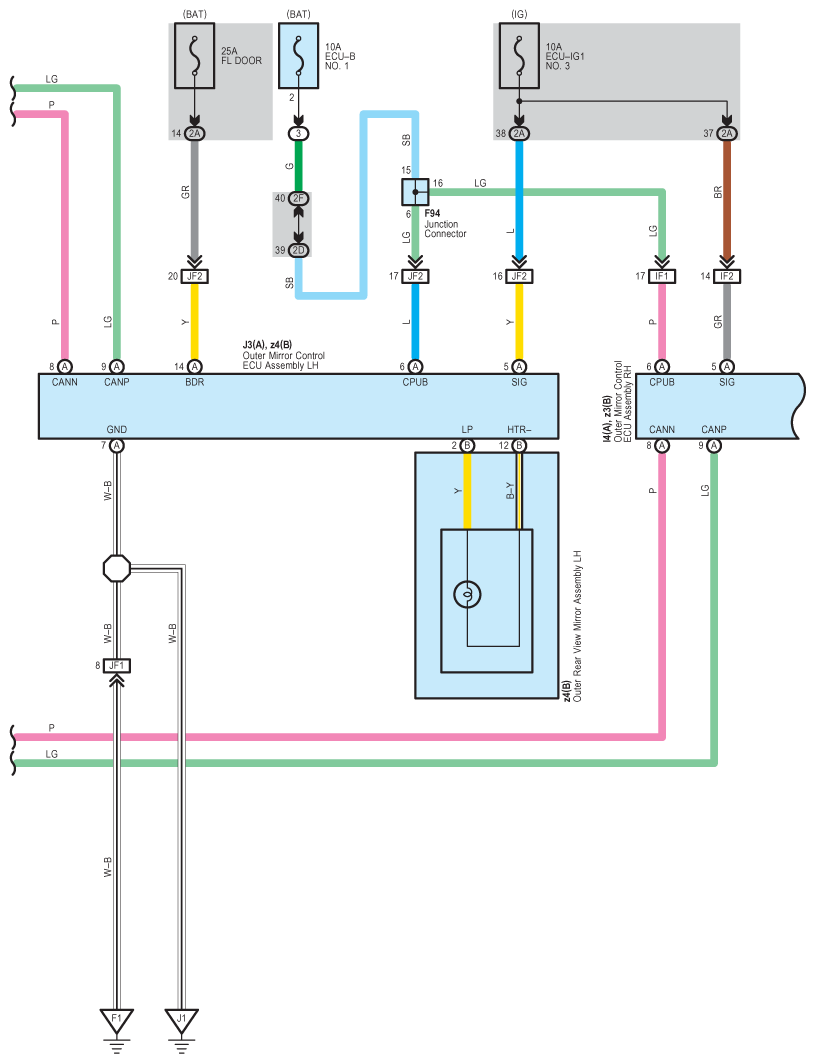

Fig 9: Interior Light - Circuit Diagram (9 Of 10)

G07573771

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

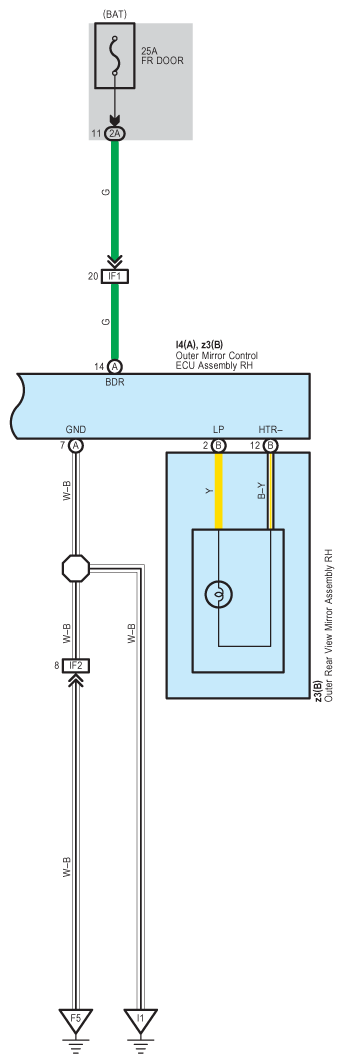

Fig 10: Interior Light - Circuit Diagram (10 Of 10)

G07573772

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
